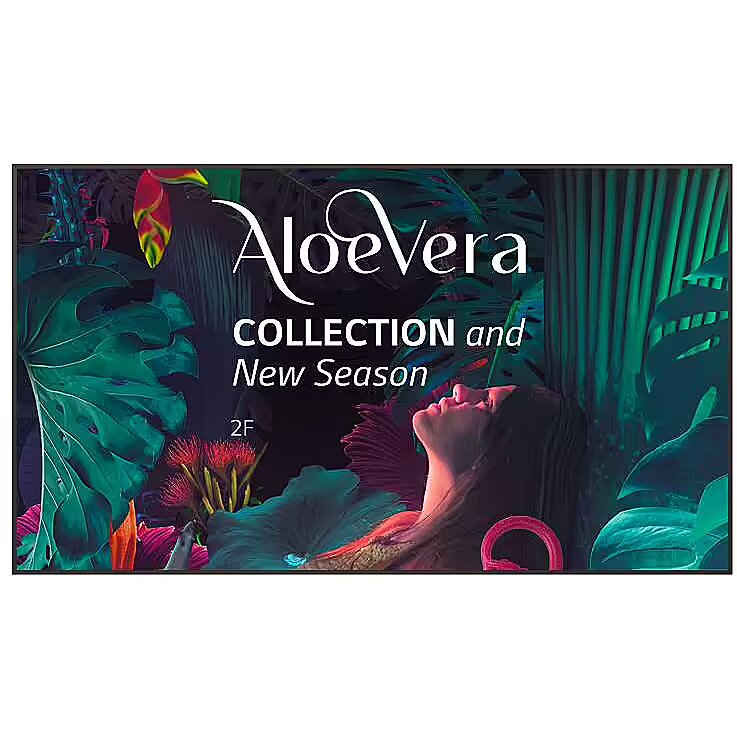

LG 86UH5N-M

600 mm x 400 mm VESA mounting interface - Yes
Aspect ratio - 16:9
Audio - Built-in speaker(s) - Yes
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Audio - RMS rated power - 20 W
Bluetooth - Yes
Brand - LG
BrandPartCode - 86UH5N-M
Brightness - 500
Built-in speakers - Yes
Category - Signage Displays
Category Code - LCD
Colour - Black
Computer system - Computer system - Yes
Computer system - Computer system type - System on Chip (SoC)
Computer system - Internal memory - 16 GB
Computer system - Operating system installed - WebOS
Computer system - Operating system version - 6.0
Connections - Digital Audio Out (Optical)
Connections - Ethernet (RJ-45)
Connections - HDMI
Connections - IR
Connections - RS-232C
Connections - USB-A (USB 2.0)
Contrast - 1200:1
Contrast ratio (typical) - 1200:1
Depth Product Dimensions - 29.7 mm
Description - - Resolution : 3840 × 2160 (UHD) - Brightness : 500 nits (Typ.) - Surface Treatment (Haze) : 25% - Bezel Width : 13.4 mm
Description - LG 86UH5N-M 86" UHD IPS 500 NITS 24/7 SOC WIFI HAZE
Design - Bezel width (bottom) - 1.34 cm
Design - Orientation - Horizontal
Design - Panel mounting interface - 600 x 400 mm
Design - Placement supported - Indoor
Design - Product colour - Black
Design - Product design - Digital signage flat panel
Design - VESA mounting - Yes
Dimensions W x D x H, mm - 1928.8 x 29.7 x 1099.8
Display - Colour depth - 8 bit
Display - Colour gamut - 95%
Display - Contrast ratio (dynamic) - 1000000:1
Display - Contrast ratio (typical) - 1200:1
Display - Display brightness - 500 cd/m²
Display - Display diagonal - 2.18 m (86")
Display - Display number of colours - 1.07 billion colours
Display - Display resolution - 3840 x 2160 pixels
Display - Display technology - LED
Display - Haze rate - 25%
Display - HD type - 4K Ultra HD
Display - LED backlight - Yes
Display - LED backlighting type - Edge-LED
Display - Native aspect ratio - 16:9
Display - Native refresh rate - 120 Hz
Display - Panel life - 50000 h
Display - Panel type - IPS
Display - Response time - 8 ms
Display - Touchscreen - No
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Displayable colours - 1070 million
Display brightness, cd/m² - 500
Display diagonal, " - 86
DisplayPort Input/Output connectors - 1
Display resolution, pixels - 3840 x 2160
DVI-D Input/Output connectors - 1
Dynamic contrast (DCR) - 1000000:1
Energy efficiency class - B
Features - Heat dissipation (max) - 1013 BTU/h
Full Description Line - Digital signage LFD|Model 86UH5N-M|86"|Panel IPS|Resolution 3840x2160|Form factor 16:9|Refresh rate 120Hz|Brightness 500|Contrast 1200:1|Dynamic contrast (DCR) 1000000:1|Response time 8 ms|Horizontal 178 degrees|Vertical 178 degrees|Displayable colours 1070 million|1xDVI-D|3xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xRS232|2xUSB 2.0|1xRJ45|PSU Inbuilt|600 mm x 400 mm|Operation time hours/day 24/7|Colour Black
Green certifications - Energy Star
GTIN - 8806096233740
HDMI Input/Output connectors - 3
Height - 1240.000000
Height Product Dimensions - 1099.8 mm
Internal player - Yes
IP classification - IP5X
Length - 2100.000000
LongDesc - Large UHD Signage Display with Slim DesignEye-catching Large ScreenA large screen effectively captures people's attention. Especially, 75-inch model supports 60Hz, enabling smooth content operation.Sturdy Design with Fire Flame ResistanceThe outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.* Based on third party testing, the case top and back cover of the product are classified Class A1 (case top) and A2 (back cover) under EN13501-1, Class 1 under BS476 Part 7.Slim Depth with Even BezelDespite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options.Versatile Operation with Multi-USBWith support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.High Resolution DisplayIt offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.Convenient webOS PlatformThe UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.Durability that Provides ReliabilityOptimized for business environments, the UH5N-M is protected against rust and dust with conformal coating and IP5x certification, allowing for stable operation.Enhanced Security FeaturesThe UH5N-M provides advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.SuperSign SolutionsSuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
LongProductName - 86", 4K UHD (3840 x 2160), IPS 500 nit, 8 ms, IP5X, Wi-Fi, webOS 6.0
LongSummaryDescription - LG 86UH5N-M. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black
Manufacturer - LG Electronics
ManufacturerPartNumber - 86UH5N-M
Model name - 86UH5N-M
Native resolution - 3840x2160
Operating system provided - webOS 6.0
Operating temperature range - 0 °C to 40 °C
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Operating relative humidity (H-H) - 10 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operation time - 24/7
Operation time hours/day - 24/7
Other features - Audio output - 1
Other features - Plug and Play - Yes
Packaging content - Batteries included - Yes
Packaging content - Cables included - AC, Phone
Packaging content - Remote control included - Yes
Packaging data - Package depth - 253 mm
Packaging data - Package height - 1250 mm
Packaging data - Package weight - 65.5 kg
Packaging data - Package width - 2100 mm
Panel type - ADS
Panel type - IPS
Performance - Automatic brightness control - Yes
Performance - HDCP - Yes
Performance - HDCP version - 1.4/2.2/2.3
Performance - International Protection (IP) code - IP5X
Performance - On Screen Display (OSD) - Yes
Performance - Operating hours (hours/days) - 24/7
Performance - Purpose - Universal
PeriodofWarranty -
Pivot - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DVI port - No
Ports & interfaces - Ethernet LAN - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI input ports quantity - 3
Ports & interfaces - HDMI ports quantity - 3
Ports & interfaces - Remote (IR) input - 1
Ports & interfaces - RS-232C - Yes
Ports & interfaces - USB connector type - USB Type-A
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 2
Ports & interfaces - USB version - 2.0
Ports & interfaces - Wi-Fi - Yes
Power - AC input frequency - 50-60 Hz
Power - AC input voltage - 100-240 V
Power - Heat dissipation - 672 BTU/h
Power - Power consumption (max) - 297 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 197 W
Power consumption (max.), W - 297
Power consumption (standby), W - 0.5
Power consumption, W - 205
Power supply - Inbuilt
ProductName - 86UH5N-M
Product name - Digital signage LFD
Product Net Weight - 52.7 kg
Refresh rate - 120Hz
Refresh rate, Hz - 120
Response time - 8 ms
Response time, ms - 8
RJ45 Input/Output connectors - 1
RS232 Input/Output connectors - 1
Screen form factor - 16:9
Screen size - 86"
Shipping Box Depth Shipping/Package Box Dimensions - 209 cm
Shipping Box Height Shipping/Package Box Dimensions - 24.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 72 kg
Shipping Box Width Shipping/Package Box Dimensions - 215 cm
ShortSummaryDescription - LG 86UH5N-M, Digital signage flat panel, 2.18 m (86"), LED, 3840 x 2160 pixels, Wi-Fi, 24/7
Speaker power, W - 2 x 10
Technical details - Real Time Clock (RTC) - Yes
Title - LG 86UH5N-M Signage Display Digital signage flat panel 2.18 m (86") LED Wi-Fi 500 cd/m² 4K Ultra HD Black WebOS 24/7
Touch sensitive screen - No
Unit Box Height - 0.245
Unit Box Length - 2.09
Unit Box Width - 2.15
Unit Calculated Volume Retail box Dimensions - 1.10091 cubm
Unit Calculated Weight - 72 kg
Units per Shipping Box - 1
URL - https://www.lg.com/global/business/digital-signage/lg-86uh5n-m
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.lg.com/global/business/digital-signage/lg-86uh5n-m
VESA-standard, mm - 600 x 400
Viewing angle, horizontal, ° - 178
Viewing angle, vertical, ° - 178
Viewing angle horizontal - 178 degrees
Viewing angle vertical - 178 degrees
Warranty - 36 months
WarrantyInfo -
Weight - 66.700000
Weight & dimensions - Display depth - 29.7 mm
Weight & dimensions - Display height - 1099.8 mm
Weight & dimensions - Display weight - 52.7 kg
Weight & dimensions - Display width - 1928.8 mm
Weight, kg - 53
Wi-Fi - Yes
Width - 250.000000
Width Product Dimensions - 1928.8 mm
