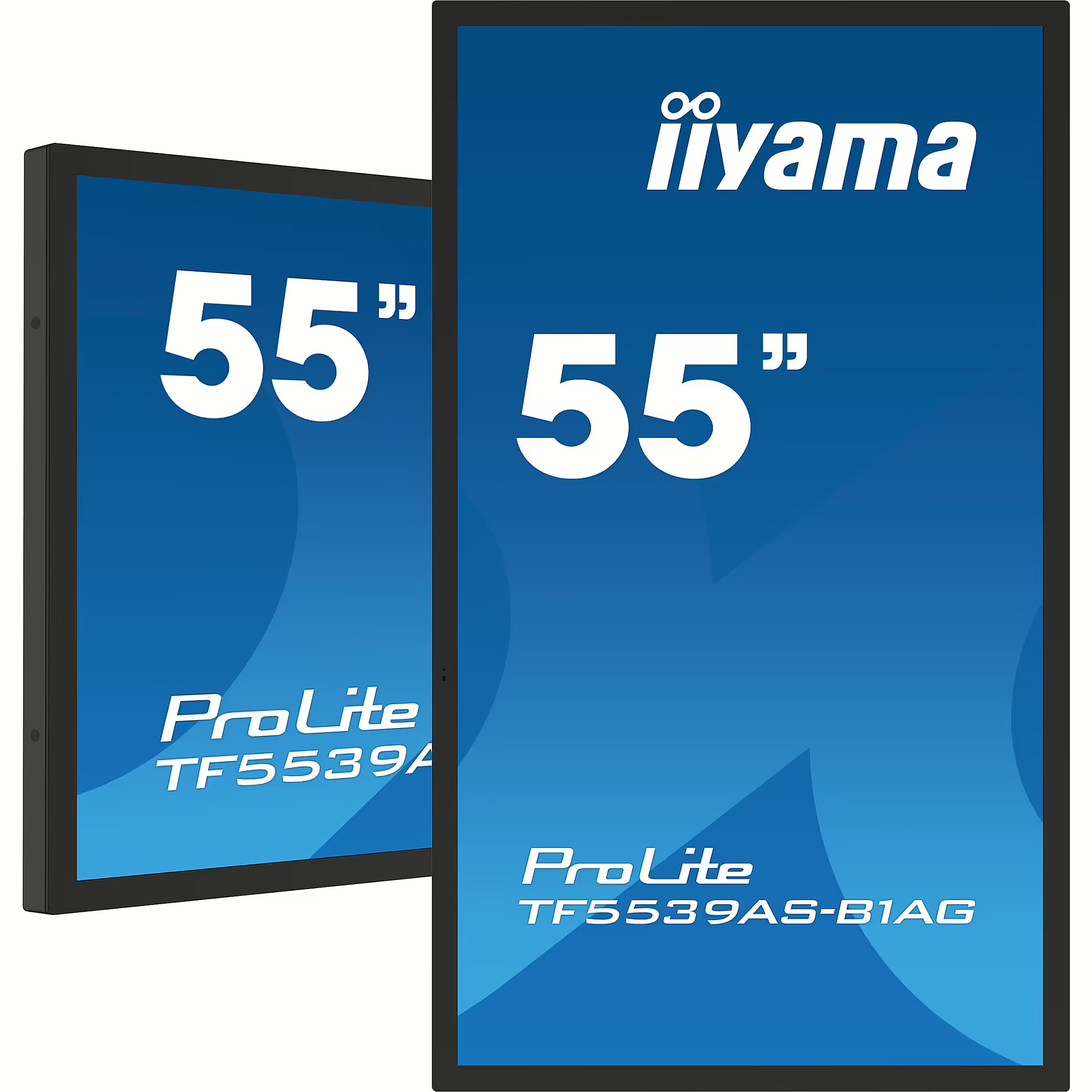

Iiyama TF5539AS-B1AG

ACinputfrequency - 50/60 Hz
ACinputvoltage - 100 - 240 V
ARTIKEL1 - TF5539AS-B1AG
ARTIKEL2 - 40 POINTS 3840X2160 8MS 24/7 500
Audio -
Audio - Built-in speaker(s) - Yes
Audio - Number of built-in speakers - 2
Audio - RMS rated power - 20 W
Audioformatssupported -
Batteriesincluded - Yes
Brand - iiyama
BrandPartCode - TF5539AS-B1AG
Builtinspeakers - Yes
Cablesincluded - AC, DisplayPort, HDMI, USB
Category - Signage Displays
Category 1 - Displays
Category 2 - Monitore
Certificates - Certification - TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Computersystem - Yes
Computer system - Built-in processor - Yes
Computer system - Computer system - Yes
Computer system - Internal memory - 4 GB
Computer system - Internal storage capacity - 32 GB
Computer system - Operating system installed - Android
Computer system - Operating system version - 11
Computer system - Processor architecture - ARM Cortex-A53+Cortex-A73
Computer system - Processor manufacturer - ARM
Contrastratiodynamic -
Contrastratiotypical - 1200:1
Design -
Design - Bezel width (bottom) - 3 cm
Design - Bezel width (side) - 3 cm
Design - Bezel width (top) - 3 cm
Design - Orientation - Horizontal/Vertical
Design - Panel mounting interface - 400 x 400 mm
Design - Placement supported - Indoor
Design - Product colour - Black
Design - Product design - Digital signage flat panel
Design - Screen shape - Flat
Design - VESA mounting - Yes
Display -
Display - Active display area (W x H) - 1209.6 x 680.4 mm
Display - Contrast ratio (typical) - 1200:1
Display - Display brightness - 500 cd/m²
Display - Display diagonal - 138.7 cm (54.6")
Display - Display diagonal (metric) - 139 cm
Display - Display number of colours - 1.07 billion colours
Display - Display resolution - 3840 x 2160 pixels
Display - Display technology - LED
Display - Glass thickness - 3 mm
Display - Haze rate - 25%
Display - HD type - 4K Ultra HD
Display - Horizontal scan range - 28 - 160 kHz
Display - LED backlight - Yes
Display - Multi-touch - Yes
Display - Native aspect ratio - 16:9
Display - Native refresh rate - 60 Hz
Display - Number of simultaneous touchpoints - 40
Display - Panel type - IPS
Display - Pixel pitch - 0.315 x 0.315 mm
Display - Response time - 8 ms
Display - Surface hardness - 3H
Display - Touchscreen - Yes
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Displaybrightness - 500 cd/m²
Displaydepth - 65.2 mm
Displaydiagonal - 138.7 cm (54.6")
Displayheight - 744.8 mm
Displaynumberofcolours - 1.07 billion colours
DisplayPortsin -
DisplayPortsout -
DisplayPortsquantity - 1
Displayresolution - 3840 x 2160 pixels
Displaytechnology - LED
Displayweight - 39.6 kg
Displaywidth - 1274 mm
DVIIportsquantity -
DVIport - No
EAN - 4948570123896
EANCode - 4948570123896
EnergyconsumptionSDRper1000hou - 78 kWh
EnergyefficiencyclassSDR - F
Energyefficiencyscale - A to G
EthernetLAN - Yes
EthernetLANRJ45ports - 1
EUEnergyLabel - https://www.tdbaltic.ee/leaflets/IIYAMA/TF5539AS-B1AG_eu_energy_label.pdf
Gewicht - 51
GRUPPE1 - Displays
GRUPPE2 - Lcd Touchscreen
GTIN - 4948570123896
Hazerate - 25%
HDMIinputportsquantity -
HDMIoutputportsquantity -
HDMIportsquantity - 2
HDMIversion - 2.0
HDtype - 4K Ultra HD
HERSTELLER - IIYAMA CONSIGNMENT
HighLights -
HSTNUMMER - TF5539AS-B1AG
Imageformatssupported -
LongDesc -
LongDesc - Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen. The refined edge-to-edge glass design of the TF5539AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks. The on-board iiSignage² CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before. For ease of integration, the TF5539AS-B1AG can be equipped with optional external mounting brackets ( OMK4-2 ).
LongProductName - 55" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing
LongSummaryDescription - iiyama 55" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing. Product design: Digital signage flat panel. Display diagonal: 138.7 cm (54.6"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD, Touchscreen. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
Manufacturer - iiyama
ManufDatasheet - https://www.tdbaltic.ee/leaflets/IIYAMA/TF5539AS-B1AG.pdf
MPN - TF5539AS-B1AG
Name - IIYAMA 139.0cm(54.6") TF5539AS-B1AG 16:9 M-Touch 2xHDMI+DP (Speditionsversand)
Nativerefreshrate - 60 Hz
Numberofbuiltinspeakers - 2
Operatinghourshoursdays - 24/7
OperatingrelativehumidityHH -
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Orientation - Horizontal/Vertical
Packagingcontent -
Packaging content - Batteries included - Yes
Packaging content - Cables included - AC, DisplayPort, HDMI, USB
Packaging content - Remote control included - Yes
Packaging data - Package depth - 185 mm
Packaging data - Package height - 894 mm
Packaging data - Package volume - 47200 cm³
Packaging data - Package width - 1428 mm
Panellife -
Panelmountinginterface - 400 x 400 mm
Paneltype - IPS
Performance -
Performance - HDCP - Yes
Performance - HDCP version - 2.2
Performance - International Protection (IP) code - IP54
Performance - Mean time between failures (MTBF) - 50000 h
Performance - Number of OSD languages - 13
Performance - On Screen Display (OSD) - Yes
Performance - On Screen Display (OSD) languages - Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Polish, Russian, Slovenian
Performance - Operating hours (hours/days) - 24/7
Performance - Purpose - Universal
Pixelpitch - 0.315 x 0.315 mm
Placementsupported - Indoor
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.2
Ports & interfaces - DVI port - No
Ports & interfaces - Ethernet LAN - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - RS-232C - Yes
Ports & interfaces - USB 2.0 Type-B ports quantity - 1
Ports & interfaces - USB connector type - USB Type-A, USB Type-B
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 3
Portsinterfaces -
Power -
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 78 kWh
Power - Energy efficiency class (SDR) - F
Power - Energy efficiency scale - A to G
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 139 W
Powerconsumptionstandby - 0.5 W
Powerconsumptiontypical - 139 W
ProdDesc - iiyama 54.6", 139 cm, IPS LED, 3840 x 2160, 16:9, 5000:1, 8 ms, 40 Touchpoints, HDMI x 2, DP x1, RJ-45
Productcolour - Black
Productcondition - Original
Productdesign - Digital signage flat panel
ProductHighLights -

• Indoor Digital signage flat panel Black
• 138.7 cm (54.6") 3840 x 2160 pixels LED 500 cd/m²
• Touchscreen 60 Hz 8 ms
• Ethernet LAN
• Built-in speaker(s) 20 W

ProductName - 55" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing
ProductPicture - https://www.tdbaltic.ee/images/products/IIYAMA/TF5539AS-B1AG_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/IIYAMA/TF5539AS-B1AG_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/IIYAMA/TF5539AS-B1AG_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/IIYAMA/TF5539AS-B1AG_4.jpg
ProductPicture4 - https://www.tdbaltic.ee/images/products/IIYAMA/TF5539AS-B1AG_5.jpg
ProductPicture5 - https://www.tdbaltic.ee/images/products/IIYAMA/TF5539AS-B1AG_6.jpg
Purpose - Universal
Remotecontrolincluded - Yes
RemoteIRinput -
RemoteIRoutput -
Responsetime - 8 ms
RMSratedpower - 20 W
RS232C - Yes
ShortSummaryDescription - iiyama 55" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing, Digital signage flat panel, 138.7 cm (54.6"), LED, 3840 x 2160 pixels, 24/7
Stck_Kart - 1
Stck_Pal - 0
StoragerelativehumidityHH -
StoragetemperatureTT - -20 - 60 °C
Storno - Y
Title - iiyama 55" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing
URL - https://iiyama.com/
USBport - Yes
USBportsquantity - 3
USBversion -
VESAmounting - Yes
Videoformatssupported -
Viewinganglehorizontal - 178°
Viewinganglevertical - 178°
Warranty - 36 months
Warrantyandmisc -
WarrantyInfo -
Weight & dimensions - Display depth - 65.2 mm
Weight & dimensions - Display height - 744.8 mm
Weight & dimensions - Display weight - 39.6 kg
Weight & dimensions - Display width - 1274 mm
Weightdimensions -
