ARTIKEL1 - DS3608-XR CORDED SIEMENS
ARTIKEL2 - INDUSTRIAL ETHERNET (STRAIGHT CA
Brand - Zebra
BrandPartCode - DS3608-XR3RF50BZVW
Breite - 0
Category - Barcode Readers
EANCode - 5656565656562
Gewicht - 0
GRUPPE1 - POS
GRUPPE2 - Handheld Barcode
HERSTELLER - ZEBRA
Hoehe - 0
HSTNUMMER - DS3608-XR3RF50BZVW
Laenge - 0
LongDesc - DS3600-XR Ultra-Rugged ScannerUnstoppable performance now with the industry’s longest scanning rangeWhen tasks get tougher, you need a scanner that’s ready for the job. The DS3600-XR sets a new standard in extended range performance, enabling workers to scan faster, farther and more accurately than ever before. The DS3600-XR maintains the proven ruggedness of the DS3600-ER, increases scanning range by more than 40% and aimer visibility up to 7x — while decreasing device weight by 10%. The DS3600-XR delivers an edge over the competition for both rapidly proliferating 2D barcodes and traditional 1D. It seamlessly reads barcodes from as close as 2 in./5 cm to over 105 ft./32 m — nearer and farther than any scanner in its class. A high visibility green laser aimer makes scanning easier and more accurate at varying distances and lighting conditions. The DS3600-XR is virtually indestructible with a best-in-class 10 ft./3 m drop spec to concrete. Superior cordless technology makes it easier for your workers to use and manage their cordless scanners. And Zebra DataCapture DNA takes scanner performance far beyond the basics.
LongProductName - 1D/2D, 520 nm laser, 1280x800, 2x LEDs 2700K, Ethernet, USB, RS232
LongSummaryDescription - Zebra DS3608-XR. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: Laser. Connectivity technology: Wired, Standard interfaces: Keyboard wedge, RS-232, USB. Product colour: Black, Green, International Protection (IP) code: IP67, Protection features: Water resistant. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 3100 mAh. Weight: 308 g, Width: 132 mm, Depth: 76 mm
Operational conditions - Drop resistance - 2.4 m
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 50 °C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging data - External power adapter - Yes
Performance - International Protection (IP) code - IP67
Performance - LED indicators - Yes
Performance - Print contrast - 25%
Performance - Product colour - Black, Green
Performance - Programming function - Yes
Performance - Protection features - Water resistant
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Ethernet LAN - Yes
Ports & interfaces - Standard interfaces - Keyboard wedge, RS-232, USB
Power - Battery capacity - 3100 mAh
Power - Battery technology - Lithium-Ion (Li-Ion)
Power - Power source type - Battery
ProductName - DS3608-XR
Scanning - 2D (matrix & stacked) barcodes supported - Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Scanning - Linear (1D) barcodes supported - Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
Scanning - Optical sensor resolution (W x H) - 1280 x 800 pixels
Scanning - Pitch reading angle - -60 - 60°
Scanning - Scanner type - 1D/2D
Scanning - Sensor type - Laser
Scanning - Tilt reading angle - -60 - 60°
Scanning - Type - Handheld bar code reader
Scanning - Wavelength - 520 nm
Scanning - Yaw reading angle - -360 - 360°
ShortSummaryDescription - Zebra DS3608-XR, Handheld bar code reader, 1D/2D, Laser, Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C., Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417,..., 1280 x 800 pixels
Stck_Kart - 0
Stck_Pal - 0
Storno - N
Technical details - Compliance certificates - RoHS

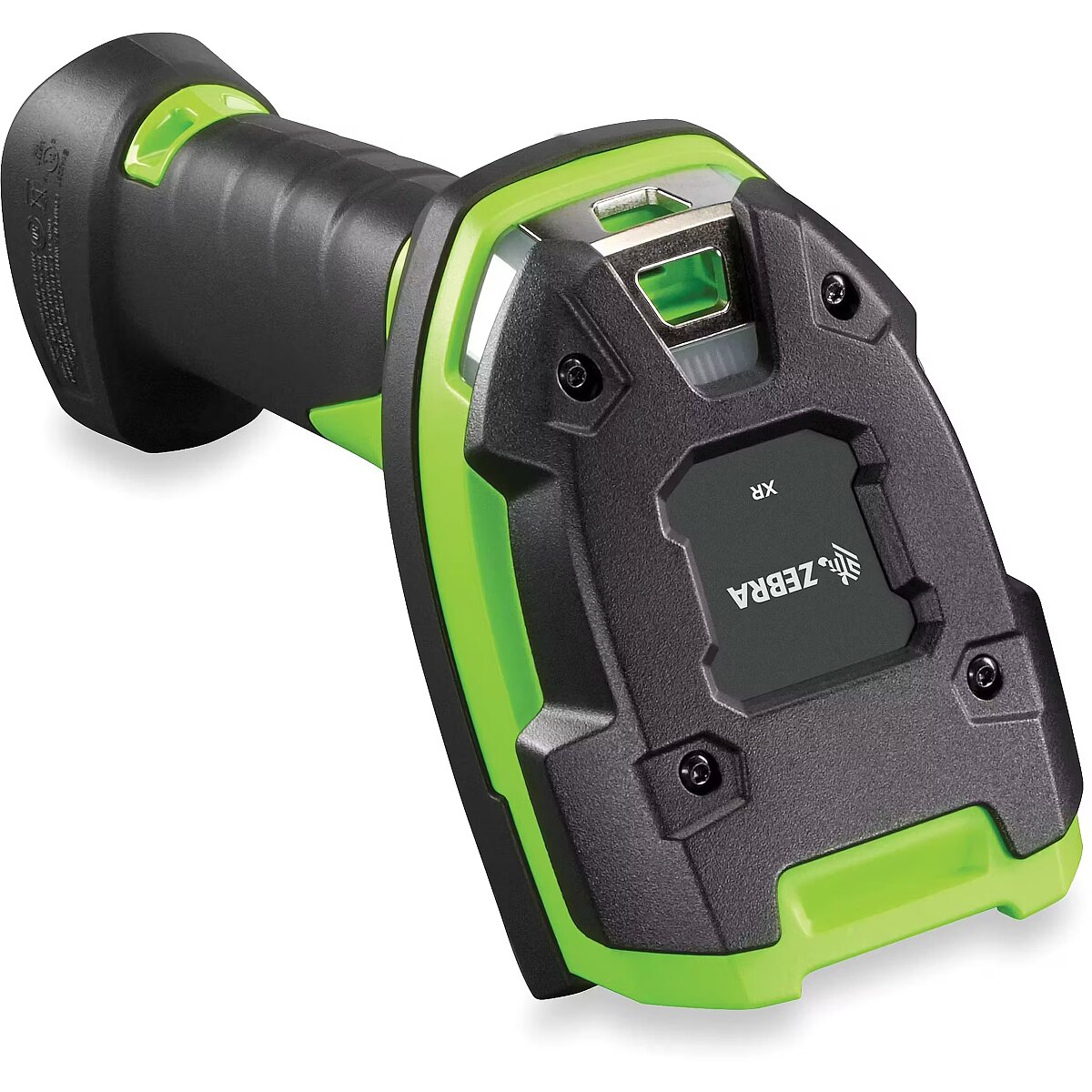

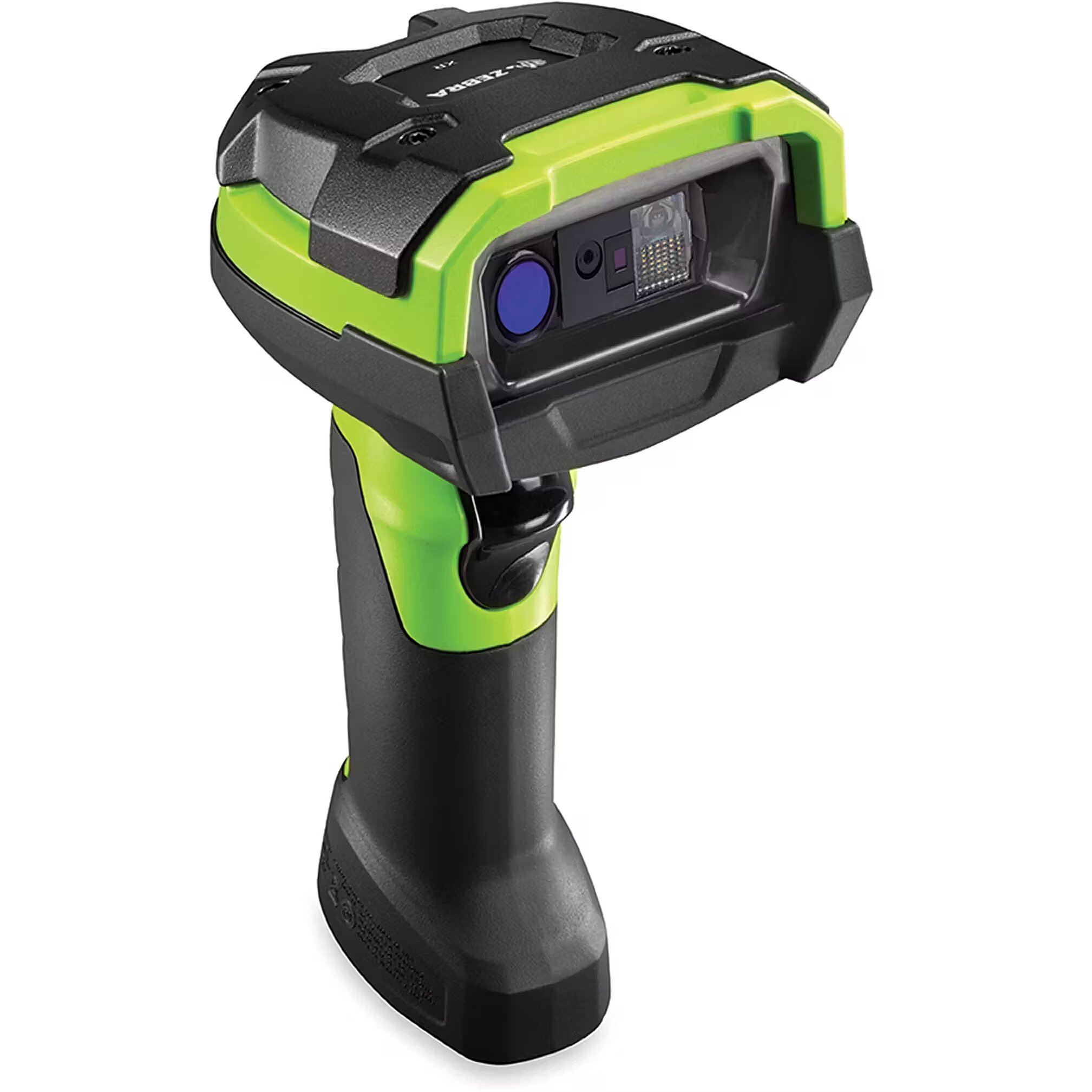

Title - Zebra DS3608-XR Handheld bar code reader 1D/2D Laser Black, Green
URL - https://www.zebra.com/us/en/products/spec-sheets/scanners/ultra-rugged-scanners/ds3600-xr.html
WarrantyInfo -
Weight & dimensions - Depth - 76 mm
Weight & dimensions - Height - 185 mm
Weight & dimensions - Weight - 308 g
Weight & dimensions - Width - 132 mm
