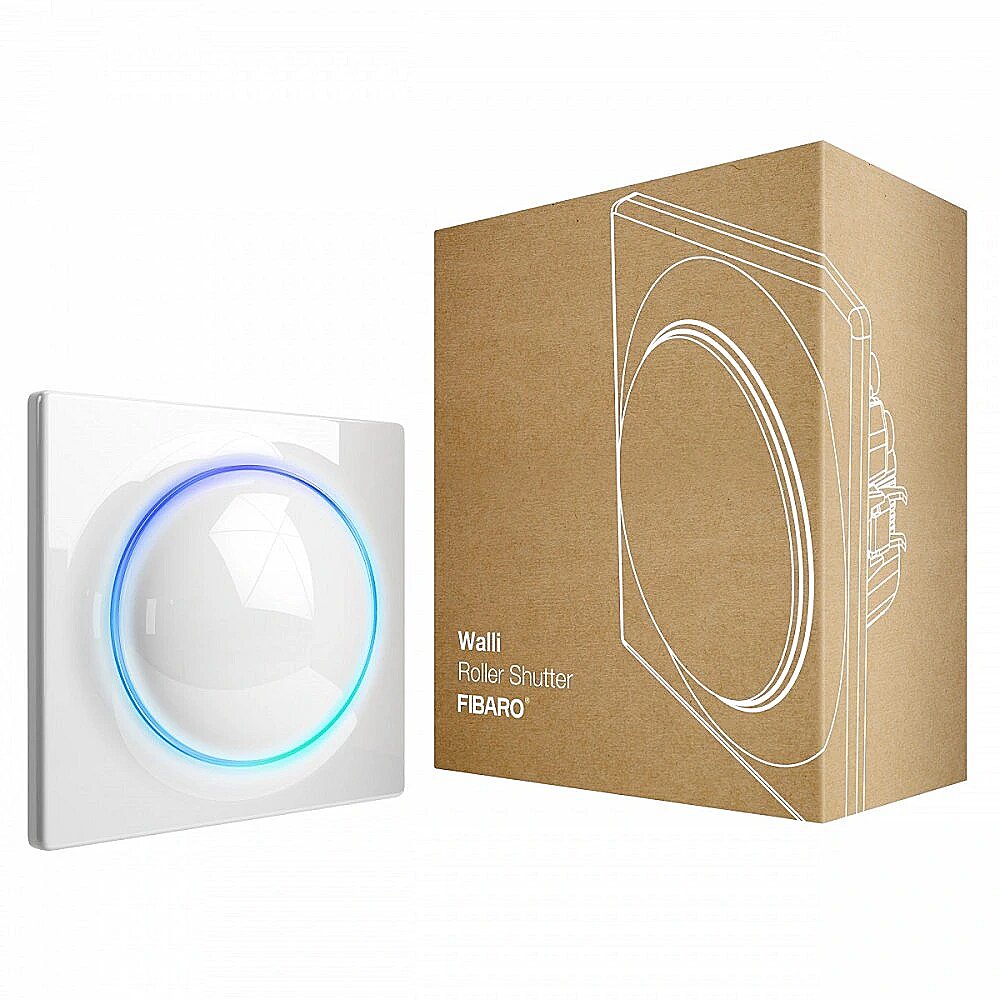

Fibaro Walli Roller Shutter

Code - FGWREU111 ZW5 EU
dimensionalWeight - 243
EAN - 5902701701376
Features - Compatible load types - Resistive
Features - Connectivity technology - Wireless
Features - Maximum indoor range - 40 m
Features - Maximum outdoor range - 50 m
Features - Product colour - White
Features - Supported radio protocols - Z-Wave
Features - Transmit power - 6 dBmW
Features - Type - Roller lever type switch
Features - Wire size range - 1.5 - 4 mm²
Features > Colour of product - White
Features > Connectivity technology - Wireless
Gross weight - 0.196 kg
Link - https://www.fibaro.com/en/products/smart-switches-and-outlets-walli-roller-shutter/
Name - Fibaro | Walli Roller Shutter | Z-Wave EU | White
Operational conditions - Operating relative humidity (H-H) - 10 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 35 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 115.00 mm
Package features > Gross height (mm) - 140 mm
Package features > Gross width (mm) - 75.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 716 pc(s)
Package features > Paper/Pasteboard - 60 g
Package features > Plastic (No PET) - 15 g
Package features > Tare weight (kg) - 0.075 kg
Package features > Volume (m3) - 0.0012075 m³
Package features > WEEE tax - No
Performance > Remotely operated - Yes
Performance > Type - Actors
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 110 - 230 V
Power - Rated load current (inductive) - 4 A
Power - Rated load current (resistive loads) - 13 A
producerCode - FGWREU-111
productName - Fibaro Walli electrical switch Roller lever switch White
productSize - Normal
sizeX - 140
sizeY - 116
sizeZ - 75
Technical details > Input connection type - Type F (Schuko)
Technical details > Net weight - 0.121 kg
Technical details > Other features - Power Supply 110-230V~ 50/60 Hz. Recommended external overcurrent protection 10A type B circuit breaker (EU). Active element micro-gap relay μ. Required limit switches electronic or mechanical. Recommended wires cross-section area between 1.5-4.0mm2. For installation in flush-mounted boxes Ø = 60mm depth ≥ 40mm. Operating temperature 0-35 °C. Ambient humidity 10–95% RH without condensation.
Technical details > Output connection type - Type F (Schuko)
Technical details > Overload protection - Yes
Technical details > Producer - Fibaro
Technical details > Producer product name - Walli Roller Shutter
Technical details > Sockets quantity - 1
Technical details > Special features - The FIBARO Walli Roller Shutter is a small flush-mounted module combined with an optically appealing switch which can be used to control motors for roller shutters, awnings, blinds and other AC-powered drives. With one click you can control all your blinds and react in real time to changing environmental conditions. The small FIBARO Walli Roller Shutter measures both active power and energy consumption. With its LED ring you are informed about the current energy consumption. The installation is easy and can be carried out according to your individual wishes. Use the included switch, which was inspired by the timeless elegance and flowing appearance of a pearl, or your own switch series (GIRA System 55**, Legrand Celiane, Schneider Odace).
Technical details > Supported network protocols - Z-Wave EU
Technical details > Transmit power - 1 mW
Technical details > USB charging port - No
Technical details > Warranty - 24 month(s)
Warranty - 24
warrantyLength - 24
warrantyType - F
weight - 200
Weight & dimensions - Depth - 51 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 86 mm
