Camera - Maximum frame rate - 30 fps
Camera - Maximum video resolution - 1920 x 1080 pixels
Camera - Megapixel (approx.) - 2 MP
Camera - Supported video modes - 720p
Camera - Supported video modes - 1080p
Camera - Viewing angle, horizontal - 124°
Camera - Viewing angle, vertical - 75°
Design - IK code - IK08
Design - International Protection (IP) code - IP65
Design - LED indicators - Yes
Design - Placement supported - Vertical
Design - Product colour - Black
Design - Product colour - Grey
Design - Proper use - Outdoor
dimensionalWeight - 897
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100 Mbit/s
Network - Networking standards - IEEE 802.3af
Network - Power over Ethernet (PoE) - Yes
Network - Supported network protocols - TCP/IP, RSTP
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 3 m
Operational conditions - Operating relative humidity (H-H) - 10 - 95%
Operational conditions - Operating temperature (T-T) - -40 - 53 °C
Packaging data - Indoor unit included - No
Packaging data - Outdoor unit included - Yes
Power - AC adapter output voltage - 12 V
Power - Outdoor unit power type - DC
Power - Power consumption (typical) - 10 W
producerCode - DS-KV8113-WME1(C)

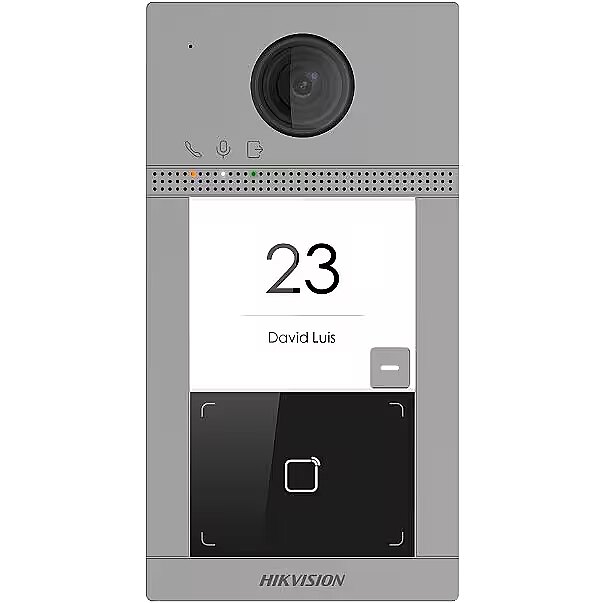

productName - Villa Door Station HIKVISION DS-KV8113-WME1(C)
productSize - Normal
Safety warning - Warnings - Do not expose to moisture or extreme temperatures as this may damage the unit.
Safety warning - Warnings - Electrical equipment can be a source of electric shock. Do not open the housing without disconnecting the power supply.
Safety warning - Warnings - The product contains electronic parts which may be hazardous if dismantled.
sizeX - 230
sizeY - 130
sizeZ - 150
Software - Operating system installed - Embedded LINUX
Technical details - Built-in microphone - Yes
Technical details - Built-in speaker(s) - Yes
Technical details - Colour - Yes
Technical details - Connectivity technology - Wired
Technical details - Echo cancellation - Yes
Technical details - Frequency band - 2.4 - 2.4835 GHz
Technical details - Motion detection function - Yes
Technical details - Number of buttons - 1 buttons
Technical details - Speakerphone - Yes
Technical details - Streaming capability - Yes
Technical details - Video codecs - H.264
Technical details - Voice codecs - G.711a
Technical details - Voice codecs - G.711u
Technical details - Wall mountable - Yes
warrantyLength - 24
warrantyType - G
weight - 590
Weight & dimensions - Depth - 29 mm
Weight & dimensions - Height - 174 mm
Weight & dimensions - Weight - 380 g
Weight & dimensions - Width - 91 mm
