Axagon PCEU-43RS PCIe Adapter 4x USB3.0 UASP VIA, 15-pin SATA Stromversorgung

Accessories included - PCI-Express controller with a standard bracket, low-profile bracket multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA, packed in a cardboard box.
Box Weight Brutto (kg) - 0.1 kg
Brand - Axagon
BrandPartCode - PCEU-43RS
Category - Interface Cards/Adapters
category - PC Components|Network & Adapter Cards|Adapter Cards|USB 3.0
Category Code - IOC
Chipset type - Renesas PD720201
code - PCEU-43RS
Code - PCEU-43RS
Controller Features - Hot-plug Drive Support
Controller Form Factor - Plug-in Card
Controller type - USB 3.0
Data Transfer Rate - 5 Gbps

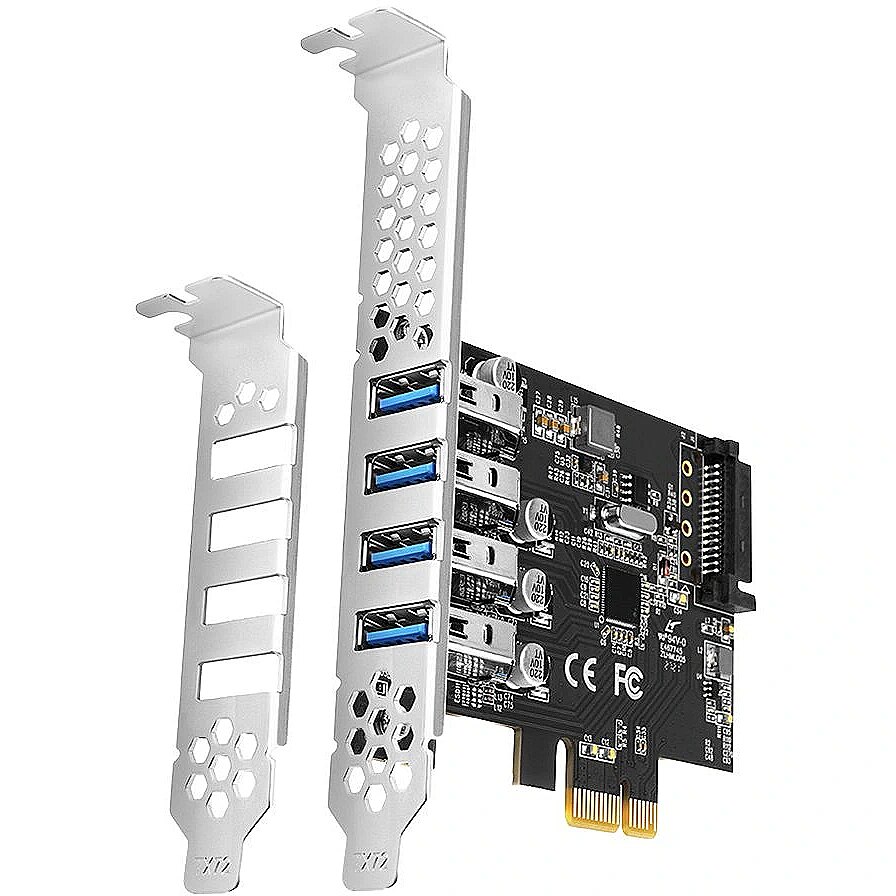

Description - AXAGON PCEU-43RS PCI-Express card adds four external USB 3.2 Gen 1 ports to your desktop computer. The card is designed for fast data transfers at speeds up to 5 Gb/s. All four SuperSpeed USB ports are taken out to the bracket. The dual power supply of the controller enables standard power supply of the controller and connected USB peripherals via the PCI-Express bus as well as optional power supply from the PC power supply via the SATA power connector. The USB controller is equipped with a renowned Renesas company chipset with proven seamless compatibility, high performance and UASP support. Low profile bracket is included in the package for mounting the adapter into low profile cases. Input:
PCI-Express 2.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.1 / 3.0. Number of lines: 1-Lane (x1), compatible with x1 / x4 / x8 / x16 PCIe slots. A bandwidth of 1-Lane PCI-Express 2.0 bus is 5 Gb/s. Output:
4x external USB 3.2 Gen 1 port with USB type A-F connectors. SuperSpeed USB - USB 3.2 Gen 1 interface (before USB 3.1 Gen 1 / USB 3.0). Compatible with USB 3.2 Gen 2, backward compatible with USB 2.0 a USB 1.1. Supports transmission rates 5000 / 480 / 12 / 1.5 Mb/s (super / high / full / low speed). When connected to a PCI-Express bus version 1.0, theor. transmission rate max. 2500 Mb/s. Other features:
Full Plug and Play support. Supports concurrent activity of SuperSpeed USB, USB 2.0 and USB 1.1 devices. Compliant with the final official xHCI specification revision 1.0 by USB-IF. Supports UASP (USB Attached SCSI) for faster data transmission in Windows 8 and later. Fully supports Hot Plug connecting and disconnecting of USB devices while running. Standard power supply for the controller and connected USB peripherals via the PCI-Express bus. In this power supply mode, the PCIe controller can handle up to three magnetic 2.5" external disks simultaneously. Optional power supply from PC source via SATA power connector. Renesas PD720201 chipset is used. Supported operating systems:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 and later (supported are all 32- and 64-bit Windows OS versions), Linux with kernel 2.6.31 and above. Note: Drivers are only installed for Windows XP / Vista / 7. For Linux, Windows 8 / 8.1 / 10 / 11, Server 2012 / 2016 / 2019 / 2022 and later versions, no external drivers are required, they are already part of the operating system. Package contains:
PCI-Express controller with a standard bracket, low-profile bracket multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA, packed in a cardboard box.
Description - PCEU-43RS PCIe controller 4x SuperSpeed USB PCI-Express card with four external USB 3.2 Gen1 ports with dual power. Renesas chipset. Standard & Low profile. AXAGON PCEU-43RS PCI-Express card adds four external USB 3.2 Gen 1 ports to your desktop computer. The card is designed for fast data transfers at speeds up to 5 Gb/s. All four SuperSpeed USB ports are taken out to the bracket. The dual power supply of the controller enables standard power supply of the controller and connected USB peripherals via the PCI-Express bus as well as optional power supply from the PC power supply via the SATA power connector. The USB controller is equipped with a renowned Renesas company chipset with proven seamless compatibility, high performance and UASP support. Low profile bracket is included in the package for mounting the adapter into low profile cases.
Design - Certification - CE
Design - Country of origin - China
Design - Easy to install - Yes
Design - Hot-Plug support - Yes
Design - Internal - Yes
Designation - CE+WEEE
dimension depth - 25 mm
dimension height - 145 mm
Dimensions -
dimension weight - 92 g
dimension width - 110 mm
EAN - 8595247906960
ean - 8595247906960
EAN Code - 8595247906960
Features - Data transfer rate (max) - 5 Gbit/s
Features - Plug and Play - Yes
GTIN - 8595247906960
guarantee - 24
guarantee_type - normal
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/230119090012201359.jpg
Included Accessories - - PCI-Express controller with a standard size bracket
- low profile braket
- installation guide
Interface - PCIe
Link - https://www.axagon.eu/en/produkty/pceu-43rs
LongDesc - AXAGON PCEU-43RS PCI-Express card adds four external USB 3.2 Gen 1 ports to your desktop computer. The card is designed for fast data transfers at speeds up to 5 Gb/s.All four SuperSpeed USB ports are taken out to the bracket. The dual power supply of the controller enables standard power supply of the controller and connected USB peripherals via the PCI-Express bus as well as optional power supply from the PC power supply via the SATA power connector.The USB controller is equipped with a renowned Renesas company chipset with proven seamless compatibility, high performance and UASP support.Low profile bracket is included in the package for mounting the adapter into low profile cases.Input: • PCI-Express 2.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.1 / 3.0.• Number of lines: 1-Lane (x1), compatible with x1 / x4 / x8 / x16 PCIe slots.• A bandwidth of 1-Lane PCI-Express 2.0 bus is 5 Gb/s.Output:• 4x external USB 3.2 Gen 1 port with USB type A-F connectors.• SuperSpeed USB - USB 3.2 Gen 1 interface (before USB 3.1 Gen 1 / USB 3.0).• Compatible with USB 3.2 Gen 2, backward compatible with USB 2.0 a USB 1.1.• Supports transmission rates 5000 / 480 / 12 / 1.5 Mb/s (super / high / full / low speed).• When connected to a PCI-Express bus version 1.0, theor. transmission rate max. 2500 Mb/s.Other features:• Full Plug and Play support.• Supports concurrent activity of SuperSpeed USB, USB 2.0 and USB 1.1 devices.• Compliant with the final official xHCI specification revision 1.0 by USB-IF.• Supports UASP (USB Attached SCSI) for faster data transmission in Windows 8 and later.• Fully supports Hot Plug connecting and disconnecting of USB devices while running.• Standard power supply for the controller and connected USB peripherals via the PCI-Express bus.• In this power supply mode, the PCIe controller can handle up to three magnetic 2.5" external disks simultaneously.• Optional power supply from PC source via SATA power connector.• Renesas μPD720201 chipset is used.Supported operating systems:• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 and later (supported are all 32- and 64-bit Windows OS versions), Linux with kernel 2.6.31 and above.• Note: Drivers are only installed for Windows XP / Vista / 7. For Linux, Windows 8 / 8.1 / 10 / 11, Server 2012 / 2016 / 2019 / 2022 and later versions, no external drivers are required, they are already part of the operating system.Package contains:• PCI-Express controller with a standard bracket,• low-profile bracket• multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,• packed in a cardboard box.
LongProductName - PCI-Express 2.0, 5 Gbit/s, 4x USB 3.2 Gen 1, μPD720201
LongSummaryDescription - Axagon PCEU-43RS. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1), Host interface gender: Male. Country of origin: China, Certification: CE. Data transfer rate (max): 5 Gbit/s. Quantity per pack: 1 pc(s), Package width: 145 mm, Package depth: 110 mm
Model - PCEU-43RS
name - AXAGON PCEU-43RS PCIe A dapter 4x USB3.0 UASP V
name - AXAGON PCEU-43RS PCIe Adapter 4x USB3.0 UASP VIA, 15-pin SATA Stromversorgung
Name - AXAGON PCI-Express card with four external USB 3.2 Gen1 ports with dual power | PCEU-43RS
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 145.00 mm
Package features > Gross height (mm) - 25.00 mm
Package features > Gross width (mm) - 110.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 4334 pc(s)
Package features > Paper/Pasteboard - 23.20 g
Package features > Plastic (No PET) - 5.80 g
Package features > Tare weight (kg) - 0.03 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package Type - Retail
Packaging data - Manual - Yes
Packaging data - Package depth - 110 mm
Packaging data - Package height - 25 mm
Packaging data - Package type - Box
Packaging data - Package weight - 90 g
Packaging data - Package width - 145 mm
Packaging data - Quantity per pack - 1 pc(s)
Packs in Box - 1
Pack Weight Brutto (kg) - 0.05 kg
Pack Weight Netto (kg) - 0.1 kg
Pieces in pack - 1
Ports - 4 x USB 3.0
Ports & interfaces - Expansion card form factor - Full-height / Low-profile
Ports & interfaces - Expansion card standard - PCIe 2.0
Ports & interfaces - Host interface - PCIe
Ports & interfaces - Host interface gender - Male
Ports & interfaces - Output interface - USB 3.2 Gen 1 (3.1 Gen 1)
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=230118151106377623&THEME=asbis&LANG=lv
ProductCategory - Adapteri
ProductCode - PCEU-43RS
ProductDescription - Axagon PCI-Express card with four external USB 3.2 Gen1 ports with dual power. Renesas chipset. Standard & Low profile.
ProductName - PCEU-43RS
Product Net Weight - 0.05 kg
ProductType - Adaptors
Provides Data Channel - USB3.0
Requires Expansion Slot Standard - PCI Express 2.0 x1
Requires Operating System - Microsoft Windows Server 2008 Linux Microsoft Windows Server 2003 Microsoft Windows XP Microsoft Windows Vista Microsoft Windows Server 2012 Microsoft Windows 7 or Later Microsoft Windows Server 2016 Microsoft Windo
Retail Packaging Net Weight Carton - 0.1 kg
Retail Packaging Net Weight Plastic - 0.1 kg
ShortSummaryDescription - Axagon PCEU-43RS, PCIe, USB 3.2 Gen 1 (3.1 Gen 1), Male, Full-height / Low-profile, PCIe 2.0, China
System Requirements -
System requirements - Linux operating systems supported - Yes
System requirements - Server operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
Technical details - Compliance certificates - RoHS
Technical details > Gross weight - 0.09 kg
Technical details > Net weight - 0.06 kg
Technical details > Producer - AXAGON
Technical details > Producer product family - PCI-Express card with four external USB 3.2 Gen1 ports with dual power
Technical details > Producer product name - PCEU-43RS
Title - Axagon PCEU-43RS interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)
Unit Box Height - 0.145
Unit Box Length - 0.025
Unit Box Width - 0.11
Unit Calculated Volume - 0.0003988 cubm
Unit Calculated Weight - 0.09 kg
Units per Shipping Box - 1
URL - https://www.axagon.eu/en/produkty/pceu-43rs
USB 3.2 Gen 1 - 4 (USB 3.2 (type A))
USB 3.2 Input/Output connectors - 4
Vendor - AXAGON
Vendor Homepage - www.axagon.eu/en/produkty/pceu-43rs?ami=214
vendpn - PCEU-43RS
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
WarrantyInfo - 2 years
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
