Accessories included - 1x IB-180MS-C31, 1x USB combination cable USB-C to USB-C/USB-A, 2x M.2 rubber fixation, 1x manual, Safety instructions (power supply not included
Brand - ICY BOX
BrandPartCode - 61098
Category - Storage Drive Docking Stations
Category_1 - Computers and Laptops
Category_2 - Laptop - Accessories
Color - Black
Description - IB-180MS-C31

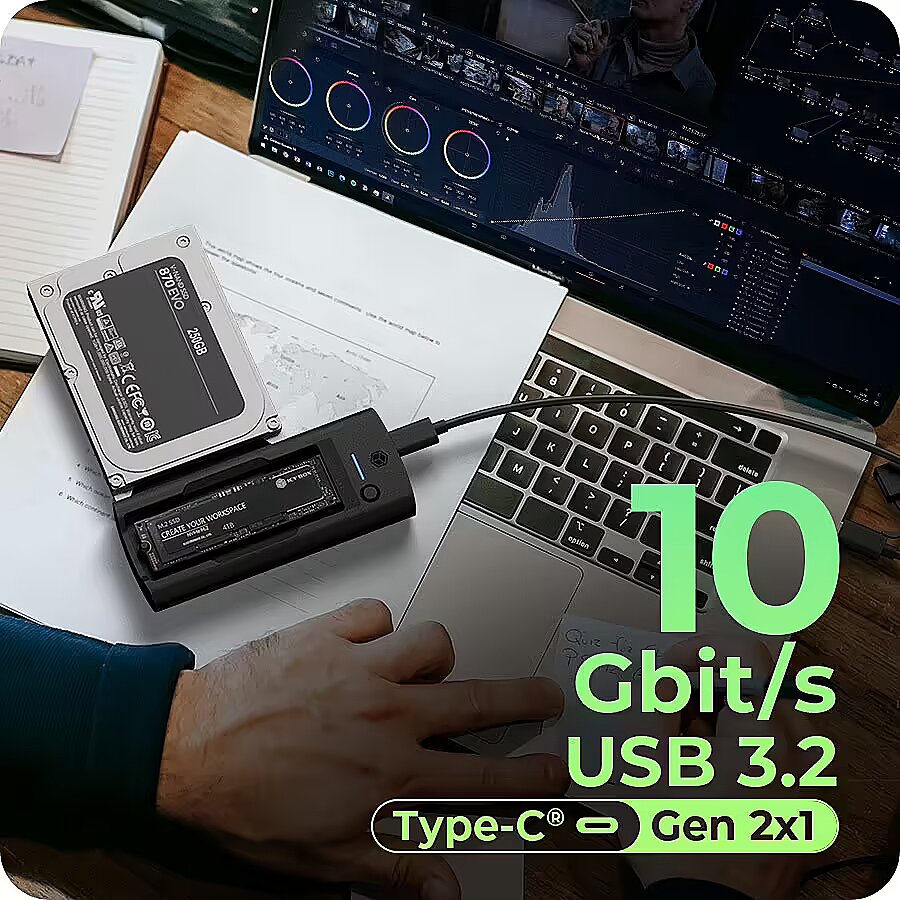

NVMe M.2 SSD & SATA Docking Station with USB Type-C to Type-C/Type-A Combo Cable Versatile Compatibility This adapter supports both M.2 NVMe/SATA SSDs and 3.5/2.5" SATA III drives, providing flexibility for different storage needs. Easily connect any drive at any time. Fast Data Transfer Get lightning-fast data transfer speeds of up to 10Gbps via USB 3.2 Gen2x1 Type-C interface. This enables fast backup and efficient file transfer for all tasks. Power On/Off Button Easily switch between SSD and HDD with a simple press of the button on the front. This feature allows for quick changes in the drive interface, without any effort. Connect to your computer via USB Type-C - Equipped with a USB Type-C to Type-C/Type A combination cable, this adapter offers dual connection options. This increases versatility when connecting to different devices. Multi-OS Compatibility - Enjoy consistent performance with compatibility with both Windows and macOS environments. This makes it a reliable solution for connecting a variety of M.2 and SATA drives. Pro Tip: Connect and Power via USB - Power your M.2 and 2.5-inch drives via USB 3.0 or Type-C ports, eliminating the need for a power supply unit (PSU). Please note that only 3.5-inch drives require a power supply to operate.
Designation - CE+WEEE
dimension depth - 25 mm
dimension height - 200 mm
Dimensions - 113x55x15 mm
dimension weight - 150 g
dimension width - 105 mm
ean - 4250078174356
EAN_code - 4250078174356
Features - LED indicators - Yes
Features - Material - Plastic
Features - Maximum data transfer rate - 10 Gbit/s
Features - On/off switch - Yes
Features - Plug and Play - Yes
Features - Product colour - Black
Features - UASP support - Yes
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)
Form factor (width) - M.2
GTIN - 4250078174356
guarantee - 24
guarantee_type - normal
Hard drive - Number of storage drives supported - 1
Hard drive - Storage drive interface - M.2, Serial ATA III
Hard drive - Storage drive sizes supported - M.2
Hard drive - Storage media type - HDD, SSD
HDD interface - NVMe
HDD interface - SATA III - 6 Gb/s
Logistics data - Country of origin - Taiwan
Logistics data - Harmonized System (HS) code - 84718000
Logistics data - Products per master (outer) case - 40 pc(s)
LongSummaryDescription - ICY BOX IB-180MS-C31. Storage media type: HDD, SSD, Storage drive interface: M.2, Serial ATA III, Storage drive sizes supported: M.2. Host interface: USB 3.2 Gen 2 (3.1 Gen 1) Type-C. Product colour: Black, Material: Plastic, Maximum data transfer rate: 10 Gbit/s. Output voltage: 12 V. Width: 55 mm, Depth: 113 mm, Height: 15 mm
Manufacturer - Icy Box
Manufacturer_code - 61098
Name - ICY BOX IB-180MS-C31 (black, 2.5"/3.5" SATA, M.2 NVMe)
name - ICY BOX IB-180MS-C31 Dockingstation
Other features -
Other features - Chipset - JMS581DL
Packaging content - Cables included - USB Type-C
Packaging content - Manual - Yes
Packaging data - Package weight - 167 g
Ports & interfaces - Host interface - USB 3.2 Gen 2 (3.1 Gen 1) Type-C
Power - Output voltage - 12 V
producer - IcyBox
ProductName - IB-180MS-C31
ShortSummaryDescription - ICY BOX IB-180MS-C31, HDD, SSD, M.2, Serial ATA III, M.2, USB 3.2 Gen 2 (3.1 Gen 1) Type-C, Black, Plastic
Software - Linux operating systems supported - Yes
Software - Mac compatibility - Yes
Software - Mac operating systems supported - Yes
Software - Windows operating systems supported - Yes
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Windows
Title - ICY BOX IB-180MS-C31 USB 3.2 Gen 2 (3.1 Gen 1) Type-C Black
vendpn - IB-180MS-C31
Weight - 0,15
Weight - 0.045 kg
Weight & dimensions - Depth - 113 mm
Weight & dimensions - Height - 15 mm
Weight & dimensions - Weight - 45 g
Weight & dimensions - Width - 55 mm
