ARTIKEL1 - 1-PORT GIGABIT POE+ SPLITTER
ARTIKEL2 - .
Brand - D-Link
BrandPartCode - DPE-301GS
Breite - 0.11
Category - Network Splitters
Category 1 - Netzwerk
Category 2 - Netzwerkartikel
Category_1 - Cables
Category_2 - Other Cables
Certificates - Certification - CE, FCC, VCCI, RCM
EAN - 0790069416675
EANCode - 0790069416675
EAN_code - 0790069416675
Features - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Features - Power over Ethernet (PoE) - Yes
Features - Product colour - White
Gewicht - 0.25
GRUPPE1 - Network
GRUPPE2 - Communication / Network Accs
GTIN - 790069416675
GTIN - 0790069416675
HERSTELLER - D-LINK
HSTNUMMER - DPE-301GS
Laenge - 0.16
Logistics data - Pallet gross length - 120 cm
Logistics data - Pallet gross width - 110 cm
Logistics data - Products per shipping (inner) case - 40 pc(s)
Logistics data - Shipping (inner) case height - 32.5 cm
Logistics data - Shipping (inner) case length - 44.5 cm
Logistics data - Shipping (inner) case width - 33.2 cm

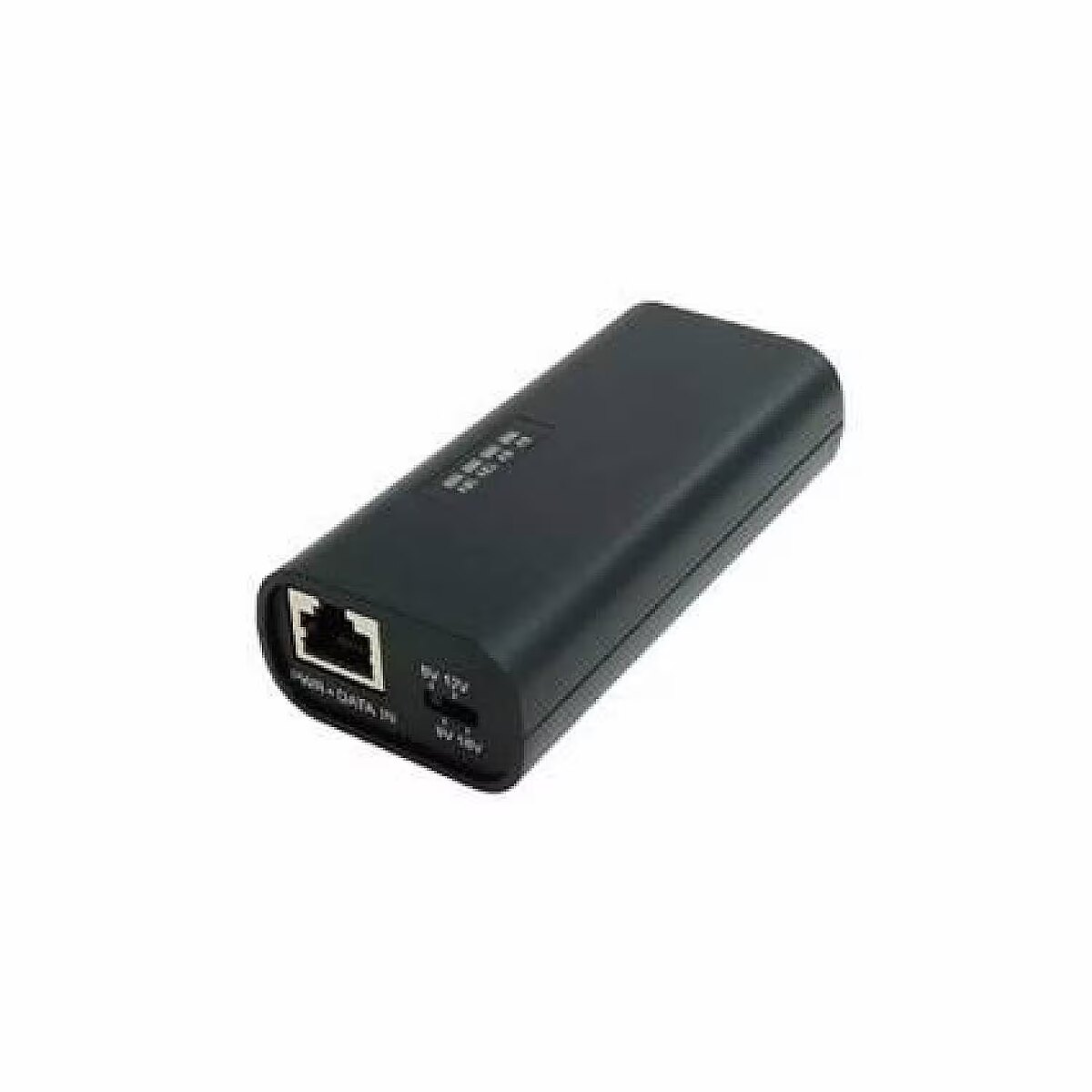

LongDesc - The DPE-301GS PoE splitter is used with end devices such as wireless access points, IP cameras and VoIP phones that don’t natively support PoE, but rather require DC power input of 5V, 9V or 12V. It receives PoE power on a network cable from a PoE switch or midspan injector, and splits the Ethernet and DC power into two separate cables. One cable provides the DC power, and the other cable provides the Ethernet signal. Users can select from 5VDC, 9VDC and 12VDC power for their device using a selectable DIP switch on the device.The DPE-301GS PoE splitter is typically located near the end device. It has two 10/100/1000 RJ-45 ports. One port is for PoE IN, which is the network connection and is usually connected to a remote PoE switch or injector. The other port is for LAN OUT, which is the connection that provides the Ethernet signal to the end device. The DPE-301GS also has a 5.5mm DC OUT port. Two adapter cables are supplied; either one may be connected to this port, depending on whether 5.5mm or 3.8mm interface is required for the end device.
LongProductName - 1-Port Gigabit PoE Splitter, White
LongSummaryDescription - D-Link DPE-301GS 1 Port Gigabit 30W PoE Splitter. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, Product colour: White. Certification: CE, FCC, VCCI, RCM. Weight: 98 g. Package width: 106 mm, Package depth: 156 mm, Package height: 61 mm. Output power: 32.4 W
Manufacturer - D-Link
Manufacturer_code - DPE-301GS
MPN - DPE-301GS
Name - D-Link DPE-301GS PoE+ Splitter GE/30W
Name - GIGABIT POE+ SPLITTER
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -30 - 70 °C
Packaging data - Package depth - 156 mm
Packaging data - Package height - 61 mm
Packaging data - Package weight - 230 g
Packaging data - Package width - 106 mm
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Power - Output power - 32.4 W
ProductName - D-Link DPE-301GS 1 Port Gigabit 30W PoE Splitter
ShortSummaryDescription - D-Link DPE-301GS 1 Port Gigabit 30W PoE Splitter, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, White, 0 - 50 °C, -30 - 70 °C, 5 - 95%, 5 - 95%
Stck_Kart - 9998
Stck_Pal - 0
Storno - N
Title - D-Link DPE-301GS 1 Port Gigabit 30W PoE Splitter
URL - https://eu.dlink.com/uk/en/products/dpe-301gs-gigabit-poe-plus-splitter
WarrantyInfo - 2 Years
Weight - 0,26
Weight & dimensions - Weight - 98 g
