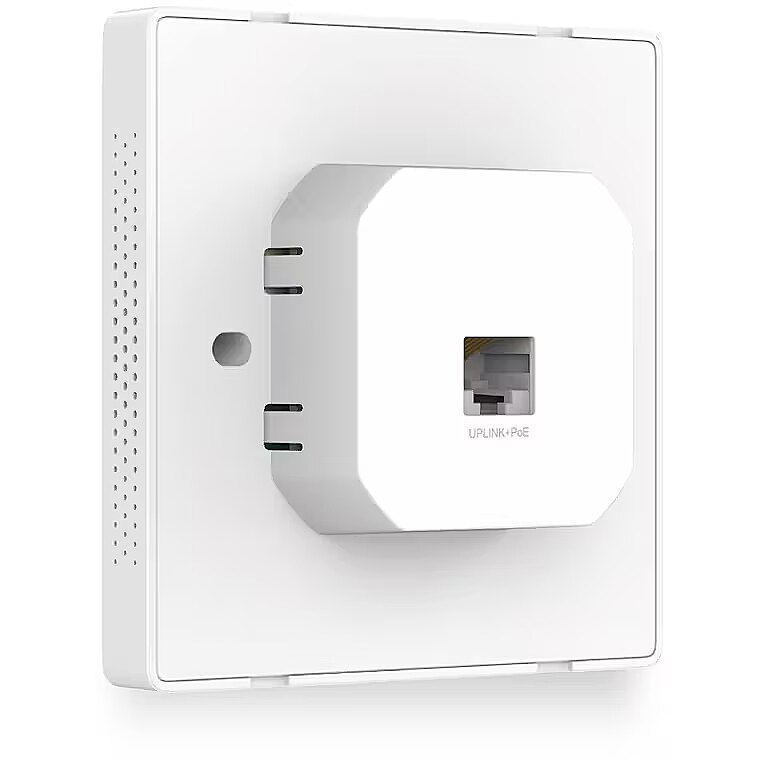

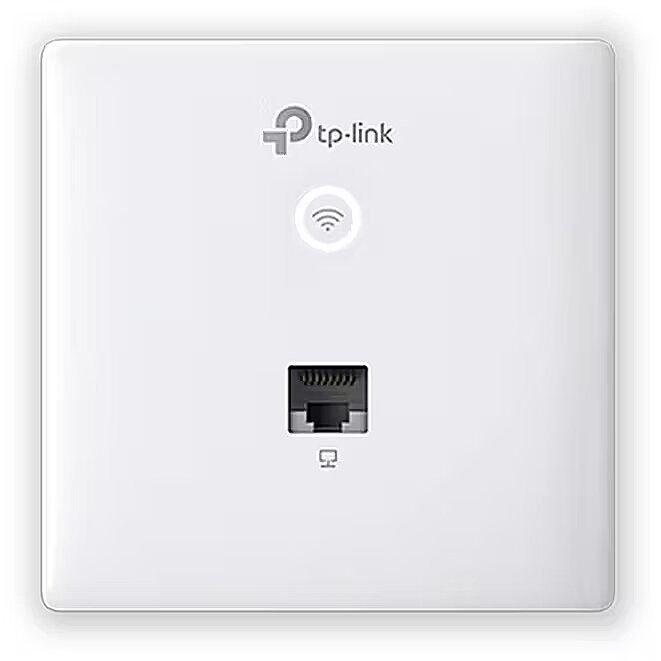

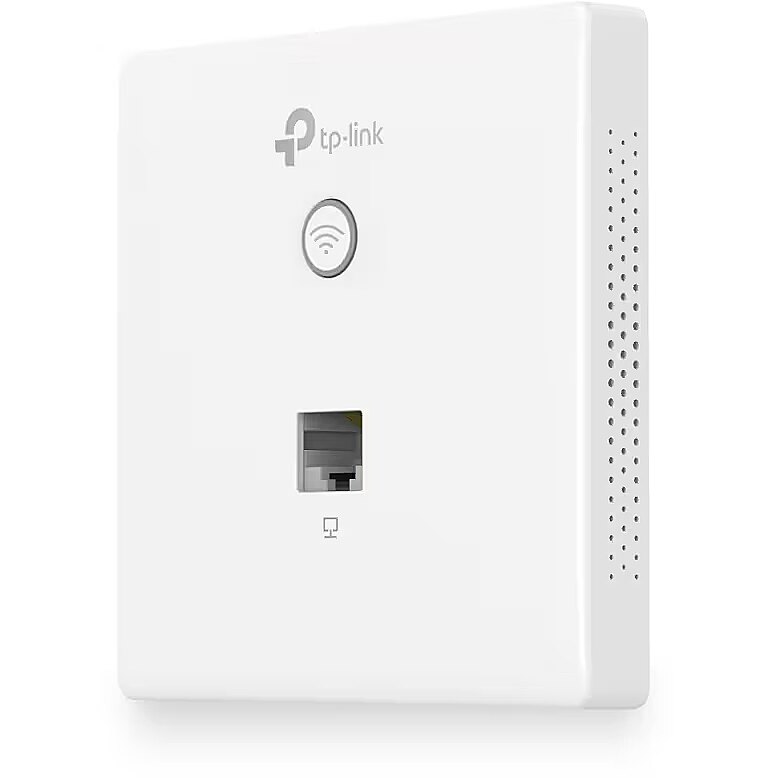

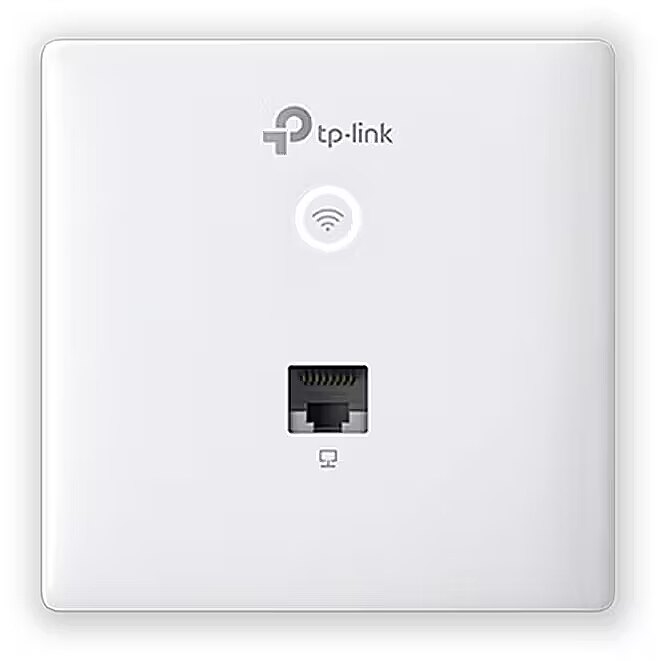

TP-LINK Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point

Antenna - Antenna features - Integrated antenna
Antenna - Antenna gain level (max) - 3.6 dBi
Antenna - Antennas quantity - 2
Antenna - Antenna type - Internal
Brand - TP-Link
BrandPartCode - EAP230-WALL
Category - Wireless Access Points
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - CE, RoHS
Certificates - Compliance certificates - RoHS
Design - LED indicators - Operation
Design - Placement - Wall
Design - Product colour - White
Design - Reset button - Yes
dimensionalWeight - 165
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - 6 GHz - No
Features - Automatic channel scanning - Yes
Features - Automatic channel selection - Yes
Features - Band steering - Yes
Features - BeamForming - Yes
Features - Cabling technology - 10/100/1000Base-T(X)
Features - Ethernet LAN data rates - 10
Features - Ethernet LAN data rates - 10,100,1000 Mbit/s
Features - Ethernet LAN data rates - 100
Features - Ethernet LAN data rates - 1000 Mbit/s
Features - Frequency band - 2.4 - 5 GHz
Features - Maximum data transfer rate - 1167 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 300 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 867 Mbit/s
Features - MIMO - Yes
Features - MIMO type - Multi User MIMO
Features - Networking standards - IEEE 802.3af
Features - Networking standards - IEEE 802.3at
Features - Networking standards - IEEE 802.11ac
Features - Networking standards - IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Features - Networking standards - IEEE 802.11b
Features - Networking standards - IEEE 802.11g
Features - Networking standards - IEEE 802.11n
Features - Quality of Service (QoS) support - Yes
Features - Rate limiting - Yes
Features - Transmitting power (CE) - 20 - 23 dBm
Features - Virtual LAN features - Port-based VLAN
Features - Virtual LAN features - Port-based VLAN, VLAN mapping
Features - Virtual LAN features - VLAN mapping
Features - VLAN support - Yes
Features - Wi-Fi Multimedia (WMM)/(WME) - Yes
GTIN - 1210002615679
GTIN - 6935364089481
GTIN - 6935364089498
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Unprecedented Thin Design with 11mmOmada EAP230-WallAC Access PointPrivate Connection for Every Room.EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user. MU-MIMO + Dual-Band: Faster Connection for More Devices802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.Seamlessly Blends with any Décor The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.High-Speed Gigabit PortEquipped with a Gigabit port to deliver the fastest possible wired transmission.Effortless Deployment with Power over Ethernet802.3af/802.3at PoE support means there’s no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.Quick, Simple Installation1.Detach and remove the faceplate of the junction box.2.Plug an Ethernet cable in to the port.3.Secure the Access Point to the wall using the provided screws.4.Press the faceplate back into position.Omada SDN—Smarter Cloud Solution for Business NetworkingOmada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.Easy Management with the Omada AppFollow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
LongProductName - 10/100/1000 Mbps, 2.4GHz/5GHz, CE, HTTP/HTTPS, white
LongSummaryDescription - TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1167 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 25.5 W
Management features - Syslog - Yes
Management features - Web-based management - Yes
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging content - Mounting kit - Yes
Packaging content - Quantity per pack - 2 pc(s)
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 130 mm
Packaging data - Package height - 47 mm
Packaging data - Package weight - 210 g
Packaging data - Package width - 118 mm
Performance - Compatible operating systems - Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - WAN connection - Ethernet (RJ-45)
Power - Power consumption (max) - 25.5 W
Power - Power consumption (typical) - 9 W
Power - Power over Ethernet (PoE) - Yes
producerCode - EAP230-Wall
ProductName - Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
productName - TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
productSize - Normal
Security - Access Control List (ACL) - Yes
Security - MAC address filtering - Yes
Security - Number of SSID supported - 16
Security - Security algorithms - 64-bit WEP
Security - Security algorithms - 64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
Security - Security algorithms - 128-bit WEP
Security - Security algorithms - 152-bit WEP
Security - Security algorithms - SNMP
Security - Security algorithms - SNMPv2
Security - Security algorithms - WPA
Security - Security algorithms - WPA-PSK
Security - Security algorithms - WPA2-Enterprise
Security - Security algorithms - WPA2-PSK
Security - Service Set Identifier (SSID) features - Multiple SSIDs
ShortSummaryDescription - TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point, 2.4 GHz, 5 GHz, 1167 Mbit/s, 64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK, 10,100,1000 Mbit/s
sizeX - 118
sizeY - 132
sizeZ - 53
Sustainability - Sustainability compliance - Yes
Title - TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point
URL - https://www.tp-link.com/uk/business-networking/wall-plate-ap/eap230-wall/
WarrantyInfo - Lifetime
warrantyLength - 60
warrantyType - G
weight - 222
Weight & dimensions - Depth - 86.8 mm
Weight & dimensions - Height - 30.2 mm
Weight & dimensions - Width - 86.8 mm
