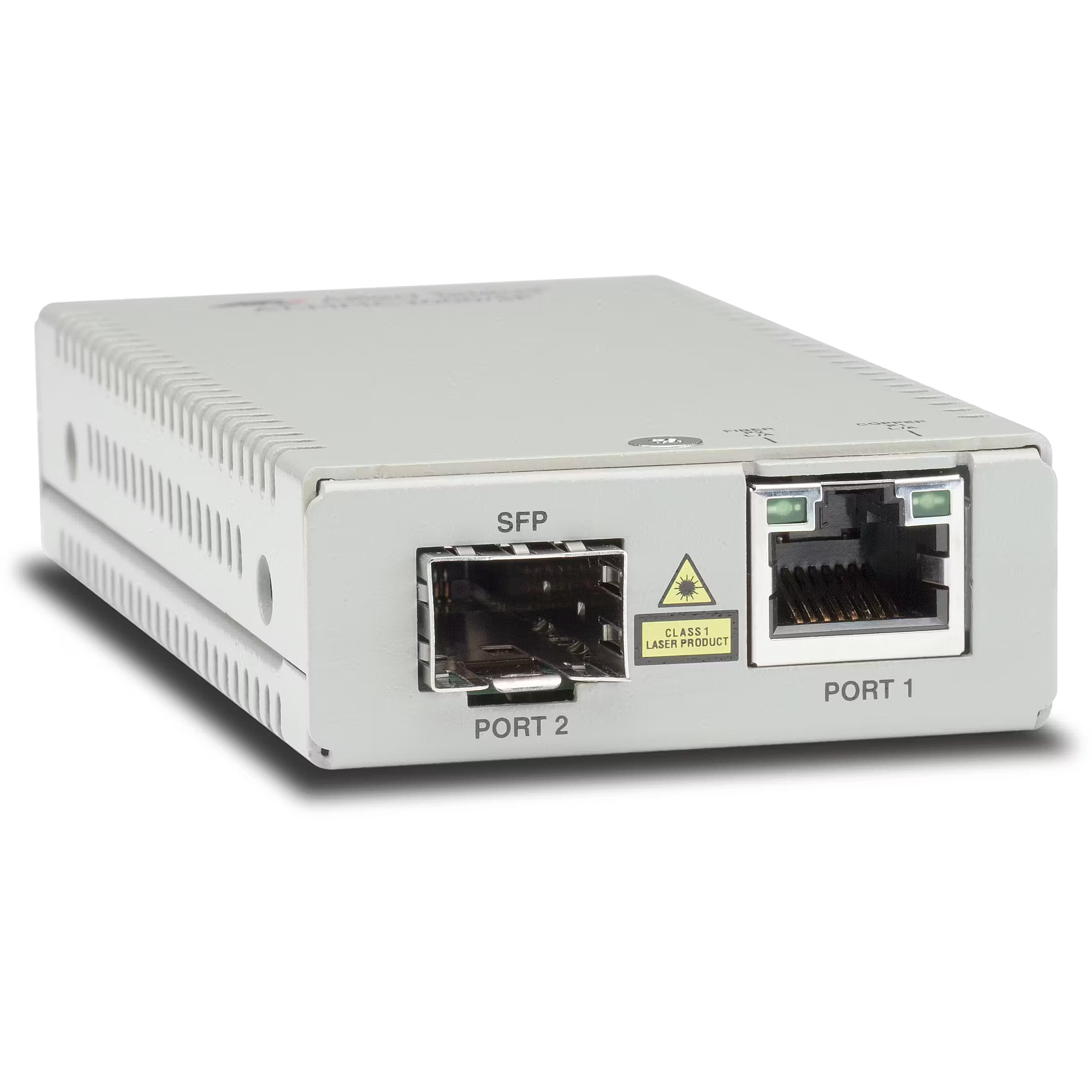

Allied Telesis MINI MEDIA CONVERTER 10/100/1000T TO SFP MULTI-REGION

ARTIKEL1 - MINI MEDIA CONVERTER
ARTIKEL2 - 10/100/1000T TO SFP MULTI-REGION
Brand - Allied Telesis
BrandPartCode - 990-006978-960
Category - Network Media Converters
Certificates - Certification - CE, UL60950-1, EN60950-1, FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
EANCode - 0767035218632
Features - Internal - No
Features - Product colour - Silver
GRUPPE1 - Network
GRUPPE2 - Media Converters
GTIN - 0767035218632
GTIN - 767035218632
HERSTELLER - ALLIED TELESIS
HSTNUMMER - AT-MMC2000/SP-960
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - Gigabit Ethernet to SFP Mini Media and Rate ConverterThis standalone mini media and rate converter features 10/100/1000T to 100/1000x conversion with a SFP connector and supports from 220 m to 500 m. It is compatible with the MMCR18 rack-mount chassis.Copper to Fiber Mini Media and Rate ConvertersOverviewThe Allied Telesis MMC Series of mini media converters leverages its smaller size to not only help the environment with a small carbon footprint, but also to save space in its working environment. Despite its compact size, the MMC Series delivers all the power and functionality of standard size media converters.Extend NetworksThe MMC Series are available in 100Mbps or 1000Mbps models. Depending on the model chosen, the fiber-optic port has options for fixed SC, ST, LC or SFP connectors capable of multi-mode or single-mode fiber connectivity. The twisted-pair copper port has an RJ-45 connector supporting either 100Mbps or 1000Mbps, with a maximum operating distance of 100 meters (328 feet).VLAN SupportMany new backbone switch products now support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that send extra-long data packets on the network. The MMC Series are fully compatible with these long packets, enabling them to be used in modern networks. Media converters not supporting this feature discard these extra long packets, making them unsuitable for modern networks.Small and FlexibleThe smaller size and external power supply of the MMC Series allows them to be used almost anywhere.Smart MissingLink (SML)The Smart MissingLink™ (SML) feature monitors network connections and provides notification when network segments fail, allowing network managers to quickly identify the source and location of failed segments and minimize downtime.Smart Link RestorationSmart Link restoration allows the devices, in cases of power failure, link loss or other interrupted service, to automatically restore the link without the need to restart/reset them.Power SavingThe MMC Series continues the Allied Telesis commitment to the environment with over 50% power savings. With just 1.7W of power usage, the MMC Series media converters are some of the most efficient in the market today.Link TestThe link test is a fast and easy way for you to test the connections between the media converter ports and the connected end nodes. If a network problem occurs, you can perform a link test to determine which port is experiencing a problem, and focus your troubleshooting efforts on the right cable or end node.
LongProductName - TAA (Federal) 10/100/1000T to 100/1000X/SFP Media & Rate Converter, Multi-region PSU
LongSummaryDescription - Allied Telesis AT-MMC2000/SP-960. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-T, 1000Base-T, Converter output interface: 1000Base-SX. Maximum transfer distance: 500 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. Product colour: Silver. Fiber optic connector: SFP, Connectivity technology: Wired. Input voltage: 12 V, Input current: 0.14 A
Network - Converter input interface - 10Base-T, 100Base-T, 1000Base-T
Network - Converter output interface - 1000Base-SX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Fiber ethernet cabling technology - 1000BASE‑SX
Network - Jumbo frames support - Yes
Network - Maximum data transfer rate - 1000 Mbit/s
Network - Networking standards - IEEE 802.1Q
Network - VLAN support - Yes
Operational conditions - Operating altitude - 0 - 3048 m
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -30 - 70 °C
Packaging content - Manual - Yes
Packaging content - Quick installation guide - Yes
Packaging content - User guide - Yes
Performance - Fiber mode structure - Multi-mode
Performance - Maximum transfer distance - 500 m
Performance - Wavelength - 850 nm
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Fiber optic connector - SFP
Power - Input current - 0.14 A
Power - Input voltage - 12 V
ProductName - AT-MMC2000/SP-960
ShortSummaryDescription - Allied Telesis AT-MMC2000/SP-960, 1000 Mbit/s, 10Base-T, 100Base-T, 1000Base-T, 1000Base-SX, IEEE 802.1Q, Gigabit Ethernet, 10,100,1000 Mbit/s
Stck_Kart - 14
Stck_Pal - 22
Storno - Y
Title - Allied Telesis AT-MMC2000/SP-960 network media converter 1000 Mbit/s 850 nm Multi-mode Silver
URL - https://www.alliedtelesis.com/products/mmc2000sp
WarrantyInfo - 2 years
Weight & dimensions - Depth - 101.6 mm
Weight & dimensions - Height - 21.8 mm
Weight & dimensions - Weight - 170 g
Weight & dimensions - Width - 54.9 mm
