Category Code - CAC
Colour - White

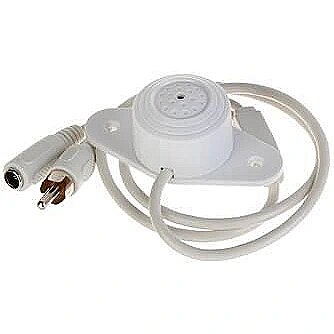

Description - > Omni-directional condenser microphone, high fidelity; > 30KV Air contact ESD, built-in Lightning Protection, power supply polarity reversal protection and electrostatic protection; > Pinhole design, hidden installation; match with cameras or storage devices which have audio function Scope 5-40m2 Sensitivity -40dB(-45~-20dB adjustable) Frequency response 20Hz~20kHz Directional characteristic Omni-directional SNR 70dB(1m 40dB sound source SPL) Dynamic range 104dB(1KHz at Max dB SPL) Max. sustainable sound pressure 120dB SPL(1KHz, THD 1%) Output impedance 600O(non-equilibrium) Output signal amplitude 2.5Vpp/-25dB Working voltage DC 12V(9~15V) Working current 60mA(50~100mA) Working temperature -30?~+70?(-22?~+158?) Color White Outer shell PC Dimension 63mmx30mmx22mm(2.48”x1.18”x0.87”) Weight 34g(0.07lb) Carried standard CE/FCC
Dimensions - 63 x 30 x 22mm
Full Description Line - Colour White|Unit Calculated Volume 0.0004018 cubm
Product Net Weight - 0.034 kg
Shipping Box Depth Shipping/Package Box Dimensions - 9.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 4.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 0.06 kg
Shipping Box Width Shipping/Package Box Dimensions - 9.4 cm
Unit Box Height - 0.045
Unit Box Length - 0.095
Unit Box Width - 0.094
Unit Calculated Volume - 0.0004018 cubm
Unit Calculated Weight - 0.06 kg
Units per Shipping Box - 1
Vendor Homepage - www.dahuasecurity.com/products/productDetail/16341
Warranty - 36 months
