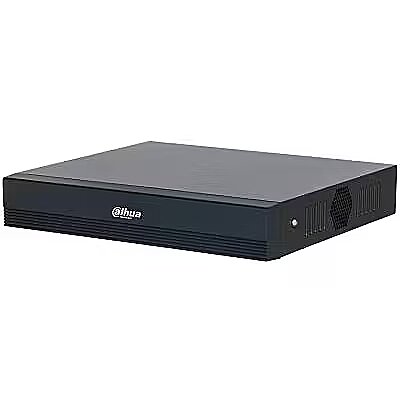

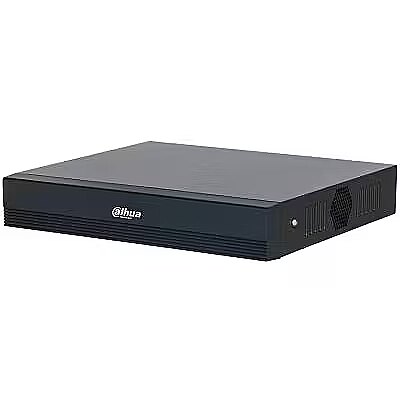

Dahua DVR 16CH HDCVI PENTABRID/XVR1B16-I/T

-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- 0
- 0.087
- 0.96 kg
- 0.285
- 0.345
- 1
- 1
- 1
- 1
- 1
- 1
- 1
- 1U
- 2
- 6 TB
- 10 W
- 12 V
- 16
- 16CH Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder
- 260 mm
- 890 g
- 1920 x 1080 pixels
- Black
- Dahua Technology XVR1B16-I/T, Black, 1920 x 1080 pixels, H.264, H.264+, H.265, H.265+, G.711, PCM, G.711u, 30 fps, 1920 x 1080, 1280 x 1024, 1280 x 720
- Dahua Technology XVR1B16-I/T. Product colour: Black, Maximum video resolution: 1920 x 1080 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video input channels: 16 channels. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS;..., Number of users: 128 user(s). HDD interface: SATA, SATA II, SATA III, Maximum HDD capacity: 6 TB. DC voltage: 12 V, Power consumption (typical): 10 W
- Dahua Technology XVR1B16-I/T digital video recorder (DVR) Black
- Fast Ethernet
- G.711, PCM, G.711u
- HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
- No
- XVR1B16-I/T
- XVR1B16-I/T
- XVR1B16-I/T
- Yes
- Yes
- Yes
- Yes
- Yes
- Yes
Analog signal format system Performance -
Audio formats supported Performance - G.711, PCM, G.711u
Audio input Ports & interfaces - 1
Audio output Ports & interfaces - 1
Audio system Performance -
Bit rate Performance -
BNC input ports Ports & interfaces - 16
Brand -
Built-in processor Processor - Yes
Category -
DC voltage Power - 12 V
Depth Weight & dimensions -
Description - Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions. The Cooper-I/T Series offers simple and highly cost-effective HDCVI solutions. It provides 24/7 reliable monitoring with high-quality image performance, saving you on labor costs. It also includes a two-way talk function that is supported by all the channels and operates over coaxial cable, along with SMD Plus, offering you excellent value.16-ch Analog Video Input, Max. 1080N/720p@15fps Encoding CapabilityMax. 18-ch IP Video Input (Up to 6MP)16-ch Two-way TalkAI Functions: 16-ch SMD, 16-ch AI Coding1 Bay. Up to 16TB for Each HDD Storage Capacity
Dual stream support Performance - Yes
Ethernet interface type Network - Fast Ethernet
Ethernet LAN (RJ-45) ports Network - 1
Ethernet LAN Network - Yes
Graphical user interface (GUI) Performance - Yes
HDD interface Hard drive -
HDMI ports quantity Ports & interfaces - 1
Height Weight & dimensions -
Internal Performance - No
LongDesc - Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.The Cooper-I/T Series offers simple and highly cost-effective HDCVI solutions. It provides 24/7 reliable monitoring with high-quality image performance, saving you on labor costs. It also includes a two-way talk function that is supported by all the channels and operates over coaxial cable, along with SMD Plus, offering you excellent value.
Maximum HDD capacity Hard drive - 6 TB
Maximum video resolution Performance - 1920 x 1080 pixels
Name -
Number of HDDs supported Hard drive - 1
Number of users Network -
Operating relative humidity (H-H) Operational conditions -
Operating system installed Performance -
Operating temperature (T-T) Operational conditions -
Performance - Graphical user interface (GUI) - Yes
Playback resolutions supported Performance -
Power consumption (typical) Power - 10 W
Product colour Performance - Black
PTZ control Performance - Yes
Rack capacity Performance - 1U
Shipping Box Depth ELKO Internal Logistics Data -
Shipping Box Height ELKO Internal Logistics Data -
Shipping Box Weight ELKO Internal Logistics Data -
Shipping Box Width ELKO Internal Logistics Data -
Storage relative humidity (H-H) Operational conditions -
Storage temperature (T-T) Operational conditions -
Summary - Dahua Technology XVR1B16-I/T. Product colour: Black, Maximum video resolution: 1920 x 1080 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video input channels: 16 channels. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS;..., Number of users: 128 user(s). HDD interface: SATA, SATA II, SATA III, Maximum HDD capacity: 6 TB. DC voltage: 12 V, Power consumption (typical): 10 W
Supported network protocols Network - HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Unit Calculated Volume ELKO Internal Logistics Data - 0.008554 cubm
URL - https://www.dahuasecurity.com/products/hdcvi-products/hdcvi-recorders/cooper-i-series/xvr1b16-i/t
USB 2.0 ports quantity Ports & interfaces - 2
Vendor Homepage - https://www.dahuasecurity.com/products/hdcvi-products/hdcvi-recorders/cooper-i-series/xvr1b16-i/t
VGA (D-Sub) output ports Ports & interfaces - 1
Video capturing speed Performance -
Video compression formats Performance -
Video input channels Ports & interfaces -
Video motion detection Performance - Yes
Video streaming Performance - Yes
Warranty - 36 months
Weight Weight & dimensions - 890 g
Width Weight & dimensions - 260 mm
