ID: 1089332
Tuotekoodi: 45884
Varastossa 8 yksiköt
Takuu: 2 vuotta

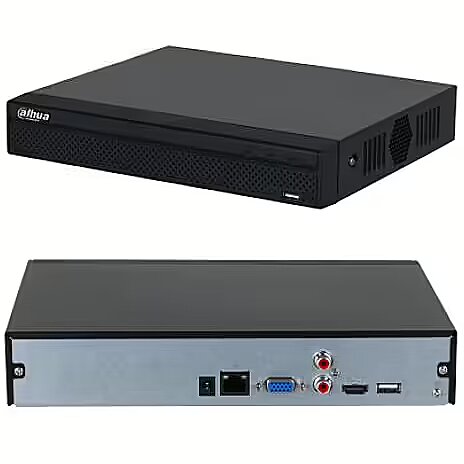

Dahua IP DVR DAHUA NVR2104HS-4KS3
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
-
Postin pakettiautomaatti1-2 työpäivän kuluessa6,99 € -
Toimitus Posti-kuriirin postin välityksellä1-2 työpäivän kuluessa10,99 €
Yksityiskohtaisempi erittely
15pin D-sub Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Brand - Dahua Technology
BrandPartCode - DHI-NVR2104HS-4KS3
Category - Network Video Recorders (NVR)
Category Code - NVR
CPU - Industrial-grade processor
Description - 4CH Compact 1U 1HDD Lite Network Video Recorder > Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats. > Max. decoding capability: 6 × 1080p@30 fps. > Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth. > Supports IP cameras with a resolution up to 12 MP. > AI by Recorder supports 4-channel SMD Plus. > AI by Camera supports perimeter protection and SMD Plus. > Supports one-click arming and disarming.
Desktop/pedestal Mounting Type - Yes
dimensionalWeight - 1858
Dimensions - 260.0 × 232.5 × 47.6 mm
Features - Certification - CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Features - Certification - CE EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 CE LVD: EN 62368-1:2014 2023-09-26
Features - Product colour - Black
Features - Rack capacity - 1U
Features - Rack mounting - Yes
Full Description Line - Channels 4|Drives/bays 1|Desktop/pedestal|Rack|CPU Industrial-grade processor|SATA|Integrated LAN 10/100|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|Power supply requirements 12 VDC, 1.5 A|Power consumption 10 Watts|Dim. 260.0 × 232.5 × 47.6 mm|Temp. range –10 °C to +55 °C
GTIN - 6923172575531
Hard drive - HDD interface - SATA
Hard drive - Maximum storage capacity - 20 TB
HDMI Input/Output connectors - 1
Integrated LAN - 10/100
LongDesc - The NVR2000-4KS3 model of the Lite Series NVR is favored for its outstanding performance. It supports 4K resolution for scenes that require highly detailed images, and can serve as the edge, central, or backup storage with an intuitive shortcut menu for remote management and control. This NVR also features Smart Motion Detection (SMD) by recorder, which can distinguish target vehicles and humans from ordinary ones in real-time. This NVR is both costeffective and easy-to-install, making it ideal for a wide range of applications such as villas, shops and other small and medium-sized scenes.Functions- SMD PlusWith intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and ilter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.- Perimeter Protection by CameraAutomatically ilters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.
LongProductName - 4 channels, RCA x 2, SATA x 1, USB x 2, HDMI x 1, VGA x 1, RJ-45 x 1, 260 x 232.5 x 47.6 mm, 850 g
LongSummaryDescription - Dahua Technology Lite NVR2104HS-4KS3. Video input channels: 4 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 720p, 960p, 1080p. Maximum storage capacity: 20 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports.... Rack capacity: 1U, Product colour: Black, Certification: CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN.... Power consumption (typical): 10 W, Output current: 1.5 A, Output voltage: 12 V
Number of Channels - 4
Number of drives/bays - 1
Operating temperature range - –10 °C to +55 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 93%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 93%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Performance - Audio codecs - PCM; G711A; G711U; G726
Performance - Audio formats supported - G.711 A-law, G.711 μ-law, G.726, PCM
Performance - Backup function - Yes
Performance - Image formats supported - MJPEG
Performance - Input bandwidth - 80 Mbit/s
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Operating system installed - Embedded LINUX
Performance - Output bandwidth - 60 Mbit/s
Performance - Playback modes - Instant playback, general playback, event playback, smart playback
Performance - Recording modes - Motion detection, manual recording, smart recording, alarm
Performance - Supported resolutions - 3840x2160, 1920x1080, 1280x1024, 1280x720
Performance - Supported resolutions - HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Performance - Total megapixels - 12 MP
Performance - Video formats supported - H.264
Performance - Video formats supported - H.264+
Performance - Video formats supported - H.264, H.264+, H.265, H.265+
Performance - Video formats supported - H.265
Performance - Video formats supported - H.265+
Performance - Video input channels - 4 channels
Performance - Video motion detection - Yes
Performance - Video recording modes - 720p, 960p, 1080p
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - eSATA ports quantity - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10,100 Mbit/s
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Number of SATA connectors - 1
Ports & interfaces - RCA input - 1
Ports & interfaces - Supported network protocols - HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Current - 1.2 A
Power - Output current - 1.5 A
Power - Output voltage - 12 V
Power - Power consumption (typical) - 10 W
Power - Power consumption (typical) - 53 W
Power - Power source type - DC
Power consumption - 10 Watts
Power supply requirements - 12 VDC, 1.5 A
Processor - Built-in processor - Yes
producerCode - NVR2104HS-4KS3
productName - DAHUA IP RECORDER NVR2104HS-4KS3
ProductName - NVR2104HS-4KS3
Product Net Weight - 0.85 kg
productSize - Normal
Rack Mounting Type - Yes
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 33 cm
Shipping Box Height Shipping/Package Box Dimensions - 31 cm
Shipping Box Weight Shipping/Package Box Dimensions - 1.38 kg
Shipping Box Width Shipping/Package Box Dimensions - 9 cm
ShortSummaryDescription - Dahua Technology Lite NVR2104HS-4KS3, 4 channels, 3840 x 2160 pixels, 720p, 960p, 1080p, HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720, G.711 A-law, G.711 μ-law, G.726, PCM, H.264, H.264+, H.265, H.265+
sizeX - 333
sizeY - 310
sizeZ - 90
Storage - HDD interface - Serial ATA
Storage - Maximum storage capacity - 20 TB
System requirements - Browser supported - Chrome; IE; Safari; Edge; Firefox
System requirements - Mobile operating systems supported - Android, iOS
Title - Dahua Technology Lite NVR2104HS-4KS3 1U Black
Unit Box Height - 0.31
Unit Box Length - 0.33
Unit Box Width - 0.09
Unit Calculated Volume - 0.009207 cubm
Unit Calculated Weight - 1.38 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR2-4KS3-Series/1HDD/NVR2104HS-4KS3
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/Lite-Series/NVR2-4KS3-Series/1HDD/NVR2104HS-4KS3
Warranty - 36 months
WarrantyInfo -
warrantyLength - 24
warrantyType - G
weight - 1390
Weight & dimensions - Depth - 232.5 mm
Weight & dimensions - Depth - 232.7 mm
Weight & dimensions - Height - 47.6 mm
Weight & dimensions - Package depth - 89 mm
Weight & dimensions - Package height - 314 mm
Weight & dimensions - Package weight - 1.39 kg
Weight & dimensions - Package width - 334 mm
Weight & dimensions - Weight - 850 g
Weight & dimensions - Weight - 860 g
Weight & dimensions - Width - 260 mm
Wireless LAN features - Wi-Fi - No
