Angle of rotation Camera - 170°
ARTIKEL1 - AXIS P4707-PLVE
ARTIKEL2 - PANORAMIC CAMERA
Audio codecs Audio - 24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz
Audio system Audio - 2-way
Auto focus Lens system - Yes
Bluetooth Network - No
Built-in HDD Storage - No
Built-in speaker(s) Audio - Yes
Camera shutter speed (panoramic camera) Panoramic camera - 1/33500 - 1/5 s
Camera shutter speed Camera - 1/33500 - 1/5 s
Card reader integrated Storage - Yes
Category 1 - Netzwerk
Category 2 - Netzwerkkameras
Category Code - FNC
Connectivity technology Performance - Wired
Day/night mode Performance - Yes
Depth Weight & dimensions - 208 mm
Description - This dual-sensor, multidirectional camera offers 2*5 MP at 30 fps. It features Lightfinder and Forensic WDR for sharp, clear images in challenging or poor light conditions. Built on ARTPEC-8, this high-performance camera includes a deep learning processing unit enabling improved processing and storage capabilities. It also allows you to collect and analyze even more data than before – on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. And, with flexible positioning of both varifocal camera heads plus, remote zoom and focus capabilities, it ensures fast and cost-effective installation.2*5 MP, multidirectional camera, with one IP address; 2.5x zoom; 360° IR illumination; Axis Lightfinder and Forensic WDR; Support for analytics with deep learning on both sensors
Doesn't contain Other features - BFR, PVC
EAN - 7331021076969
EANCode - 7331021076969
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Focal length range (panoramic camera) Panoramic camera - 3.26 - 8.12 mm
Focal length range Lens system - 3.26 - 8.12 mm
Form factor Design - Bulb
Frame rate Video - 30 fps
GRUPPE1 - Security
GRUPPE2 - Camera
Height Weight & dimensions - 88 mm
HERSTELLER - AXIS
HSTNUMMER - 02416-001
IK code Design - IK10
Image quality adjustment Video - Brightness, Contrast, Sharpness
International Protection (IP) code Design - IP66, IP67
IP address filtering Security - Yes
LED type Night vision - IR
Lens viewing angle, diagonal Camera - 133 - 46°
Lens viewing angle, horizontal Camera - 98 - 36°
Lens viewing angle, vertical Camera - 69 - 27°
Live view Network - Yes
Manufacturer - Axis
Maximum resolution Video - 2592 x 1944 pixels
Microphone in Ports & interfaces - Yes
Minimum illumination (panoramic camera) Panoramic camera - 0.19 lx
Model - P4707-PLVE
Mounting type Design - Ceiling/wall
MPN - 02416-001

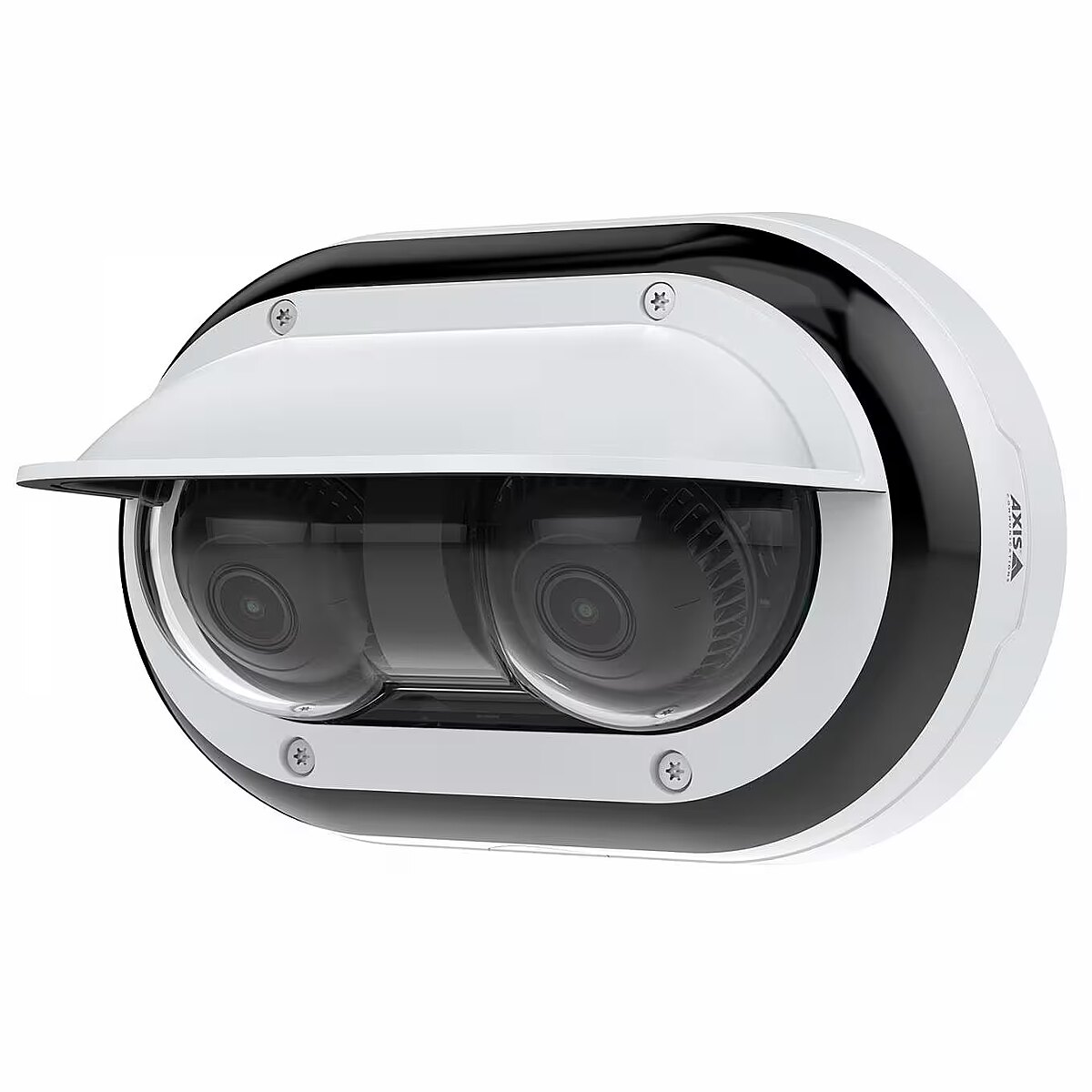

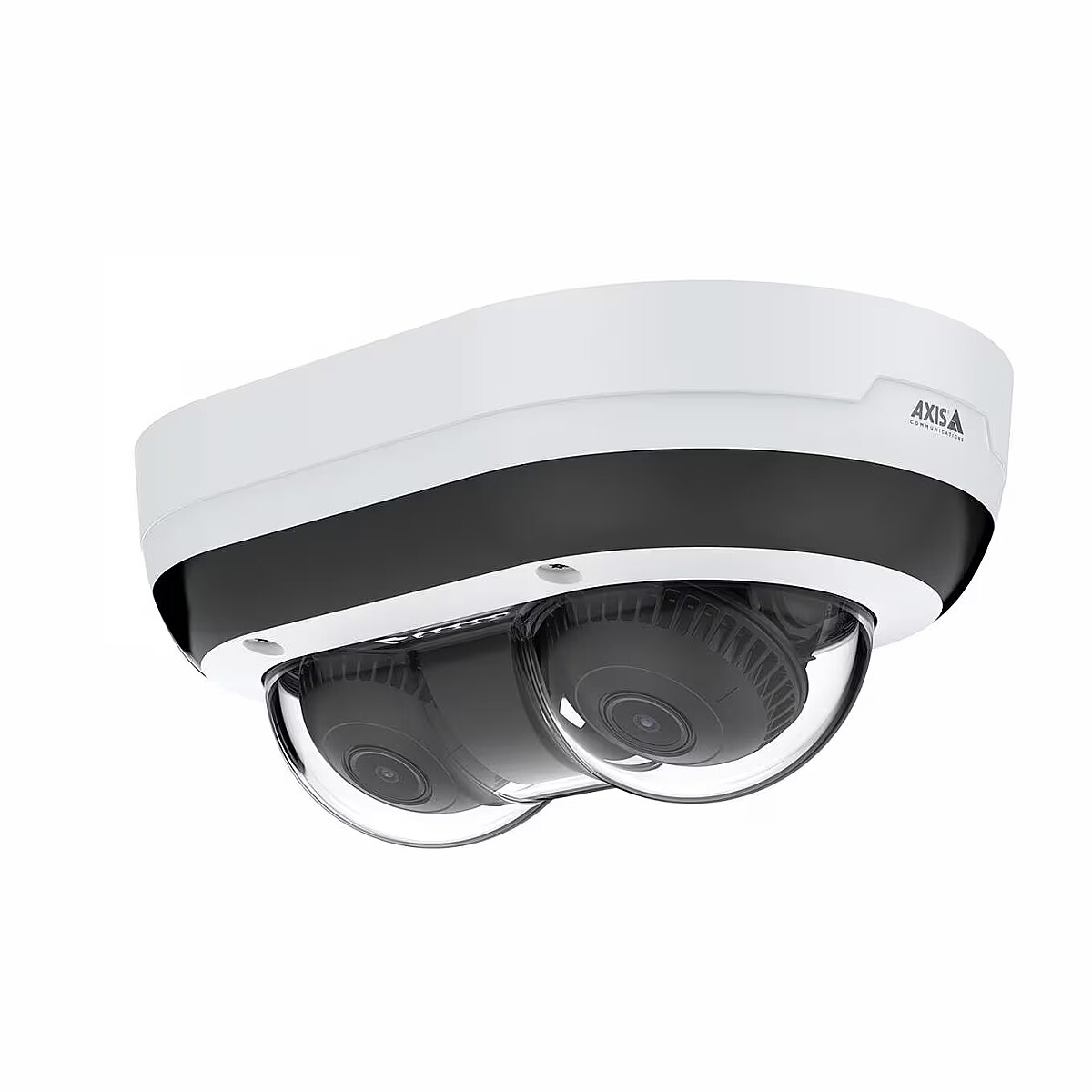

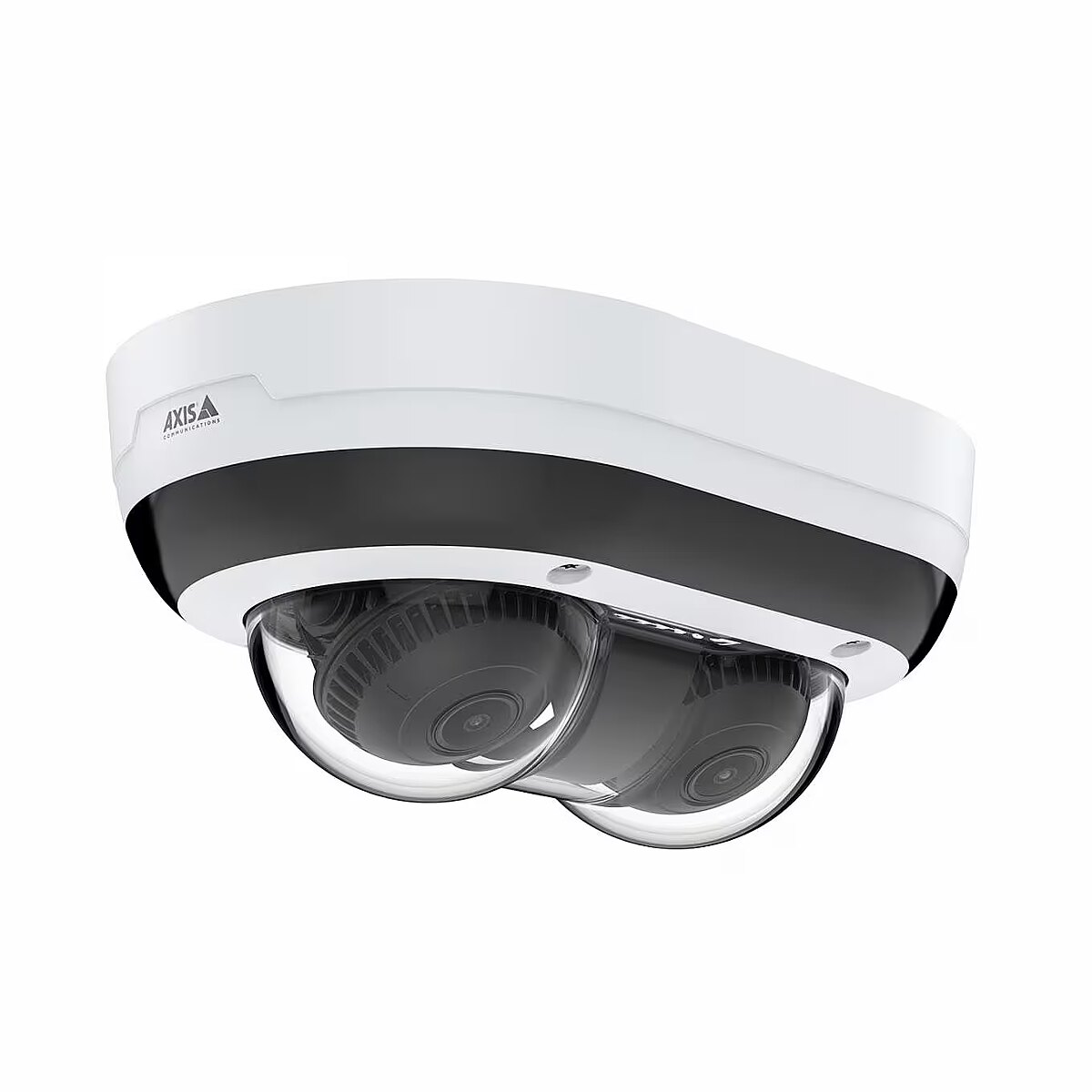

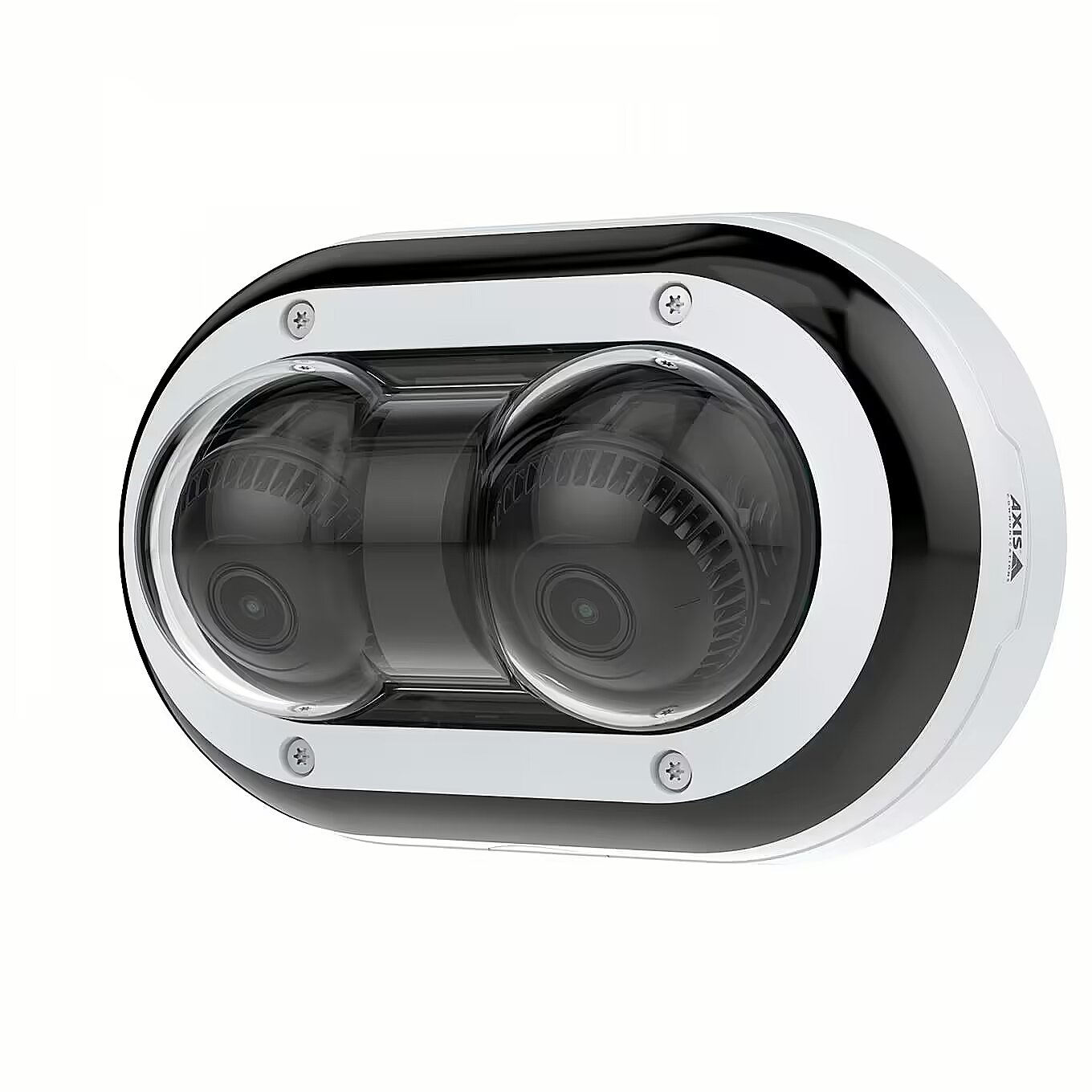

Name - Axis Netzwerkkamera Panorama Dome P4707-PLVE
Name - NET CAMERA P4707-PLVE 10MP/02416-001 AXIS
Networking standards Network - IEEE 802.1x, IEEE 802.3at
Night vision Night vision - Yes
Number of cameras Packaging content - 2
Number of lenses Lens system - 1
Operating relative humidity (H-H) Operational conditions - 5 - 95%
Operating temperature (T-T) Operational conditions - -30 - 50 °C
Optical sensor size (panoramic camera) Panoramic camera - 25.4 / 2.7 mm (1 / 2.7")
Optical sensor size Image sensor - 25.4 / 2.7 mm (1 / 2.7")
Pan range Camera - -100 - 110°
Password protection Security - Yes
Placement supported Performance - Indoor & outdoor
Power consumption (Power over Ethernet (PoE)) Power - 7.9 W
Power source type Power - PoE
Privacy masking Video - Yes
Product colour Design - Black, White
Product Net Weight ELKO Logistics Data - 0.975 kg
Quality of Service (QoS) support Network - Yes
Security algorithms Security - HTTPS
Sensor type (panoramic camera) Panoramic camera - CMOS
Sensor type Image sensor - CMOS
Shipping Box Depth ELKO Internal Logistics Data - 23.5 cm
Shipping Box Height ELKO Internal Logistics Data - 11 cm
Shipping Box Weight ELKO Internal Logistics Data - 1.29 kg
Shipping Box Width ELKO Internal Logistics Data - 19 cm
Stck_Kart - 0
Stck_Pal - 0
Storage temperature (T-T) Operational conditions - -40 - 65 °C
Storno - Y
Summary - Axis 02416-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Bulb. Angle of rotation: 170°, Lens viewing angle, horizontal: 98 - 36°, Lens viewing angle, vertical: 69 - 27°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Sensor type (panoramic camera): CMOS, Optical sensor size (panoramic camera): 25.4 / 2.7 mm (1 / 2.7"), Camera shutter speed (panoramic camera): 1/33500 - 1/5 s
Supported graphics resolutions Video - 2560 x 1440, 2592 x 1944
Supported network protocols Network - IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH,
Tilt angle range Camera - -75 - 75°
Total megapixels Video - 2.5 MP
Type Performance - IP security camera
Unit Box Height - 0.11
Unit Box Length - 0.235
Unit Box Width - 0.19
Unit Calculated Volume ELKO Internal Logistics Data - 0.004912 cubm
Unit Calculated Weight ELKO Logistics Data - 1.29 kg
Unit Depth ELKO Logistics Data - 23.5 cm
Unit Height ELKO Logistics Data - 11 cm
Units per Shipping Box ELKO Logistics Data - 1
Unit Width ELKO Logistics Data - 19 cm
Vendor Homepage - https://www.axis.com/products/axis-p4707-plve
Video compression formats Video - H.264, H.265, M-JPEG
Video streaming Video - Yes
Warranty - 60 months
Weight Weight & dimensions - 975 g
Wi-Fi Network - No
Wide Dynamic Range (WDR) Performance - Yes
Width Weight & dimensions - 133 mm
Zoom capability Lens system - Yes
