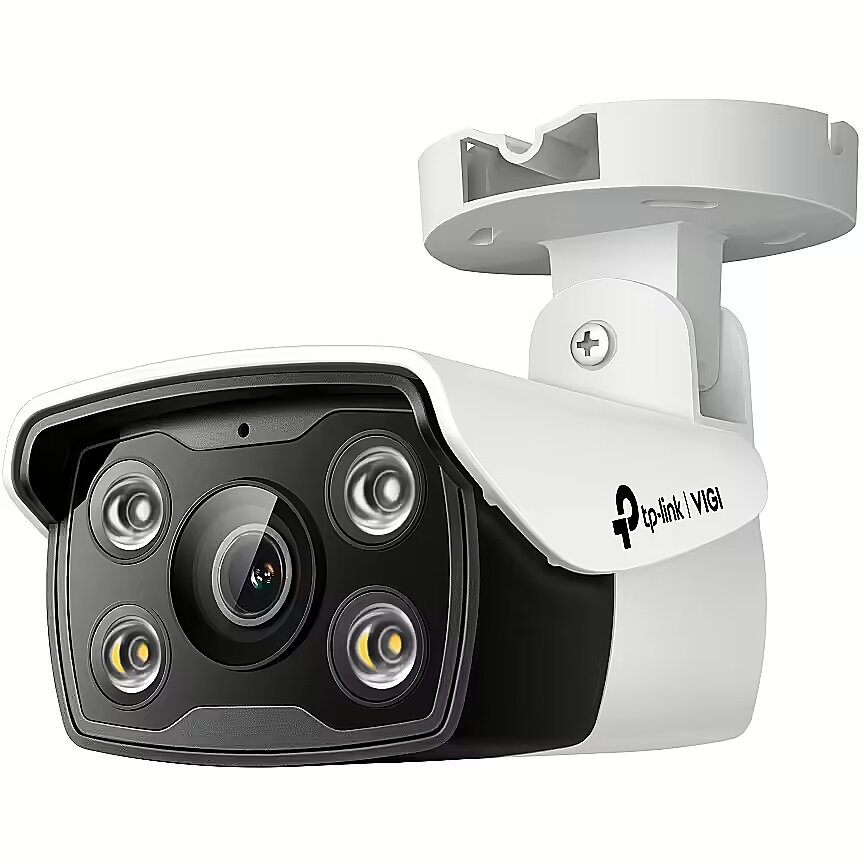

TP-LINK VIGI C340(6mm), 1440p, 4MP, White

3D positioning Video - Yes
Accessories included - VIGI C340 camera Quick Installation Guide Sealing elements for the cable Mounting accessories (Screws, Wall anchors, Allen key)
Audio - Audio input channels - 1.0 channels
Audio - Audio output channels - 1.0 channels
Audio - Audio system - 2-way
Audio - Bit rate range - 0 - 64 Kbit/s
Audio - Built-in microphone - Yes
Audio - Built-in speaker(s) - Yes
Audio - Sample rate - 8 kHz
Audio - Signal-to-Noise Ratio (SNR) - 52 dB
Audio > Audio in/out - Yes
Audio input channels Audio - 1.0 channels
Audio output channels Audio - 1.0 channels
Audio system Audio - 2-way
Back Light Compensation (BLC) Video - Yes
Behavior analysis Management features - Intrusion detection, Line crossing detection
Bit rate control Video - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate range Audio - 0 - 64 Kbit/s
Bit rate Video - 256 Kbps - 4 Mbps
Bluetooth Network - No
Brand - TP-Link
BrandPartCode - VIGI C340 6MM
Built-in HDD Storage - No
Built-in light Performance - Yes
Built-in microphone Audio - Yes
Built-in speaker(s) Audio - Yes
Camera - Camera shutter speed - 1/3 - 1/10000 s
Camera - Lens viewing angle, diagonal - 59°
Camera - Lens viewing angle, horizontal - 50°
Camera - Lens viewing angle, vertical - 27°
Camera - Minimum illumination - 0.005 lx
Camera - Number of Privacy masking areas - 4
Camera - Pan range - -90 - 90°
Camera - Tilt angle range - -90 - 90°
Camera shutter speed Camera - 1/3 - 1/10000 s
Card reader integrated Storage - Yes
Category - Root/Electronics/Networks and communication/Monitoring/Monitoring IP
Category - Security Cameras
Category Code - FNC
Code - VIGI C340(6mm)
Color - Black
Color - White
Compatible memory cards Storage - MicroSD (TransFlash)
Compliance certificates Sustainability - BSMI, CE, KC
Connectivity technology Performance - Wired
Connectors - Audio in
Connectors - Audio out
Connectors - microSD
Connectors - RJ-45
Day/night mode Performance - Yes
DC-in jack Ports & interfaces - Yes
DC output voltage Power - 12
Description - All The Colors,
All The Time

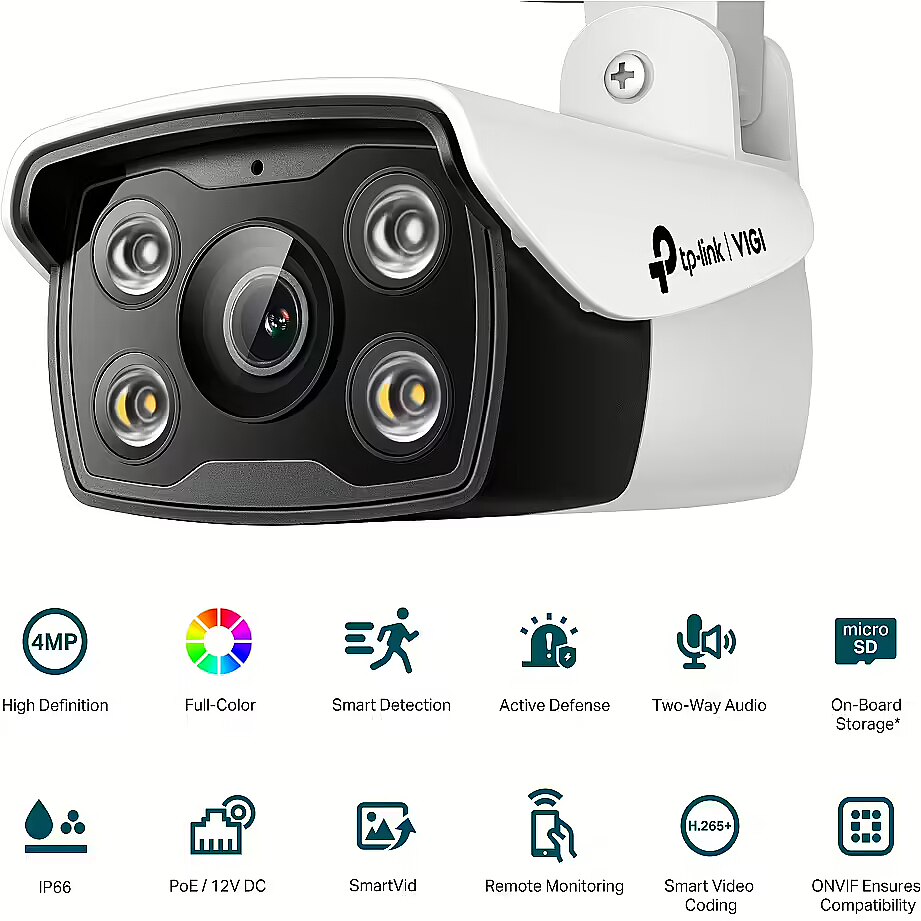

4MP Outdoor Full-Color Bullet Camera Outdoor PoE Connection, Simple Wiring
Just connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios. Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI’s Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights. We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera. Motion Detection
Get instant notifications when your camera detects motion. Area Intrusion
Set customized activity zones around key areas for more focused monitoring. Line-Crossing
Set a boundary and receive an alert anytime a person crosses it from either or both directions. Camera Tampering
Receive alerts when someone obstructs the camera. Active Defense
Warn potential intruders instantly with sound and light when abnormal events Every Event is Under Your Control.
VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio. Never miss a detail.
SmartVid-Smart Video Enhancement Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to camera at night. Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life. 3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion. More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with SD card slot (up to 256 GB). Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy. Flexible Installation
Find the perfect vantage point by simply securing your camera to ceiling, pole or wall. One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDsWaterproof: Reliable IP66 for stable outdoor performanceSmart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the cameraH.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image qualityPoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easyVIGI App: Manage your security from the palm of your hand with the VIGI app
Description - VIGI outdoor full-colour bullet network camera, 4MP High-quality 4MP: The camera is equipped with a 4MP sensor capable of capturing even the smallest details. Full colour for 24 hours: Full colour detail is available throughout the day, even in total darkness. This is possible thanks to the sensitive sensor and built-in spotlight LEDs. Waterproof: the reliable IP66 rating ensures stable operation in outdoor conditions. Smart detection (person detection, motion detection, line crossing, area intrusion, tampering): Receive alerts and see what happens when someone crosses your set boundary, enters a designated area or obstructs the camera. H.265+: Without using additional bandwidth, your cameras can transmit compressed and crystal clear video while saving disk space, reducing network load and lowering monitoring costs without sacrificing image quality. PoE/12V DC: Two power methods significantly simplify camera cabling. VIGI app: Manage your security at your fingertips with the VIGI app. Easy deployment Connect your camera with an RJ45 cable, then add power and data transmission is established. Sealing elements are used to maintain stable performance in outdoor applications. No need to choose between details and colours Monitor an area for 24 hours in clear and colourful detail, even during a dark night. The VIGI full-colour camera provides a maximum resolution of 4MP and guarantees colour monitoring thanks to its large lens size, high sensor sensitivity and built-in auxiliary lighting. Every event is under your control The VIGI camera intelligently detects activities and informs you of them immediately. Respond automatically via Smart Detection and two-way audio transmission. Smart IR Prevents underexposure of objects that are far from the camera or overexposure of objects that are recorded close to the lens at night. Wide Dynamic Range The function adjusts the lighting contrast to the conditions to minimise shadows and bring out the true depth of the image. More compression. More savings. Same quality Without using additional bandwidth, your cameras can transmit compressed and crystal clear images, while saving disk space, reducing network load and lowering monitoring costs without sacrificing image quality. Flexible management and storage Take full control of your security with four management methods : Web Inteface, VIGI NVR, VIGI app and Security Manager. Local recording is available for each of these methods, as well as on the SD card in the camera.
Design - Form factor - Bullet
Design - Housing material - Plastic
Design - International Protection (IP) code - IP66
Design - LED indicators - Yes
Design - Mounting type - Ceiling/Wall/Pole
Design - Product colour - Black, White
Design > Chassis type - Bullet
Design > Protection features - IP66
Designation - CE+WEEE
Detect distance Lens system - 128 m
Digest authentication Security - Yes
Digital Wide Dynamic Range (DWDR) Video - Yes
dimension depth - 130 mm
dimension height - 100 mm
Dimensions - 78 × 70 × 174 mm
dimension weight - 455 g
dimension width - 220 mm
EAN - 4897098688632
ean - 4897098688632
Eans - 4897098688632
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Features > Motion detection - Yes
Features > Package content - VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories
Fixed focal length Lens system - 6 mm
Form factor Design - Bullet
Frame rate Video - 30 fps
Frames per second - 30
GTIN - 4897098688632
guarantee - 36
guarantee_type - normal
Height Weight & dimensions - 70 mm
Highlight Compensation (HLC) Video - Yes
Housing material Design - Plastic
HTTPS encryption Security - Yes
Identify distance Lens system - 13 m
Image quality adjustment Video - Brightness, Contrast, Mirror, Saturation
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 3 mm (1 / 3")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Infra-red wavelength Night vision - 850 nm
Infrared (IR) cut-off filter Performance - Yes
International Protection (IP) code Design - IP66
IP address filtering Security - Yes
LED indicators Design - Yes
LED type Night vision - IR
Length Weight & dimensions - 78 mm
Lens - Lens: 6mm Aperture: 6mm: F1.6 Lens mount: M12
Lens system - Detect distance - 128 m
Lens system - Fixed focal length - 6 mm
Lens system - Identify distance - 13 m
Lens system - Maximum aperture number - 1.6
Lens system - Number of lenses - 1
Lens system - Observe distance - 53 m
Lens system - Recognize distance - 16 m
Lens system > Lens type - 6 mm
Lens viewing angle, diagonal Camera - 59°
Lens viewing angle, horizontal Camera - 50°
Lens viewing angle, vertical Camera - 27°
Link - https://www.tp-link.com/ph/business-networking/vigi-network-camera/vigi-c340/
Live view Network - Yes
LongDesc - All The Colors,All The Time4MP Outdoor Full-Color Bullet CameraOutdoor PoE Connection, Simple WiringJust connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.Clarity and Colors, All in OneMonitor 24-hour clear and colorful details even in pitch dark night. VIGI’s Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.We keep an eye on your business.Smart DetectionReceive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.Motion DetectionGet instant notifications when your camera detects motion.Area IntrusionSet customized activity zones around key areas for more focused monitoring.Line-CrossingSet a boundary and receive an alert anytime a person crosses it from either or both directions.Camera TamperingReceive alerts when someone obstructs the camera.Active DefenseWarn potential intruders instantly with sound and light when abnormal eventsEvery Event is Under Your Control.VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.Never miss a detail.SmartVid-Smart Video EnhancementSmart IRKeeps objects from being under-rendered when far away or overexposed when close to camera at night.Wide Dynamic RangeAdjusts for lighting contrast to minimize shadowing effects and renders images true to life.3D DNRRemoves abnormal pixelation to provide clearer video and eliminate distortion.More compression. More savings. Same quality.Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.Flexible Management and StorageTake full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with SD card slot (up to 256 GB).Discover the best way to power your camera.PoE/12V DCTwo power supply ways not only give you more convenience but also make your wiring remarkably easy.Flexible InstallationFind the perfect vantage point by simply securing your camera to ceiling, pole or wall.One system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
LongProductName - VIGI 4MP Outdoor Full-Color Bullet Network Camera, 2560 x 1440, 1/3” Progressive Scan CMOS, 6 mm, F 1.6
LongSummaryDescription - TP-Link VIGI C340. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 50°, Lens viewing angle, vertical: 27°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 128 m, Observe distance: 53 m, Recognize distance: 16 m
Management, monitoring, configuration -
Management features - Behavior analysis - Intrusion detection, Line crossing detection
Management features - Reset button - Yes
Management features - Web browser - Yes
Manual Packaging content - Yes
Maximum aperture number Lens system - 1.6
Maximum memory card size Storage - 256 GB
Maximum resolution Video - 2560 x 1440 pixels
Memory > Memory slots - MicroSD
Memory card reader - Yes
Memory standard - SDXC
Microphone - built-in
Min. illuminance - 0 lx
Minimum illumination Camera - 0.005 lx
Model - VIGI C340(6MM)
Motion detection - Yes
Mounting kit Packaging content - Yes
Mounting type Design - Ceiling/Wall/Pole
name - Camera IP 4MP Outdoor VIGI C340(6mm)
Name - TP-Link VIGI C340(6mm)
Name - TP-LINK | VIGI 4MP Outdoor Full-Color Network Camera | VIGI C340 | Bullet | 4 MP | 6 mm | IP66 | H.265+/H.265/H.264+/H.264 | MicroSD
Network - Bluetooth - No
Network - Ethernet LAN - Yes
Network - Live view - Yes
Network - Networking standards - IEEE 802.3af, IEEE 802.3at
Network - Number of simultaneous live view channels - 3 channels
Network - Supported network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Network - Wi-Fi - No
Network access storage (NAS) Security - Yes
Networking standards Network - IEEE 802.3af, IEEE 802.3at
Network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Night mode - Yes
Night vision - Infra-red wavelength - 850 nm
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision - Number of illumination LEDs - 2
Night vision distance Night vision - 30 m
Night vision Night vision - Yes
Noise reduction technology Video - 3D noise reduction
Noise reduction Video - Yes
Number of cameras Packaging content - 1
Number of illumination LEDs Night vision - 2
Number of lenses Lens system - 1
Number of Privacy masking areas Camera - 4
Number of sensors Image sensor - 1
Number of simultaneous live view channels Network - 3 channels
Observe distance Lens system - 53 m
Operating relative humidity (H-H) Operational conditions - 0 - 95%
Operating temperature (T-T) Operational conditions - -30 - 60 °C
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Optical sensor size Image sensor - 25.4 / 3 mm (1 / 3")
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 218 mm
Package features > Gross depth master carton - 128.00 mm
Package features > Gross height (mm) - 218.00 mm
Package features > Gross height master carton - 485 mm
Package features > Gross width (mm) - 103 mm
Package features > Gross width master carton - 103.00 mm
Package features > Net weight master carton - 10.24 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 177 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Tare weight master carton - 1.368 kg
Package features > Volume (m3) - 0.004894972 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package type Packaging data - Box
Package weight Packaging data - 420 g
Packaging content - Manual - Yes
Packaging content - Mounting kit - Yes
Packaging content - Number of cameras - 1
Packaging data - Package type - Box
Packaging data - Package weight - 420 g
Pan range Camera - -90 - 90°
Password protection Security - Yes
Performance - Built-in light - Yes
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Infrared (IR) cut-off filter - Yes
Performance - Placement supported - Outdoor
Performance - Type - IP security camera
Performance > Video compression formats - H.265+/H.265/H.264+/H.264
Performance > Wide Dynamic Range (WDR) - DWDR
Picture quality > Camera type - Outdoor
Placement supported Performance - Outdoor
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power consumption (max) - 7 W
Power - Power consumption (typical) - 3.4 W
Power - Power source type - DC, PoE
Power consumption (max) Power - 7 W
Power consumption (typical) Power - 3.4 W
Power source type Power - DC, PoE
Power supply - 12V DC +/- 5%, 5.5mm coaxial power plug PoE (802.3af/at, class 0)
Privacy masking Video - Yes
producer - TP-LINK
Producer - TP-Link
ProducerCode - VIGI C340(6mm)
Product colour Design - Black, White
ProductName - VIGI C340
Progressive scan Image sensor - Yes
Protection class - IP66
Recognize distance Lens system - 16 m
Region of Interest (ROI) encoding Video - Yes
Reset button Management features - Yes
Resolution - 2560 x 1440
Sample rate Audio - 8 kHz
Security - Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Security - Digest authentication - Yes
Security - HTTPS encryption - Yes
Security - IP address filtering - Yes
Security - Network access storage (NAS) - Yes
Security - Password protection - Yes
Security - Video motion detection - Yes
Sensor -
Sensor type Image sensor - CMOS
ShortDescription -
ShortSummaryDescription - TP-Link VIGI C340, IP security camera, Outdoor, Wired, Ceiling/Wall/Pole, Black, White, Bullet
Signal-to-Noise Ratio (SNR) Audio - 52 dB
Smart IR Video - Yes
Speakers built-in - Yes
Special functions -
Standards - 802.3af
Standards - 802.3at
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 256 GB
Storage relative humidity (H-H) Operational conditions - 0 - 95%
Storage temperature (T-T) Operational conditions - -40 - 60 °C
Summary - TP-Link VIGI C340. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 50°, Lens viewing angle, vertical: 27°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 128 m, Observe distance: 53 m, Recognize distance: 16 m
Supported graphics resolutions Video - 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Supported network protocols Network - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Sustainability - Compliance certificates - BSMI, CE, KC
Sustainability - Sustainability compliance - Yes
Sustainability compliance Sustainability - Yes
System Requirements -
Technical details > Gross weight - 0.40 kg
Technical details > Net weight - 0.20 kg
Technical details > Other features - Area Intrusion Detection, Line-Crossing Detection, Human Detection, Motion Detection, Camera Tampering Detection, Exception
Technical details > Producer - TP-LINK
Technical details > Producer product family - VIGI 4MP Outdoor Full-Color Network Camera
Technical details > Producer product name - VIGI C340
Tilt angle range Camera - -90 - 90°
Title - TP-Link VIGI C340 Bullet IP security camera Outdoor 2560 x 1440 pixels Ceiling/Wall/Pole
Total megapixels Video - 4 MP
type - Fixed bullet type camera
Type Performance - IP security camera
Unit Box Height - 0.1
Unit Box Length - 0.21
Unit Box Width - 0.13
Unit Calculated Volume - 0.00273 cubm
Unit Calculated Weight - 0.459 kg
Units per Shipping Box - 1
URL - https://www.tp-link.com/en/business-networking/vigi-network-camera/vigi-c340/v1%20(6mm%20lens)/
Vendor Homepage - https://www.tp-link.com/en/business-networking/vigi-network-camera/vigi-c340/v1%20(6mm%20lens)/
vendpn - VIGI C340(6mm)
Video - 3D positioning - Yes
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - 256 Kbps - 4 Mbps
Video - Bit rate control - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Frame rate - 30 fps
Video - Highlight Compensation (HLC) - Yes
Video - Image quality adjustment - Brightness, Contrast, Mirror, Saturation
Video - Maximum resolution - 2560 x 1440 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Privacy masking - Yes
Video - Region of Interest (ROI) encoding - Yes
Video - Smart IR - Yes
Video - Supported graphics resolutions - 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264, H.264+, H.265, H.265+
Video - Video streaming - Yes
Video > Maximum video resolution - 2560 x 1440 pixels
Video > Max IR distance - 30 m
Video > Megapixel - 4 MP
Video compression formats Video - H.264, H.264+, H.265, H.265+
Video motion detection Security - Yes
Video streaming Video - Yes
Viewing angle, horizontal - 50 °
Viewing angle, vertical - 27 °
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
Web browser Management features - Yes
Weight & dimensions - Height - 70 mm
Weight & dimensions - Length - 78 mm
Weight & dimensions - Weight - 280 g
Weight & dimensions - Width - 174 mm
Weight Weight & dimensions - 280 g
Wi-Fi Network - No
Width Weight & dimensions - 174 mm
Wireless communication - No
