Alarm input/output Performance - Yes
Alert notification type Security - E-mail, Text alert message
Angle of rotation Camera - 180°
ARTIKEL1 - AXIS M3077-PLVE
ARTIKEL2 - MINI DOME AXIS LIGHTFINDER FOREN
Audio formats supported Audio - G.711, G.726, LC-AAC, LPCM, OPUS
Audio input channels Audio - 2.0 channels
Audio system Audio - 1-way
Built-in microphone Audio - Yes
Camera shutter speed Camera - 1/16000 - 1 s
Card reader integrated Storage - Yes
Category 1 - Netzwerk
Category 2 - Netzwerkkameras
Category Code - FNC
Compatible memory cards Storage - MicroSD (TransFlash), MicroSDHC, MicroSDXC
Connectivity technology Performance - Wired
Day/night mode Performance - Yes

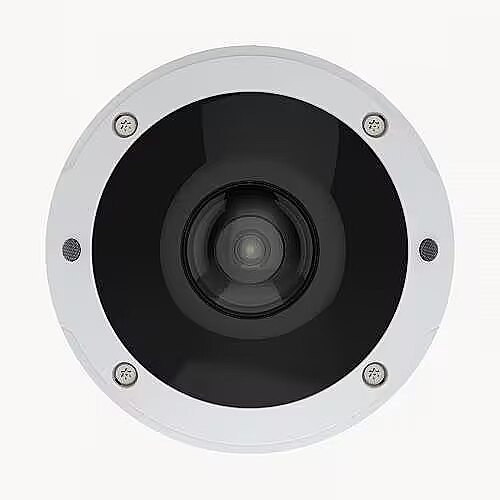

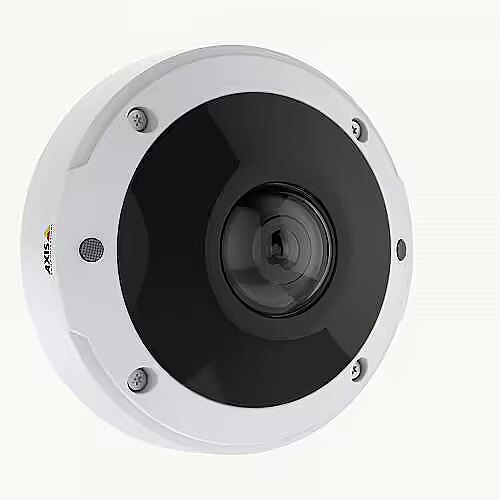

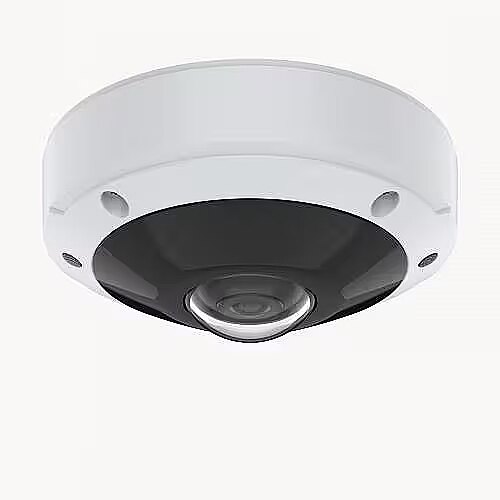

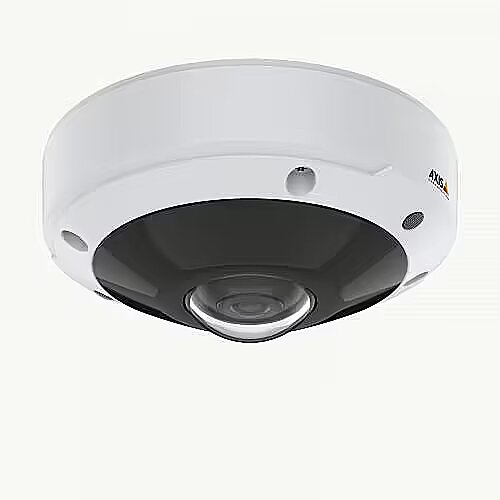

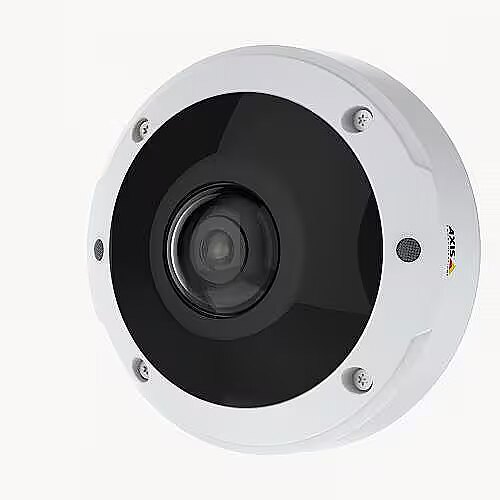

Description - With its 6 MP sensor, AXIS M3077-PLVE offers excellent image quality and a complete 180° or 360° overview, indoors or out, around the clock. It features two built-in microphones allowing for audio surveillance and detection. This compact mini dome offers dewarped views such as panorama, quad, corner, and corridor views directly from the camera. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. And, Axis OptimizedIR for surveillance in pitch darkness.Built-in microphones; Complete 180° and 360° overview; Digital PTZ and dewarped views; Enhanced security features; Lightfinder, Forensic WDR and Optimized IR
Diameter Weight & dimensions - 14.9 cm
Dynamic range Performance - 120 dB
EAN - 7331021070813
EANCode - 7331021070813
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Fixed focus Lens system - Yes
Flash memory Storage - 512 MB
Focal length range Lens system - 1.56 mm
Focus adjustment Lens system - 2.0
Form factor Design - Dome
Frame rate Video - 60 fps
GRUPPE1 - Security
GRUPPE2 - Camera
Harmonized System (HS) code Logistics data - 85258900
Height Weight & dimensions - 66 mm
HERSTELLER - AXIS
Housing material Design - Aluminium, Polycarbonate (PC)
HSTNUMMER - 02018-001
HTTPS encryption Security - Yes
IK code Design - IK10
Internal memory Storage - 1024 MB
International Protection (IP) code Design - IP66
Languages support Performance - Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
LED type Night vision - IR
Lens viewing angle, horizontal Camera - 183°
Lens viewing angle, vertical Camera - 183°
Manufacturer - Axis
Maximum resolution Video - 2560 x 1920 pixels
Mounting brackets included Packaging content - Yes
Mounting type Design - Ceiling/wall
MPN - 02018-001
Name - Axis Netzwerkkamera Fix Dome Fisheye M3077-PLVE 180/360°
Networking standards Network - IEEE 802.3af, IEEE 802.3at
Night vision Night vision - Yes
Noise reduction Video - Yes
Number of cameras Packaging content - 1
Number of languages Performance - 12
Number of lenses Lens system - 1
Operating relative humidity (H-H) Operational conditions - 10 - 100%
Operating temperature (T-T) Operational conditions - -40 - 50 °C
Optical sensor size Image sensor - 25.4 / 1.8 mm (1 / 1.8")
Pixel counter Security - Yes
Placement supported Performance - Indoor
Power consumption (max) Power - 11.9 W
Power consumption (Power over Ethernet (PoE)) Power - 8 W
Power consumption (typical) Power - 8 W
Power source type Power - PoE
Product colour Design - White
PTZ modes Performance - Digital PTZ
Sample rate Audio - 48 kHz
Security algorithms Security - EAP-TLS, HTTPS
Sensor type Image sensor - CMOS
Stck_Kart - 0
Stck_Pal - 0
Storage relative humidity (H-H) Operational conditions - 5 - 95%
Storage temperature (T-T) Operational conditions - -40 - 65 °C
Storno - Y
Summary - Axis 02018-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Angle of rotation: 180°, Lens viewing angle, horizontal: 183°, Lens viewing angle, vertical: 183°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 1.56 mm
Supported graphics resolutions Video - 256 x 144, 384 x 288, 1920 x 1440, 2560 x 1440, 2560 x 1920
Supported network protocols Network - IPv6 USGv6, HTTP, HTTPSa , HTTP/2, SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, MQTT v3.1.1, Sys
Text caption overlay Video - Yes
Thermal frame rate (NTSC) Video - 50 - 60 Hz
Type Performance - IP security camera
Unit Box Height - 0.09
Unit Box Length - 0.175
Unit Box Width - 0.165
Unit Calculated Volume - 0.002599 cubm
Unit Calculated Weight - 0.97 kg
Units per Shipping Box - 1
Vendor Homepage - https://www.axis.com/en-ro/products/axis-m3077-plve
Video compression formats Video - H.264, H.265, M-JPEG, MPEG4
Video intelligence analytic Video - Yes
Video recording Video - Yes
Video streaming Video - Yes
Warranty - 60 months
Weight - 0.971
Weight Weight & dimensions - 700 g
Wide Dynamic Range (WDR) Performance - Yes
Zoom capability Lens system - Yes
