Axis P3277-LVE .

Angle of rotation Camera - 190°
ARTIKEL1 - AXIS P3277-LVE
ARTIKEL2 - .
Audio detection Audio - Yes
Audio formats supported Audio - AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio system Audio - 2-way
Audio system full duplex Audio - Yes
Auto-tracking Performance - Yes
Auto focus Lens system - Yes
Bit rate control Video - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Breite - 0
Camera pan control Camera - Yes
Camera shutter speed Camera - 1/30500 - 2 s
Camera tilt control Camera - Yes
Category Code - FNC
Closest focusing distance Lens system - 1 m
Compatible memory cards Storage - MicroSD (TransFlash), MicroSDHC, MicroSDXC
Compliance certificates Sustainability - CE, EAC, Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), ICES, KC, RCM, REACH, RoHS, Trade Agreements Act (TAA), UKCA, UL, VCCI, cUL
Connectivity technology Performance - Wired
Day/night mode Performance - Yes
Depth Weight & dimensions - 149 mm

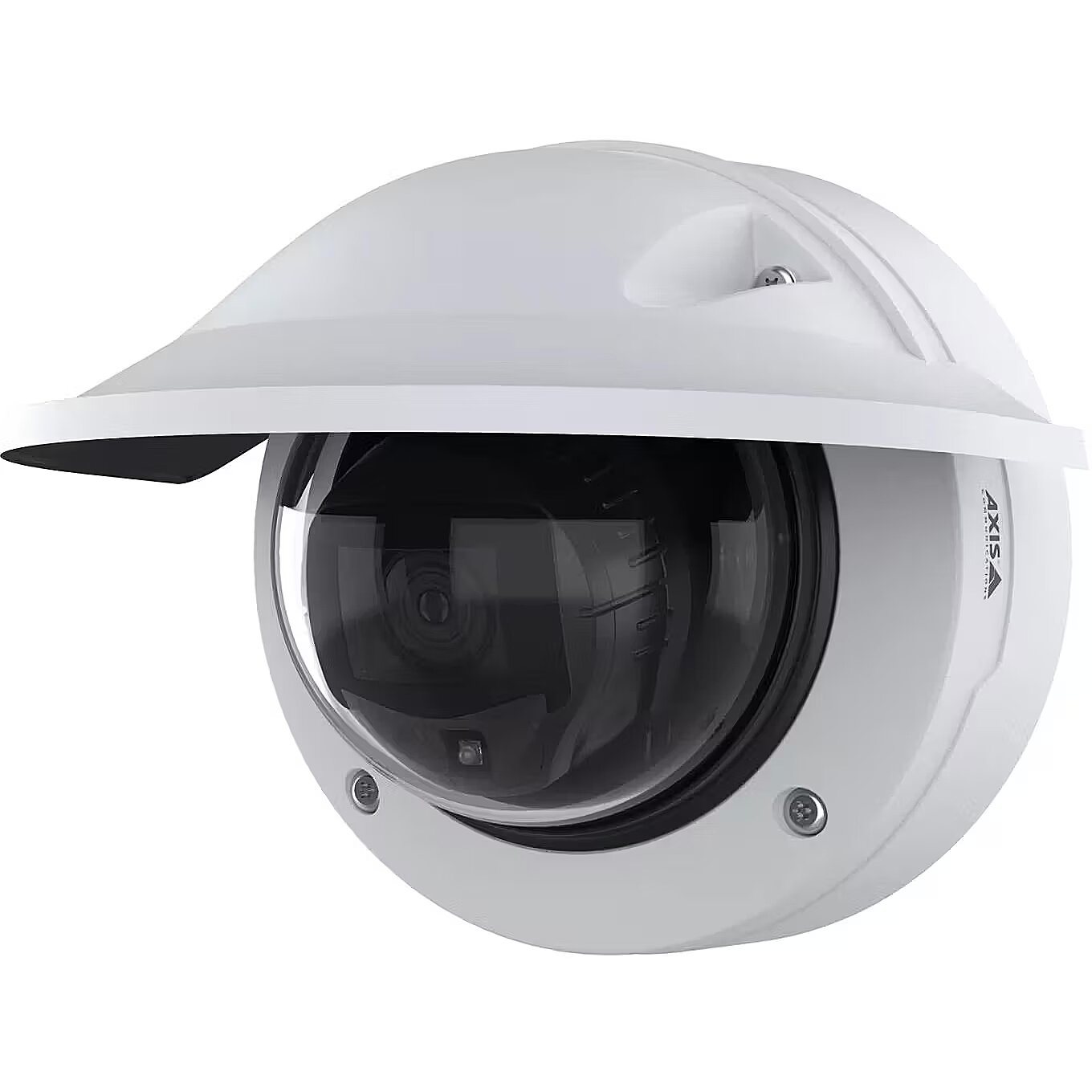

Description - AXIS P3277-LVE Dome Camera Built on ARTPEC-9, this robust AI-powered dome camera with support for AV1 codec delivers excellent 5 MP image quality in any light conditions. It offers accelerated performance to run impressive analytics applications on the edge. Excellent image quality AXIS P3277-LVE offers excellent image quality and forensic details in 5 MP under any light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it ensures true colors and great detail in near darkness or challenging light. And OptimizedIR enables surveillance in pitch darkness without the need for extra lighting. Axis Zipstream with support for AV1, H.264, and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. Furthermore, this dome camera includes a built-in audio jack so it’s possible to connect a microphone for audio support. Powerful analytics Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics to detect, classify, track, and count humans, vehicles, and types of vehicles. Now combined with ARTPEC 9, this application offers enhanced performance with greater accuracy. In addition, AXIS Image Health Analytics comes preinstalled, so you’ll be notified if your image is blocked, degraded, under-exposed, or redirected. And, with AXIS Live Privacy Shield, it’s easy to remotely monitor activities while protecting privacy. Robust with strong security This robust, IK10-, IP66-, and NEMA 4X-rated outdoor-ready camera is both vandal- and impact-resistant. It features a built-in weathershield and has an operating temperature range from -40°C to 50 °C (-40°F to 122°F). And a built-in intrusion switch can detect tampering. Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations. What’s more, this dome camera is easy to install, maintain, and operate. Excellent image quality in 5 MPNext-generation AI-powered analyticsLightfinder 2.0 and Forensic WDRAudio and I/O connectivityBuilt-in cybersecurity with Axis Edge Vault
Detect distance (tele) Lens system - 170 m
Detect distance (wide) Lens system - 60 m
Doesn't contain Other features - BFR, PVC
EANCode - 7331021089938
Ethernet interface type Network - Fast Ethernet
Ethernet LAN Network - Yes
Flash memory Storage - 8 MB
Flip & mirror Video - Yes
Focal length range Lens system - 3 - 8.5 mm
Fog proof Design - Yes
Form factor Design - Dome
Frame rate Video - 30 fps
Gain control type Video - Auto
GRUPPE1 - Security
GRUPPE2 - Network Cameras
Height Weight & dimensions - 107 mm
HERSTELLER - AXIS
Hoehe - 0
Housing material Design - Plastic, Polycarbonate (PC)
HSTNUMMER - 03153-001
Human and vehicle targets classification Security - Yes
Identify distance (tele) Lens system - 17 m
Identify distance (wide) Lens system - 6 m
IK code Design - IK10
Image quality adjustment Video - Brightness, Contrast, Saturation, Sharpness
Infra-red wavelength Night vision - 850 nm
Infrared (IR) cut-off filter Performance - Yes
Intelligent Video Surveillance (IVS) system features Security - Line crossing detection, Moving object
Internal memory Storage - 2000 MB
International Protection (IP) code Design - IP66
Laenge - 0
LED indicators Design - Yes
LED type Night vision - IR
Lens diameter Lens system - 1 cm
Lens viewing angle, horizontal Camera - 104°
Lens viewing angle, vertical Camera - 76°
Manual Packaging content - Yes
Maximum aperture number Lens system - 2.58
Maximum resolution Video - 2592 x 1944 pixels
Microphone in Ports & interfaces - Yes
Minimum aperture number Lens system - 1.38
Minimum illumination Camera - 0.03 lx
Model - P3277-LVE
Mounting type Design - Ceiling/wall
Networking standards Network - IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af
Night vision distance Night vision - 40 m
Night vision Night vision - Yes
Noise reduction technology Video - 2D noise reduction, 3D noise reduction
Number of cameras Packaging content - 1
Number of lenses Lens system - 1
Number of sensors Image sensor - 1
Observe distance (tele) Lens system - 67 m
Observe distance (wide) Lens system - 24 m
Operating relative humidity (H-H) Operational conditions - 10 - 100%
Operating temperature (T-T) Operational conditions - -40 - 50 °C
Optical sensor size Image sensor - 25.4 / 2.8 mm (1 / 2.8")
Pan range Camera - -190 - 190°
People counting function Performance - Yes
Placement supported Performance - Indoor & outdoor
Power consumption (max) Power - 12.6 W
Power consumption (typical) Power - 4.7 W
Power source type Power - PoE
Privacy protection Security - Yes
Product colour Design - Black, White
Progressive scan Image sensor - Yes
Protection features Design - Impact resistant, Vandal proof
PTZ control Performance - Yes
Quality of Service (QoS) support Network - Yes
Recognize distance (tele) Lens system - 34 m
Recognize distance (wide) Lens system - 12 m
Security algorithms Security - 256-bit AES-XTS, EAP-TLS, MSCHAPv2, PEAP
Sensor type Image sensor - CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera) Panoramic camera - 55 dB
Stck_Kart - 8
Stck_Pal - 0
Storage relative humidity (H-H) Operational conditions - 5 - 95%
Storage temperature (T-T) Operational conditions - -40 - 65 °C
Storno - Y
Streaming method Network - Multicast
Summary - Axis P3277-LVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.03 lx, Angle of rotation: 190°, Lens viewing angle, horizontal: 104°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB
Supported graphics resolutions Video - 1920 x 1200 (WUXGA), 2560 x 1440, 2592 x 1944
Supported network protocols Network - IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6,
Terminal block port Ports & interfaces - Yes
Text caption overlay Video - Yes
Tilt angle range Camera - -50 - 80°
Total megapixels Video - 5 MP
Tour recording Performance - Yes
Type Performance - IP security camera
Unit Box Height - 0.195
Unit Box Length - 0.2
Unit Box Width - 0.17
Unit Calculated Volume - 0.00663 cubm
Unit Calculated Weight - 1.2 kg
Units per Pallet - 0
Units per Shipping Box - 1
Vendor Homepage - https://www.axis.com/products/axis-p3277-lve
Video formats supported Video - AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Video streaming Video - Yes
Warranty - 60 months
Weatherproof Design - Yes
Weight Weight & dimensions - 850 g
Wide Dynamic Range (WDR) Performance - Yes
Width Weight & dimensions - 149 mm
