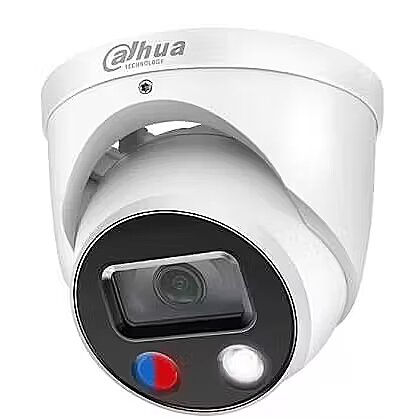

Dahua NET CAMERA 8MP IR EYEBALL/IPC-HDW3849HASPV0280BS3

Alarm In Input/Output connectors - 1
Alarm Out Input/Output connectors - 1
Audio - Built-in microphone - Yes
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Audio - Signal-to-Noise Ratio (SNR) - 56 dB
Audio - Voice codecs - G.711Mu, G.711a, G.726
Brand - Dahua Technology
BrandPartCode - DH-IPC-HDW3849HP-AS-PV-0280B
Camera - Adjustment shutter speed - Auto/Manual
Camera - Angle of rotation - 360°
Camera - Camera shutter speed - 1/3 s–1/100,000 s
Camera - Camera shutter type - Electronic
Camera - Lens viewing angle, diagonal - 127°
Camera - Lens viewing angle, horizontal - 107°
Camera - Lens viewing angle, vertical - 56°
Camera - Minimum illumination - 0.007 lx
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 78°
Camera - White balance - Auto, Lamp, Manual, Natural, Outdoor
Camera design - Eyeball
Category - Security Cameras
Category Code - FNC
CnCode - 85258900
Description - 8MP Full-color Active Deterrence Fixed-focal Eyeball WizSense Network Camera 1/2.8” CMOS, 3840 × 2160 @ 30FPS max Minimum illumination: 0.007 Lux @ F1.4 True Day/Night with ICR Filter, BLC / HLC / True WDR (120dB), 3D DNR, Defog 2.8 mm fixed lens (107°) Up to 30 meters visible white light Illumination H.265+, H.265, H.264+, H.264, H.264B, H.264H, MJPEG, ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P Micro SD: Max 256GB, 1/1 Audio I/O, 1/1 Alarm I/O, Built-in microphone Smart detection: Tripwire; intrusion (support the classification and accurate detection of vehicle and human) Red and blue flash alarm light, Siren And Light Active Deterrence Eyeball turret design, metal shell, IP67 -40°C~+60°C Power PoE / 12VDC, 8.2W max Free IP monitoring software available
Design - Form factor - Dome
Design - Housing material - Metal, Plastic
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling
Design - Product colour - White
Dimensions - Φ122.0 mm × 110.9 mm
Effective pixels - 3840(H) × 2160 (V)
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Focal Length - 2.8 mm
Image sensor - Number of effective pixels (H x V) - 3840 x 2160 pixels
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 2.8 mm (1 / 2.8")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
IR Illumination - Yes
Lens Mount - M12
Lens system - Fixed focal length - 2.8 mm
Lens system - Maximum aperture number - 1.4
Lens system - Number of lenses - 1
LongDesc -
LongProductName - 8 MP, 1/2.8” CMOS, 3840 x 2160, WDR, HLC, BLC, MicroSD, IP67, RJ-45, White
LongSummaryDescription - Dahua Technology IPC-HDW3849HP-AS-PV. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.007 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 107°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 3840 x 2160 pixels. Fixed focal length: 2.8 mm
Management features - Web browser - Yes
Microphone - Built-in
Network - Bluetooth - No
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Networking standards - IEEE 802.3af
Network - Quality of Service (QoS) support - Yes
Network - Supported network protocols - IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Network - Wi-Fi - No
Network Camera Type - HDTV/Megapixel/Outdoor
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision - Number of illumination LEDs - 1
Operating temperature range - –40°C to +60°C
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -40 - 60 °C
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Packaging content - Number of cameras - 1
Packaging data - Package weight - 915 g
Performance - Alarm input/output - Yes
Performance - Certification - CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Placement supported - Indoor & outdoor
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Microphone in - Yes
Power - DC output voltage - 12
Power - Power consumption (Power over Ethernet (PoE)) - 3.5 W
Power - Power consumption (typical) - 3.1 W
Power - Power source type - DC, PoE
Power consumption - 8.2 Watts
Power options - 12V/PoE
Power supply requirements - 12V DC/PoE (802.3af)
ProductName - IPC-HDW3849HP-AS-PV
Product Net Weight - 0.754 kg
Resolution - 8 Mega Pixel
RJ45 Input/Output connectors - 1
Security - Digital watermark - Yes
Security - HTTPS encryption - Yes
Security - Intelligent Video Surveillance (IVS) system features - Intrusion, Tripwire
Security - Mirror - Yes
Security - Video motion detection - Yes
Sensor size - 1/2.8”
ShortSummaryDescription - Dahua Technology IPC-HDW3849HP-AS-PV, IP security camera, Indoor & outdoor, Wired, CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part..., Ceiling, White
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Internal memory - 512 MB
Storage - Maximum memory card size - 256 GB
Storage - ROM capacity - 128 MB
Supports card capacities up to - 256GB
System requirements - Mobile operating systems supported - Android, iOS
Title - Dahua Technology IPC-HDW3849HP-AS-PV Dome IP security camera Indoor & outdoor 3840 x 2160 pixels Ceiling
Unit Box Height - 0.14
Unit Box Length - 0.16
Unit Box Width - 0.16
Unit Calculated Volume - 0.003584 cubm
Unit Calculated Weight - 0.933 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/my/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Active-Deterrence/IPC-HDW3849H-AS-PV
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Active-Deterrence/IPC-HDW3849H-AS-PV
Video - Analog signal format system - PAL
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - 32 kbps–8192 kbps
Video - Bit rate control - Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Video - Frame rate - 30 fps
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 3840 x 2160 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Privacy masking - Yes
Video - Region of Interest (ROI) encoding - Yes
Video - Supported graphics resolutions - 352 x 240, 352 x 288, 640 x 480 (VGA), 720 x 480, 720 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2592 x 1944, 2688 x 1520, 3072 x 2048, 3840 x 2160
Video - Total megapixels - 8 MP
Video - Video compression formats - H.264, H.264+, H.265, H.265+
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Diameter - 12.2 cm
Weight & dimensions - Height - 110.9 mm
Weight & dimensions - Weight - 754 g
