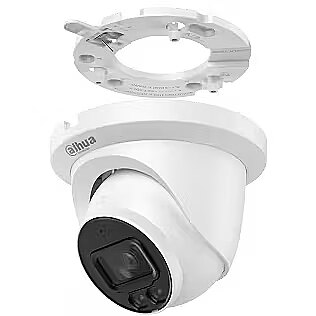

Dahua Eyeball, 1850p, 6MP, White

Angle of rotation Camera - 360°
Audio - Audio formats supported - G.711 A-law, G.711 μ-law, G.726, PCM
Audio - Built-in microphone - Yes
Audio formats supported Audio - G.711 A-law, G.711 μ-law, G.726, PCM
Back Light Compensation (BLC) Video - Yes
Bit rate control Video - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bluetooth Network - No
Brand - Dahua Technology
BrandPartCode - IPC-HDW2649TM-S-IL-0280B
Built-in HDD Storage - No
Built-in microphone Audio - Yes
Camera - Angle of rotation - 360°
Camera - Camera pan control - Yes
Camera - Camera shutter speed - 1/3 - 1/100000 s
Camera - Camera tilt control - Yes
Camera - Lens viewing angle, diagonal - 132°
Camera - Lens viewing angle, horizontal - 112°
Camera - Lens viewing angle, vertical - 61°
Camera - Minimum illumination - 0.0007 lx
Camera - Number of Privacy masking areas - 4
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 78°
Camera - White balance - Auto, Manual, Natural, Outdoor, Regional custom, Street lamp
Camera pan control Camera - Yes
Camera shutter speed Camera - 1/3 - 1/100000 s
Camera tilt control Camera - Yes
Card reader integrated Storage - Yes
Category - Security Cameras
Category Code - FNC
Closest focusing distance Lens system - 1 m
CnCode - 85258900
Colour night vision distance Night vision - 30 m
Compatible memory cards Storage - MicroSD (TransFlash)
Compliance certificates Sustainability - CE
Connectivity technology Performance - Wired
Day/night mode Performance - Yes
DC-in jack Ports & interfaces - Yes
DC output voltage Power - 12
Description - 1/2.7" CMOS image sensor, low luminance, and high definition imageOutputs max. 6 MP (3288×1850) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fpsH.265 codec, high compression rate, ultra-low bit rateBuilt-in warm light and IR LED, the max. IR distance is 30 m and the max. warm light distance is 30 mROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environmentsRotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenesIntelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detectionSupports max. 256 G Micro SD card; built in Mic12 VDC/PoE power supply, easy for installation
Design - Form factor - Turret
Design - Housing material - Metal, Plastic
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling/Wall/Pole
Design - Product colour - White
Detect distance Lens system - 61.2 m
Diameter Weight & dimensions - 12.2 cm
Dynamic range Performance - 120 dB
Ethernet interface type Network - Fast Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Fixed focal length Lens system - 2.8 mm
Fixed focus Lens system - Yes
Form factor Design - Turret
Frame rate Video - 30 fps
Gain control type Video - Auto/Manual
GTIN - 6939554905285
Height Weight & dimensions - 99.1 mm
Highlight Compensation (HLC) Video - Yes
Housing material Design - Metal, Plastic
Human and vehicle targets classification Security - Yes
Identify distance Lens system - 6.1 m
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 2.7 mm (1 / 2.7")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
International Protection (IP) code Design - IP67
IP address filtering Security - Yes
LED type Night vision - IR
Lens system - Closest focusing distance - 1 m
Lens system - Detect distance - 61.2 m
Lens system - Fixed focal length - 2.8 mm
Lens system - Fixed focus - Yes
Lens system - Identify distance - 6.1 m
Lens system - Maximum aperture number - 1.6
Lens system - Observe distance - 24.5 m
Lens system - Recognize distance - 12.2 m
Lens viewing angle, diagonal Camera - 132°
Lens viewing angle, horizontal Camera - 112°
Lens viewing angle, vertical Camera - 61°
LongDesc -
LongProductName - 6 MP, CMOS, 3288 x 1850, IP67, DC/PoE
LongSummaryDescription - Dahua Technology WizSense IPC-HDW2649TM-S-IL-0280B. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Turret. Minimum illumination: 0.0007 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 112°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 61.2 m, Observe distance: 24.5 m, Recognize distance: 12.2 m
Manual Packaging content - Yes
Maximum aperture number Lens system - 1.6
Maximum memory card size Storage - 256 GB
Maximum resolution Video - 3288 x 1850 pixels
Minimum illumination Camera - 0.0007 lx
Mirror Security - Yes
Mobile operating systems supported System requirements - Android, iOS
Model - IPC-HDW2649TM-S-IL-0280B
Mounting type Design - Ceiling/Wall/Pole
Name - NET CAMERA 6MP EYEBALL/IPC-HDW2649TM-S-IL-0280B DAHUA
Network - Bluetooth - No
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Networking standards - IEEE 802.1x
Network - Quality of Service (QoS) support - Yes
Network - Streaming method - Multicast
Network - Supported network protocols - IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, PPPoE, P2P
Network - Wi-Fi - No
Network access storage (NAS) Security - Yes
Networking standards Network - IEEE 802.1x
Night vision - Colour night vision distance - 30 m
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision - Number of illumination LEDs - 2
Night vision distance Night vision - 30 m
Night vision Night vision - Yes
Noise reduction technology Video - 3D noise reduction
Noise reduction Video - Yes
Number of cameras Packaging content - 1
Number of illumination LEDs Night vision - 2
Number of Privacy masking areas Camera - 4
Number of sensors Image sensor - 1
Observe distance Lens system - 24.5 m
Operating temperature (T-T) Operational conditions - -40 - 60 °C
Operational conditions - Operating temperature (T-T) - -40 - 60 °C
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Optical sensor size Image sensor - 25.4 / 2.7 mm (1 / 2.7")
Package weight Packaging data - 670 g
Packaging content - Manual - Yes
Packaging content - Number of cameras - 1
Packaging data - Package weight - 670 g
Pan range Camera - 0 - 360°
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Dynamic range - 120 dB
Performance - Placement supported - Indoor
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Placement supported Performance - Indoor
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power consumption (max) - 4.6 W
Power - Power consumption (typical) - 2.5 W
Power - Power source type - DC, PoE
Power consumption (max) Power - 4.6 W
Power consumption (typical) Power - 2.5 W
Power source type Power - DC, PoE
Product colour Design - White
ProductName - IPC-HDW2649TM-S-IL-0280B
Product Net Weight ELKO Logistics Data - 0.53 kg
Progressive scan Image sensor - Yes
Quality of Service (QoS) support Network - Yes
RAM capacity Storage - 256 MB
Recognize distance Lens system - 12.2 m
Region of Interest (ROI) encoding Video - Yes
ROM capacity Storage - 128 MB
Security - Human and vehicle targets classification - Yes
Security - IP address filtering - Yes
Security - Mirror - Yes
Security - Network access storage (NAS) - Yes
Security - Video motion detection - Yes
Sensor type Image sensor - CMOS
Shipping Box Depth ELKO Internal Logistics Data - 71 cm
Shipping Box Height ELKO Internal Logistics Data - 26 cm
Shipping Box Weight ELKO Internal Logistics Data - 14.5 kg
Shipping Box Width ELKO Internal Logistics Data - 30 cm
ShortSummaryDescription - Dahua Technology WizSense IPC-HDW2649TM-S-IL-0280B, IP security camera, Indoor, Wired, 120 dB, Ceiling/Wall/Pole, White
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 256 GB
Storage - RAM capacity - 256 MB
Storage - ROM capacity - 128 MB
Storage temperature (T-T) Operational conditions - -40 - 60 °C
Streaming method Network - Multicast
Summary - Dahua Technology WizSense IPC-HDW2649TM-S-IL-0280B. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Turret. Minimum illumination: 0.0007 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 112°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 61.2 m, Observe distance: 24.5 m, Recognize distance: 12.2 m
Supported network protocols Network - IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, PPPoE, P2P
Sustainability - Compliance certificates - CE
System requirements - Mobile operating systems supported - Android, iOS
Tilt angle range Camera - 0 - 78°
Title - Dahua Technology WizSense IPC-HDW2649TM-S-IL-0280B security camera Turret IP security camera Indoor 3288 x 1850 pixels Ceiling/Wall/Pole
Total megapixels Video - 6 MP
Type Performance - IP security camera
Unit Box Height - 0.11
Unit Box Length - 0.14
Unit Box Width - 0.14
Unit Calculated Volume ELKO Internal Logistics Data - 0.002769 cubm
Unit Calculated Weight ELKO Logistics Data - 0.725 kg
Unit Depth ELKO Logistics Data - 14 cm
Unit Height ELKO Logistics Data - 11 cm
Units per Pallet ELKO Logistics Data - 0
Units per Shipping Box ELKO Logistics Data - 20
Unit Width ELKO Logistics Data - 14 cm
URL - https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HDW2649TM-S-IL
Vendor Homepage - https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HDW2649TM-S-IL
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate control - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Frame rate - 30 fps
Video - Gain control type - Auto/Manual
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 3288 x 1850 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Region of Interest (ROI) encoding - Yes
Video - Total megapixels - 6 MP
Video - Video compression formats - H.264, H.264B, H.264H, H.265, M-JPEG
Video - Video recording - Yes
Video - Video streaming - Yes
Video compression formats Video - H.264, H.264B, H.264H, H.265, M-JPEG
Video motion detection Security - Yes
Video recording Video - Yes
Video streaming Video - Yes
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Diameter - 12.2 cm
Weight & dimensions - Height - 99.1 mm
Weight & dimensions - Weight - 530 g
Weight Weight & dimensions - 530 g
White balance Camera - Auto, Manual, Natural, Outdoor, Regional custom, Street lamp
Wi-Fi Network - No
Wide Dynamic Range (WDR) Performance - Yes
