Audio - Audio system - 2-way
Audio - Built-in microphone - Yes
Audio - Built-in speaker(s) - Yes
Audio - Signal-to-Noise Ratio (SNR) - 52 dB
Brand - TP-Link
BrandPartCode - VIGI C345(6MM)
Camera - Angle of rotation - 360°
Camera - Camera shutter speed - 1/3 to 1/10000 s
Camera - Lens viewing angle, diagonal - 60.8°
Camera - Lens viewing angle, horizontal - 52.7°
Camera - Lens viewing angle, vertical - 29°
Camera - Minimum illumination - 0.005 lx
Camera - Number of Privacy masking areas - 4
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 90°
Category - Security Cameras
Category 1 - Netzwerk
Category 2 - Netzwerkkameras
Design - Form factor - Bullet
Design - Housing material - Metal
Design - International Protection (IP) code - IP67
Design - Mounting type - Wall
Design - Product colour - White
EAN - 4895252506969
GTIN - 4895252506969
Image sensor - Optical sensor size - 25.4 / 2.7 mm (1 / 2.7")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Lens system - Detect distance - 120 m
Lens system - Fixed focal length - 6 mm
Lens system - Identify distance - 12 m
Lens system - Maximum aperture number - 1.6
Lens system - Number of lenses - 1
Lens system - Observe distance - 50 m
Lens system - Recognize distance - 24 m
LongDesc - People & Vehicle AnalyticsSearch and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.Human & Vehicle ClassificationDistinguish humans and vehicles from other objects and receive more accurate event notifications.Efficient H.265+ Compression TechnologyH.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

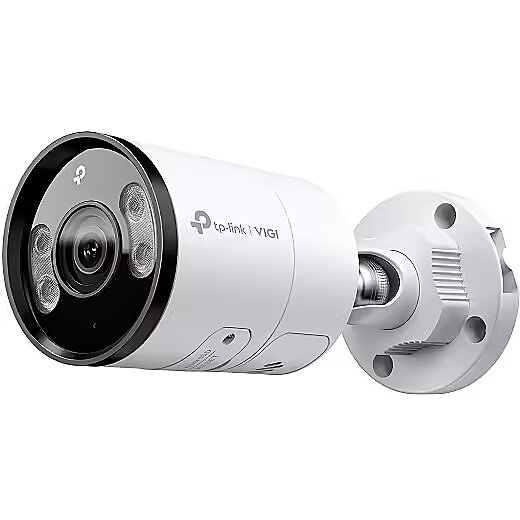

LongProductName - 4MP Outdoor Full-Color Bullet Network Camera
LongSummaryDescription - TP-Link VIGI C345. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 52.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 120 m, Observe distance: 50 m, Recognize distance: 24 m
Management features - Reset button - Yes
Manufacturer - TP-Link
MPN - VIGI C345(6mm)(UN)
Name - TP-Link Omada IPCam VIGI C345(6mm) 4MP Full-Color Bullet
Network - Bluetooth - No
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Live view - Yes
Network - Supported network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Network - Wi-Fi - No
Night vision - Infra-red wavelength - 850 nm
Night vision - LED type - IR/White
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision - Number of illumination LEDs - 2
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Packaging content - Number of cameras - 1
Performance - Built-in light - Yes
Performance - Certification - CE, NTRA, VCCI, KC, BSMI, FCC, IC
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Dynamic range - 120 dB
Performance - Infrared (IR) cut-off filter - Yes
Performance - Placement supported - Outdoor
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power consumption (max) - 9.7 W
Power - Power consumption (Power over Ethernet (PoE)) - 10.7 W
Power - Power source type - DC, PoE
ProductName - C345
Security - Digest authentication - Yes
Security - Human and vehicle targets classification - Yes
Security - IP address filtering - Yes
Security - Mirror - Yes
Security - Password protection - Yes
Security - Video motion detection - Yes
ShortSummaryDescription - TP-Link VIGI C345, IP security camera, Outdoor, Wired, 120 dB, CE, NTRA, VCCI, KC, BSMI, FCC, IC, Wall
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 512 GB
Title - TP-Link VIGI C345 Bullet IP security camera Outdoor 2688 x 1520 pixels Wall
URL - https://www.tp-link.com/en/business-networking/vigi-network-camera/vigi-c345/v1%20(2.8mm%20lens)/#highlights
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate control - Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Video - Frame rate - 30 fps
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 2688 x 1520 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Privacy masking - Yes
Video - Region of Interest (ROI) encoding - Yes
Video - Smart IR - Yes
Video - Supported graphics resolutions - 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264, H.264+, H.265, H.265+
WarrantyInfo -
Weight & dimensions - Depth - 74 mm
Weight & dimensions - Height - 74 mm
Weight & dimensions - Weight - 525 g
Weight & dimensions - Width - 184 mm
