Camera design - Bullet
Category Code - FNC
Colour - White

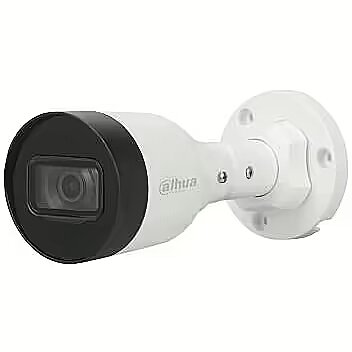

Description - IPC-HFW1230DS1-S5 2MP Entry IR Fixed-focal Bullet Netwok Camera > 2MP, 1/2.8" CMOS image sensor, low illuminance and high definition image > Outputs max. 2MP (1920 × 1080) @25/30 fps. > H.265 codec, high compression rate, and ultra-low bit rate. > Built-in IR LED, and the max. IR distance is 30 m. > RoI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments > Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking,applicable to various monitoring scenes. > Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access. > 12V DC power supply. > IP67 protection.
Dimensions - 162.6 mm × Φ70 mm
Effective pixels - 1920 (H) × 1080 (V)
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Focal Length - 2.8 mm; 3.6 mm
IR Illumination - Yes
Lens Mount - M12
Min. Illumination - 0.001 Lux
Model - IPC-HFW1230DS1-S5
Network Camera Type - HDTV/Megapixel/Outdoor
Operating temperature range - –40 °C to +60 °C
Power consumption - 1.4 Watts
Power options - 12V
Power supply requirements - 12V DC
Product Net Weight - 0.22 kg
Resolution - 2 Mega Pixel
RJ45 Input/Output connectors - 1
Sensor size - 1/2.8"
Unit Box Height - 0.098
Unit Box Length - 0.205
Unit Box Width - 0.107
Unit Calculated Volume - 0.002649 cubm
Unit Calculated Weight - 0.383 kg
Units per Shipping Box - 20
Vendor Homepage - www.dahuasecurity.com/br/products/All-Products/Network-Cameras/Entry-Series/2MP/IPC-HFW1230DS1-S5
Warranty - 36 months
