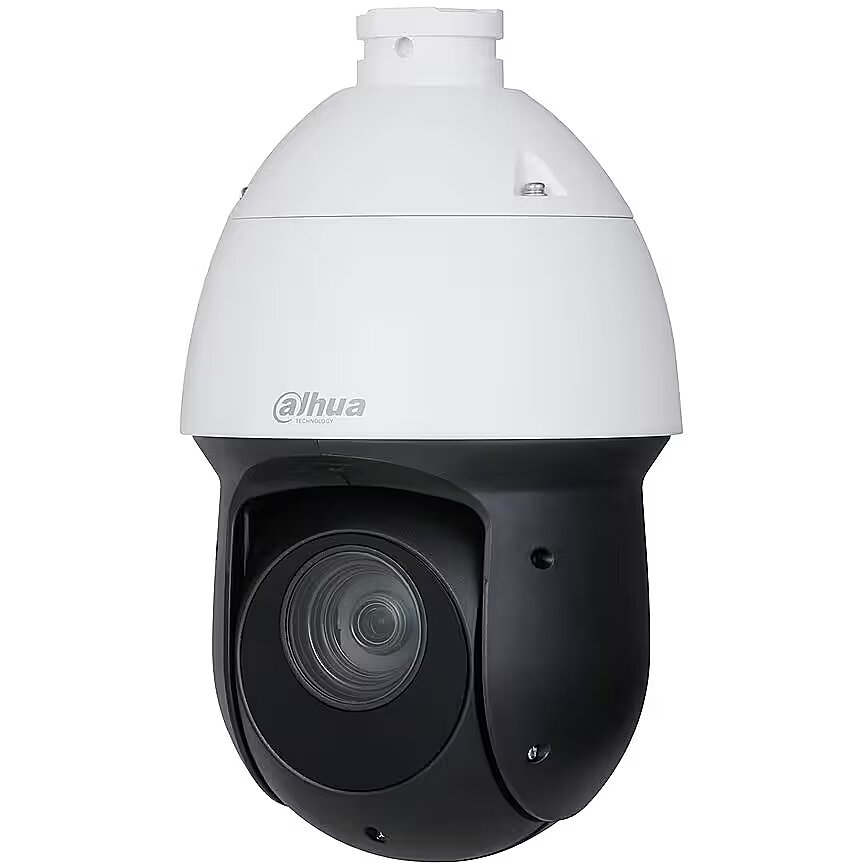

Dahua Dome PTZ, 1520p, 4MP, Black/White

Accessories included -
Active tampering alarm Security - Yes
Alarm input/output Performance - Yes
Audio - Audio formats supported - G.722.1, G.723, G.726, G.729
Audio - Voice codecs - G.711Mu, G.711a, G.722.1, G.726, G.729
Audio formats supported Audio - G.722.1/G.723/G.726/G.729
Auto focus Lens system - Yes
Back Light Compensation (BLC) Video - Yes
Bit rate control Video - Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Brand - Dahua Technology
BrandPartCode - DH-SD49425GB-HNR
Camera - Camera shutter speed - 1/1 - 1/30000 s
Camera - Camera shutter type - Electronic
Camera - Lens viewing angle, diagonal - 59.3°
Camera - Lens viewing angle, horizontal - 53.1°
Camera - Lens viewing angle, vertical - 30.4°
Camera - Minimum illumination - 0 lx
Camera - Pan preset speed - 240 °/sec
Camera - Pan range - 0 - 360°
Camera - Pan speed - 200 °/sec
Camera - Tilt angle range - -15 - 90°
Camera - Tilt preset speed - 200 °/sec
Camera - Tilt speed - 120 °/sec
Camera - White balance - Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp
Camera shutter speed Camera - 1/1 - 1/30000 s
Camera shutter type Camera - Electronic
Card reader integrated Storage - Yes
Category - Security Cameras
Category Code - FNC
Certificates -
Certification Performance - CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035
CE-LVD: EN 62368-1
FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4
UL: UL62368-1
Closest focusing distance Lens system - 9 m
Color - Black
Color - White
Compatible memory cards Storage - MicroSD (TransFlash)
Connectivity technology Performance - Wired
Connectors - Audio in
Connectors - Audio out
Connectors - RJ-45
Day/night mode Performance - Yes
DC output current Power - 3 A
DC output voltage Power - 12
Description - 1/2.8" STARVIS™ CMOS 25x optical zoom Starlight technology Max. 25/30fps@4M IR distance up to 100 m Perimeter protection Face detection Quick Pick SMD 4.0 IP66
Description - Oświetlacz: 4 diody IR LED z zasięgiem 100m Technologie: AWB, ATW, AGC, BLC, HLC, EIS, 2D/3D NR, WDR, E-defog Starlight - technologia do pracy przy niskim poziomie oświetlenia Wejścia/wyjścia audio: 1/1 Wejścia/wyjścia alarmowe: 2/1 Obsługa kart microSD / microSDHC / microSDXC do 512GB Kompatybilność: ONVIF, CGI, SDK, RTMP, P2P Obrót kamery: 0° ~ 360° (Pan), -15° ~ +90° (Tilt), autoobrót 180° Funkcje AI: ochrona perymetryczna, Quick Pick, wykrywanie twarzy, klasyfikacja obiektu (człowiek/pojazd) SMD 4.0 - klasyfikacja z filtrowaniem fałszywych alarmów Zoom optyczny z technologią PFA
Design - Form factor - Dome
Design - International Protection (IP) code - IP66
Design - Mounting type - Ceiling/wall
Design - Product colour - White
Designation - CE+WEEE
Detect distance Lens system - 2161.4 m
Diameter Weight & dimensions - 16 cm
dimension depth - 210 mm
dimension height - 455 mm
Dimensions - 270.4 × 160 x 160 mm
dimension weight - 4363 g
dimension width - 210 mm
ean - 6923172586230
Environment requirements - Temperatura pracy: -40°C do +70°C Temperatura przechowywania: -40°C do +70°C
Ethernet interface type Network - Fast Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN Network - Yes
Flip & mirror Video - Yes
Focal length range Lens system - 5 - 125 mm
Form factor Design - Dome
Frame rate Video - 30 fps
Frames per second - 30
Gain control type Video - Auto/Manual
guarantee - 36
guarantee_type - normal
Height Weight & dimensions - 270.4 mm
Highlight Compensation (HLC) Video - Yes
HTTPS encryption Security - Yes
Identify distance Lens system - 216.1 m
Image sensor - Optical sensor size - 25.4 / 2.8 mm (1 / 2.8")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Image stabilizer Video - Yes
Intelligent Video Surveillance (IVS) system features Security - Abandoned object/Face detection/Missing object
Internal memory Storage - 1024 MB
International Protection (IP) code Design - IP66
IP address filtering Security - Yes
LED type Night vision - IR
Lens - Obiektyw regulowany: 5~125mm
Lens system - Auto focus - Yes
Lens system - Closest focusing distance - 9 m
Lens system - Detect distance - 2161.4 m
Lens system - Focal length range - 5 - 125 mm
Lens system - Identify distance - 216.1 m
Lens system - Maximum aperture number - 3.6
Lens system - Minimum aperture number - 1.6
Lens system - Observe distance - 864.6 m
Lens system - Optical zoom - 25x
Lens system - Recognize distance - 432.3 m
Lens system - Zoom capability - Yes
Lens viewing angle, diagonal Camera - 59.3°
Lens viewing angle, horizontal Camera - 53.1°
Lens viewing angle, vertical Camera - 30.4°
LongDesc -
LongProductName - 4MP 25x Starlight IR Network PTZ Camera
LongSummaryDescription - Dahua Technology WizSense SD49425GB-HNR. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 53.1°, Lens viewing angle, vertical: 30.4°, Lens viewing angle, diagonal: 59.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 25x, Detect distance: 2161.4 m, Observe distance: 864.6 m
Management, monitoring, configuration -
Maximum aperture number Lens system - 3.6
Maximum memory card size Storage - 512 GB
Maximum resolution Video - 2560 x 1440 pixels
Memory card reader - Yes
Memory standard - SD
Memory standard - SDHC
Memory standard - SDXC
Microphone - No
Minimum aperture number Lens system - 1.6
Minimum illuminance - 0.005 lx
Minimum illumination Camera - 0 lx
Mobile support - Android
Mobile support - iOS
Motion detection - Yes
Mounting type Design - Ceiling/wall
name - 4Mpx rotating IP camera SD49425GB-HNR
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Number of users - 20 user(s)
Network - Quality of Service (QoS) support - Yes
Network - Streaming method - Multicast, Unicast
Network - Supported network protocols - FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP
Network protocols - FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP
Night mode - Yes
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 100 m
Night vision - Number of illumination LEDs - 4
Night vision distance Night vision - 100 m
Night vision Night vision - Yes
Noise reduction technology Video - 2D noise reduction, 3D noise reduction
Noise reduction Video - Yes
Number of cameras Packaging content - 1
Number of illumination LEDs Night vision - 4
Number of users Network - 20 user(s)
Observe distance Lens system - 864.6 m
Operating relative humidity (H-H) Operational conditions - 0 - 95%
Operating temperature (T-T) Operational conditions - -40 - 70 °C
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -40 - 70 °C
Optical sensor size Image sensor - 25.4 / 2.8 mm (1 / 2.8")
Optical zoom Lens system - 25x
Other features -
Package weight Packaging data - 3.9 kg
Packaging content - Number of cameras - 1
Packaging data - Package weight - 3.9 kg
Pan preset speed Camera - 240 °/sec
Pan range Camera - 0 - 360°
Pan speed Camera - 200 °/sec
Performance - Alarm input/output - Yes
Performance - Certification - CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035
CE-LVD: EN 62368-1
FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4
UL: UL62368-1
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Placement supported - Indoor & outdoor
Performance - PTZ control - Yes
Performance - PTZ modes - 5 Pattern, 8 Tour, Auto scan
Performance - PTZ protocols - Pelco-P/D, DH-SD
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Placement supported Performance - Indoor & outdoor
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output current - 3 A
Power - DC output voltage - 12
Power - Power consumption (max) - 20 W
Power - Power consumption (typical) - 9 W
Power - Power source type - DC, PoE
Power consumption (max) Power - 20 W
Power consumption (typical) Power - 9 W
Power source type Power - DC, PoE
Power supply - 12 VDC/3A +/- 10% PoE (802.3at)
Privacy masking Video - Yes
producer - Dahua
Product colour Design - White
ProductName - SD49425GB-HNR
Progressive scan Image sensor - Yes
Protection class - IP66
PTZ control Performance - Yes
PTZ modes Performance - 5 Pattern/8 Tour/Auto scan
PTZ protocols Performance - DH-SD/Pelco-P/D
Quality of Service (QoS) support Network - Yes
Recognize distance Lens system - 432.3 m
Region of Interest (ROI) encoding Video - Yes
Resolution - 2560 x 1440
ROM capacity Storage - 4096 MB
Security -
Security - Active tampering alarm - Yes
Security - HTTPS encryption - Yes
Security - Intelligent Video Surveillance (IVS) system features - Abandoned object, Face detection, Missing object
Security - IP address filtering - Yes
Security - Video motion detection - Yes
Sensor - 1/2.8" 4MP STARVIS image sensor CMOS
Sensor type Image sensor - CMOS
ShortSummaryDescription - Dahua Technology WizSense SD49425GB-HNR, IP security camera, Indoor & outdoor, Wired, 5 Pattern, 8 Tour, Auto scan, Pelco-P/D, DH-SD, CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035 CE-LVD: EN 62368-1 FCC: 47 CFR...
Smart IR Video - Yes
Speakers built-in - No
Special functions -
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Internal memory - 1024 MB
Storage - Maximum memory card size - 512 GB
Storage - ROM capacity - 4096 MB
Streaming method Network - Multicast/Unicast
Summary - Dahua Technology WizSense SD49425GB-HNR. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 53.1°, Lens viewing angle, vertical: 30.4°, Lens viewing angle, diagonal: 59.3°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 25x, Detect distance: 2161.4 m, Observe distance: 864.6 m
Supported graphics resolutions Video - 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2560 x 1440/352 x 240/352 x 288/704 x 480/704 x 576
Supported network protocols Network - FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP
Supported video modes Video - 1080p/720p
System Requirements -
Tilt angle range Camera - -15 - 90°
Tilt preset speed Camera - 200 °/sec
Tilt speed Camera - 120 °/sec
Title - Dahua Technology WizSense SD49425GB-HNR Dome IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall
Total megapixels Video - 4 MP
Two-way transmission - No
type - PTZ
Type Performance - IP security camera
Unit Box Height - 0.215
Unit Box Length - 0.43
Unit Box Width - 0.21
Unit Calculated Volume - 0.01941 cubm
Unit Calculated Weight - 4.4 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/PTZ-Cameras/WizSense-Series/SD4/SD49425GB-HNR
Vendor Homepage - https://www.dahuasecurity.com/products/All-Products/PTZ-Cameras/WizSense-Series/SD4/SD49425GB-HNR
vendpn - 6923172586230
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate control - Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Video - Flip & mirror - Yes
Video - Frame rate - 30 fps
Video - Gain control type - Auto/Manual
Video - Highlight Compensation (HLC) - Yes
Video - Image stabilizer - Yes
Video - Maximum resolution - 2560 x 1440 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 2D noise reduction, 3D noise reduction
Video - Privacy masking - Yes
Video - Region of Interest (ROI) encoding - Yes
Video - Smart IR - Yes
Video - Supported graphics resolutions - 352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440
Video - Supported video modes - 720p, 1080p
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264, H.264+, H.265, H.265+, M-JPEG
Video - Video formats supported - H.264, H.264+, H.265, H.265+, M-JPEG
Video - Video streaming - Yes
Video compression formats Video - H.264/H.264+/H.265/H.265+/M-JPEG
Video formats supported Video - H.264/H.264+/H.265/H.265+/M-JPEG
Video motion detection Security - Yes
Video streaming Video - Yes
Viewing angle, horizontal - 360 °
Viewing angle, vertical - 0 °
Voice codecs Audio - G.711a/G.711Mu/G.722.1/G.726/G.729
Warranty - 36 months
WarrantyInfo -
Weight - 2.4 kg
Weight & dimensions - Diameter - 16 cm
Weight & dimensions - Height - 270.4 mm
Weight & dimensions - Weight - 2.4 kg
Weight Weight & dimensions - 2.4 kg
White balance Camera - Auto/Indoor/Manual/Natural/Outdoor/Sodium lamp
Wide Dynamic Range (WDR) Performance - Yes
Wireless communication - No
Zoom capability Lens system - Yes
