Audio - Signal-to-Noise Ratio (SNR) - 65 dB
Brand - Dahua Technology
BrandPartCode - HAC-HDW1500TRQ-0280B-S2
Camera - Angle of rotation - 360°
Camera - Minimum illumination - 0.005 lx
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 78°
Camera - White balance - Auto, Manual
Camera design - Eyeball
Category - Security Cameras
Category Code - HSC

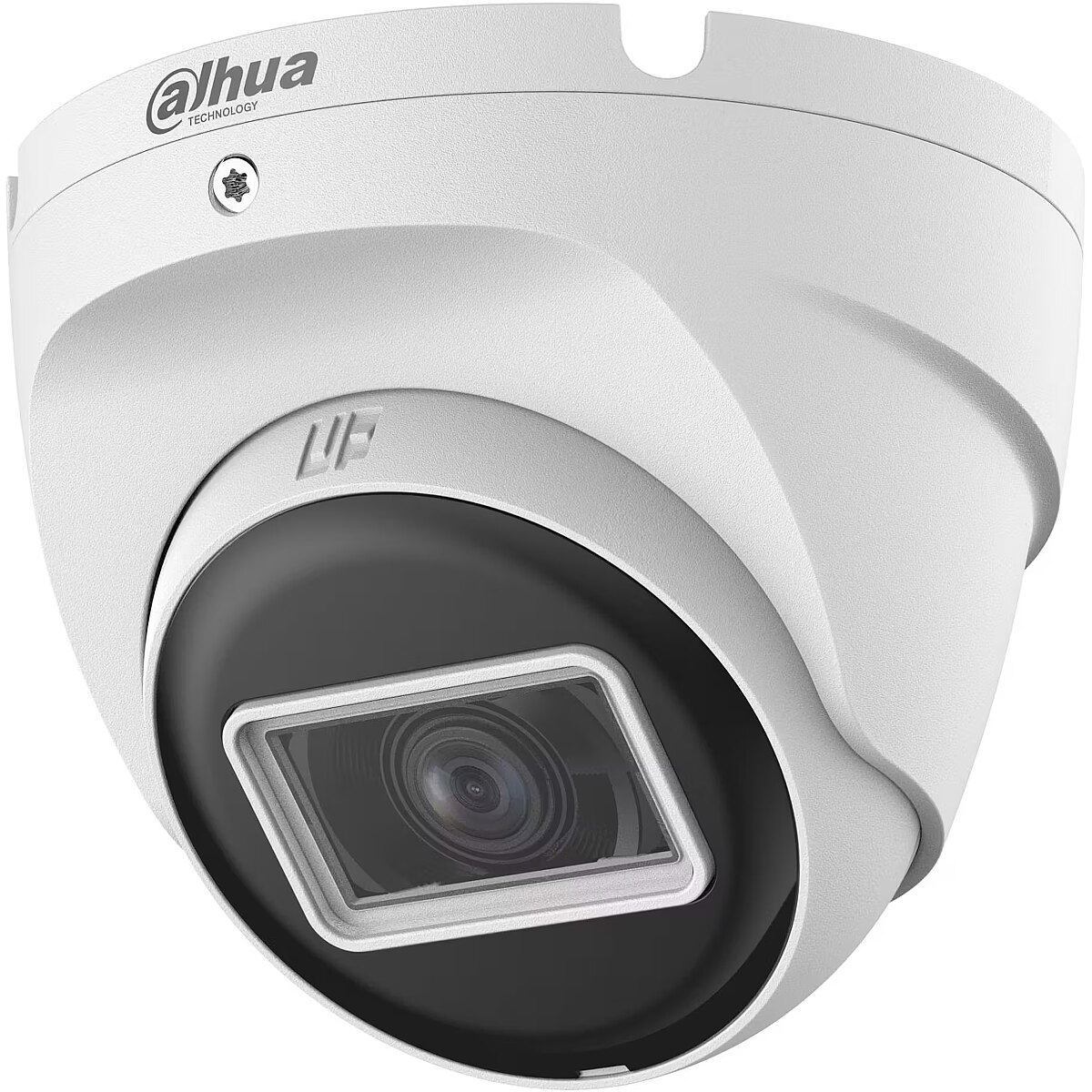

Description - 5MP Starlight HDCVI Quick-to-install IR Eyeball Camera > Max 25 fps@5MP (16:9 video output) > Quick-to-install eyeball saves installation time > CVI/CVBS/AHD/TVI switchable > 2.8 mm fixed lens > Max. IR length 25 m, Smart IR > IP50, DC12V
Design - Form factor - Turret
Design - Housing material - Plastic
Design - International Protection (IP) code - IP50
Design - Mounting type - Ceiling/wall
Design - Product colour - Black, White
Dimensions - Φ97.1 × 93.0 mm
Effective pixels - 2880 (H) × 1620 (V)
Electronic Shutter Speed - PAL: 1/25s–1/100000s, NTSC: 1/30s–1/100000s
Environment - Outdoor
Focal length - 2.8 - 3.5mm
Focal Length - 2.8 mm
GTIN - 6939554951893
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 2.7 mm (1 / 2.7")
Image sensor - Sensor type - CMOS
Lens Mount - M12
Lens system - Fixed focal length - 2.8 mm
Lens system - Maximum aperture number - 1.6
LongDesc -
LongProductName - 1/2.7, CMOS, 2880x1620, 5MP, 1/25s–1/100000s, 1/30s–1/100000s, 65 dB, 25m, 0°–360°, 0°–78°, 0°–360°
LongSummaryDescription - Dahua Technology Lite HAC-HDW1500TRQ(-A). Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Turret. Minimum illumination: 0.005 lx, Angle of rotation: 360°, Tilt angle range: 0 - 78°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Fixed focal length: 2.8 mm
Min. Illumination - 0.005 Lux
Model - HAC-HDW1500TRQ-0280B-S2
Net camera resolution - 5 - 7MP
Network Camera Type - HDTV/Megapixel/Outdoor
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 25 m
Night vision - Number of illumination LEDs - 2
Packaging data - Package weight - 230 g
Performance - Certification - CE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Performance - Connectivity technology - Wired
Performance - Placement supported - Indoor & outdoor
Performance - Type - CCTV security camera
Power - DC output voltage - 12
Power - Power consumption (max) - 3 W
Power - Power source type - DC
Power consumption - 3 Watts
Power options - 12V
Power supply requirements - 12V ±30% DC
ProductName - HAC-HDW1500TRQ(-A)
Product Net Weight - 0.17 kg
Resolution - 5 Mega Pixel
Security - Mirror - Yes
Sensor size - 1/2.7"
ShortSummaryDescription - Dahua Technology Lite HAC-HDW1500TRQ(-A), CCTV security camera, Indoor & outdoor, Wired, CE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 55035:2017, EN..., Ceiling/wall, Black, White
Storage - Built-in HDD - No
Title - Dahua Technology Lite HAC-HDW1500TRQ(-A) Turret CCTV security camera Indoor & outdoor 2880 x 1620 pixels Ceiling/wall
Unit Box Height - 0.11
Unit Box Length - 0.13
Unit Box Width - 0.117
Unit Calculated Volume - 0.001673 cubm
Unit Calculated Weight - 0.25 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/5MP/Starlight/HAC-HDW1500TRQ(-A)
Vendor Homepage - www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/5MP/Starlight/HAC-HDW1500TRQ(-A)=S2
Video - Back Light Compensation (BLC) - Yes
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Gain control type - Auto/Manual
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 2880 x 1620 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 2D noise reduction
Video - Privacy masking - Yes
Video - Smart IR - Yes
Video - Total megapixels - 5 MP
Video interface - HDCVI
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 93 mm
Weight & dimensions - Height - 97.1 mm
Weight & dimensions - Weight - 170 g
