Edbak Pop-out video wall mount, horizontal, 70-98"

Accessories included -
Code - VWPOP95-L
Color - Black
Corner mount - No

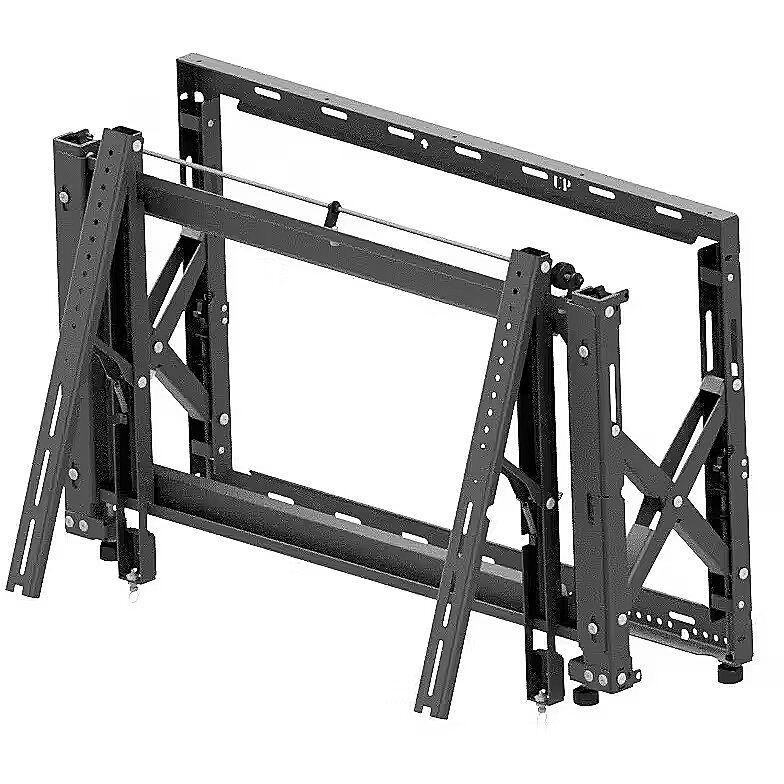

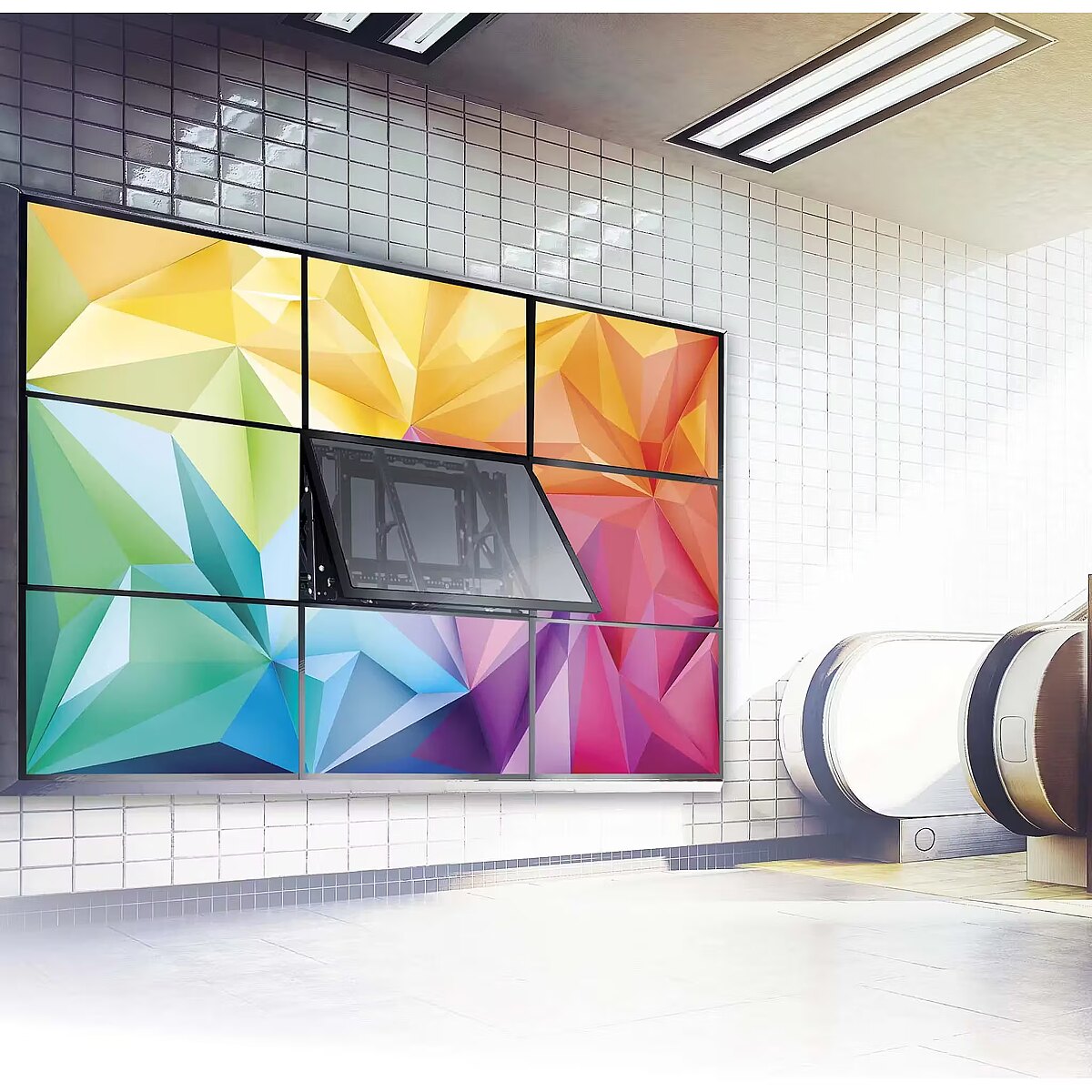

Description - Videowall VWPOP95-L POP-OUT The VWPOP95-L pop-out universal multi-screen video wall mount from Edbak, designed and manufactured in Europe, is truly a best-in-class solution, bringing robust quality, tool-less micro adjustment, and a one-touch pop-out mechanism for access and service to each display in the video wall. Tool-less independent 8-point micro-adjustment provides seamless fingertip alignment of the displays. Fast Release Pop-out mechanism provides convenient access to each display, particularly valuable in enclosed, recessed and seamless The Pop-out mechanism can be adjusted for varying display weights, ensuring safe and controlled extension, and can be temporarily disabled with a security locking screw to prevent unintentional pop-outs. Open frame design allows full electrical wiring access, while integrated cable management strips make display-to-display cabling Sequentially drilled wall plate and precision dedicated display spacers eliminate requirements for on-site calculations.
Design > Colour of product - Black
Design > VESA mounting - Yes
Designation - CE+WEEE
dimension depth - 1120 mm
dimension height - 710 mm
Dimensions - 1083 x 100 x 701 mm
dimension weight - 30000 g
dimension width - 100 mm
EAN - 5908252968176
ean - 5908252968176
guarantee - 60
guarantee_type - external
Horizontal adjustment - 20 °
Load (max) - 130 kg
Mounting > Maximum screen size compatibility - 98 "
Mounting > Maximum weight (capacity) - 130 kg
Mounting > Mounting interface compatibility (max) - 800x600 mm
Mounting > Mounting interface compatibility (min) - 100×100 mm
Mounting > VESA mounting interfaces - 100x100; 800x600 mm
Name - EDBAK | Wall mount | VWPOP95-L | 70-98 " | Maximum weight (capacity) 130 kg | Black
name - Videowall holder VWPOP95-L POP-OUT
Number of supported monitors - 1
Other features - Minimum distance from the wall: 85 mm Maximum distance from the wall: 270 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 105.00 mm
Package features > Gross height (mm) - 560.00 mm
Package features > Gross width (mm) - 885.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 33 pc(s)
Package features > Paper/Pasteboard - 800.00 g
Package features > Plastic (No PET) - 84.00 g
Package features > Tare weight (kg) - 0.80 kg
Package features > Volume (m3) - 0.05 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/1/3/7/3/9/3/ef2584a8cfe04fc22ce07cbf6b67622a/original.pdf
producer - Edbak
Screen size (max) - 98 ''
Screen size (min) - 70 ''
Technical details > Gross weight - 15.95 kg
Technical details > Net weight - 15.15 kg
Technical details > Other features - Video Wall & Menu Board Mounts. Forward tilting +20°. Screen orientation: landscape
Technical details > Placement - Wall mount
Technical details > Producer - EDBAK
Technical details > Producer product family - Video Wall Pop-Out Mount with Quick Release
Technical details > Producer product name - VWPOP95-L
Technical details > Product name - VWPOP95-L
Technical details > Screen size compatibility - 70-98 "
Type - Wall
Usage - Monitors
Usage - TV
vendpn - VWPOP95-L
VESA - 100 x 100
VESA - 800 x 600
Warranty - 60
Warranty - 60 month(s)
Weight - 32.5 kg
