75 mm x 75 mm VESA mounting interface - Yes
100 mm x 100 mm VESA mounting interface - Yes
Brand - Neomounts
BrandPartCode - FPMA-HAW100
Category - Monitor Mounts & Stands
Category Code - MAS
Colour - Grey
Description - NEWSTAR MEDICAL FLAT SCREEN WALL MOUNT (162 CM LONG/170 CM HIGH) 10-24" WHITE

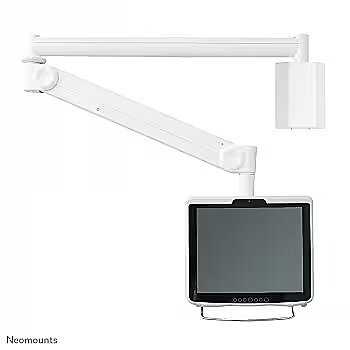

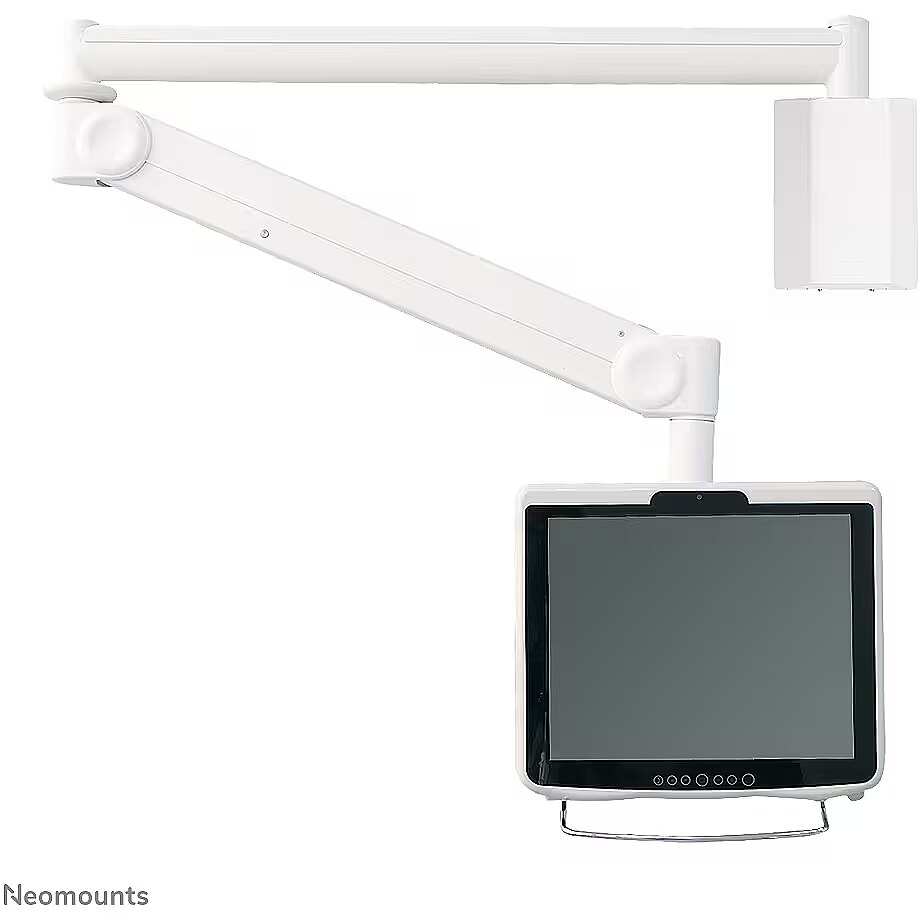

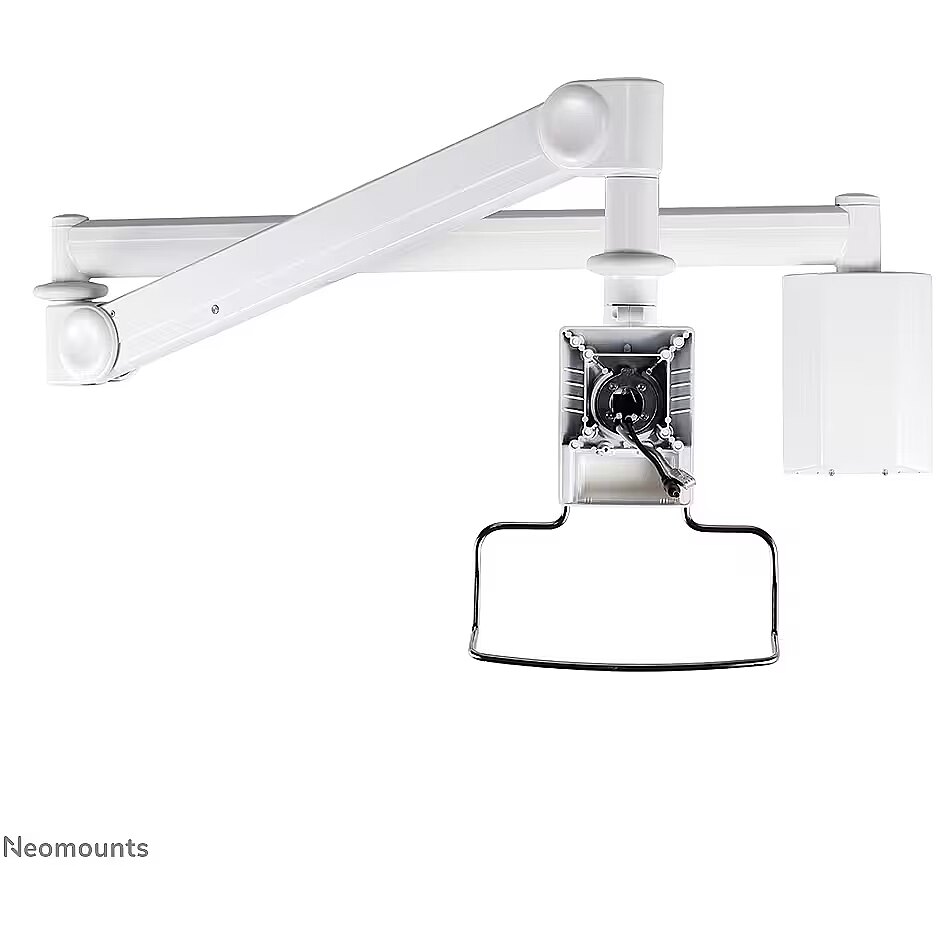

Description - The NewStar wall mount, model FPMA-HAW100 is a tilt- and swivel wall mount for medical flat screens up to 24”. This mount is a great choice for space saving placement or when ceiling mounting and floor placement is not an option. NewStars’ unique tilt (55°) and swivel (270°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 0 to 170 centimeters using a gas spring. Depth adjustable from 0 to 170 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. NewStar FPMA-HAW100 has two pivot points and is suitable for screens up to 24" (61 cm). The weight capacity of this product is 6 kg each screen. The ceiling mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using NewStar VESA adapter plates. Depth: 0 - 170 cm Height: 0 - 170 cm Tilt: 55° Swivel: 270°
Design - Housing material - Aluminium
Design - Product colour - White
Ergonomics - Depth adjustment range - 0 - 1870 mm
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment range - 0 - 1700 mm
Ergonomics - Height adjustment type - Gas spring
Ergonomics - Number of pivot points - 3
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle - 370°
Ergonomics - Swivel angle range - 0 - 370°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - 0 - 55°
Fits screens sized - 10-24"
GTIN - 8717371441098
Height - 467.000000
Height adjustment - Yes
Length - 1025.000000
Logistics data - Country of origin - Taiwan
Logistics data - Harmonized System (HS) code - 83025000
Logistics data - Master (outer) case gross weight - 18.5 kg
Logistics data - Master (outer) case height - 400 mm
Logistics data - Master (outer) case length - 300 mm
Logistics data - Master (outer) case net weight - 14.2 kg
Logistics data - Master (outer) case width - 1010 mm
Logistics data - Products per master (outer) case - 1 pc(s)
Logistics data - Products per pallet (EU) - 8 pc(s)
LongDesc - The Neomounts wall mount, model FPMA-HAW100 is a tilt- and swivel wall mount for medical flat screens up to 24". This mount is a great choice for space saving placement or when ceiling mounting and floor placement is not an option.Neomounts' unique tilt (55°) and swivel (370°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 0 to 170 centimetres using a gas spring. Depth adjustable from 0 to 170 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. Neomounts FPMA-HAW100 has two pivot points and is suitable for screens up to 24" (61 cm). The weight capacity of this product is 6 kg each screen. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.All installation material is included with the product.
LongProductName - Neomounts FPMA-HAW100 Medical monitor arm wall - 10-24" - h 0-170 cm - 1-6 kg - VESA 75x75-100x100 - gas spring - white
LongSummaryDescription - Neomounts FPMA-HAW100 Medical monitor arm wall 10-24" - h 0-170 cm - gas spring. Maximum weight capacity: 6 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 61 cm (24"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: 0 - 370°, Tilt angle range: 0 - 55°. Product colour: White
Manufacturer - Neomounts
ManufacturerPartNumber - FPMA-HAW100
Max. weight - 6 kg
Maximum weight (capacity), kg - 6
Motorized - No
Mounting - Maximum screen size - 61 cm (24")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity - 6 kg
Mounting - Maximum weight capacity (per display) - 6 kg
Mounting - Minimum screen size - 25.4 cm (10")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 100 x 100,75 x 75 mm
Other features - Compatibility - LCD/LED/TFT TVs
Packaging data - Package depth - 300 mm
Packaging data - Package height - 400 mm
Packaging data - Package net weight - 14.2 kg
Packaging data - Package weight - 14.2 kg
Packaging data - Package width - 1010 mm
PeriodofWarranty - 5 Y
ProductName - Neomounts FPMA-HAW100 Medical monitor arm wall 10-24" - h 0-170 cm - gas spring
Product Net Weight - 13 kg
Short summary - Neomounts FPMA-HAW100 Medical monitor arm wall - 10-24" - h 0-170 cm - 1-6 kg - VESA 75x75-100x100 - gas spring - white
ShortSummaryDescription - Neomounts FPMA-HAW100 Medical monitor arm wall 10-24" - h 0-170 cm - gas spring, 6 kg, 25.4 cm (10"), 61 cm (24"), 100 x 100 mm, Height adjustment, White
Stand/mount type - Other/accessories
Stand/mount type - Wall
Tilt - Yes
Title - Neomounts FPMA-HAW100 Medical monitor arm wall 10-24" - h 0-170 cm - gas spring
Turn - No
Unit Box Height - 0.47
Unit Box Length - 1.02
Unit Box Width - 0.29
Unit Calculated Volume - 0.139 cubm
Unit Calculated Weight - 18.9 kg
Units per Pallet - 8
Units per Shipping Box - 1
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-HAW100
Vendor Homepage - http://en.newstar.eu/newstar-av-mounts/medical-mounts/wall-mount/newstar-medical-flat-screen-wall-mount-2/
VESA-standard, mm - 75 x 75
VESA-standard, mm - 100 x 100
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 18.700000
Weight & dimensions - Depth - 1870 mm
Weight & dimensions - Height - 1700 mm
Weight & dimensions - Weight - 17.8 kg
Wheels - No
Width - 297.000000
