Newstar TV/Monitor Ceiling Mount, 10-30"

Angle of rotation Ergonomics - 360°
Brand - Neomounts
BrandPartCode - FPMA-C100WHITE
Category - Root/Electronics/PC peripherals/Accessories/Grip holders/Ceiling
Category - TV Mounts & Stands
Category Code - TMS
Country of origin Technical details - Taiwan
Depth adjustment range Other features - 0 - 90 mm
Depth Weight & dimensions - 90 mm
Description - NEWSTAR FLAT SCREEN CEILING MOUNT (HEIGHT: 79-129 CM) 10-30" WHITE
Description - The Neomounts ceiling mount, model FPMA-C100WHITE is a tilt- and swivel ceiling mount for flat screens up to 30". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option. Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 79 to 129 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy. Neomounts FPMA-C100WHITE has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 12 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates. All installation material is included with the product.
Design - Housing material - Steel
Design - Product colour - White
Eans - 8717371444846
Ergonomics - Angle of rotation - 360°
Ergonomics - Height adjustment - Yes

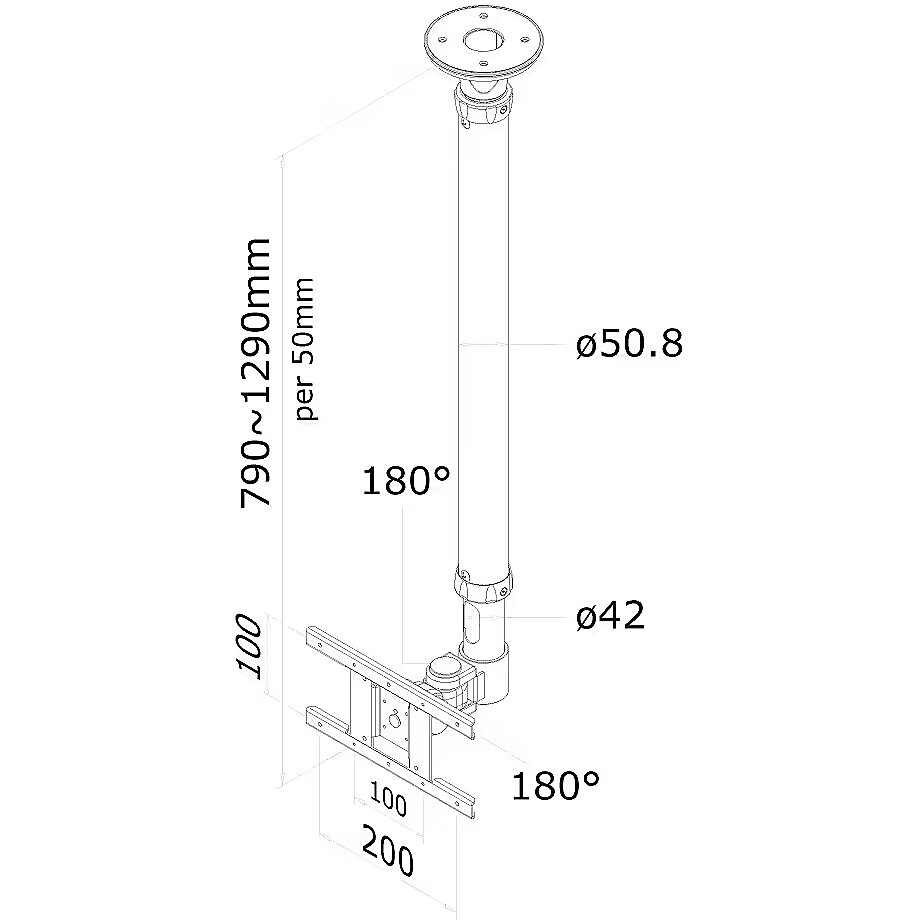

Ergonomics - Height adjustment range - 790 - 1290 mm
Ergonomics - Height adjustment type - Manual
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle - 180°
Ergonomics - Swivel angle range - 0 - 180°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle - 180°
Ergonomics - Tilt angle range - 0 - 180°
GTIN - 8717371444846
Harmonized System (HS) code Logistics data - 7326909890
Height - 160.000000
Height adjustment - Yes
Height adjustment Ergonomics - Yes
Height adjustment range Ergonomics - 790 - 1290 mm
Height adjustment type Ergonomics - Manual
Height Weight & dimensions - 1290 mm
Housing material Design - Steel
Length - 870.000000
Logistics data - Harmonized System (HS) code - 7326909890
Logistics data - Master (outer) case gross weight - 16.2 kg
Logistics data - Master (outer) case height - 175 mm
Logistics data - Master (outer) case length - 495 mm
Logistics data - Master (outer) case net weight - 14.6 kg
Logistics data - Master (outer) case width - 880 mm
Logistics data - Products per master (outer) case - 3 pc(s)
Logistics data - Products per pallet (EU) - 39 pc(s)
LongDesc - The Neomounts ceiling mount, model FPMA-C100WHITE is a tilt- and swivel ceiling mount for flat screens up to 30". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 79 to 129 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.Neomounts FPMA-C100WHITE has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 12 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.All installation material is included with the product.
LongProductName - Neomounts FPMA-C100WHITE Monitor/TV mount ceiling 1 screen - 10-30" - max 12 kg - VESA 75x75-200x100 - h 79-129 cm - white
LongSummaryDescription - Neomounts FPMA-C100WHITE Monitor/TV mount ceiling 10-30" - h 79-129 cm. Maximum weight capacity: 12 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 76.2 cm (30"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 200 x 100 mm. Height adjustment range: 790 - 1290 mm, Tilt angle range: 0 - 180°, Swivel angle range: 0 - 180°, Angle of rotation: 360°. Product colour: White
Manufacturer - Neomounts
ManufacturerPartNumber - FPMA-C100WHITE
Master (outer) case gross weight Logistics data - 16.2 kg
Master (outer) case height Logistics data - 175 mm
Master (outer) case length Logistics data - 495 mm
Master (outer) case net weight Logistics data - 14.6 kg
Master (outer) case width Logistics data - 880 mm
Maximum screen size Mounting - 76.2 cm (30")
Maximum VESA mount Mounting - 200 x 100 mm
Maximum weight (capacity), kg - 12
Maximum weight capacity (per display) Mounting - 12 kg
Maximum weight capacity Mounting - 12 kg
Minimum screen size Mounting - 25.4 cm (10")
Minimum VESA mount Mounting - 75 x 75 mm
Motorized - No
Mounting - Maximum screen size - 76.2 cm (30")
Mounting - Maximum VESA mount - 200 x 100 mm
Mounting - Maximum weight capacity - 12 kg
Mounting - Maximum weight capacity (per display) - 12 kg
Mounting - Minimum screen size - 25.4 cm (10")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting type - Ceiling
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 100 x 200,100 x 100,75 x 75
Mounting type Mounting - Ceiling
Name - Neomounts FPMA-C100 biały
Number of displays supported Mounting - 1
Other features - Depth adjustment range - 0 - 90 mm
Package depth Packaging data - 152 mm
Package height Packaging data - 188 mm
Package weight Packaging data - 4.5 kg
Package width Packaging data - 858 mm
Packaging data - Package depth - 152 mm
Packaging data - Package height - 188 mm
Packaging data - Package weight - 4.5 kg
Packaging data - Package width - 858 mm
Panel mounting interface Mounting - 100 x 200,100 x 100,75 x 75
PeriodofWarranty - 5 Y
Producer - NewStar
ProducerCode - FPMA-C100WHITE
Product colour Design - White
ProductName - Neomounts FPMA-C100WHITE Monitor/TV mount ceiling 10-30" - h 79-129 cm
Products per master (outer) case Logistics data - 3 pc(s)
Products per pallet (EU) Logistics data - 39 pc(s)
Rotating Ergonomics - Yes
ShortDescription - uchwyt sufitowy do LCD | wysokość: 79-129 cm | rozdzielczość: 10 - 30" | VESA max: 200x200
Short summary - Neomounts FPMA-C100WHITE Monitor/TV mount ceiling 1 screen - 10-30" - max 12 kg - VESA 75x75-200x100 - h 79-129 cm - white
ShortSummaryDescription - Neomounts FPMA-C100WHITE Monitor/TV mount ceiling 10-30" - h 79-129 cm, 75 x 75 mm, 200 x 100 mm, 0 - 180°, 0 - 180°, 360°, White
Stand/mount type - Ceiling
Summary - Neomounts FPMA-C100WHITE Monitor/TV mount ceiling 10-30" - h 79-129 cm. Maximum weight capacity: 12 kg, Minimum screen size: 25.4 cm (10"), Maximum screen size: 76.2 cm (30"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 200 x 100 mm. Height adjustment range: 790 - 1290 mm, Tilt angle range: 0 - 180°, Swivel angle range: 0 - 180°, Angle of rotation: 360°. Product colour: White
Swivel angle Ergonomics - 180°
Swivel angle range Ergonomics - 0 - 180°
Swivelling Ergonomics - Yes
Technical details - Country of origin - Taiwan
Tilt - Yes
Tilt adjustment Ergonomics - Yes
Tilt angle Ergonomics - 180°
Tilt angle range Ergonomics - 0 - 180°
Title - Neomounts FPMA-C100WHITE Monitor/TV mount ceiling 10-30" - h 79-129 cm
Turn - Yes
Unit Box Height - 0.135
Unit Box Length - 0.855
Unit Box Width - 0.155
Unit Calculated Volume - 0.01789 cubm
Unit Calculated Weight - 5.04 kg
Units per Shipping Box - 1
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-C100WHITE
Vendor Homepage - https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-C100WHITE
VESA-standard, mm - 75 x 75
VESA-standard, mm - 200 x 100
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 5.090000
Weight & dimensions - Depth - 90 mm
Weight & dimensions - Height - 1290 mm
Weight & dimensions - Weight - 4.32 kg
Weight Weight & dimensions - 4.32 kg
Wheels - No
Width - 140.000000
