Accessories included - Uchwyt ścienny LED/LCD TV Regulowany Elementy montażowe Instrukcja użytkownika
Brand - Techly
BrandPartCode - ICA-LCD 201WH
Category - TV Mounts & Stands
Color - White
Corner mount - No
Description - Uchwyt ścienny do TV LCD/LED 13-30cali 23kg VESA pełna regulacja biały Umożliwia bezpieczny montaż na ścianie wyświetlacza LED/LCD lub TV Konstrukcja ze stali gwarantuje maksimum bezpieczeństwa Mocowanie wyświetlacza w standardzie VESA Możliwość regulacji kąta nachylenia Możliwość regulacji obrotu w płaszczyźnie poziomej Możliwość regulacji obrotu w płaszczyźnie pionowej (PIVOT) Idealny do zastosowania w domu, w biurze oraz do instalacji komercyjnych
Design - Anti-theft function - No
Design - Housing material - Metal
Design - Product colour - White
Designation - Kosz zgodnie z zasadami recyklingu
dimension depth - 85 mm
dimension height - 120 mm

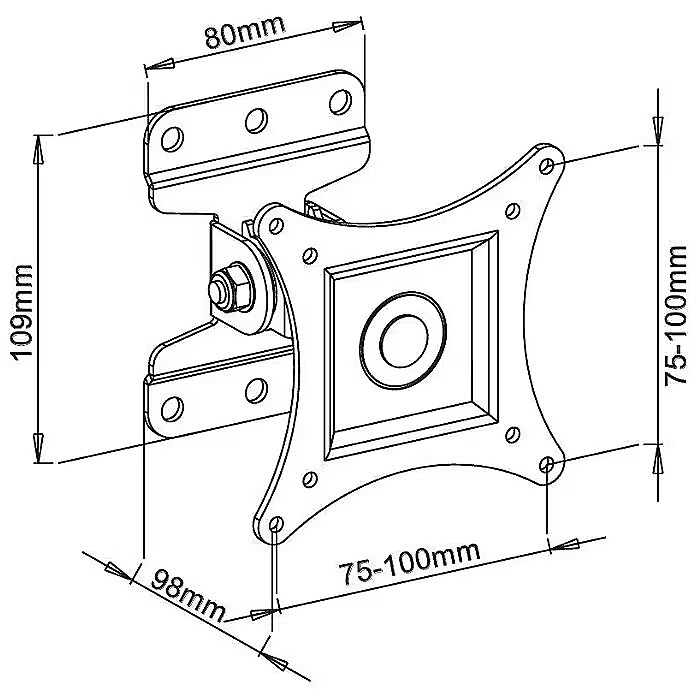

Dimensions - 80 x 109 x 98 mm
dimension weight - 765 g
dimension width - 85 mm
ean - 8054529023868
Ergonomics - Angle of rotation - 360°
Ergonomics - Built-in spirit level - No
Ergonomics - Distance to the wall (max) - 9.8 cm
Ergonomics - Distance to the wall (min) - 9.8 cm
Ergonomics - Swivel angle - 60°
Ergonomics - Tilt angle range - -15 - 15°
GTIN - 8054529023868
guarantee - 36
guarantee_type - external
Horizontal adjustment - 60 °
Load (max) - 23 kg

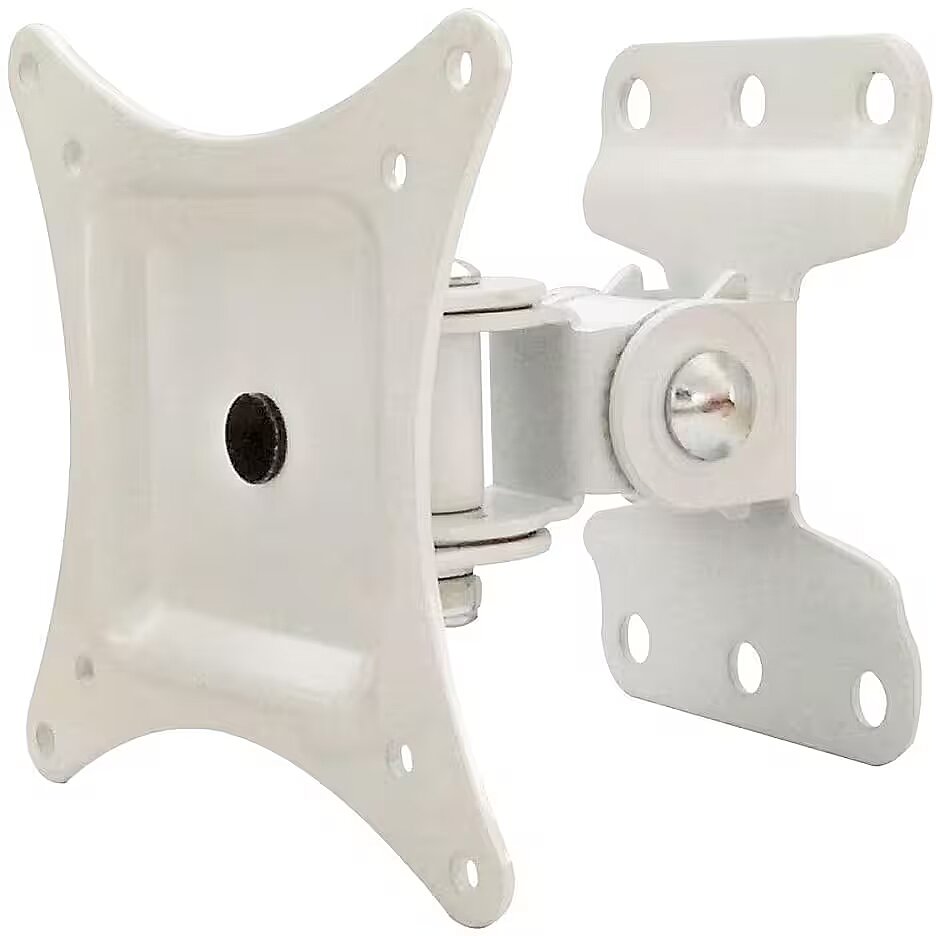

LongDesc - - Universal bracket for fixing a LED / LCD TV on the wall; easy and quick to install, it is ideal for home, office and commercial applications.Features- bracket suitable for LCD LED 13-30";- Supports VESA 75x75 and 100x100 mm;- Maximum weight supported: 23 kg.Specifications- Tilt +/- 15°;- Horizontal direction: 60°;- 360 ° TV rolling stock;- Distance from wall 98 mm;- Dimensions: 80 x 109 x 98 mm, 0.9kg;- White color.The package includes- Wall support for LCD LED;- Mounting accessories (screws, plugs ...) and installation instructions.
LongProductName - Wall Support for LCD LED 13"-30" Full Motion White
LongSummaryDescription - Techly Wall Support for LCD LED 13-30" Full Motion White" ICA-LCD 201WH. Maximum weight capacity: 23 kg, Minimum screen size: 33 cm (13"), Maximum screen size: 76.2 cm (30"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Tilt angle range: -15 - 15°, Angle of rotation: 360°, Distance to the wall (min): 9.8 cm, Distance to the wall (max): 9.8 cm. Product colour: White
Mounting - Maximum screen size - 76.2 cm (30")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity - 23 kg
Mounting - Minimum screen size - 33 cm (13")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 1
name - Wall mount for TV LCD/L ED 13-30inch 23kg VESA
Other features - PIVOT: 360°
Packaging content - Manual - Yes
Packaging content - Mounting kit - Yes
Packaging content - Screws included - Yes
Packaging data - Package type - Box
producer - Techly
ProductName - Wall Support for LCD LED 13-30" Full Motion White" ICA-LCD 201WH
Range (max) - 98 mm
Range adjustment - No
Screen size (max) - 30 ''
Screen size (min) - 13 ''
ShortSummaryDescription - Techly Wall Support for LCD LED 13-30" Full Motion White" ICA-LCD 201WH, 75 x 75 mm, 100 x 100 mm, -15 - 15°, 360°, Metal, White
Technical details - Number of joints - 1
Technical details - Warranty period - 10 year(s)
Title - Techly Wall Support for LCD LED 13-30" Full Motion White" ICA-LCD 201WH
Type - Wall
URL - https://www.techly.com/wall-support-for-lcd-led-13-30-full-motion-white.html
Usage - TV
vendpn - 023868
Vertical adjustment - 15 °
VESA - 75 x 75
VESA - 100 x 100
WarrantyInfo -
Weight - 0.804 kg
Weight & dimensions - Depth - 109 mm
Weight & dimensions - Height - 98 mm
Weight & dimensions - Weight - 803 g
Weight & dimensions - Width - 80 mm
