ID: 1286697
Tuotekoodi: SM6L-B
Varastossa 4 yksiköt
Takuu: 3 vuotta

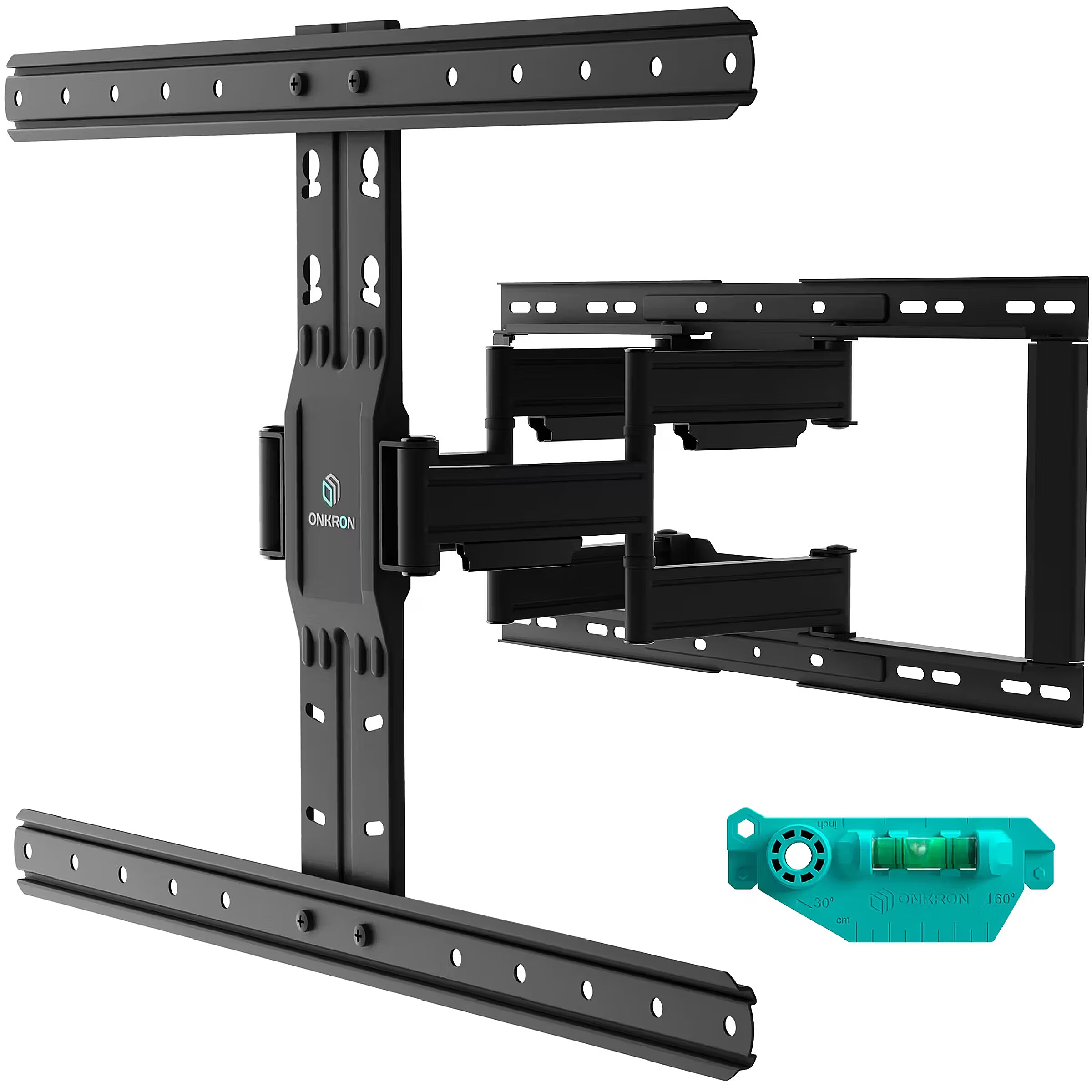

Onkron TV wall mount, 32-90"
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
-
Toimitus Posti-kuriirin postin välityksellä1-2 työpäivän kuluessa10,99 €
Tärkeimmät tuoteparametrit Kaikki parametrit
- Enimmäiskuorma (1 näyttö), kg: 50.00
- Näytön suurin läpimitta, tuumaa: 90
- Näytön vähimmäisläpimitta, tuumaa: 32
Kaikki parametrit
Enimmäiskuorma (1 näyttö), kg
: 50.00
Kallistus
: Onko
Kierto
: Ei
Kiinnitystyyppi
: Sienas
Kääntyvä
: Ir
Malli
: SM6L-B
Muistikirjan pidike
: Nav
Näytön suurin läpimitta, tuumaa
: 90
Näytön vähimmäisläpimitta, tuumaa
: 32
Tuettujen näyttöjen määrä
: 1
VESA-tuki
: 100 x 100, 100 x 150, 100 x 200, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400, 500 x 200, 500 x 400, 600 x 200, 600 x 300, 600 x 400
Väri
: Melna
Yksityiskohtaisempi erittely
Angle of rotation Ergonomics - 45°
Category Code - TMS

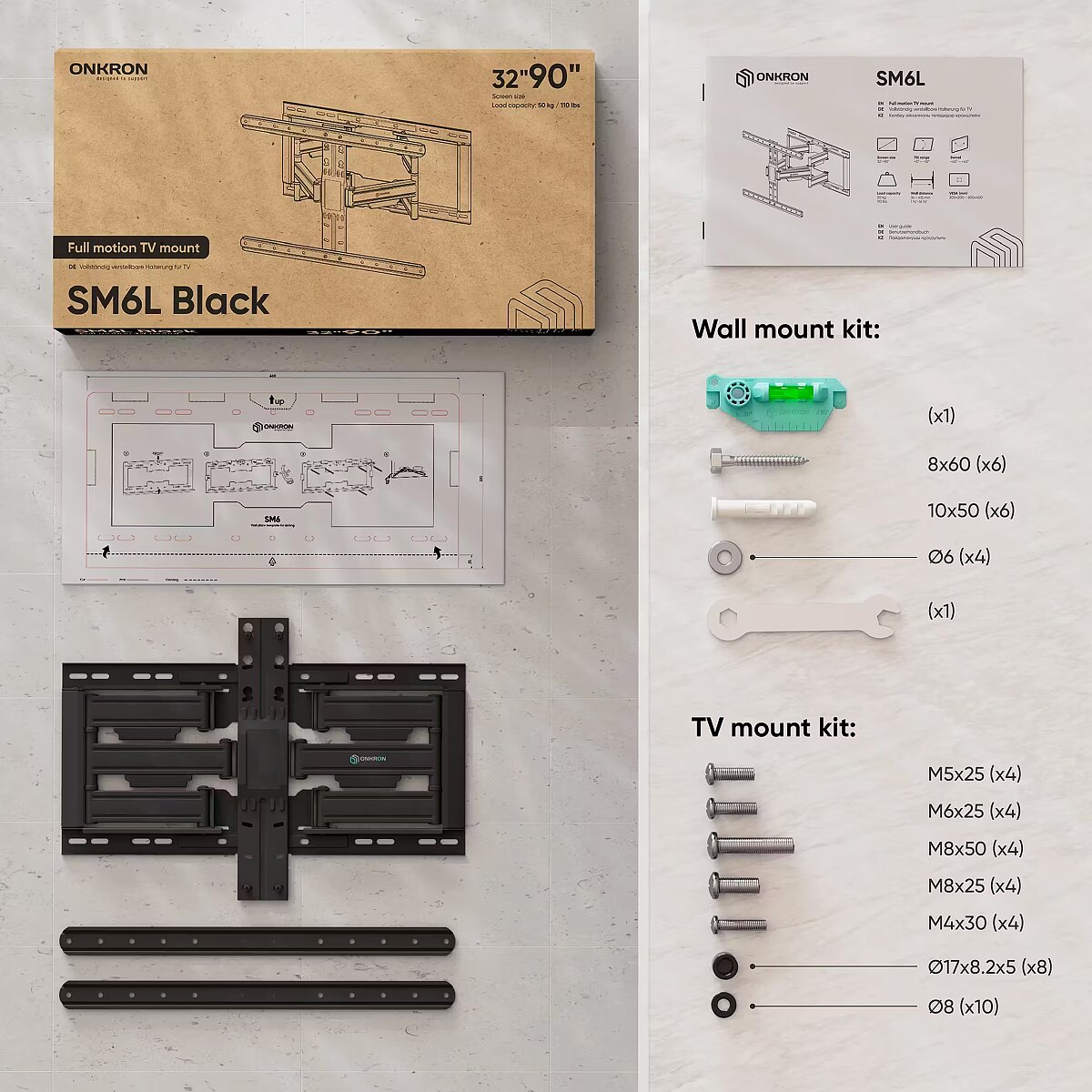

Description - For TV Screen 32"-90"Max load: 50 kgVESA: 200x200, 200x300, 200x400, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400, 500x200, 500x400, 600x200, 600x300, 600x400 mmTilt angle: +5° ~ -10°Rotation angle: -45° ~ +45°Horizontal adjustment: -3° ~ +3°Extension from the wall: 34 - 415 mmRemovable level, marking template includedMaterial: cold-rolled steel
Distance to the wall (max) Ergonomics - 41.5 cm
Distance to the wall (min) Ergonomics - 3.4 cm
Housing material Design - Steel
Maximum screen size Mounting - 2.29 m (90")
Maximum VESA mount Mounting - 600 x 400 mm
Maximum weight capacity (per display) Mounting - 50 kg
Maximum weight capacity Mounting - 50 kg
Minimum screen size Mounting - 81.3 cm (32")
Minimum VESA mount Mounting - 200 x 200 mm
Model - SM6L
Mounting type Mounting - Wall
Number of displays supported Mounting - 1
Package 1 dimensions (WxDxH) Packaging data - 710 x 505 x 55 mm
Package 1 weight Packaging data - 7.1 kg
Package 2 dimensions (W x D x H) Packaging data - 770 x 393 x 77 mm
Package 2 weight Packaging data - 7.45 kg
Panel mounting interface Mounting - 200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,300 x 400,400 x 200,400 x 300,400 x 400,500 x 200,500 x 400,600 x 200,600 x 300,600 x 400
Product colour Design - Black
Rotating Ergonomics - Yes
Summary - ONKRON SM6L-B. Maximum weight capacity: 50 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 2.29 m (90"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -10 - 5°, Angle of rotation: 45°, Distance to the wall (min): 3.4 cm, Distance to the wall (max): 41.5 cm. Product colour: Black
Tilt adjustment Ergonomics - Yes
Tilt angle range Ergonomics - -10 - 5°
Unit Box Height - 0.05
Unit Box Length - 0.7
Unit Box Width - 0.5
Unit Calculated Volume - 0.0216 cubm
Unit Calculated Weight - 8.15 kg
Units per Pallet - 0
Units per Shipping Box - 2
Vendor Homepage - https://onkron-uk.co.uk/products/sm6l-b?_pos=1&_sid=dd8e9e423&_ss=r
Warranty - 60 months
