ID: 1286691
Tuotekoodi: M7L-B
Varastossa 5 yksiköt
Takuu: 3 vuotta

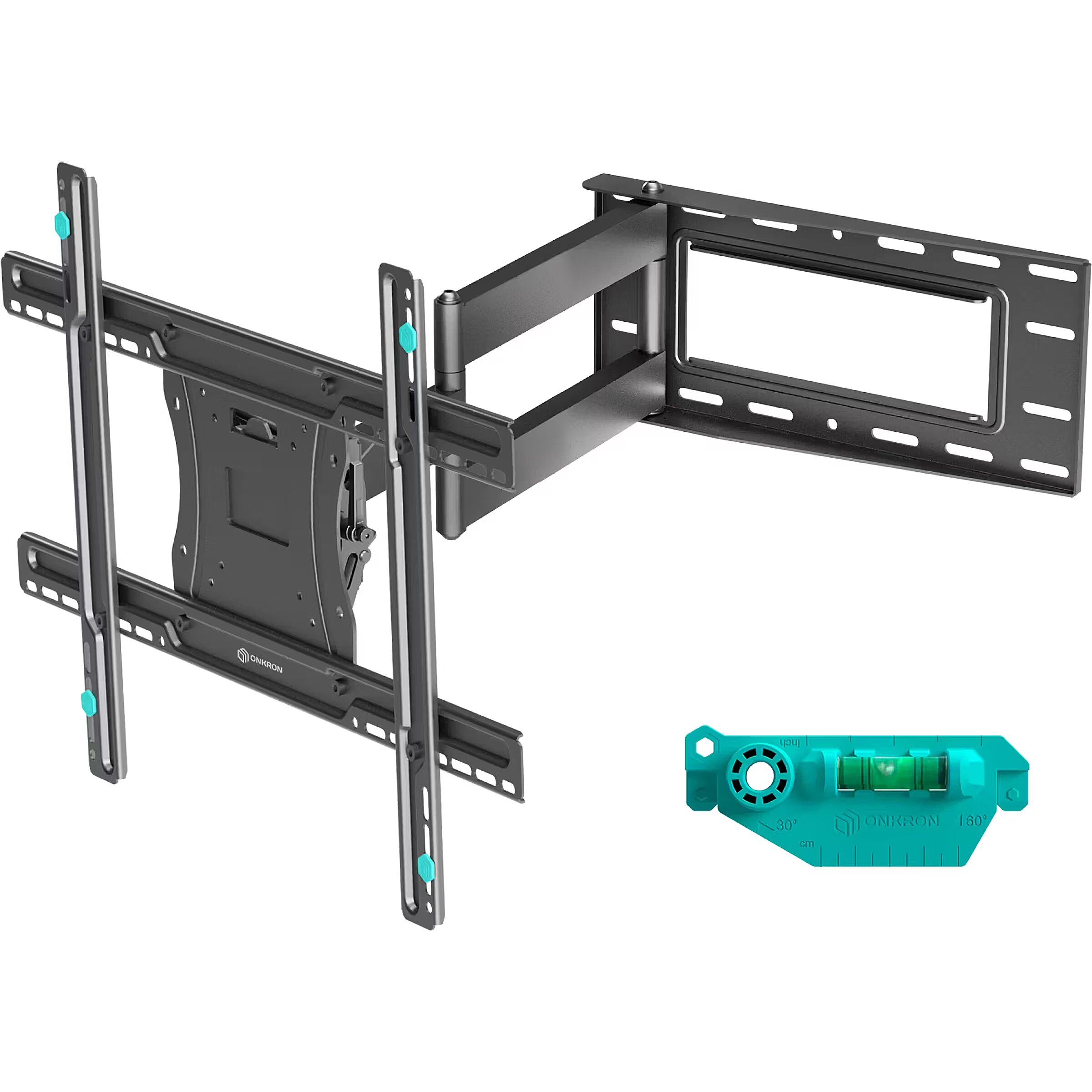

Onkron Tilting and swiveling TV bracket, 40-75"
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
-
Toimitus Posti-kuriirin postin välityksellä1-2 työpäivän kuluessa10,99 €
Tärkeimmät tuoteparametrit Kaikki parametrit
- Enimmäiskuorma (1 näyttö), kg: 68.00
- Näytön suurin läpimitta, tuumaa: 75
- Näytön vähimmäisläpimitta, tuumaa: 40
Kaikki parametrit
Enimmäiskuorma (1 näyttö), kg
: 68.00
Kallistus
: Onko
Kierto
: Ei
Kiinnitystyyppi
: Sienas
Kääntyvä
: Ir
Malli
: M7L-B
Muistikirjan pidike
: Nav
Näytön suurin läpimitta, tuumaa
: 75
Näytön vähimmäisläpimitta, tuumaa
: 40
Tuettujen näyttöjen määrä
: 1
VESA-tuki
: 100 x 100, 200 x 100, 200 x 200, 200 x 300, 200 x 400, 300 x 100, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400, 500 x 200, 500 x 400, 600 x 200, 600 x 300, 600 x 400
Väri
: Melna
Yksityiskohtaisempi erittely
Category Code - TMS
Depth (max) Weight & dimensions - 71.1 cm
Distance to the wall (max) Ergonomics - 71.1 cm
Distance to the wall (min) Ergonomics - 11 cm
Easy to install Technical details - Yes
Height Weight & dimensions - 428 mm
Housing material Design - SPCC
Illumination LED Technical details - No
Manual Packaging content - Yes
Maximum screen size Mounting - 190.5 cm (75")
Maximum VESA mount Mounting - 600 x 400 mm
Maximum weight capacity (per display) Mounting - 68 kg
Maximum weight capacity Mounting - 68 kg
Minimum screen size Mounting - 101.6 cm (40")
Minimum VESA mount Mounting - 100 x 100 mm
Model - M7L
Mounting kit Packaging content - Yes
Mounting type Mounting - Wall
Number of displays supported Mounting - 1
Package depth Packaging data - 250 mm
Package height Packaging data - 105 mm
Package type Packaging data - Box
Package weight Packaging data - 9.1 kg
Package width Packaging data - 663 mm
Panel mounting interface Mounting - 100 x 100,200 x 100,200 x 200,200 x 300,200 x 400,300 x 400,300 x 300,300 x 100,300 x 200,400 x 200,400 x 400,400 x 300,500 x 200,600 x 200,600 x 300,600 x 400
Product colour Design - Black
Quantity per pack Packaging data - 1 pair(s)
Summary - ONKRON Tilting and swiveling TV bracket for 40"-75" max 68 kg, black. Maximum weight capacity: 68 kg, Minimum screen size: 101.6 cm (40"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -5 - 15°, Distance to the wall (min): 11 cm, Distance to the wall (max): 71.1 cm. Product colour: Black
Swivel angle Ergonomics - 180°
Swivelling Ergonomics - Yes
Tilt adjustment Ergonomics - Yes
Tilt angle range Ergonomics - -5 - 15°
Type Ergonomics - Full motion
Unit Box Height - 0.1
Unit Box Length - 0.66
Unit Box Width - 0.245
Unit Calculated Volume - 0.01617 cubm
Unit Calculated Weight - 9.15 kg
Units per Pallet - 0
Units per Shipping Box - 1
Vendor Homepage - https://onkron-uk.co.uk/products/tv-wall-mount-bracket-for-39-60-inch-lcd-led-oled-screens-67?_pos=1&_psq=M7L-B&_ss=e&_v=1.0
Warranty - 60 months
Width Weight & dimensions - 644 mm
