Cable management Ergonomics - No
Category - Root/Electronics/PC peripherals/Accessories/Grip holders/Wall brackets
Category Code - TMS
Code - WM-42ST-01
Compliance certificates Technical details - RoHS
Country of origin Technical details - China
Customs product code (TARIC) Logistics data - 8302500000
Depth (max) Weight & dimensions - 30 cm
Description - Single-arm full-motion TV wall mount
Supports most 23'' - 42'' LCD TV’s
VESA compatible, max. 200 x 200 mm
Wall distance 56 - 300 mm

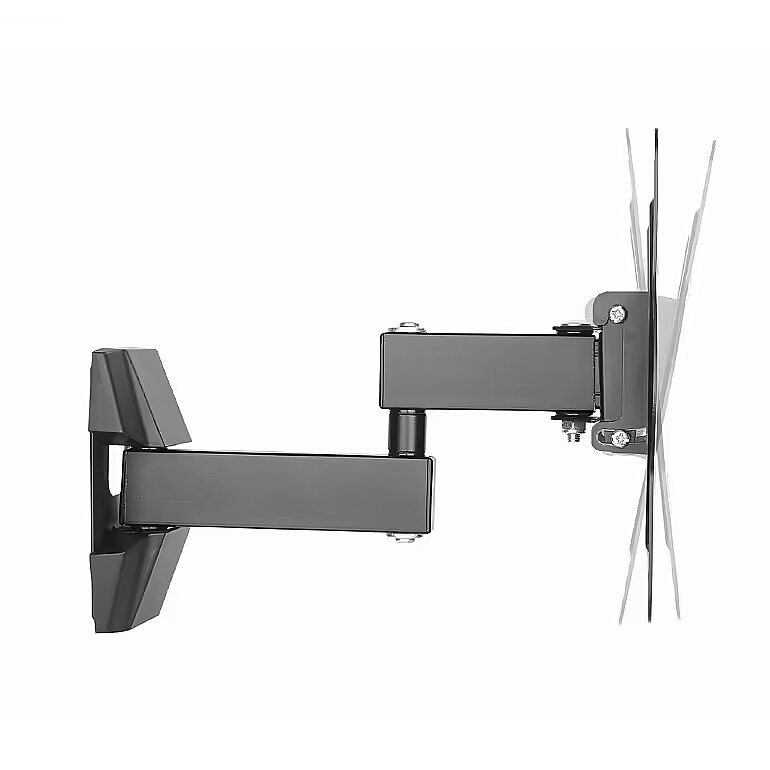

Allows up to 180 degrees swivel and 13 degrees tilting
Practical integrated bubble level for perfect alignment
Includes all necessary installation materialsPosition your screen perfectlyLightweight and maneuverable design
Design > Colour of product - Black
Distance to the wall (max) Ergonomics - 30 cm
Distance to the wall (min) Ergonomics - 5.6 cm
EAN - 8716309127875
Eans - 8716309127875
Height Weight & dimensions - 255 mm
Housing material Design - Plastic, Steel
Link - https://gembird.com/item.aspx?id=12787
Manual Packaging content - Yes
Maximum screen size Mounting - 106.7 cm (42")
Maximum VESA mount Mounting - 200 x 200 mm
Maximum weight capacity Mounting - 20 kg
Minimum screen size Mounting - 58.4 cm (23")
Minimum VESA mount Mounting - 100 x 100 mm
Model - WM-42ST-02
Mounting > Maximum screen size compatibility - 42 "
Mounting > Mounting interface compatibility (max) - 200x200 mm
Mounting > Mounting interface compatibility (min) - 100x100 mm
Mounting > VESA mounting interfaces - 100x100, 200x100, 200x200 mm
Mounting kit Packaging content - Yes
Mounting type Mounting - Wall
Name - Gembird 23'- 42', do 20 kg obrót i pochylenie
Name - Gembird | Wall mount | WM-42ST-01 | Tilt, Swivel | 23-42 " | Black
Number of displays supported Mounting - 1
Package depth Packaging data - 258 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 258.00 mm
Package features > Gross height (mm) - 233.00 mm
Package features > Gross width (mm) - 58.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 455 pc(s)
Package features > Paper/Pasteboard - 480.00 g
Package features > Plastic (No PET) - 120.00 g
Package features > Tare weight (kg) - 0.60 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Package height Packaging data - 233 mm
Package type Packaging data - Box
Package weight Packaging data - 1.76 kg
Package width Packaging data - 58 mm
Panel mounting interface Mounting - 100 x 100,200 x 100,200 x 200
Producer - Gembird
ProducerCode - WM-42ST-01
Product colour Design - Black
ShortDescription - Uchwyt scienny na telewizor (obrót i pochylenie),
Summary - Gembird WM-42ST-01. Maximum weight capacity: 20 kg, Minimum screen size: 58.4 cm (23"), Maximum screen size: 106.7 cm (42"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 200 x 200 mm. Tilt angle range: -10 - 3°, Swivel angle range: 90 - 90°, Distance to the wall (min): 5.6 cm, Distance to the wall (max): 30 cm. Product colour: Black
Sustainability compliance Technical details - Yes
Swivel angle Ergonomics - 180°
Swivel angle range Ergonomics - 90 - 90°
Swivelling Ergonomics - Yes
Technical details > Functions - Tilt, Swivel
Technical details > Gross weight - 2.20 kg
Technical details > Net weight - 1.60 kg
Technical details > Placement - Wall mount
Technical details > Producer - Gembird
Technical details > Product name - WM-42ST-01
Technical details > Screen size compatibility - 23-42 "
Tilt adjustment Ergonomics - Yes
Tilt angle range Ergonomics - -10 - 3°
Unit Box Height - 0.24
Unit Box Length - 0.26
Unit Box Width - 0.06
Unit Calculated Volume - 0.004322 cubm
Unit Calculated Weight - 1.76 kg
Units per Shipping Box - 10
Vendor Homepage - https://gembird.nl/item.aspx?id=12787
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
Weight Weight & dimensions - 1.6 kg
Width Weight & dimensions - 230 mm
