Gembird Desk mounted adjustable monitor arm for 3 monitors, 17-27"

Accessories included - Desk arm User manual Assembly tools
Angle of rotation Ergonomics - 360°
Cable management Ergonomics - Yes
Category - Datoru piederumi :: Monitoru stiprinājumi / Kronšteini
Category Code - MAS
category_en - Computers & Components > Monitors and accessories > Stands, mounts for monitors and TV
category_lv - Datortehnika > Monitori un aksesuāri > Statīvi, monitoru un TV stiprinājumi
category_ru - Datortehnika > Monitori un aksesuāri > Statīvi, monitoru un TV stiprinājumi
Clamp mount desk thickness (max) Mounting - 8.5 cm
Code - MA-DA3-03
Color - Black
Corner mount - No
Depth Weight & dimensions - 1330 mm
Desc - Stiprinājuma veids: Galda stiprinājums, Ekrāna minimālais izmērs: 17", Ekrāna maksimālais izmērs: 27", Minimālais VESA izmērs (mm): 75x75, Maksimālais VESA izmērs (mm): 100x100, Maksimālais svars: 6 kg, Garantija: 2 gadi

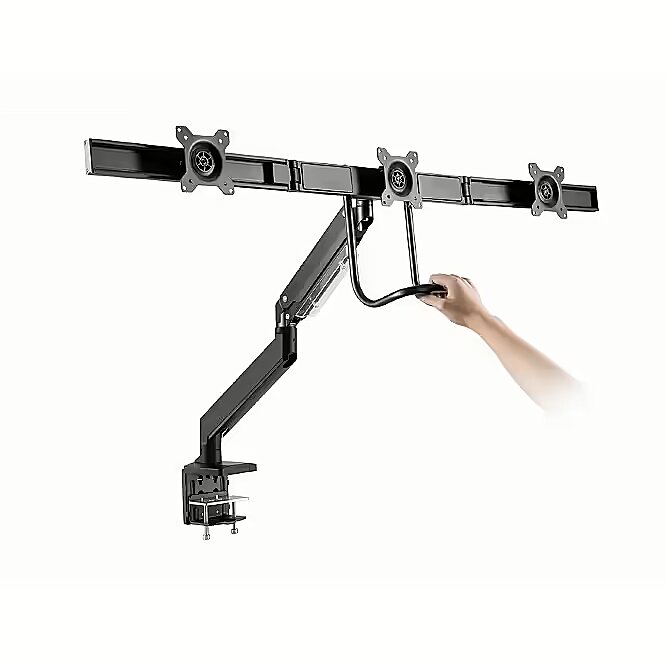

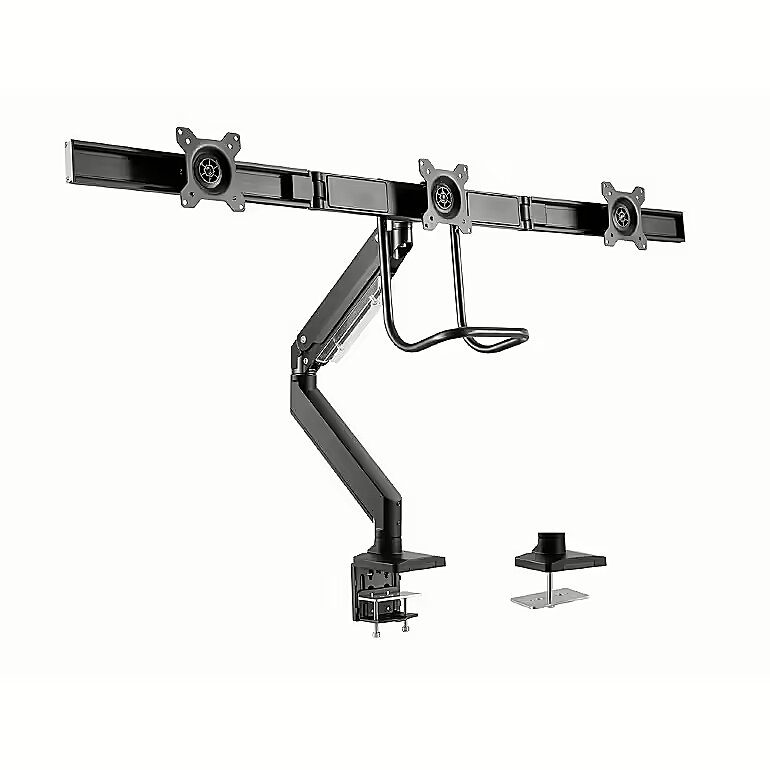

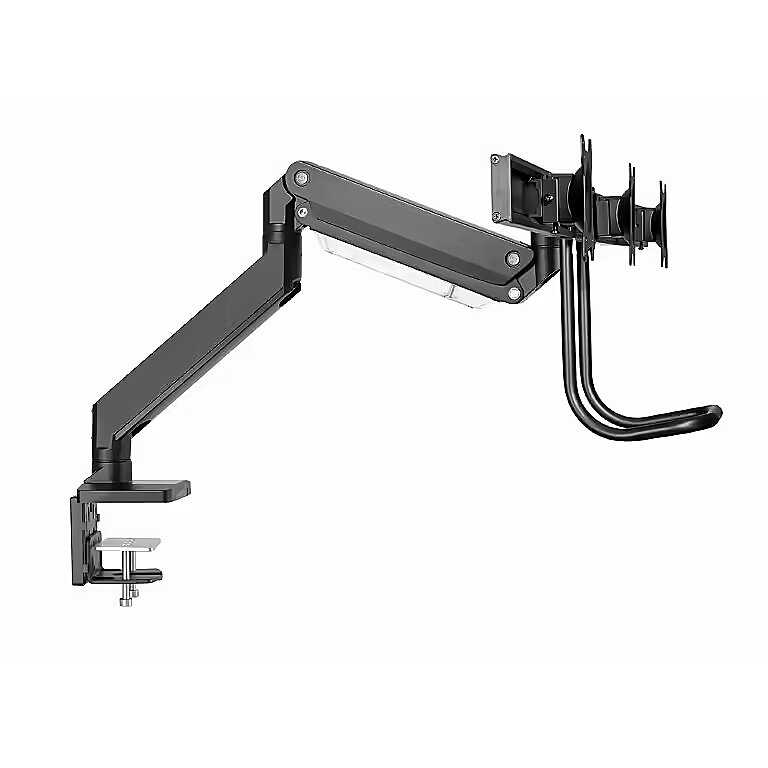

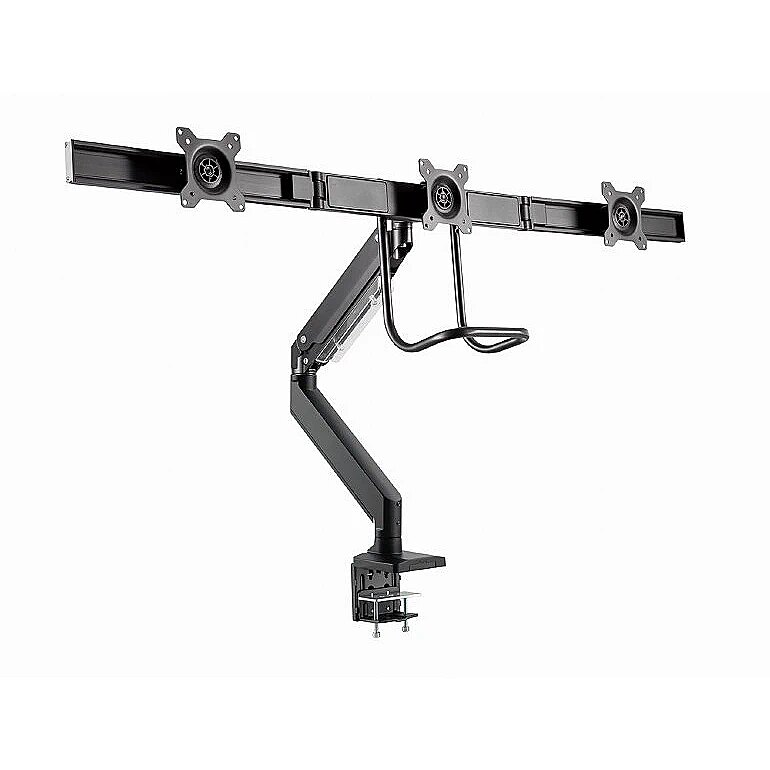

Description - Adjustable desk-mounted monitor arm for 3 monitors Set your screen perfectly Lightweight and tiltable design Desk monitor mount with single arm for 3 monitors The arm rotates, extends and retracts, and tilts to change the reading angle Monitor mounting strip for mounting 3 monitors side by side Allows easy, ergonomic positioning to reduce workload Works with almost any LCD monitor (max. 27") Durable, adjustable gas springs suitable for monitors weighing 16 kg Strong desk clamp or grommet for easy and secure attachment to your desk
Description - Monitor desk mount with single arm for 3 monitors Arm rotates, extends and retracts, tilts to change reading angles Monitor mount bar for side-by-side mounting of 3 monitors Enables easy ergonomic positioning for reduced strain Works with almost any LCD monitor (max. 27'') Durable adjustable gas-springs suitable for monitors of 1 - 6 kg Strong desk clamp or grommet for easy and secure fixation on your desk Built-in cable management for an organized and neat workspace VESA compatible (100 x 100 mm and 75 x 75 mm)Position your screen perfectlyLightweight and tilting design
description_en - Gembird MA-DA3-03 is a desk-mounted monitor arm designed to hold three monitors side by side. It frees up desk space, improves workstation ergonomics, and lets you fine-tune each screen’s position for comfortable multi-screen work. Ideal for office use, trading setups, editing, and multitasking.
Specifications Monitors supported: 3 Recommended screen size: 17"–27" Load capacity: 1–6 kg per monitor (up to 18 kg total) VESA: 75×75 mm / 100×100 mm Tilt: +5° / −15° Swivel: +10° / −10° Screen rotation: ±180° Mounting: desk clamp or grommet mount Desk thickness: 10–85 mm (clamp) / 10–40 mm (grommet) Cable management: yes Materials: aluminum / steel / plastic, powder-coated finish Color: matte black Dimensions: 1330 × 709 × 770 mm Net weight: 8.58 kg Package contents: monitor arm, mounting hardware, user manual
description_lv - Gembird MA-DA3-03 ir galda monitors turētājs trīs monitoru uzstādīšanai vienā rindā. Tas atbrīvo vietu uz galda, uzlabo darba ergonomiku un ļauj ērti noregulēt katra ekrāna pozīciju. Piemērots birojam, tirdzniecībai, video montāžai un darbam ar vairākām lietotnēm vienlaicīgi.
Specifikācija Monitoru skaits: 3 Ieteicamā diagonāle: 17"–27" Slodze: 1–6 kg uz monitoru (līdz 18 kg kopā) VESA: 75×75 mm / 100×100 mm Slīpums (tilt): +5° / −15° Pagrieziens (swivel): +10° / −10° Rotācija: ±180° Montāža: galda skava vai stiprinājums caur caurumu (grommet) Galda virsmas biezums: 10–85 mm (skava) / 10–40 mm (grommet) Kabeļu organizēšana: ir Materiāli: alumīnijs / tērauds / plastmasa, pulverkrāsojums Krāsa: matēti melna Izmēri: 1330 × 709 × 770 mm Svars: 8.58 kg Komplektācija: turētājs, stiprinājumi, lietošanas instrukcija
description_ru - Gembird MA-DA3-03 — настольный кронштейн для одновременной установки трёх мониторов в один ряд. Помогает освободить место на столе, улучшить эргономику рабочего места и удобно настроить положение каждого экрана. Подходит для офиса, трейдинга, монтажа, работы с таблицами и многозадачных сценариев.
Характеристики Количество мониторов: 3 Рекомендуемая диагональ: 17"–27" Нагрузка: 1–6 кг на монитор (до 18 кг суммарно) VESA: 75×75 мм / 100×100 мм Наклон: +5° / −15° Поворот (влево/вправо): +10° / −10° Вращение экрана: ±180° Тип установки: струбцина на край стола или монтаж через отверстие (grommet) Толщина столешницы: 10–85 мм (струбцина) / 10–40 мм (grommet) Кабель-менеджмент: есть Материалы: алюминий / сталь / пластик, порошковое покрытие Цвет: матовый чёрный Габариты: 1330 × 709 × 770 мм Вес: 8.58 кг Комплектация: кронштейн, крепёж, руководство пользователя
Design - Easy to install - Yes
Design - Housing material - Aluminium
Design - Housing material - Plastic
Design - Housing material - Steel
Design - Product colour - Black
Designation - Kosz zgodnie z zasadami recyklingu
Desk thickness (min) Mounting - 1 cm
dimensionalWeight - 5846
dimension depth - 140 mm
dimension height - 325 mm
Dimensions - 1330 x 709 x 770 mm
dimension weight - 10000 g
dimension width - 625 mm
EAN - 8716309127691
ean - 8716309127691
Easy to install Design - Yes
Ergonomics - Angle of rotation - 360°

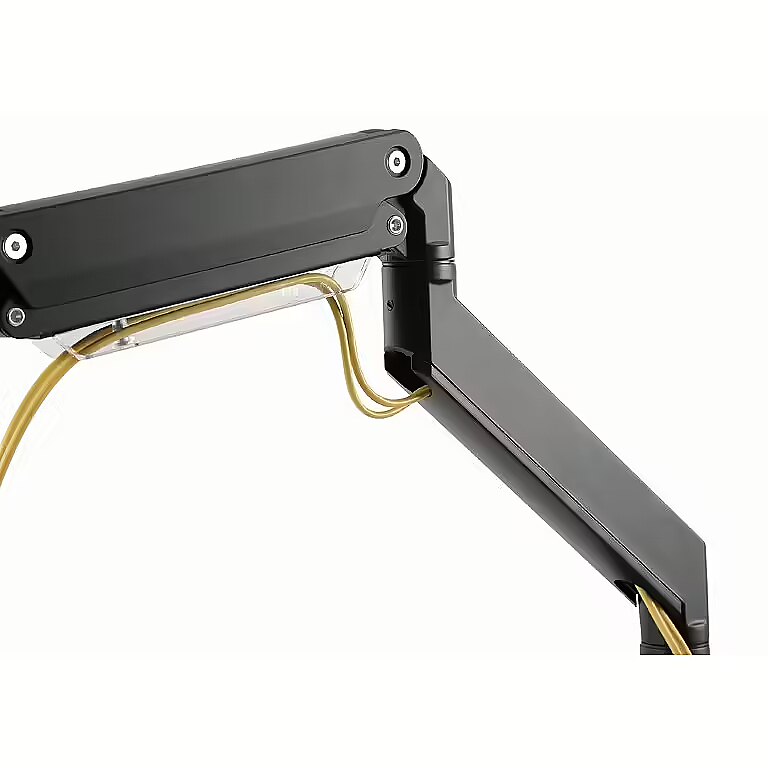

Ergonomics - Cable management - Yes
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment type - Gas spring
Ergonomics - Number of arms - 1
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle - 20°
Ergonomics - Swivel angle range - -10 - 10°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -15 - 5°
Grommet mount desk thickness (max) Mounting - 4 cm
gross_weight - 9 kg
guarantee - 24
guarantee_type - normal
Height adjustment Ergonomics - Yes
Height adjustment type Ergonomics - Gas spring
Height Weight & dimensions - 709 mm
Housing material Design - Aluminium, Plastic, Steel
LargeDescHTML -
Load (max) - 6 kg
Maximum screen size Mounting - 68.6 cm (27")
Maximum VESA mount Mounting - 100 x 100 mm
Maximum weight capacity (per display) Mounting - 6 kg
Maximum weight capacity Mounting - 18 kg
Minimum screen size Mounting - 43.2 cm (17")
Minimum VESA mount Mounting - 75 x 75 mm
Model - MA-DA3-03
Mounting - Clamp mount desk thickness (max) - 8.5 cm
Mounting - Desk thickness (min) - 1 cm
Mounting - Grommet mount desk thickness (max) - 4 cm
Mounting - Maximum screen size - 68.6 cm (27")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity - 18 kg
Mounting - Maximum weight capacity (per display) - 6 kg
Mounting - Minimum screen size - 43.2 cm (17")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting - Clamp/Grommet
Mounting - Mounting type - Desk
Mounting - Number of displays supported - 3
Mounting - Panel mounting interface - 75 x 75 mm
Mounting - Panel mounting interface - 100 x 100 mm
Mounting Mounting - Clamp/Grommet
Mounting type Mounting - Desk
Name - Monitora stiprinājums Gembird 3-display Desk mounted adjustable max27" 1-6kg
name - Mounting arm 3 monitors 17-27 6kg
Number of arms Ergonomics - 1
Number of displays supported Mounting - 3
Number of supported monitors - 3
Other features - Tilt range: +5° ~ -15° Rotation range: +10° ~ -10° Screen rotation: +180° ~ -180° Installation: Desk clamp or grommet Max. desk thickness: Clamp: 10 ~ 85 mm, Grommet: 10 ~ 40 mm
Package depth Packaging data - 630 mm
Package height Packaging data - 145 mm
Package weight Packaging data - 10.6 kg
Package width Packaging data - 325 mm
Packaging data - Package depth - 630 mm
Packaging data - Package height - 145 mm
Packaging data - Package weight - 10.6 kg
Packaging data - Package width - 325 mm
Packaging data - Quantity per pack - 1 pc(s)
Panel mounting interface Mounting - 75 x 75,100 x 100 mm
producer - Gembird
Producer - Gembird
producerCode - MA-DA3-03
Product colour Design - Black
productName - Gembird MA-DA3-03 monitor mount / stand 68.6 cm (27") Desk Black
productSize - Normal
Quantity per pack Packaging data - 1 pc(s)
Rotating Ergonomics - Yes
Screen size (max) - 27 ''
Screen size (min) - 17 ''
sizeX - 320
sizeY - 630
sizeZ - 145
Stuff - Aluminum
Stuff - Plastic
Stuff - Steel
Summary - Gembird MA-DA3-03. Mounting: Clamp/Grommet, Maximum weight capacity: 18 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 68.6 cm (27"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -10 - 10°, Tilt angle range: -15 - 5°. Product colour: Black
Swivel angle Ergonomics - 20°
Swivel angle range Ergonomics - -10 - 10°
Swivelling Ergonomics - Yes
Tilt adjustment Ergonomics - Yes
Tilt angle range Ergonomics - -15 - 5°
title_en - Gembird MA-DA3-03 Desk mounted adjustable monitor arm for 3 monitors
title_lv - Gembird MA-DA3-03 Regulējams galda stiprinājums 3x monitoriem
title_ru - Gembird MA-DA3-03 Настольный регулируемый кронштейн для 3х мониторов
Type - Desk
Unit Box Height - 0.15
Unit Box Length - 0.625
Unit Box Width - 0.325
Unit Calculated Volume - 0.03047 cubm
Unit Calculated Weight - 10.1 kg
Units per Shipping Box - 1
Usage - Monitors
Vendor Homepage - https://gembird.nl/item.aspx?id=12769
vendpn - MA-DA3-03
VESA - 75 x 75
VESA - 100 x 100
Warranty - 24 months
warrantyLength - 24
warrantyType - G
Weight - 8.58 kg
weight - 8.58 kg
weight - 10250
Weight & dimensions - Depth - 1330 mm
Weight & dimensions - Height - 709 mm
Weight & dimensions - Weight - 8.58 kg
Weight & dimensions - Width - 770 mm
Weight Weight & dimensions - 8.58 kg
Width Weight & dimensions - 770 mm
