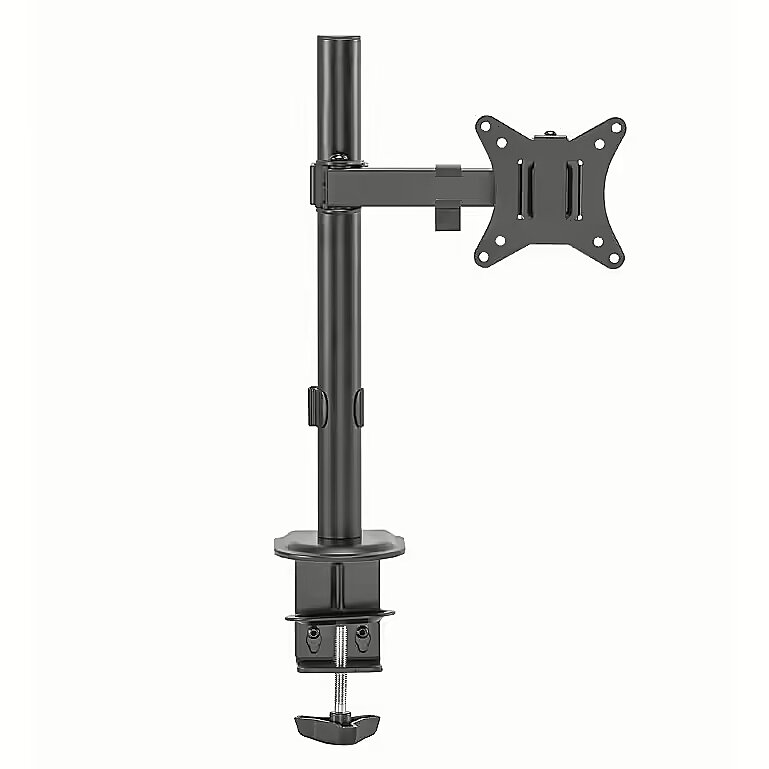

Gembird Desk mounted single monitor arm, 17-32"

Accessories included - Arm elements Set of installation accessories Installation Guide
Cable management Ergonomics - Yes
Category Code - MAS
Clamp mount desk thickness (max) Mounting - 8.5 cm
Color - Black
Depth Weight & dimensions - 561 mm
Description - Monitor desk mount with single monitor arm Allows to swivel tilt, pull forward and retract your display and enables rotating the display from landscape-to-portrait mode Works with almost any LCD monitor (max. 32'' / 9 kg) Strong desk clamp or grommet for easy and secure fixation on your desk Built-in cable management for an organized and neat workspace VESA compatible (100 x 100 mm and 75 x 75 mm)Position your screen perfectly for an optimal ergonomic positionCompact space saving solution
Description - Monitor mount GEMBIRD MA-D1-03 in black It is designed for monitors with a screen size of 17 - 32 inches. The product is designed for a single monitor and is mounted directly to the desk. The arms allow the display to be rotated, extended, retracted or tilted and enable the display to be rotated from landscape to portrait mode, etc. The MA-D1-03 has a sturdy, strong desk clamp for easy and secure mounting and practical clips to organise cables in the arm. In addition, it is VESA compatible (100 x 100 mm and 75 x 75 mm). Position the screen perfectly for optimum ergonomic positioning A compact, space-saving solution Monitor mount for desktop with single monitor arm Works with almost any LCD monitor (max. 32" / 9 kg) Sturdy desk clamp or grommet for easy and secure fixing to a desk Built-in cable management for an organised and tidy workspace
Design - Housing material - Plastic
Design - Housing material - Steel
Design - Product colour - Black
Designation - Kosz zgodnie z zasadami recyklingu
dimensionalWeight - 1144
dimension depth - 100 mm
dimension height - 130 mm
Dimensions - 116 x 308 x 561 mm
dimension weight - 2725 g
dimension width - 435 mm
ean - 8716309127585
Ergonomics - Cable management - Yes
Ergonomics - Swivel angle range - 90 - -90°
Ergonomics - Tilt angle range - 45 - -45°
Grommet mount desk thickness (max) Mounting - 4 cm
guarantee - 24
guarantee_type - normal
Height Weight & dimensions - 116 mm
Horizontal adjustment - 90 °
Housing material Design - Plastic, Steel
Load (max) - 9 kg
Manual Packaging content - Yes
Maximum screen size Mounting - 81.3 cm (32")
Maximum VESA mount Mounting - 100 x 100 mm
Maximum weight capacity Mounting - 9 kg
Minimum screen size Mounting - 43.2 cm (17")
Minimum VESA mount Mounting - 75 x 75 mm
Mounting - Clamp mount desk thickness (max) - 8.5 cm
Mounting - Grommet mount desk thickness (max) - 4 cm
Mounting - Maximum screen size - 81.3 cm (32")
Mounting - Maximum VESA mount - 100 x 100 mm
Mounting - Maximum weight capacity - 9 kg
Mounting - Minimum screen size - 43.2 cm (17")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting type - Desk
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 75 x 75 mm
Mounting - Panel mounting interface - 100 x 100 mm
Mounting type Mounting - Desk
name - Adjustable arm 17-32 inches 9kg long
Number of displays supported Mounting - 1
Number of supported monitors - 1
Other features - Tilt range: +45° ~ -45° Rotation range: +90° ~ -90° Screen rotation: +180° ~ -180° Installation: Desk clamp or grommet Max. desk thickness: Clamp: 10 ~ 85 mm, Grommet: 10 ~ 40 mm Cable management
Package depth Packaging data - 430 mm
Package height Packaging data - 97 mm
Package type Packaging data - Box
Package weight Packaging data - 2.81 kg
Package width Packaging data - 130 mm
Packaging content - Manual - Yes
Packaging data - Package depth - 430 mm
Packaging data - Package height - 97 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.81 kg
Packaging data - Package width - 130 mm
Panel mounting interface Mounting - 75 x 75,100 x 100 mm
producer - Gembird
producerCode - MA-D1-03
Product colour Design - Black
productName - Gembird MA-D1-03 monitor mount / stand 81.3 cm (32") Desk Black
productSize - Normal
Range adjustment - No
Screen size (max) - 32 ''
Screen size (min) - 17 ''
sizeX - 440
sizeY - 100
sizeZ - 130
Stuff - Plastic
Stuff - Steel
Summary - Gembird MA-D1-03. Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Swivel angle range: 90 - -90°, Tilt angle range: 45 - -45°. Product colour: Black
Swivel angle range Ergonomics - 90 - -90°
Tilt angle range Ergonomics - 45 - -45°
Type - Desk
Unit Box Height - 0.1
Unit Box Length - 0.435
Unit Box Width - 0.13
Unit Calculated Volume - 0.006161 cubm
Unit Calculated Weight - 2.83 kg
Units per Shipping Box - 6
Usage - Monitors
Vendor Homepage - https://gembird.nl/item.aspx?id=12758
vendpn - MA-D1-03
Vertical adjustment - 45 °
VESA - 75 x 75
VESA - 100 x 100
Warranty - 24 months
warrantyLength - 24
warrantyType - G
Weight - 2.2 kg
weight - 2705
Weight & dimensions - Depth - 561 mm
Weight & dimensions - Height - 116 mm
Weight & dimensions - Weight - 2.42 kg
Weight & dimensions - Width - 308 mm
Weight Weight & dimensions - 2.42 kg
Width Weight & dimensions - 308 mm
