Lian Li LANCOOL 216 RGB, Tempered Glass, Black

Anti-dust filter Design - Yes
Audio input Ports & interfaces - Yes
Audio output Ports & interfaces - Yes
Bottom radiator sizes supported Cooling - 240 mm
Cable management Design - Yes
category - Cases & Modding|PC Cases|Mid Towers|Windowed Mid Towers
Category - Datortehnika :: Datoru komponentes :: Korpusi
Category - Root/Electronics/PC parts/Computer casings
Category Code - CAS
Chłodzenie: Możliwość montażu - 1 wentylator 120 mm
Chłodzenie: Możliwość montażu - 1 wentylator 120/140 mm
Chłodzenie: Możliwość montażu - 4 wentylatory 120/140 mm
Chłodzenie: Obsługiwane radiatory - 120 mm
Chłodzenie: Obsługiwane radiatory - 140 mm
Chłodzenie: Obsługiwane radiatory - 240 mm
Chłodzenie: Obsługiwane radiatory - 280 mm
Chłodzenie: Obsługiwane radiatory - 360 mm
Chłodzenie: Zainstalowane komponenty - 1 wentylator 140 mm
Chłodzenie: Zainstalowane komponenty - 2 wentylatory 160 mm
CnCode - 84733080
Code - LANCOOL216RX
code - LANCOOL216RX
Cooling - Bottom fans diameters supported - 120 mm
Cooling - Bottom fans diameters supported - 140
Cooling - Front fans installed - 2x 160 mm
Cooling - Number of bottom fans supported (max) - 2
Cooling - Number of front fans supported (max) - 3
Cooling - Number of rear fans supported (max) - 1
Cooling - Number of top fans supported (max) - 3
Cooling - Rear fans diameters supported - 120
Cooling - Rear fans diameters supported - 140 mm
Cooling - Rear fans installed - 1x 140 mm
Cooling - Side fans installed - No
Cooling - Top fans diameters supported - 120
Cooling - Top fans diameters supported - 140 mm
Dane fizyczne: Głębokość - 481 mm
Dane fizyczne: Rodzaj materiału - stal, hartowane szkło, tworzywo sztuczne
Dane fizyczne: Szerokość - 235 mm
Dane fizyczne: Waga - 10.5 kg
Dane fizyczne: Wysokość - 492 mm
Dane techniczne: Gwarancja - 2 lata w serwisie zewnętrznym
Dane techniczne: Kolor - czarny
Dane techniczne: Konstrukcja obudowy - wydzielona komora na zasilacz
Dane techniczne: Panel boczny - przeźroczysty
Dane techniczne: Producent - Lian-Li
Dane techniczne: Standard - ATX
Dane techniczne: Standard - extended ATX
Dane techniczne: Standard - micro-ATX
Dane techniczne: Standard - mini-ITX
Dane techniczne: Typ obudowy - Midi Tower
Dane techniczne: Zintegrowane podświetlanie - tak
Depth Weight & dimensions - 480.9 mm
Desc - Korpusa tips: Mid Tower (ATX), Barošanas bloks: Nav, Krāsa: Melna, Materiāls: Rūdītais stikls / Tērauds, 5.25” sloti: Nav, 3.5” sloti: 2, 2.5” sloti: 4, Audio ieeja: Ir, Audio izeja: Ir, USB 2.0: Nav, USB 3.0: 2, USB 3.2: 0, USB Type-C: 1, Garantija: 2 gadi
Description - AIRFLOW FOCUS

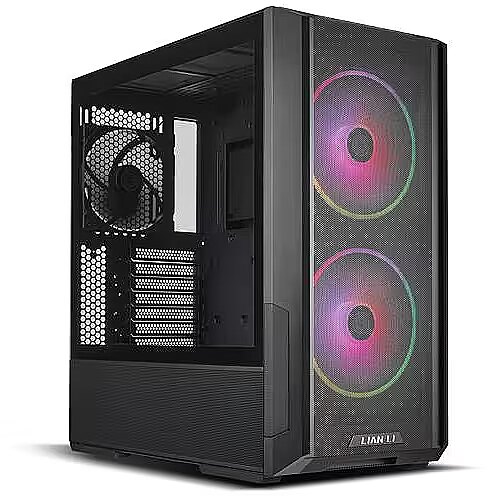

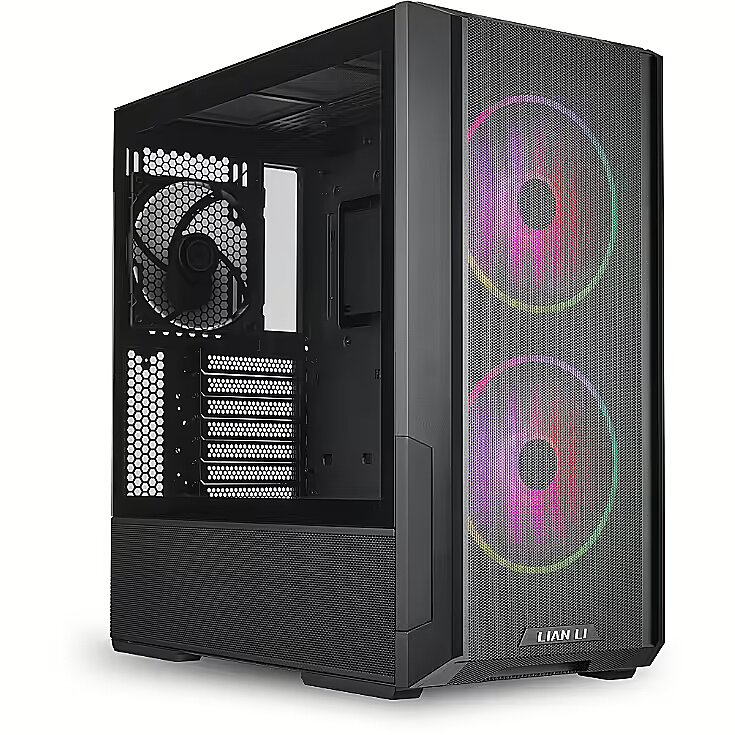

The LANCOOL 216 is a mainstream case that features all-around mesh panels for optimal airflow. Thanks to its modular rear panel, it can be optimized for air cooling or water cooling. It includes 2 x 160mm and 1 x 140mm pre-installed PWM fans and an innovative rear PCIe fan bracket to maximize airflow. CONTINUOUS FRONT TO TOP MESH
To ensure adequate airflow is provided to the system, the LANCOOL 216 features mesh at the front, top, and on the PSU shroud’s side. The front mesh extends to the top for a continuous mesh panel. LANCOOL 216 RGB FANS
The included 160mm ARGB fans feature two channels of LEDs (one on the outer rim of the fan, another at the shaft of the fan blades) that can be controlled separately via an optional accessory, or via the motherboard lighting software by connecting them directly to a motherboard 5V 3pin header.
Located in the second chamber behind the motherboard, a SATA-powered fan hub can support up to 4x ARGB and PWM fans. AIR COOLING MODE / WATER COOLING MODE

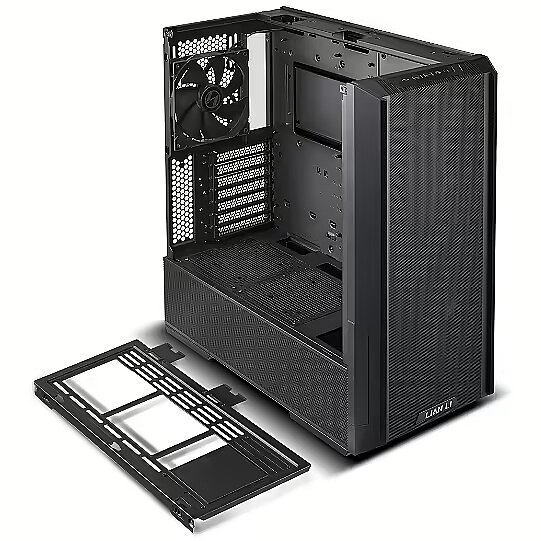

The modular motherboard I/O allow users to move the motherboard to a higher position which is more favorable for air-cooled systems, or a lower position for water-cooled systems. AIR COOLING
Set higher, the motherboard leaves room above the PSU shroud for wider fans. WATER COOLING
Set lower, the motherboard leaves a 63mm thick gap at the top to install radiator/fan combos, ideal for AIOs or custom water cooling. FRONT I/O CAN BE RELOCATED
Including a power button, reset button, audio port, 2x USB3.0 ports, and a USB Type C port, the front I/O module can be relocated to the lower left side of the front panel. HARDWARE COMPATIBILITY
The LANCOOL 216 supports ATX, Micro-ATX, MINI-ITX motherboards, and E-ATX under 280mm in width (when the grommet bar is flipped 180°). In addition, thanks to its symmetrical design, cable management in the 2nd chamber remains unaffected. LATEST GEN. GPU READY
With enough room for graphics cards up to 392mm in length, and 180mm in height (for air cooling mode), the LANCOOL 216 is compatible with even the largest NVIDIA 4000 series cards. PRESSURE LEAK FREE
Pre-installed at the front of the top radiator bracket, a seal plate ensures no pressure leak is created when installing smaller than a 360 radiator/3x120mm fans at the top. REMOVEABLE TOP RADIATOR BRACKET
The top mounting bracket can be completely removed from the case for easier hardware installation. The bracket comes off with the left side frame bar to provide optimal clearance.
Two grooves have been implemented to allow easy passage of fan cables into the second chamber of the case, simplifying cable management and making the overall look of the build better. PCIE FAN BRACKET
The GPU placed at the top of the expansion slots in air cooling mode opens up the possibility to add a 120mm fan at the rear of the case without obstructing the GPU I/O. This is also possible with a vertically mounted GPU in both air-cooled and water-cooled mode. The additional 120mm fan provides better cooling for the GPU and a greater intake/exhaust balance for the system. VERTICAL GPU COMPATIBLE
The PCIe expansion slot panel can be rotated to vertically install the GPUs, only an additional riser cable is required. UP TO 6 x SSD + 2 X HDD STORAGE CAPACITY
A total of 2 x 3.5” + 6 x 2.5” drives can be installed with dedicated mounts for storage. CABLE MANAGEMENT
The LANCOOL 216 offers multiple options for easy cable management. Along the cable grommet bar, 3 large velcro straps can hold 2 different sets of cables. 3 small clips are located along the rear side panel, ideal for cleanly routing the CPU 8pin cable, and 2 additional velcro straps are located near the PSU chamber to help hold down the extra PSU cable length away from the ventilation path in the bottom chamber. ARGB CONTROL & USB MODULE
An additional ARGB control & USB module can be installed at the side of the front panel to provide better control over the front ARGB fans. The ARGB control & USB module offers the option to create custom lighting styles by mixing the light effects of both LED channels individually. DUST FILTER
For users who take dust management to the next level, a magnetic front panel dust filter is available as an optional accessory. The dust filter fits perfectly between the front panel and the front fans. PCIE CABLE
For vertical GPU mounting, only an additional riser cable is required. With a PCB that has a hole spacing of 112.7mm, the Lian-Li PCIe 4.0 X16 RISER CABLE is compatible with the LANCOOL 216.Mid-tower chassis configurable for air cooling and water coolingAirflow optimized front, top and PSU shroud side mesh panelsEquipped with 2 x front 160 PWM fans (ARGB or non-RGB) and 1 x rear 140mm PWM fanSupports 360 radiator at the top, front and a maximum of 10 fansIncludes rear PCIe fan bracketFront I/O that can be relocated to the bottomExtensive cable management solution
Design - Anti-dust filter - Yes
Design - Form factor - Midi Tower
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Illumination location - Case fans
Design - LED indicators - Yes
Design - Material - Metal
Design - Material - Plastic
Design - Material - Tempered glass
Design - Maximum CPU cooler height - 18 cm
Design - Maximum graphics card length - 39.2 cm
Design - Maximum PSU length - 22 cm
Design - Number of 2.5" bays - 6
Design - Number of 3.5" bays - 2
Design - Number of expansion slots - 7
Design - On/off button - Yes
Design - Product colour - Black
Design - Reset button - Yes
Design - Side window - Yes
Design - Suitable for - Gaming
Design - Supported motherboard form factors - ATX
Design - Supported motherboard form factors - E-ATX
Design - Supported motherboard form factors - micro ATX
Design - Supported motherboard form factors - Mini-ITX
Design - Tempered glass panel(s) - Yes
Design - Type - PC
dimensionalWeight - 21620
EAN - 4718466012944
ean - 4718466012944
Eans - 4718466012944
Form factor Design - Midi Tower
Front fans diameters supported Cooling - 120/140/160 mm
Front fans installed Cooling - 2x 160 mm
Front radiator sizes supported Cooling - 240/280/360 mm
HDD/SSD combo cage Storage - Yes
Height Weight & dimensions - 491.7 mm
Illumination colour Design - Multi
Illumination Design - Yes
Illumination location Design - case fans
Kieszenie na dyski: Ilość kieszeni 2.5 wewn. - 4 szt.
Kieszenie na dyski: Ilość kieszeni 3.5 wewn. - 2 szt.
LargeDescHTML -
Material Design - Steel/Tempered glass
Maximum CPU cooler height Design - 180.5 mm
Maximum graphics card length Design - 392 mm
Maximum PSU length Design - 220 mm
Model name - LANCOOL 216RX BLACK
Name - Datora korpuss Lian Li LANCOOL 216
name - Lian Li LANCOOL 216 RGB, E-ATX Case, Mid Tower - black
Name - Lian Li LANCOOL 216 RGB czarna
Number of 2.5" bays Design - 4
Number of 3.5" bays Design - 2
Number of expansion slots Design - 7
Number of front fans supported (max) Cooling - 3
Number of rear fans supported (max) Cooling - 1
Number of top fans supported (max) Cooling - 3
On/off button Design - Yes
Panel przedni: Zdejmowany panel przedni - tak
Panel przedni: Złącza na przednim panelu - 1 x USB 3.1 typ C
Panel przedni: Złącza na przednim panelu - 2 x USB 3.0
Panel przedni: Złącza na przednim panelu - audio
Ports & interfaces - Audio in/out - Yes
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Power supply - Power supply included - No
Power supply - Power supply location - Bottom
Power supply included Power supply - No
Pozostałe cechy: Obsługa bez śrubokręta - tak
Producer - Lian-Li
producerCode - LANCOOL216RX
ProducerCode - LANCOOL216RX
Product colour Design - Black
productName - Lian Li LANCOOL 216 RGB, E-ATX-GehA?¤
productSize - Normal
Przestrzeń na komponenty: Maksymalna długość karty graficznej - 39.2 cm
Przestrzeń na komponenty: Maksymalna wysokość chłodzenia - 18.05 cm
Rear fans diameters supported Cooling - 120/140 mm
Rear fans installed Cooling - 1x 140 mm
Reset button Design - Yes
ShortDescription - Midi Tower | czarna | bez zasilacza | 2 x USB 3.0 1 x USB Typ C | 235 x 492 x 481 mm
sizeX - 316
sizeY - 574
sizeZ - 596
SSD form factor Storage - 2.5"
Storage - HDD/SSD combo cage - Yes
Storage - Supported HDD sizes - 2.5
Storage - Supported HDD sizes - 3.5"
Summary - Lian Li Lancool 216R-X. Form factor: Midi Tower, Type: PC, Product colour: Black. Front fans installed: 2x 160 mm, Front fans diameters supported: 120,140,160 mm, Rear fans installed: 1x 140 mm. Supported HDD sizes: 2.5,3.5", SSD form factor: 2.5". Width: 235 mm, Depth: 480.9 mm, Height: 491.7 mm
Supported HDD sizes Storage - 2.5/3.5 "
Supported motherboard form factors Design - ATX/EATX/micro ATX/Mini-ITX
Top fans diameters supported Cooling - 120/140 mm
Top radiator sizes supported Cooling - 240/280/360 mm
Type Design - PC
Unit Box Height - 0.565
Unit Box Length - 0.585
Unit Box Width - 0.31
Unit Calculated Volume - 0.1025 cubm
Unit Calculated Weight - 13.5 kg
Units per Shipping Box - 1
USB 3.0 Ports & interfaces - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Ports & interfaces - 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Ports & interfaces - 1
Vendor Homepage - https://lian-li.com/product/lancool-216/
Warranty - 24 months
warrantyLength - 24
warrantyType - G
weight - 13025
Weight & dimensions - Depth - 491.7 mm
Weight & dimensions - Height - 480,9 mm
Weight & dimensions - Width - 235 mm
Width Weight & dimensions - 235 mm
Zasilacz: Standard zasilacza - ATX do 220mm dl.
Zasilacz: Wbudowany zasilacz - brak w komplecie
