MSI MAG Forge 100R, ARGB, Tempered Glass, Black

Anti-dust filter Design - Yes
Audio input Ports & interfaces - Yes
Audio output Ports & interfaces - Yes
Brand - MSI
BrandPartCode - MAG FORGE 100R
Category - Computer Cases
Category - Root/Electronics/PC parts/Computer casings
Category 1 - Gehäuse
Category 2 - Midi-/Mini-Tower
Category Code - CAS
Chassis type - Midi Tower
Chłodzenie: Możliwość montażu - 2 wentylatory 140 mm
Chłodzenie: Możliwość montażu - 3 wentylatory 120/140 mm
Chłodzenie: Zainstalowane komponenty - 3 wentylatory 120 mm
Code - MAG FORGE 100R
Color - Black
Cooling - Front fans diameters supported - 120,140 mm
Cooling - Front fans installed - 2x 120 mm
Cooling - Front fans supported description - addressable RGB LED
Cooling - Number of front fans supported (max) - 3
Cooling - Number of rear fans supported (max) - 1
Cooling - Number of top fans supported (max) - 2
Cooling - Rear fans diameters supported - 120 mm
Cooling - Rear fans installed - 1x 120 mm
Cooling - Top fans diameters supported - 120,140 mm
Dane fizyczne: Głębokość - 421 mm
Dane fizyczne: Szerokość - 210 mm
Dane fizyczne: Waga - 5.64 kg
Dane fizyczne: Wysokość - 499 mm
Dane techniczne: Grupa produktowa - Obudowy komputerowe MSI
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Kolor - czarny
Dane techniczne: Panel boczny - przeźroczysty
Dane techniczne: Producent - MSI
Dane techniczne: Standard - ATX
Dane techniczne: Standard - micro-ATX
Dane techniczne: Standard - mini-ITX
Dane techniczne: Typ obudowy - Midi Tower
Dane techniczne: Zintegrowane podświetlanie - tak
Depth Weight & dimensions - 421 mm
Description - OPTIMIZED AIR FLOW Two 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure. That will contribute to positive air pressure within the case, the rising warm air will always be exhausted with the rear and top airflow from the MAG Forge 100 Series. READY FOR OPTIMIZED MOTHERBOARD Designed with multiple easy installation mechanisms and accommodated an up to ATX motherboard to provide an unhindered building experience. Support: ATX / Micro ATX / Mini-ITX TOOL-LESS TEMPERED GLASS The light gray tone of 4mm tempered glass side panel is ideal for displaying RGB lighting effects and provides clear internal component construction. The Forge 100 Series thoughtful case design allows users to install/remove the tempered glass easily. Simply place the tempered glass on the stump of the case before installing it for a safe and simple process.

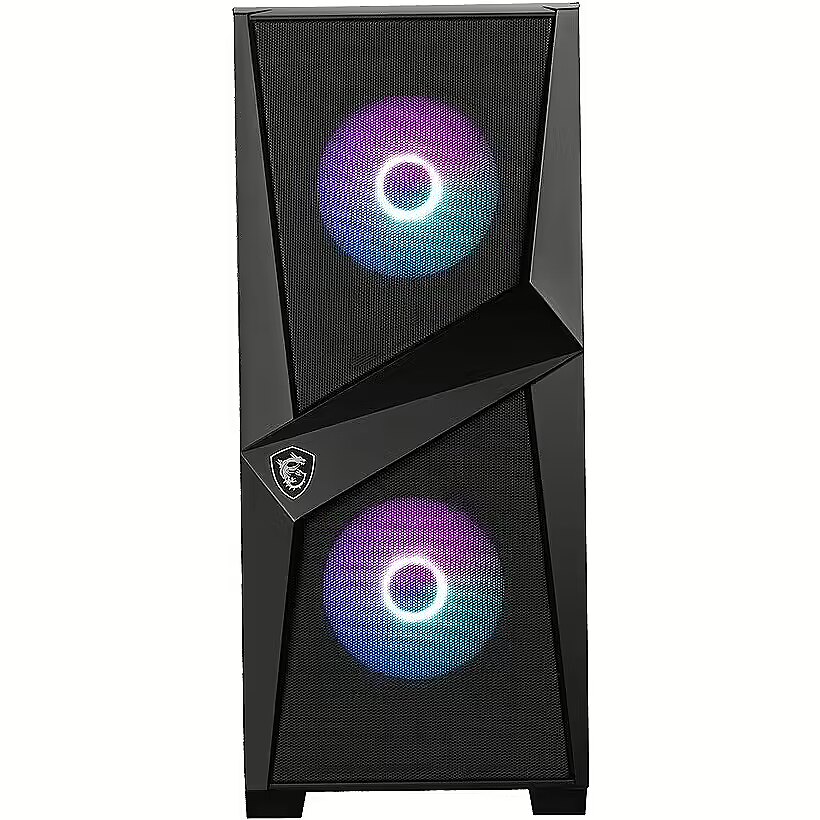

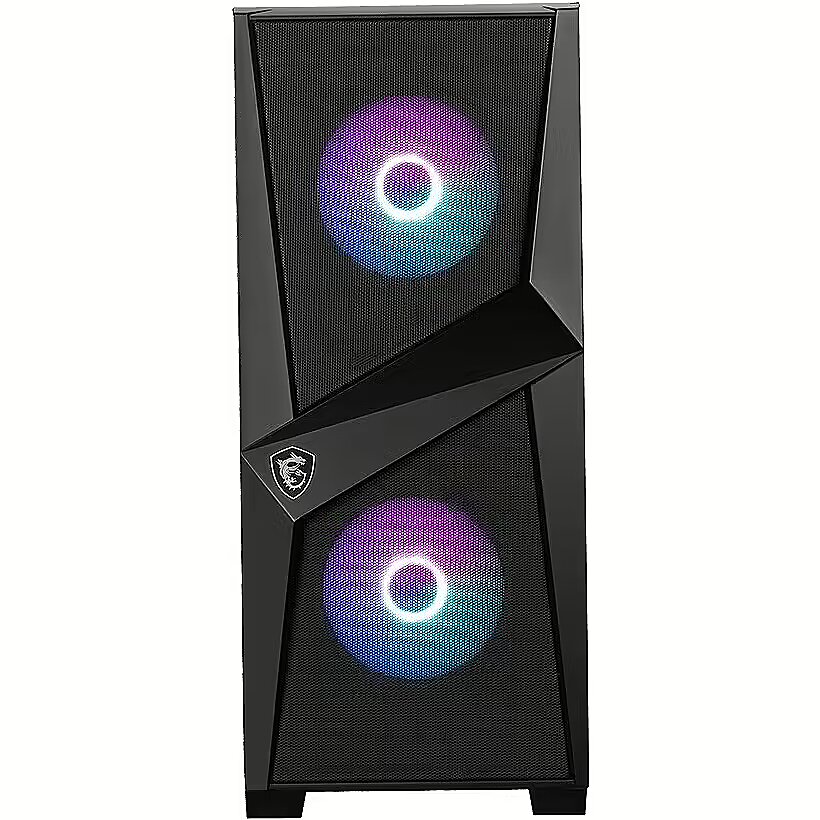

Description - OPTIMIZED AIR FLOW
Two 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure. That will contribute to positive air pressure within the case, the rising warm air will always be exhausted with the rear and top airflow from the MAG Forge 100 Series. READY FOR OPTIMIZED MOTHERBOARD
Designed with multiple easy installation mechanisms and accommodated an up to ATX motherboard to provide an unhindered building experience. TOOL-LESS TEMPERED GLASS

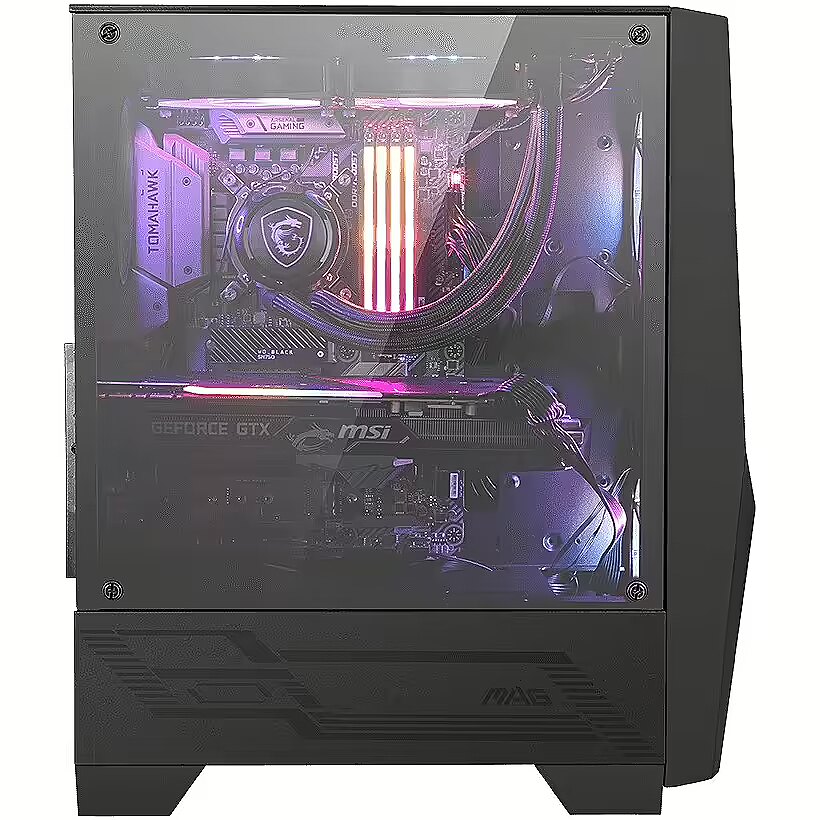

The light gray tone of 4mm tempered glass side panel is ideal for displaying RGB lighting effects and provides clear internal component construction. The Forge 100 Series’ thoughtful case design allows users to install/remove the tempered glass easily. Simply place the tempered glass on the stump of the case before installing it for a safe and simple process. PERSONALIZE YOUR GAMING RIG
ustomizing Addressable RGB LEDs integrated in the front, top & rear cover with a dedicated control button; or with MSI Mystic Light software, MAG Forge 100R can cast millions of colors and effects that can be synchronized with a vast ecosystem of components to augment your build. 1 to 6 ARGB LED Control Board
User can intuitively control & switch 9 lighting effects through the LED switch button. LED Switch Button
Keep pressing the LED button for three seconds, and then users can control the lighting effects via syncing with the motherboard by MSI mystic light app.MSI MAG Forge 100R chassis can support up to ATX motherboard, side panel of 4mm tempered glass, up to 140 mm RGB fan, reserved cooling space and front USB 3.2 Gen 1 Type AOptimize AirflowARGB Fan included4mm Tempered Glass330 mm Radiator Support160 mm CPU Cooler Support
Design - Anti-dust filter - Yes
Design - Form factor - Midi Tower
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Illumination location - Case fans
Design - LED indicators - Yes
Design - Material - Tempered glass
Design - Maximum CPU cooler height - 16 cm
Design - Maximum graphics card length - 33 cm
Design - Maximum PSU length - 20 cm
Design - Number of 2.5" bays - 3
Design - Number of 3.5" bays - 2
Design - Number of expansion slots - 7
Design - Number of internal 3.5" bays - 2
Design - On/off button - Yes
Design - Product colour - Black, Transparent
Design - Reset button - Yes
Design - Side window - Yes
Design - Suitable for - Gaming
Design - Supported motherboard form factors - ATX, micro ATX, Mini-ITX
Design - Tempered glass panel(s) - Yes
Design - Type - PC
Design > Colour of product - Black
Design > Form factor - ATX
Design > Material - Aluminum, SPCC Steel, Tempered Glass.
Design > Type - Mid Tower
Designation - CE+WEEE
dimension depth - 490 mm
dimension height - 570 mm
Dimensions - Depth: 421 mm Width: 210 mm Height: 499 mm
dimension weight - 6500 g
dimension width - 270 mm
Drive bays 2.5'' extern. - 0
Drive bays 2.5'' intern. - 3
Drive bays 3.5'' extern. - 0
Drive bays 3.5'' intern. - 2
Drive bays 5.25'' extern. - 0
Drive bays 5.25'' intern. - 0
EAN - 4719072676407
ean - 4719072676407
Eans - 4719072676407
Fan - 12 cm
Form-factor - ATX
Form-factor - Micro ATX
Form-factor - Mini ITX
Form factor Design - Midi Tower
Front fans diameters supported Cooling - 120/140 mm
Front fans installed Cooling - 2x 120 mm
Front fans supported description Cooling - addressable RGB LED
Front panel connectors - 1 x headphones
Front panel connectors - 1x microphone
Front panel connectors - 2 x USB 3.0
GTIN - 4719072676407
GTIN - 4719072876449
guarantee - 24
guarantee_type - normal
Harmonized System (HS) code Logistics data - 84733080
HDD/SSD combo cage Storage - Yes
Height Weight & dimensions - 499 mm
Illumination colour Design - Multi
Illumination Design - Yes
Illumination location Design - case fans
Kieszenie na dyski: Ilość kieszeni 2.5 wewn. - 3 szt.
Kieszenie na dyski: Ilość kieszeni 3.5 wewn. - 2 szt. obie kieszenie mogą być użyte jako 2.5
LED indicators Design - Yes
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - OPTIMIZED AIR FLOWTwo 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure. That will contribute to positive air pressure within the case, the rising warm air will always be exhausted with the rear and top airflow from the MAG Forge 100 Series.READY FOR OPTIMIZED MOTHERBOARDDesigned with multiple easy installation mechanisms and accommodated an up to ATX motherboard to provide an unhindered building experience.TOOL-LESS TEMPERED GLASSThe light gray tone of 4mm tempered glass side panel is ideal for displaying RGB lighting effects and provides clear internal component construction.The Forge 100 Series’ thoughtful case design allows users to install/remove the tempered glass easily. Simply place the tempered glass on the stump of the case before installing it for a safe and simple process.PERSONALIZE YOUR GAMING RIGustomizing Addressable RGB LEDs integrated in the front, top & rear cover with a dedicated control button; or with MSI Mystic Light software, MAG Forge 100R can cast millions of colors and effects that can be synchronized with a vast ecosystem of components to augment your build.1 to 6 ARGB LED Control BoardUser can intuitively control & switch 9 lighting effects through the LED switch button.LED Switch ButtonKeep pressing the LED button for three seconds, and then users can control the lighting effects via syncing with the motherboard by MSI mystic light app.
LongProductName - Mid-Tower, 2 x USB 3.2 Gen1 Type-A, 1 x HD Audio, 1 x Mic, ATX / mATX / Mini-ITX, 5.64 kg
LongSummaryDescription - MSI MAG FORGE 100R Mid Tower Gaming Computer Case 'Black, 2x 120mm ARGB PWM Fan, 1x 120mm Fan, 1-6 ARGB Hub, Mystic Light Sync, Tempered Glass Panel, ATX, mATX, mini-ITX'. Form factor: Midi Tower, Type: PC, Product colour: Black, Transparent. Power supply location: Bottom. Front fans installed: 2x 120 mm, Front fans diameters supported: 120,140 mm, Front fans supported description: addressable RGB LED. Supported HDD sizes: 2.5,3.5". Width: 210 mm, Depth: 421 mm, Height: 499 mm
Manufacturer - MSI
Material Design - Tempered glass
Maximum CPU cooler height Design - 160 mm
Maximum graphics card length Design - 330 mm
Maximum PSU length Design - 200 mm
Model name - MAG Forge 100R
MPN - 306-7G03R21-809
Name - MIDI MSI MAG FORGE 100R | black. window. RGB
Name - MSI MAG Forge 100R
Name - MSI MAG FORGE 100R PC Case, Mid-Tower, USB 3.2, Black | MSI | MSI MAG FORGE 100R | Black | ATX | Power supply included No
name - PC Case MAG FORGE 100R ARGB FAN Glass Window 2xUSB
No. of drive bays - 5
Number of 2.5" bays Design - 3
Number of 3.5" bays Design - 2
Number of expansion slots Design - 7
Number of front fans supported (max) Cooling - 3
Number of internal 3.5" bays Design - 2
Number of rear fans supported (max) Cooling - 1
Number of top fans supported (max) Cooling - 2
On/off button Design - Yes
Other features -
Other features > Drive bays - 3.5”: 2 (compatible with 2.5”) 2.5”: 3
Other features > Expansion slots - 7
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 545 mm
Package features > Gross height (mm) - 515 mm
Package features > Gross weight - 6.68 kg
Package features > Gross width (mm) - 275 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 22 pc(s)
Package features > Paper/Pasteboard - 790.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare other - 150.00 g
Package features > Tare weight (kg) - 1.04 kg
Package features > Volume (m3) - 0.077185625 m³
Package features > WEE classification - CL109:4:2017-04-01
Package features > WEEE tax - Yes
Ports & interfaces - Audio input - Yes
Ports & interfaces - Audio output - Yes
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Power supply - Failure
Power supply - Power supply included - No
Power supply - Power supply location - Bottom
Power supply > Power supply included - No
Power supply included Power supply - No
Power supply location Power supply - Bottom
Producent: Nazwa producenta / importera - MSIMSI Computer Europe BVEScience Park Eindhoven 57065692 ER Son Eindhoven HolandiaEmail: GPSR@msi.com
producer - MSI
Producer - MSI
ProducerCode - 306-7G03R42-809
Producer product name - MSI MAG FORGE 100R
Product colour Design - Black/Transparent
ProductName - MAG FORGE 100R Mid Tower Gaming Computer Case 'Black, 2x 120mm ARGB PWM Fan, 1x 120mm Fan, 1-6 ARGB Hub, Mystic Light Sync, Tempered Glass Panel, ATX, mATX, mini-ITX'
Przestrzeń na komponenty: Maksymalna długość karty graficznej - 33 cm
Przestrzeń na komponenty: Maksymalna wysokość chłodzenia - 16 cm
Rear fans diameters supported Cooling - 120 mm
Rear fans installed Cooling - 1x 120 mm
Reset button Design - Yes
ShortDescription - Midi Tower | czarna | bez zasilacza | 1 x USB 3.0 | 1 x USB 3.1 | 499 x 210 x 421 |
ShortSummaryDescription - MSI MAG FORGE 100R Mid Tower Gaming Computer Case 'Black, 2x 120mm ARGB PWM Fan, 1x 120mm Fan, 1-6 ARGB Hub, Mystic Light Sync, Tempered Glass Panel, ATX, mATX, mini-ITX', Midi Tower, PC, Black, Transparent, ATX, micro ATX, Mini-ITX, Tempered glass, Gaming
Side panel - Tempered Glass
Side window Design - Yes
Storage - HDD/SSD combo cage - Yes
Storage - Supported HDD sizes - 2.5,3.5"
Suitable for Design - Gaming
Summary - MSI MAG FORGE 100R Mid Tower Gaming Computer Case 'Black, 2x 120mm ARGB PWM Fan, 1x 120mm Fan, 1-6 ARGB Hub, Mystic Light Sync, Tempered Glass Panel, ATX, mATX, mini-ITX'. Form factor: Midi Tower, Type: PC, Product colour: Black, Transparent. Power supply location: Bottom. Front fans installed: 2x 120 mm, Front fans diameters supported: 120,140 mm, Front fans supported description: addressable RGB LED. Supported HDD sizes: 2.5,3.5". Width: 210 mm, Depth: 421 mm, Height: 499 mm
Supported HDD sizes Storage - 2.5/3.5 "
Supported motherboard form factors Design - ATX/micro ATX/Mini-ITX
Technical details > Net weight - 5.64 kg
Technical details > Other features - 2 x USB 3.2 Gen1 Type-A 1 x HD Audio 1 x Mic. Front: 2 x 120 mm addressable RGB LED Fan included. Rear: 1 x 120 mm System Fan included.
Technical details > Producer - MSI
Tempered glass panel(s) Design - Yes
Title - MSI MAG FORGE 100R Mid Tower Gaming Computer Case 'Black, 2x 120mm ARGB PWM Fan, 1x 120mm Fan, 1-6 ARGB Hub, Mystic Light Sync, Tempered Glass Panel, ATX, mATX, mini-ITX'
Top fans diameters supported Cooling - 120/140 mm
Type Design - PC
Unit Box Height - 0.485
Unit Box Length - 0.57
Unit Box Width - 0.27
Unit Calculated Volume - 0.07464 cubm
Unit Calculated Weight - 6.8 kg
Units per Shipping Box - 1
URL - https://www.msi.com/PC-Case/MAG-FORGE-100R
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Ports & interfaces - 2
Vendor Homepage - https://www.msi.com/PC-Case/MAG-FORGE-100R
vendpn - MAG FORGE 100R
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
WarrantyInfo - 2 years
Weight - 5.64 kg
Weight - 6.64
Weight & dimensions - Depth - 421 mm
Weight & dimensions - Height - 499 mm
Weight & dimensions - Weight - 5.64 kg
Weight & dimensions - Width - 210 mm
Weight Weight & dimensions - 5640 g
Width Weight & dimensions - 210 mm
