Corsair FRAME 4500X LX-R RGB iCUE LINK, Panoramic Tempered Glass, Black

category - Cases & Modding|PC Cases|Mid Towers|Windowed Mid Towers
Chassis type - Midi Tower
code - CC-9011316-WW
Color - Black
Compatible power supply standard - ATX
Computer case backlight - RGB
Cooling - Bottom fans installed - 1x 120 mm
Cooling - Rear fans installed - 1x 140 mm
Cooling - Side fans installed - 2x 140 mm
Cooling - Side radiator sizes supported - 360
Cooling - Top fans installed - 2x 140 mm
Cooling - Top radiator sizes supported - 360
Description - FRAME 4500X LX-R RGB iCUE LINK Mid-Tower PC Case with Panoramic Glass Single-piece curved front and side panels InfiniRail fan mounting system for easier builds Dual 360 mm radiator support 3 iCUE LINK LX-R RGB 120 mm reverse-blade fans included GPU anti-sag bracket Compatible with motherboards with reversed connectors Included iCUE LINK system hub provides full digital control of connected devices PANORAMIC GLASS SIDE PANEL

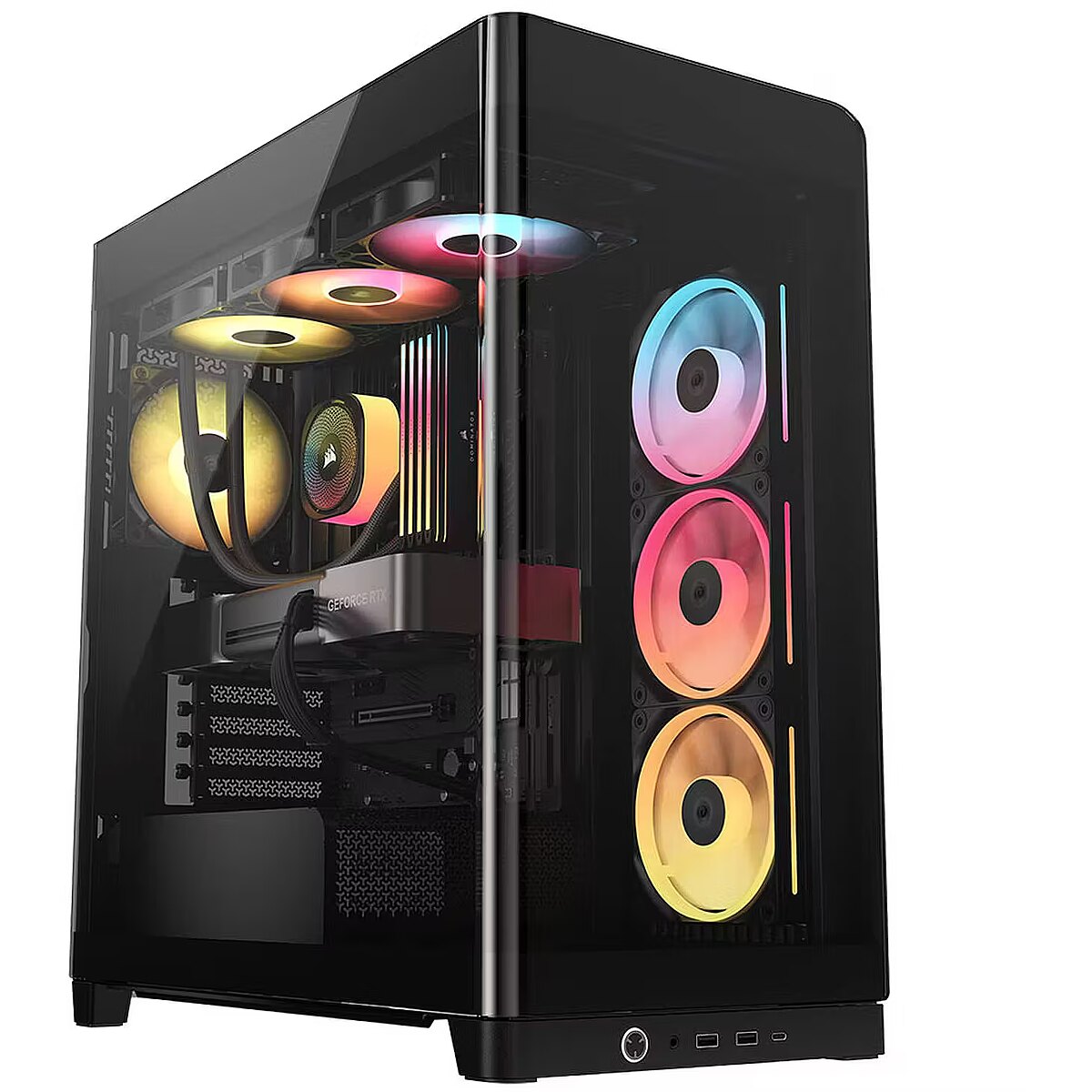

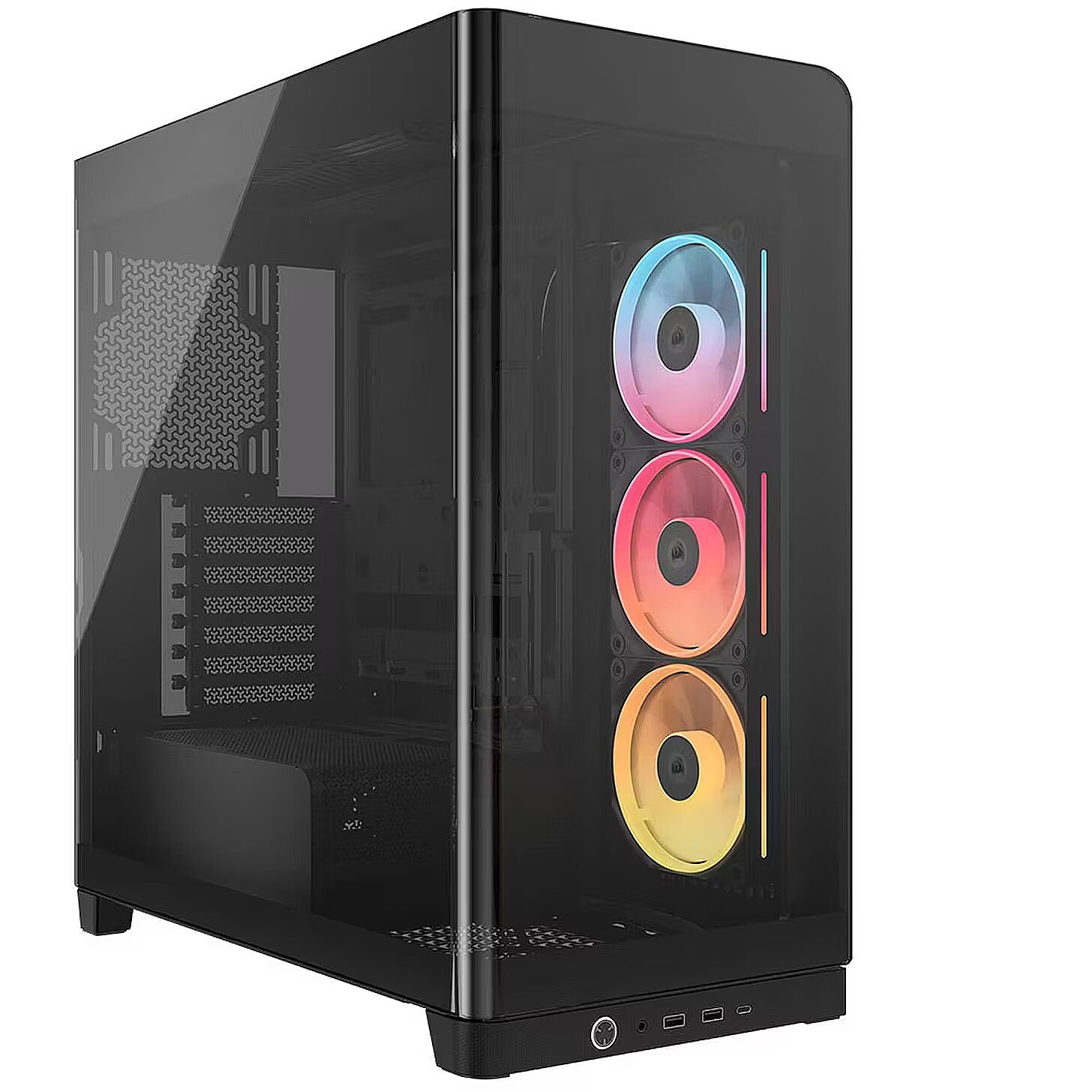

A single piece of curved tempered glass allows unobstructed display of your build, with no seams or sharp edges blocking the view. The curved glass wraps around the front and side of the case, providing a clear view of your components. The tempered glass side panel is laminated with an almost invisible safety film that also reduces noise. CORSAIR INFINIRAIL FAN MOUNTING SYSTEM
This multi-point steel fan mounting system offers unmatched flexibility for top-mounted fans. Simply slide the rail to install 120 mm or 140 mm fans exactly where needed, providing targeted airflow without the limitations of fixed mounting. LX-R REVERSE-BLADE FANS INCLUDED

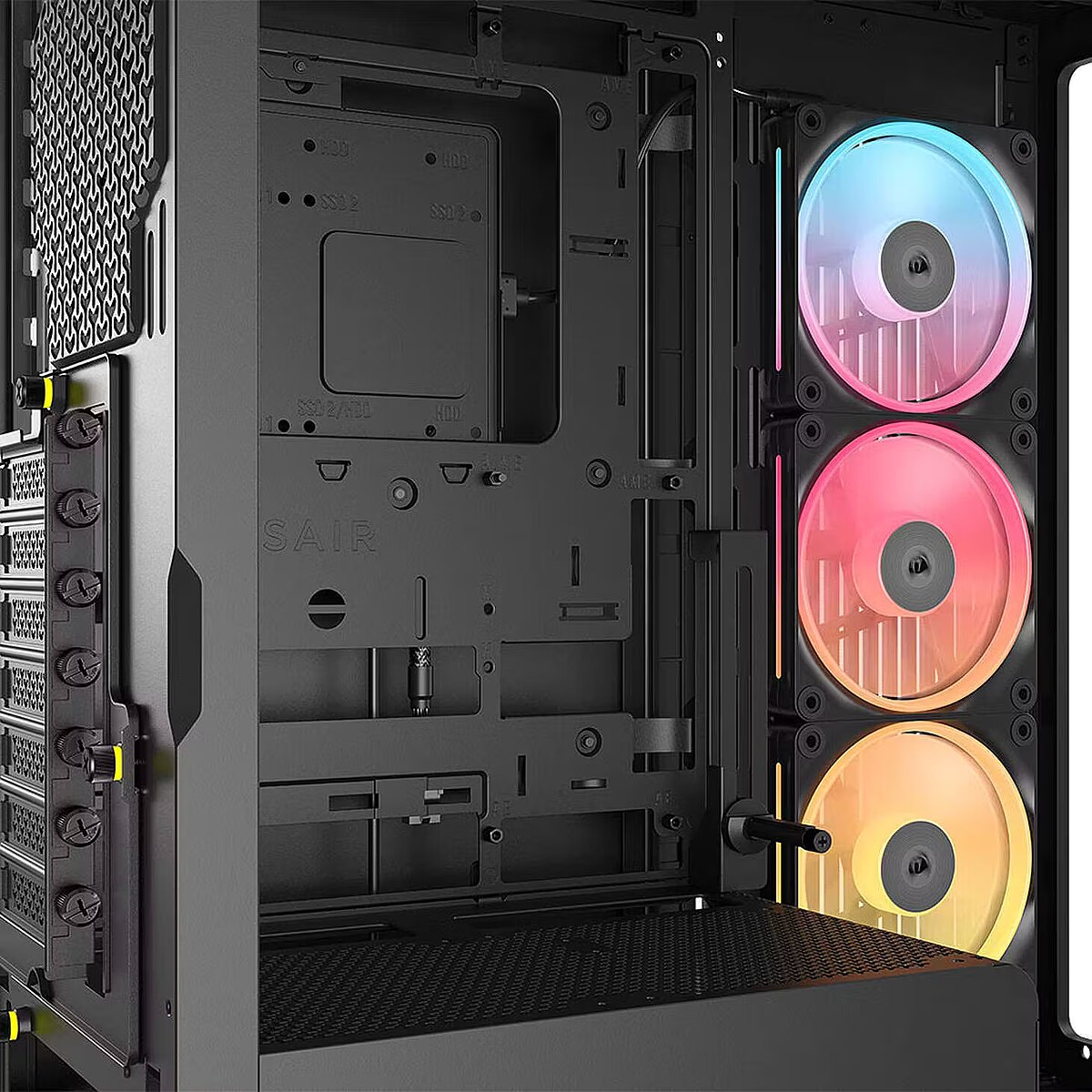

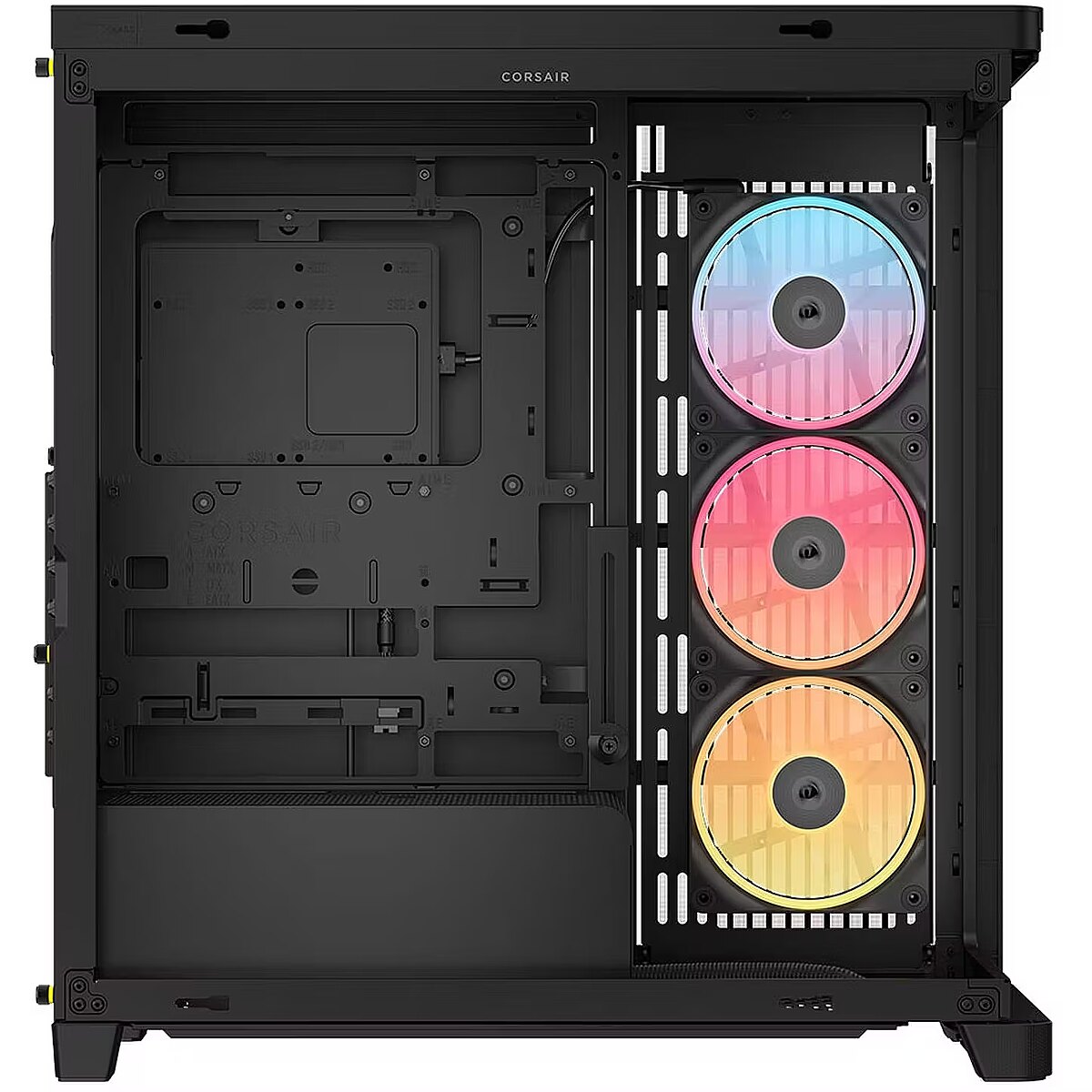

The iCUE LINK LX-R RGB intake fans with reverse blades feature single-cable connectivity, unobstructed RGB lighting, and quiet cooling. Fresh air is drawn through the ventilated side into the spacious mid-tower, delivering effective cooling and high airflow for maximum performance. The color-matched iCUE LINK system hub included allows you to easily add more LINK fans to the system, supporting up to 24 devices on a single hub. VENTILATED SIDE AND TOP PANELS

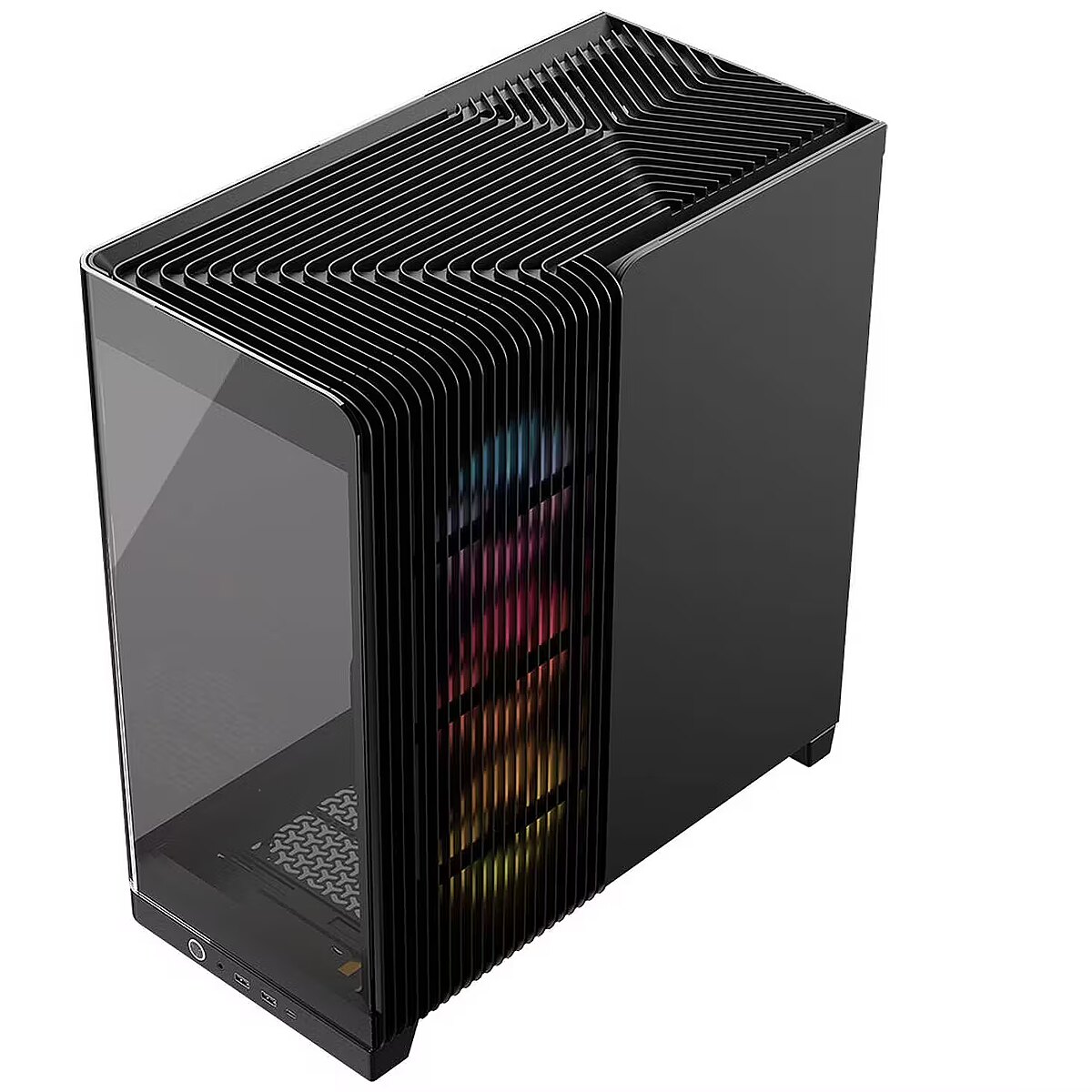

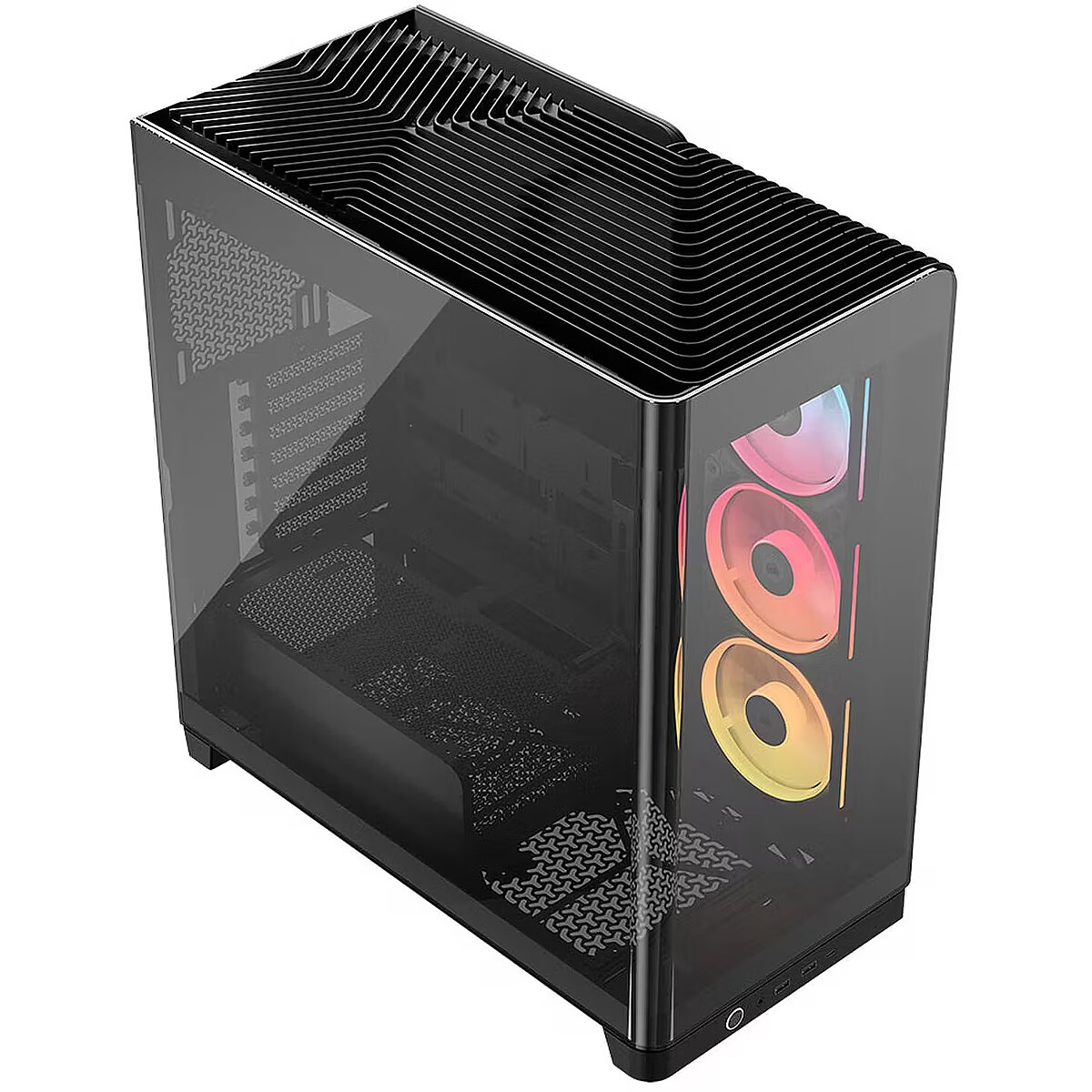

Optimized for airflow, the top and side panels maximize ventilation for fans mounted in both locations. Side-mounted intake fans draw cool air from outside the case, while top-mounted fans (sold separately) exhaust hot air to maintain a cool interior. CABLE-FREE DESIGN

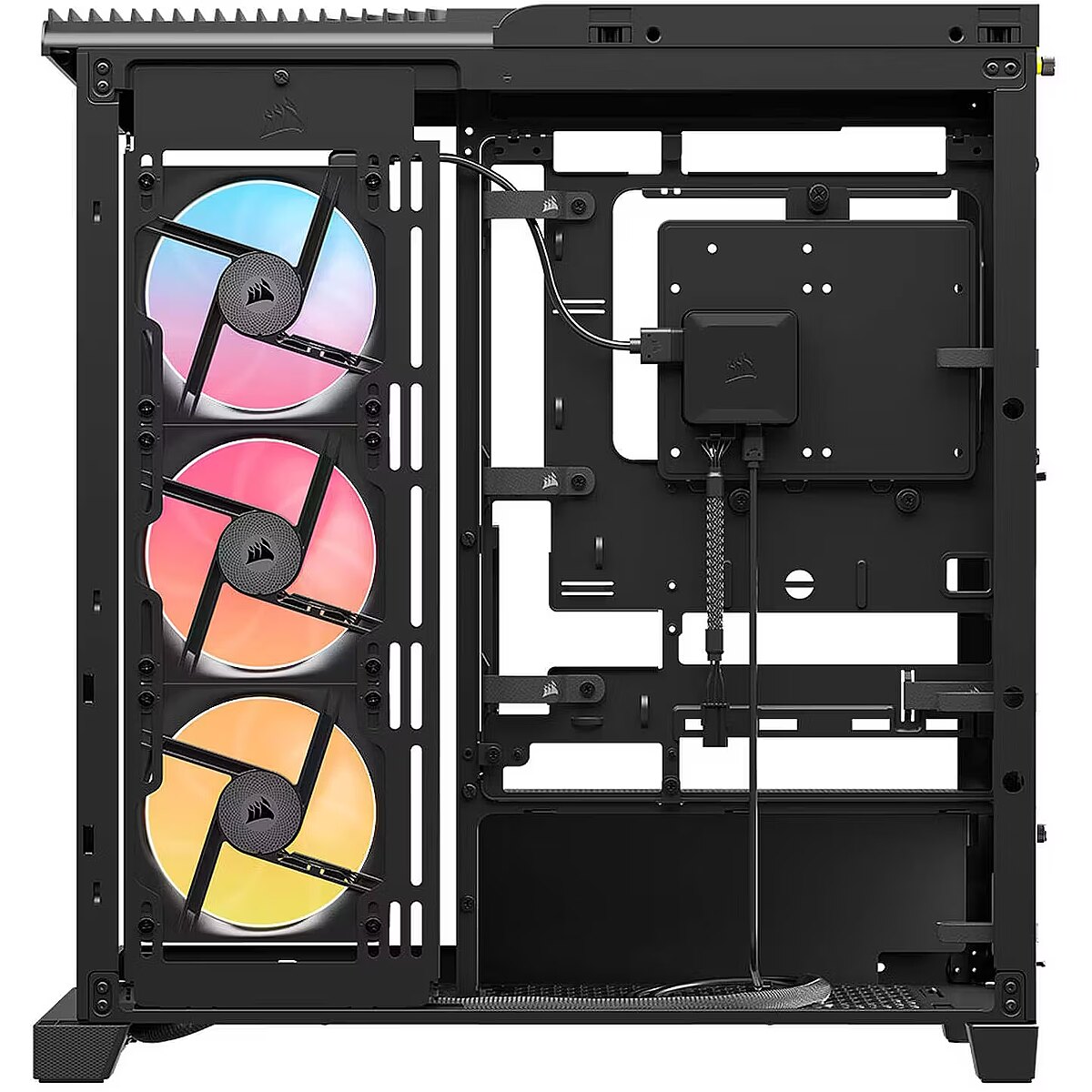

Compatible with ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth motherboards, offering numerous cable cutouts and mounts to keep cables organized, even in hidden areas. MULTIPLE COOLING OPTIONS
Customize your cooling setup with space for up to ten 120 mm fans and multiple mounting options for dual 360 mm radiators simultaneously. MODERN FRONT I/O PANEL

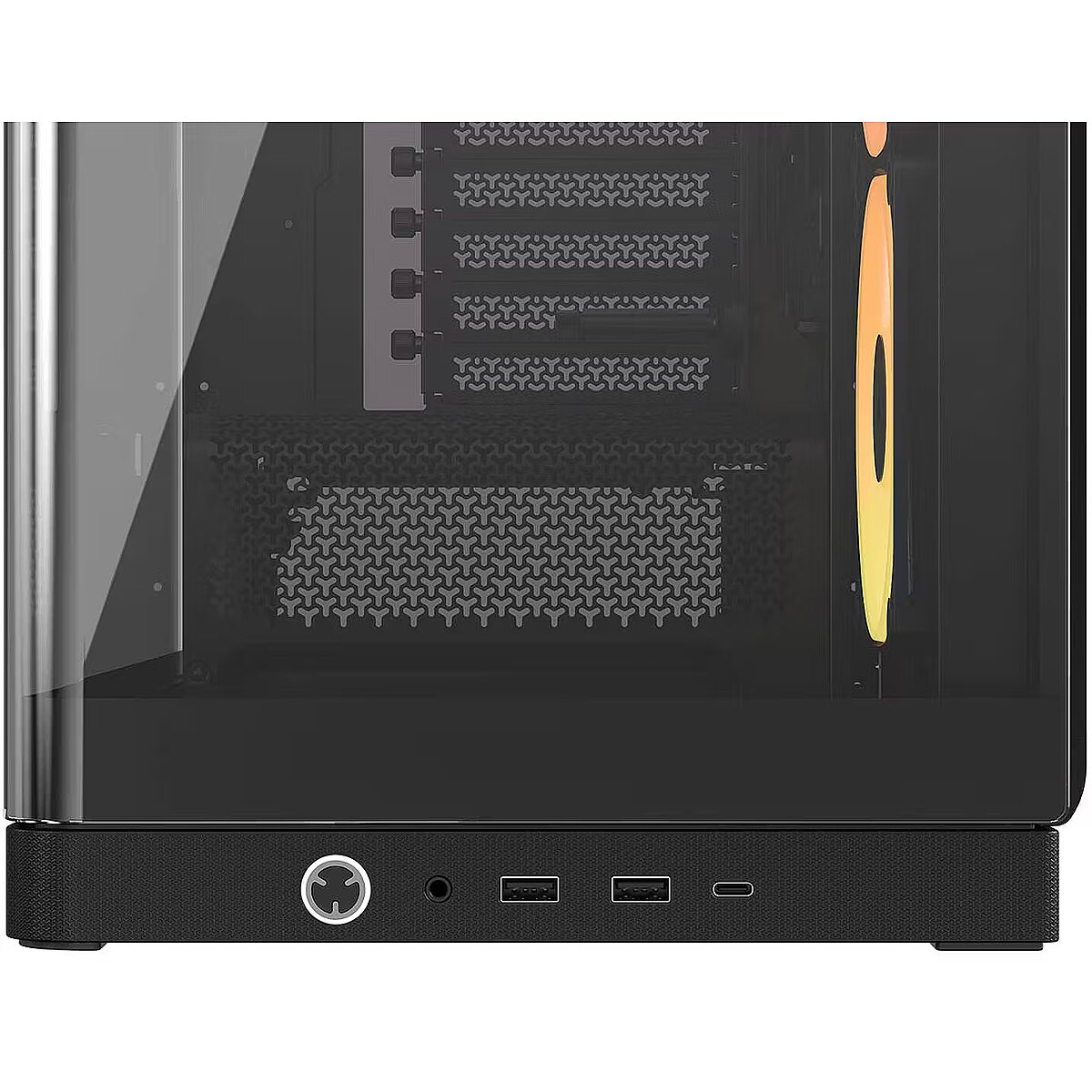

Provides easy access to modern ports, including one USB 3.2 Gen 2 Type-C, two USB 3.2 Gen 1 Type-A ports, and integrated 3.5 mm audio and microphone jacks.
Design - Form factor - Midi Tower
Design - Maximum CPU cooler height - 18.5 cm
Design - Maximum PSU length - 25 cm
Design - Number of 2.5" bays - 2
Design - Number of 3.5" bays - 1
Design - Product colour - Black
Design - Type - PC
Designation - CE+WEEE
dimensionalWeight - 21067
dimension depth - 560 mm
dimension height - 330 mm
Dimensions - 478 x 499 x 246 mm
dimension weight - 11500 g
dimension width - 580 mm
Drive bays 2.5'' extern. - 0
Drive bays 2.5'' intern. - 2
Drive bays 3.5'' extern. - 0
Drive bays 3.5'' intern. - 1
Drive bays 5.25'' extern. - 0
Drive bays 5.25'' intern. - 0
ean - 0840440402794
ean - 840440402794
Fans installed - 3 x 120 mm RGB (side)
Form-factor - ATX
Form-factor - E-ATX
Form-factor - Micro ATX
Form-factor - Mini ITX
Front panel connectors - 1 x mic/headphone (combo)
Front panel connectors - 1 x USB Typ C
Front panel connectors - 2 x USB 3.0
Front panel connectors - Power
guarantee - 24
guarantee_type - normal
Maximum CPU cooling height - 185 mm
Maximum length of the graphics card - 460 mm
Maximum length of the power supply - 250 mm
Maximum number of fans - 10
name - Corsair FRAME 4500X LX-R RGB PC-Gehäuse, Midi-Tower, E-ATX, Tempered Glass - schwarz
name - CORSAIR FRAME 4500X LXR RGB Black Mid Tower ATX
No. of drive bays - 3
Number of fans installed - 3
Ooptional water cooling - 1 x 240 mm (góra)
Ooptional water cooling - 1 x 240 mm (side)
Ooptional water cooling - 1 x 280 mm (góra)
Ooptional water cooling - 1 x 280 mm (side)
Ooptional water cooling - 1 x 360 mm (side)
Ooptional water cooling - 1 x 360 mm (top)
Optional fans - 1 x 120 mm or 1 x 140 mm (rear)
Optional fans - 3 x 120 mm lub 1 x 140 mm (bottom)
Optional fans - 3 x 120 mm or 2 x 140 mm (side)
Optional fans - 3 x 120 mm or 2 x 140 mm (top)
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
producer - Corsair
producerCode - CC-9011316-WW
productName - Corsair 4500X LX-R RGB Tempered Glass Mid-Tower, Black Midi Tower
productSize - Normal
Side panel - Tempered Glass
sizeX - 570
sizeY - 330
sizeZ - 560
vendpn - CC-9011316-WW
warrantyLength - 24
warrantyType - G
Weight - 11.68 kg
weight - 11000
Weight & dimensions - Depth - 542 mm
Weight & dimensions - Height - 556 mm
Weight & dimensions - Width - 250 mm
