Lian Li O11 Dynamic Mini V2 Flow, Tempered Glass, White

Anti-dust filter Design - Yes
Audio output Ports & interfaces - Yes
Bottom fans diameters supported Cooling - 120 mm
Bottom fans installed Cooling - 3x 120 mm
Cable management Design - Yes
category - Cases & Modding|PC Cases|Mini Cases|Micro-ATX Cases
Category Code - CAS
code - O11DMIV2FW
Depth Weight & dimensions - 423.6 mm
Description - SLIGHTLY BIGGER CASE, WAY MORE CAPACITY
Only 2L larger than the original O11D Mini, but redesigned for greater hardware compatibility and improved airflow. ATX BACK-CONNECT MOTHERBOARD SUPPORT
The case offers broad motherboard support, including standard ATX, M-ATX, and Mini-ITX form factors. For users seeking next-level cable management and cleaner builds, Back-Connect compatibility is exclusively available with ATX Back-Connect motherboards. ANGLED BASE FOR DIRECT GPU AIRFLOW
A 10° slanted bottom channels cool air directly to the GPU for better cooling performance and a cleaner look. THE FLOW EDITION IS PRE-INSTALLED WITH FIVE REVERSE-BLADE FANS

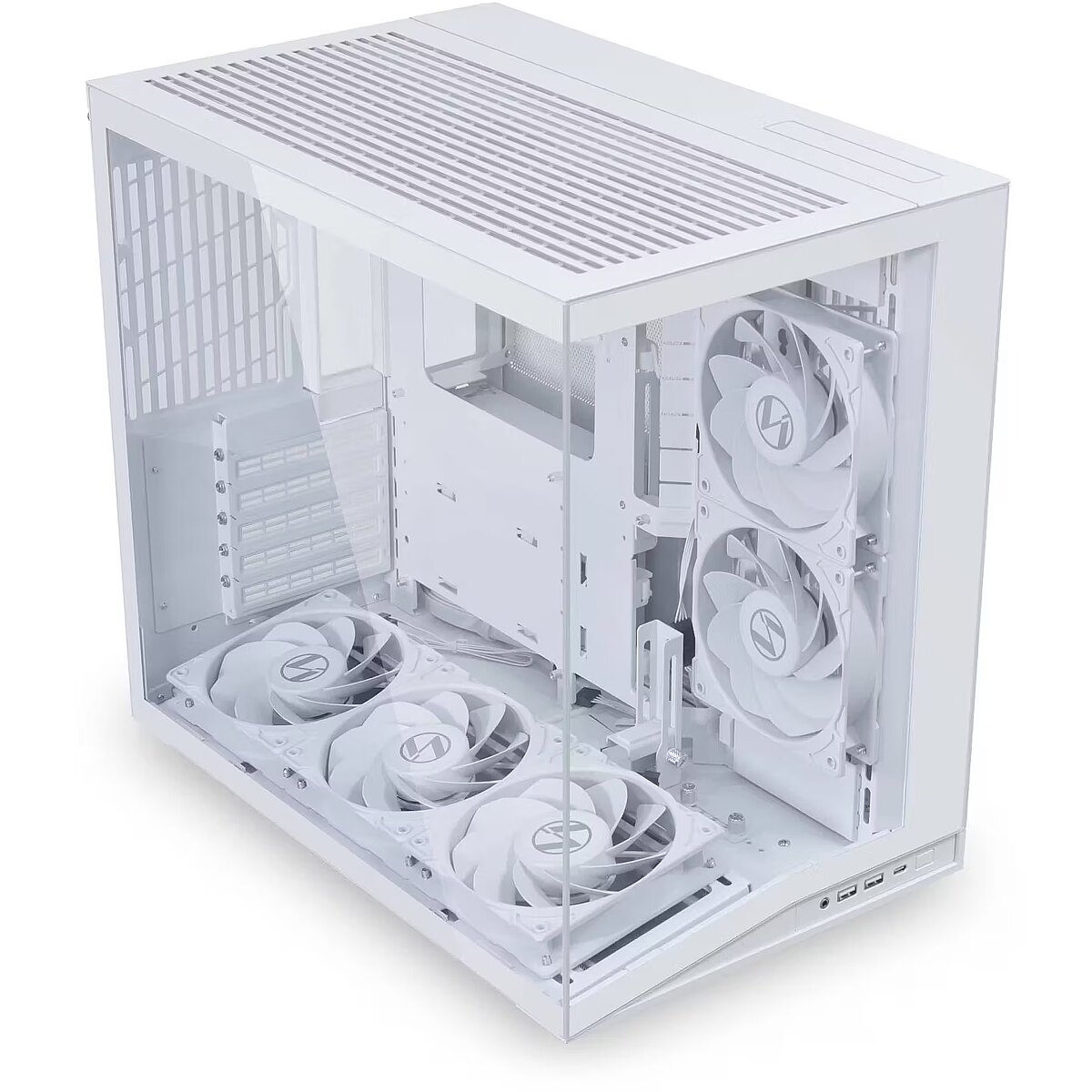

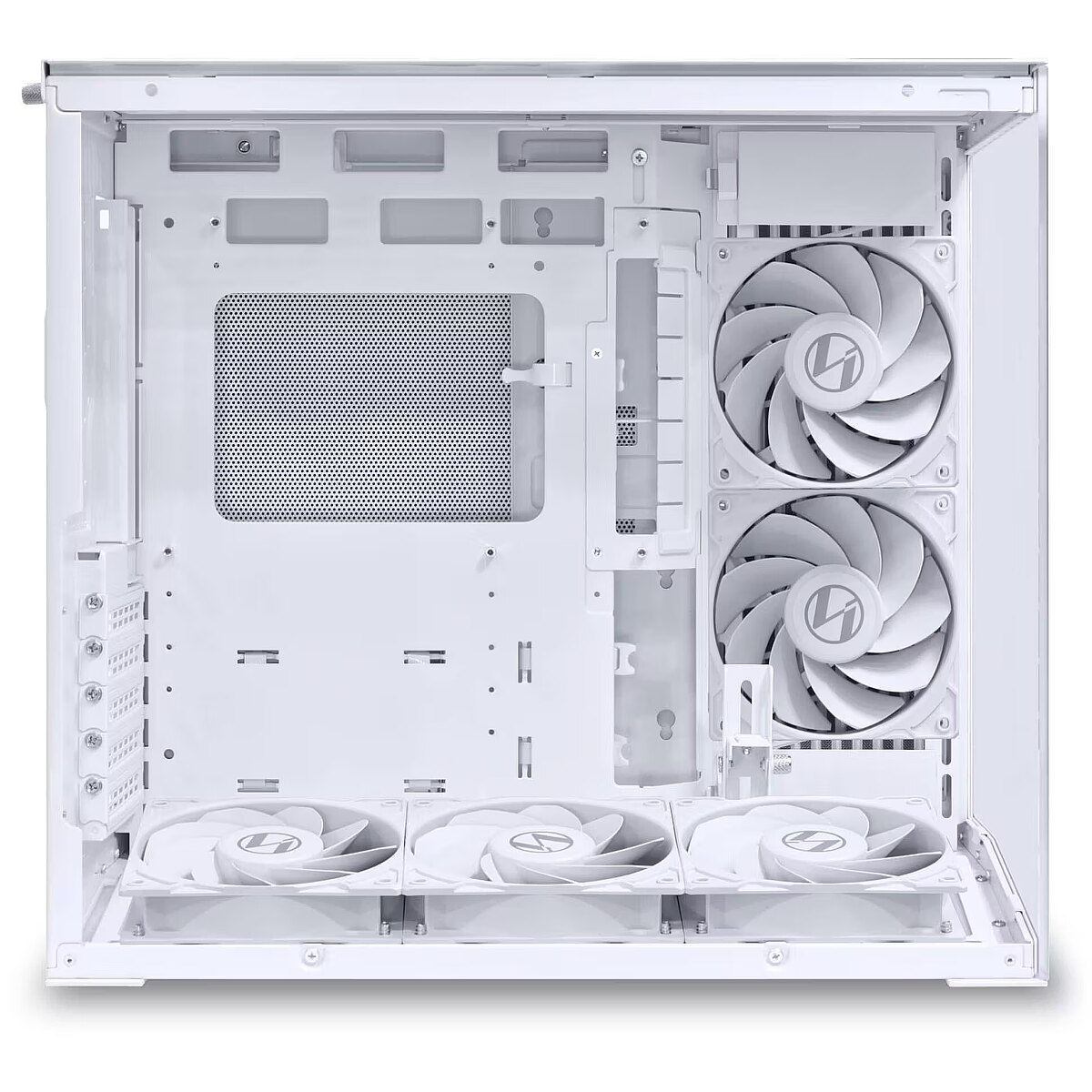

Flow versions come with five reverse blade PWM fans—three at the bottom and two on the side, for strong, silent airflow right out of the box. OPTIMIZED FOR GPU COOLING
The slanted bottom design and pre-installed fans channel airflow directly to the GPU, enhancing cooling efficiency. In thermal testing under identical noise levels, the O11D MINI V2 FLOW achieved significantly better GPU thermals, registering a 3.1°C improvement over the LANCOOL 207, or approximately 6% better GPU cooling performance. ADJUSTABLE MOTHERBOARD STANDOFFS FOR RADIATOR FLEXIBILITY
This case features movable motherboard standoffs, allowing vertical adjustment of the M-ATX mounting position. This flexibility enhances compatibility with 280mm radiators, as well as thicker 360mm or 240mm models. AIRFLOW COVERS FOR PREVENTED PRESSURE LEAK
Tool-less fan cover brackets help seal off unused fan mounts, concentrating airflow where it matters most. TOP OR BOTTOM I/O FOR FLEXIBLE SETUP
The I/O module supports top or bottom placement, offering flexibility for various build layouts and desk arrangements. IMPROVED AIRFLOW AND PORTABILITY WITH REMOVABLE BOTTOM I/O AND COVER
With the I/O module relocated to the top, the lower I/O and cover can now be removed to enhance bottom intake airflow. An optimization aimed at improving thermal efficiency and ease of transport. GPU ANTI-SAG SUPPORT

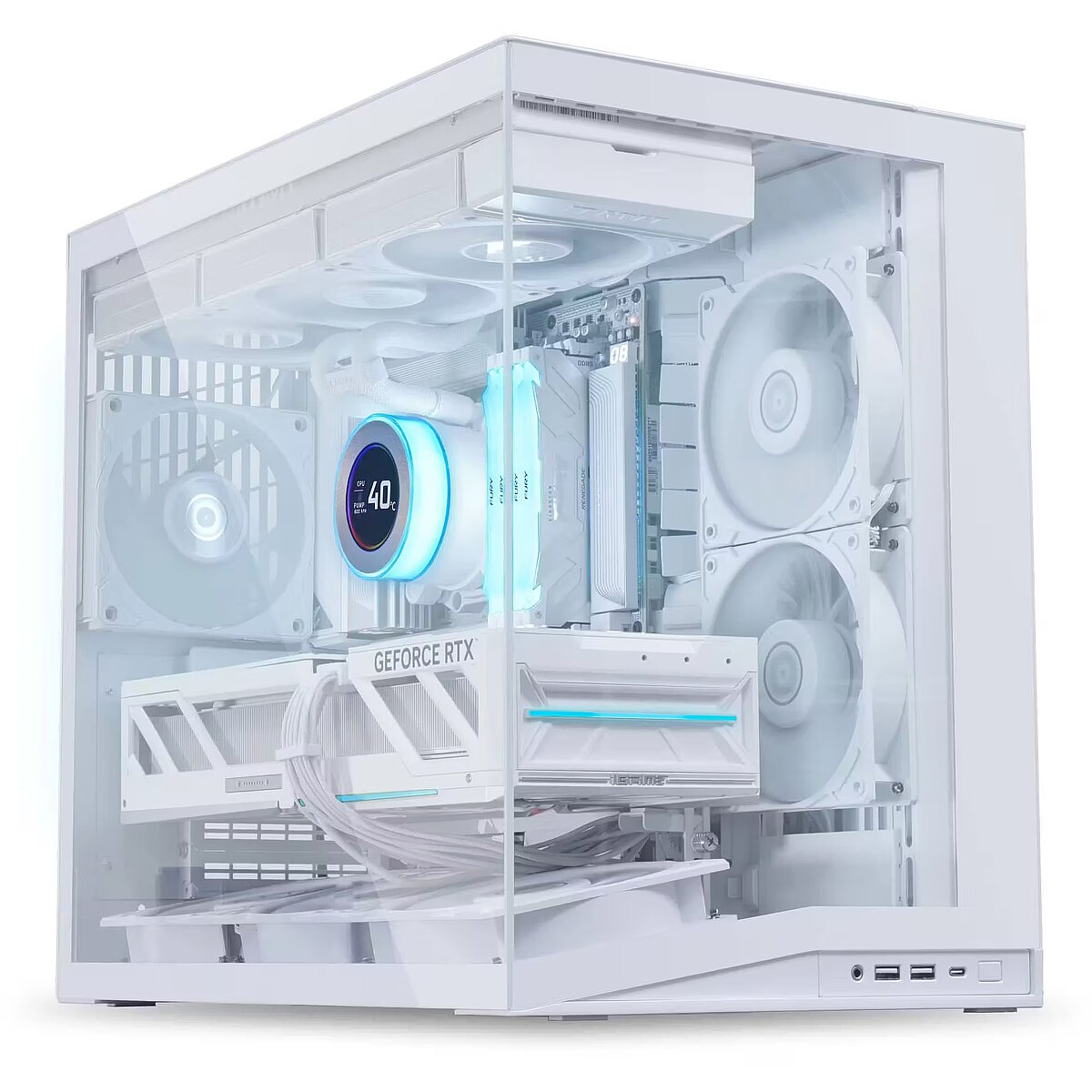

Horizontal and Vertical GPU brackets are included out of the box, giving users the freedom to choose their GPU orientation. ADJUSTABLE ANTI-SAG BRACKET FOR VERTICAL GPU
The vertical GPU support bracket features height adjustment to accommodate thick cards and prevent GPU sag. BUILT-IN 24-PIN CABLE BRACKET FOR A CLEAN, PROFESSIONAL LOOK
This case comes with a built-in cable bracket that holds the 24-pin ATX power cable firmly in place, keeping it aligned and secure. This reduces strain on the connector and helps maintain a neat, organized appearance. BUILD SMARTER WITH 9 DEDICATED CABLE STRAPS
Thoughtfully positioned for different assembly zones, our cable straps make cable routing simpler and cleaner, even in tight spaces. Whether you’re a first-time builder or a seasoned pro, this smart design ensures a faster, neater, and more enjoyable building experience. DUAL-PURPOSE DRIVE CAGES WITH CABLE STORAGE

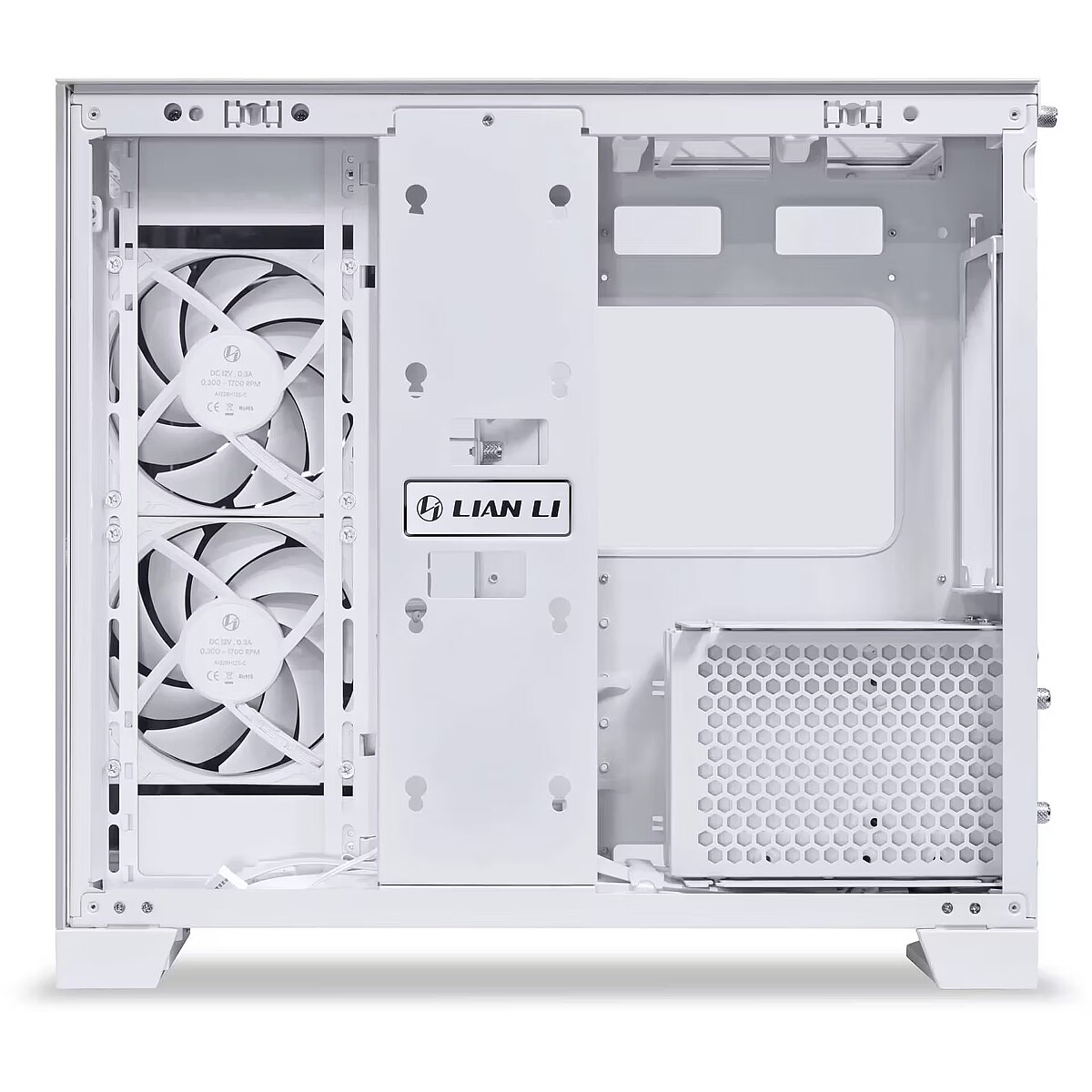

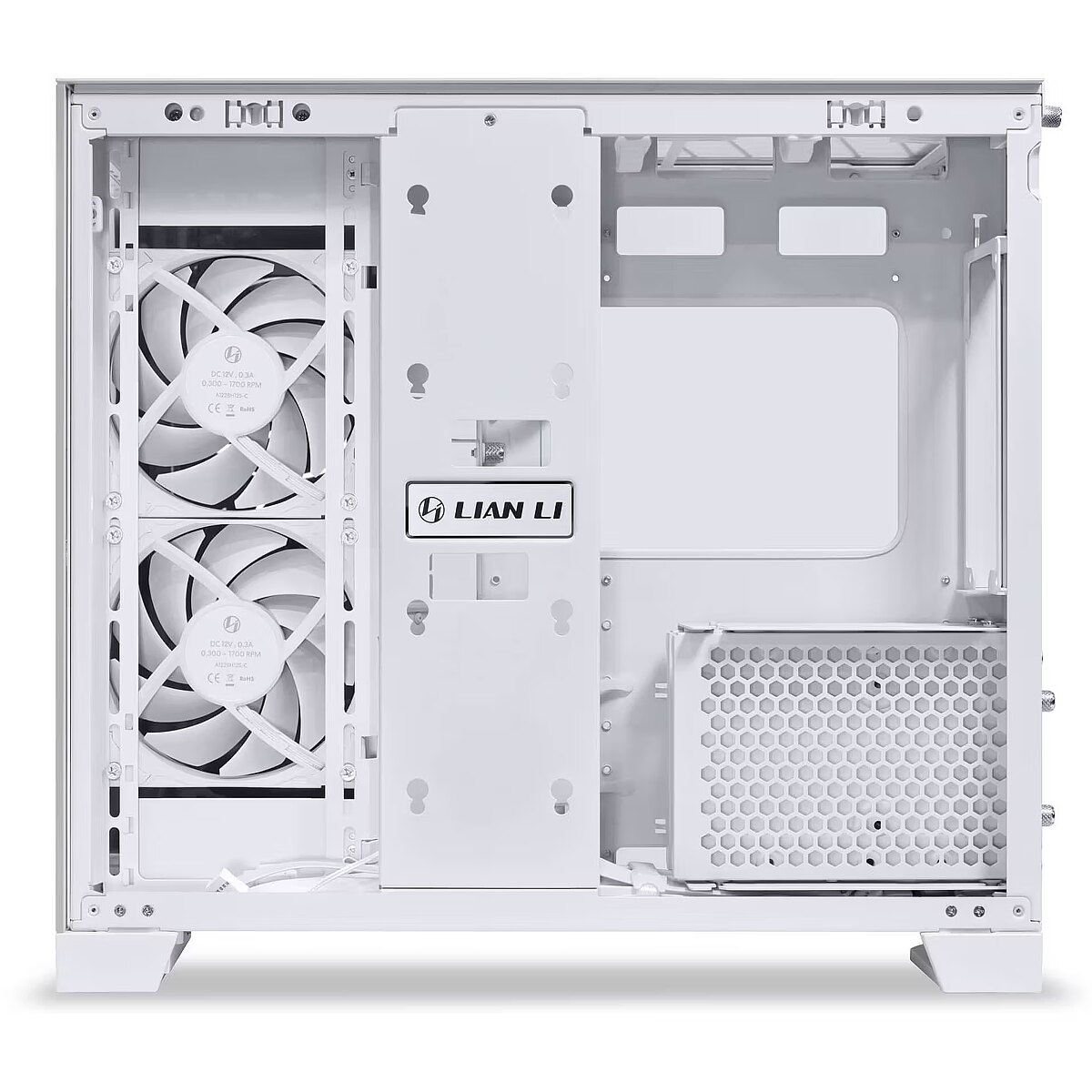

Dual-purpose drive cages accommodate 2.5″ and 3.5″ HDDs or offer dedicated space for cable management, ensuring a clean and tidy build. DESIGNED FOR TIGHT SPACES, BUILT FOR AESTHETIC EXCELLENCE
Engineered to maximize clearance in compact setups, the bottom cable grommets provide optimized pathways for your cables, ensuring functional flexibility and a seamless, uncluttered build aesthetic. ALUMINUM FEET FOR STABILITY AND STYLE
Machined aluminum feet enhance case stability while contributing to a refined overall aesthetic.Precision resized 45.38L chassis offers expanded hardware support with a compact footprintPillar-less tempered glass front and side panels for an unobstructed internal view10° slanted bottom improves GPU airflow and aesthetic presentationSupports ATX, M-ATX, Mini-ITX, and ATX Back-Connect motherboardsAccommodates 400mm long GPUs, 160mm tall CPU coolers, and ATX PSU (Under 200mm)Supports up to 360mm top radiator, 240mm side radiator, and 9 x 120mm fansIncludes horizontal and vertical GPU anti-sag brackets for heavy GPU support
ean - 4718466019868
Form factor Design - Mini Tower
Height Weight & dimensions - 391.9 mm
Material Design - Aluminium, Mesh, Tempered glass
Maximum CPU cooler height Design - 16 cm
Maximum graphics card length Design - 40 cm
Maximum PSU length Design - 20 cm
Model - O11DMIV2FW
Model name - O11D MINI V2 Flow
name - Lian Li O11 Dynamic Mini V2 Flow PC-Gehäuse, Mini-Gehäuse, ATX, Tempered Glass - inklusive 5x 120-mm-Lüfter, weiß
Number of 2.5" bays Design - 4
Number of 3.5" bays Design - 2
Number of bottom fans supported (max) Cooling - 3
Number of expansion slots Design - 5
Number of rear fans supported (max) Cooling - 1
Number of side fans supported (max) Cooling - 2
Number of top fans supported (max) Cooling - 3
On/off button Design - Yes
Power supply included Power supply - No
Product colour Design - White
Rear fans diameters supported Cooling - 120 mm
Reset button Design - No
Side fans diameters supported Cooling - 120 mm
Side radiator sizes supported Cooling - 240 mm
Side window Design - Yes
Summary - Lian Li 011 Dynamic Mini O11D mini V2 Flow. Form factor: Mini Tower, Type: PC, Product colour: White. Side fans diameters supported: 120 mm, Rear fans diameters supported: 120 mm, Top fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5". Width: 273.3 mm, Depth: 423.6 mm, Height: 391.9 mm
Supported HDD sizes Storage - 2.5,3.5"
Supported motherboard form factors Design - ATX, micro ATX, Mini-ATX
Top fans diameters supported Cooling - 120,140 mm
Top radiator sizes supported Cooling - 240,280,360 mm
Type Design - PC
Unit Box Height - 0.47
Unit Box Length - 0.52
Unit Box Width - 0.37
Unit Calculated Volume - 0.09043 cubm
Unit Calculated Weight - 12.7 kg
Units per Pallet - 0
Units per Shipping Box - 1
USB 3.0 Ports & interfaces - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Ports & interfaces - 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Ports & interfaces - 1
Vendor Homepage - https://lian-li.com/product/o11-dynamic-mini-v2/
Warranty - 24 months
Width Weight & dimensions - 273.3 mm
