Chieftec APEX Q, Black

Accessories included -

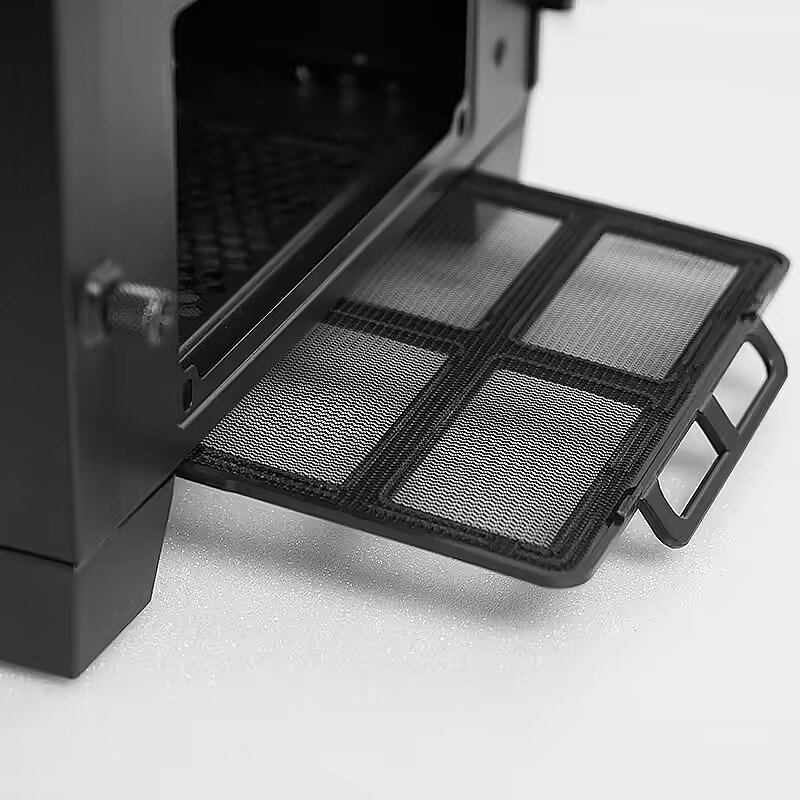

Anti-dust filter Design - Yes
Bottom fans diameters supported Cooling - 120 mm
Bottom fans installed Cooling - 1x 120 mm
Brand - Chieftec
BrandPartCode - GA-01B-Q-OP
Cable management Design - Yes
Category - Computer Cases
Category - Root/Electronics/PC parts/Computer casings
Category 1 - Gehäuse
Category 2 - Midi-/Mini-Tower
Category Code - CAS
Category_1 - Computer Cases and Cooling
Category_2 - Computer Cases
Chassis type - Midi Tower
Chłodzenie: Możliwość montażu - 7 wentylatorów 120mm
Chłodzenie: Obsługiwane radiatory - 240 mm
Chłodzenie: Obsługiwane radiatory - 280 mm
Chłodzenie: Obsługiwane radiatory - 360 mm
Chłodzenie: Obsługiwane radiatory - 420 mm
Chłodzenie: Zainstalowane komponenty - 1 wentylator 120 mm
Chłodzenie: Zainstalowane komponenty - 2 wentylatory 140 mm
Color - Black
Computer case backlight - No
Cooling & Ventilation System - 2x 140mm PWM fans and 1x 120mm PWM fan pre-installed
Cooling - Bottom fans diameters supported - 120
Cooling - Bottom fans diameters supported - 120 mm
Cooling - Bottom fans installed - 1x 120 mm
Cooling - Front fans diameters supported - 120
Cooling - Front fans diameters supported - 120,140 mm
Cooling - Front fans diameters supported - 140
Cooling - Front fans installed - 1x 140 mm
Cooling - Front radiator sizes supported - 240
Cooling - Front radiator sizes supported - 240,280,360,420 mm
Cooling - Front radiator sizes supported - 280
Cooling - Front radiator sizes supported - 360 mm
Cooling - Front radiator sizes supported - 420 mm
Cooling - Liquid cooling capability - Yes
Cooling - Liquid cooling installed - No
Cooling - Number of bottom fans supported (max) - 2
Cooling - Number of front fans supported (max) - 3
Cooling - Number of rear fans supported (max) - 1
Cooling - Number of side fans supported (max) - 2
Cooling - Number of top fans supported (max) - 3
Cooling - Rear fans diameters supported - 120 mm
Cooling - Rear fans diameters supported - 120,140 mm
Cooling - Rear fans diameters supported - 140 mm
Cooling - Rear fans installed - 1x 140 mm
Cooling - Side fans diameters supported - 120
Cooling - Side fans diameters supported - 120 mm
Cooling - Top radiator sizes supported - 240 mm
Cooling - Top radiator sizes supported - 240,280,360 mm
Cooling - Top radiator sizes supported - 280
Cooling - Top radiator sizes supported - 360 mm
Dane fizyczne: Głębokość - 465 mm
Dane fizyczne: Rodzaj materiału - stal
Dane fizyczne: Szerokość - 230 mm
Dane fizyczne: Waga - 7.3 kg
Dane fizyczne: Wysokość - 495 mm
Dane techniczne: Grupa produktowa - Obudowy komputerowe Chieftec
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Kolor - czarny
Dane techniczne: Konstrukcja obudowy - wydzielona komora na zasilacz
Dane techniczne: Panel boczny - zabudowany
Dane techniczne: Producent - Chieftec
Dane techniczne: Standard - ATX
Dane techniczne: Standard - extended ATX
Dane techniczne: Standard - micro-ATX
Dane techniczne: Standard - mini-ITX
Dane techniczne: Typ obudowy - Midi Tower
Depth Weight & dimensions - 465 mm
Description - CHIEFTEC APEX GA-01B-Q-OP Mid-Tower Case - black
The CHIEFTEC APEX Q features an elegant and understated design with a brushed-texture front panel, complemented by a modern internal layout designed to provide optimal cooling. Additional sound-dampening material on the sides and front helps create a quiet working environment.
The APEX Q comes equipped with three pre-installed PWM fans: one 140 mm fan at the front, one 140 mm fan at the rear, and one 120 mm fan mounted on the PSU shroud. This configuration ensures optimal cooling performance and airflow, particularly for the GPU.
The CHIEFTEC APEX Q delivers the perfect combination of elegance, high-quality design, and excellent cooling performance.
Description - The CHIEFTEC APEX Q presents an elegant and subtle brushed front panel design, complemented by an interior equipped with a modern layout for optimal cooling compatibility. It features added sound-absorbing material on the side and front panels to provide a quiet user experience. The APEX Q comes with three PWM fans pre-installed, one 140mm in the front, another 140mm in the rear, and one 120mm on the PSU cover, optimizing the cooling performance and airflow particular for the GPU. The CHIEFTEC APEX Q is ready to deliver customers an enhanced experience of elegance and quality design.Elegant & modern designSound-absorbing materialOptimized default cooling configuration2x 140mm PWM fans and 1x 120mm PWM fan pre-installed
Design - Anti-dust filter - Yes
Design - Cable management - Yes
Design - Form factor - Midi Tower
Design - Full-Height expansion slots - 7
Design - Heat sink included - No
Design - Illumination - No
Design - Material - SPCC
Design - Maximum CPU cooler height - 17.5 cm
Design - Maximum graphics card length - 40 cm
Design - Maximum PSU length - 22 cm
Design - Number of 2.5" bays - 2
Design - Number of 3.5" bays - 2
Design - Number of expansion slots - 7
Design - Number of internal 3.5" bays - 2
Design - Number of storage drives supported - 4
Design - Side window - No
Design - Supported motherboard form factors - ATX
Design - Supported motherboard form factors - ATX, EATX, ITX, micro ATX, Mini-ITX, SSI CEB, SSI EEB, uATX
Design - Supported motherboard form factors - EATX
Design - Supported motherboard form factors - ITX
Design - Supported motherboard form factors - micro ATX
Design - Supported motherboard form factors - Mini-ITX
Design - Supported motherboard form factors - SSI CEB
Design - Supported motherboard form factors - SSI EEB
Design - Supported motherboard form factors - uATX
Design - Tempered glass panel(s) - No
Design - Type - PC
Designation - CE+WEEE
dimensionalWeight - 17808
dimension depth - 30 mm
dimension height - 550 mm
Dimensions - 495 x 230 x 465 mm
dimension weight - 8000 g
dimension width - 550 mm
Drive bays 2.5'' extern. - 0
Drive bays 2.5'' intern. - 3
Drive bays 3.5'' extern. - 0
Drive bays 3.5'' intern. - 2
Drive bays 5.25'' extern. - 0
Drive bays 5.25'' intern. - 0
ean - 753263078643
EAN - 0753263078643
Eans - 753263078643
EAN_code - 0753263078643
Fans installed - 1 x 120 mm (power supply cover)1 x 120 mm (power supply cover)
Fans installed - 1 x 140 mm (back)
Fans installed - 1 x 140 mm (front)
Form-factor - ATX
Form-factor - E-ATX
Form-factor - Micro ATX
Form-factor - Mini ITX
Form factor Design - Midi Tower
Front fans diameters supported Cooling - 120,140 mm
Front fans installed Cooling - 1x 140 mm
Front panel connectors - 1 x headphones
Front panel connectors - 1 x USB 3.1 Typ C
Front panel connectors - 1x microphone
Front panel connectors - 2 x USB 3.0
Front radiator sizes supported Cooling - 240,280,360,420 mm
Full-Height expansion slots Design - 7
GTIN - 0753263078643
GTIN - 753263078643
guarantee - 24
guarantee_type - normal
Heat sink included Design - No
Height Weight & dimensions - 495 mm
Illumination Design - No
Kieszenie na dyski: Ilość kieszeni 2.5 wewn. - 3 szt.
Kieszenie na dyski: Ilość kieszeni 3.5 wewn. - 2 szt.
Liquid cooling capability Cooling - Yes
Liquid cooling installed Cooling - No
LongDesc - The CHIEFTEC APEX Q presents an elegant and subtle brushed front panel design, complemented by an interior equipped with a modern layout for optimal cooling compatibility.It features added sound-absorbing material on the side and front panels to provide a quiet user experience. The APEX Q comes with three PWM fans pre-installed, one 140mm in the front, another 140mm in the rear, and one 120mm on the PSU cover, optimizing the cooling performance and airflow particular for the GPU.The CHIEFTEC APEX Q is ready to deliver customers an enhanced experience of elegance and quality design.
LongProductName - Chieftec Apex Q - GA-01B-Q-OP
LongSummaryDescription - Chieftec Midi APEX Series GA-01B-Q-OP. Form factor: Midi Tower, Type: PC, Supported motherboard form factors: ATX, EATX, ITX, micro ATX, Mini-ITX, SSI CEB, SSI EEB, uATX. Front fans installed: 1x 140 mm, Front fans diameters supported: 120,140 mm, Side fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 230 mm, Depth: 465 mm, Height: 495 mm. Package weight: 8.75 kg
Manufacturer - Chieftec
Manufacturer_code - GA-01B-Q-OP
Material Design - SPCC
Material thickness Weight & dimensions - 0.6 mm
Maximum CPU cooler height Design - 17.5 cm
Maximum CPU cooling height - 175 mm
Maximum graphics card length Design - 40 cm
Maximum length of the graphics card - 400 mm
Maximum number of fans - 11
Maximum PSU length Design - 22 cm
Model - GA-01B-Q-OP
Model name - APEX Q
MPN - GA-01B-Q-OP
Name - CASE MIDITOWER ATX W/O PSU/APEX Q GA-01B-Q-OP CHIEFTEC
Name - Chieftec Apex Q GA-01B-Q-OP
Name - Chieftec Apex Q GA-01B-Q-OP , tower case (black)
Name - Midi Chieftec APEX Series GA-01B-Q-OP
name - PC case APEX GA-01B-Q-OP MidTower black
No. of drive bays - 4
Number of 2.5" bays Design - 2
Number of 3.5" bays Design - 2
Number of bottom fans supported (max) Cooling - 2
Number of expansion slots Design - 7
Number of fans installed - 3
Number of front fans supported (max) Cooling - 3
Number of internal 3.5" bays Design - 2
Number of rear fans supported (max) Cooling - 1
Number of side fans supported (max) Cooling - 2
Number of slots for expansion cards - 7
Number of storage drives supported Design - 4
Number of top fans supported (max) Cooling - 3
Ooptional water cooling - 1 x 240 mm (front)
Ooptional water cooling - 1 x 240 mm (góra)
Ooptional water cooling - 1 x 280 mm (front)
Ooptional water cooling - 1 x 280 mm (góra)
Ooptional water cooling - 1 x 360 mm (front)
Ooptional water cooling - 1 x 360 mm (top)
Ooptional water cooling - 1 x 420 mm (front)
Optional fans - 1 x 120 mm or 1 x 140 mm (rear)
Optional fans - 2 x 120 mm (power supply cover)
Optional fans - 3 x 120 mm or 2 x 140 mm (top)
Optional fans - 3 x 120 mm or 3 x 140 mm (front)
Other features -
Package weight Packaging data - 8.75 kg
Packaging data - Package weight - 8.75 kg
Panel przedni: Złącza na przednim panelu - 1 x USB 3.2 Gen 2 (Typ-C)
Panel przedni: Złącza na przednim panelu - 2 x USB 3.2 Gen 1
Panel przedni: Złącza na przednim panelu - audio
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Power supply - Failure
Power supply - Power supply included - No
Power supply included Power supply - No
Producent: Nazwa producenta / importera - Chieftec
Arena Electronic GmbH
Koppersstr. 18
40549 Duesseldorf

producer - Chieftec
Producer - Chieftec
producerCode - GA-01B-Q-OP
ProducerCode - GA-01B-Q-OP
productName - Chieftec Midi APEX Series GA-01B-Q-OP Midi Tower
ProductName - Midi APEX Series GA-01B-Q-OP
Product Net Weight ELKO Logistics Data - 7.3 kg
productSize - Normal
Przestrzeń na komponenty: Maksymalna długość karty graficznej - 40 cm
Przestrzeń na komponenty: Maksymalna wysokość chłodzenia - 17.5 cm
Rear fans diameters supported Cooling - 120,140 mm
Rear fans installed Cooling - 1x 140 mm
Shipping Box Depth ELKO Internal Logistics Data - 55.5 cm
Shipping Box Height ELKO Internal Logistics Data - 55 cm
Shipping Box Weight ELKO Internal Logistics Data - 9.6 kg
Shipping Box Width ELKO Internal Logistics Data - 30 cm
ShortDescription - Middle Tower | czarna | 1x USB3.2 Gen2 Type C, 2x USB3.0| 465mm x 230mm x 495mm |
ShortSummaryDescription - Chieftec Midi APEX Series GA-01B-Q-OP, Midi Tower, PC, ATX, EATX, ITX, micro ATX, Mini-ITX, SSI CEB, SSI EEB, uATX, SPCC, 17.5 cm, 40 cm
Side fans diameters supported Cooling - 120 mm
Side panel - SPCC
Side window Design - No
sizeX - 300
sizeY - 560
sizeZ - 530
Storage - Supported HDD sizes - 2.5
Storage - Supported HDD sizes - 2.5,3.5"
Storage - Supported HDD sizes - 3.5"
Summary - Chieftec Midi APEX Series GA-01B-Q-OP. Form factor: Midi Tower, Type: PC, Supported motherboard form factors: ATX, EATX, ITX, micro ATX, Mini-ITX, SSI CEB, SSI EEB, uATX. Front fans installed: 1x 140 mm, Front fans diameters supported: 120,140 mm, Side fans diameters supported: 120 mm. Supported HDD sizes: 2.5,3.5". Width: 230 mm, Depth: 465 mm, Height: 495 mm. Package weight: 8.75 kg
Supported HDD sizes Storage - 2.5,3.5"
Supported motherboard form factors Design - ATX, EATX, ITX, micro ATX, Mini-ITX, SSI CEB, SSI EEB, uATX
Tempered glass panel(s) Design - No
Title - Chieftec Midi APEX Series GA-01B-Q-OP Midi Tower
Top radiator sizes supported Cooling - 240,280,360 mm
Type Design - PC
Unit Box Height - 0.55
Unit Box Length - 0.555
Unit Box Width - 0.3
Unit Calculated Volume ELKO Internal Logistics Data - 0.09158 cubm
Unit Calculated Weight ELKO Logistics Data - 9.6 kg
Unit Depth ELKO Logistics Data - 55.5 cm
Unit Height ELKO Logistics Data - 55 cm
Units per Shipping Box ELKO Logistics Data - 1
Unit Width ELKO Logistics Data - 30 cm
URL - https://www.chieftec.eu/products-detail/575/GA-01B-Q-OP
USB 3.0 Ports & interfaces - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Ports & interfaces - 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Ports & interfaces - 1
Vendor Homepage - https://www.chieftec.eu/products-detail/575/GA-01B-Q-OP
vendpn - GA-01B-Q-OP
Video -
Warranty - 24 months
WarrantyInfo - 2 Years
warrantyLength - 24
warrantyType - G
Weight - 7.3 kg
Weight - 9.75
Weight - 10,00
weight - 9500
Weight & dimensions - Depth - 465 mm
Weight & dimensions - Height - 495 mm
Weight & dimensions - Material thickness - 0.6 mm
Weight & dimensions - Weight - 7.3 kg
Weight & dimensions - Width - 230 mm
Weight Weight & dimensions - 7.3 kg
Width Weight & dimensions - 230 mm
Zasilacz: Standard zasilacza - ATX
Zasilacz: Wbudowany zasilacz - brak w komplecie
