Accessories included - Quick guide
Brand - GIGABYTE
BrandPartCode - GV-N4060EAGLE OC-8GD
BrandPartCode - GV-N4060EAGLEOC ICE-8GD
Category - Graphics Cards
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - Nvidia
Chipset - GeForce RTX 4060
Chipset manufacturer - NVIDIA
Cooling - Active
CUDA Core - 3072
Description - Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace Arc and full ray tracing 4th Gen Tensor Cores: Up to 4x faster performance with DLSS 3 compared to brute force rendering 3rd Gen RT Cores: Up to 2X ray tracing performance Powered by GeForce RTX 4060 Integrated with 8GB GDDR6 128-bit memory interface WINDFORCE cooling system Dual BIOS Back protection plate
Design - Bracket height - Full-Height (FH)
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Fan diameter - 8 cm
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Design - Product colour - White
Designation - CE+WEEE
dimension depth - 80 mm
dimension height - 190 mm
Dimensions - 272 x 115 x 40 mm
dimension weight - 961 g
dimension width - 265 mm
ean - 4719331313708
EAN_code - 4719331313708
EAN_code - 4719331354336
Graphics card connector - PCI-E ver. 4.0
GTIN - 0889523038598
GTIN - 889523038598
GTIN - 4719331313708
GTIN - 4719331354336
guarantee - 36
guarantee_type - normal
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - WINDFORCECOOLING SYSTEMThe WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, composite copper heat pipes that directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGReduce the turbulence of adjacent fans and increase airflow pressure.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.Optimized Thermal ModuleThe pure copper heat pipe makes direct contact with the GPU to facilitate enhanced heat transfer to the heatsink, optimizing the cooling efficiency of the graphics card.SCREEN COOLINGExtended heatsink allows air to pass through, providing better heat dissipation.PROTECTION BACK PLATE The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.DUAL BIOS The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.ULTRA DURABLEULTRA COOLINGLower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.LOW POWER LOSSMetal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.LONGER LIFELower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.Power Through The GameGIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.GIGABYTE CONTROL CENTERGIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
LongDesc - Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.
LongProductName - GeForce RTX 4060 EAGLE OC ICE 8G - 8 GB, GDDR6, 128-bit, PCI Express 4.0, 2505 MHz boost clock, 2x HDMI, 2x DisplayPort, 1x 8-pin
LongProductName - NVIDIA GeForce RTX 4060, 2505MHz, 8GB GDDR6, 128 bit, PCI Express 4.0, 2 x HDMI (2.1a), 2 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6
LongSummaryDescription - GIGABYTE EAGLE GeForce RTX 4060 OC 8G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4060, Processor frequency: 2505 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s)
LongSummaryDescription - GIGABYTE GeForce RTX 4060 EAGLE OC ICE 8G Graphics Card - 8GB GDDR6, 128bit, PCI-E 4.0, 2505MHz Core Clock, 2 x DisplayPort 1.4a, 2 x HDMI 2.1a, NVIDIA DLSS 3, GV-N4060EAGLEOC ICE-8GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4060, Processor frequency: 2505 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit, Memory clock speed: 17000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x8 4.0. Cooling type: Active, Number of fans: 3 fan(s)
Manufacturer - GigaByte
Manufacturer_code - GV-N4060EAGLE OC-8GD
Manufacturer_code - GV-N4060EAGLEOC ICE-8GD
Memory - Data transfer rate - 17 Gbit/s
Memory - Discrete graphics card memory - 8 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 128 bit
Memory - Memory clock speed - 17000 MHz
Memory bus - 128-bit
Memory frequency - 17 Gbps
Memory type - DDR6
Model - GV-N4060EAGLE OC-8GD
Name - GIGABYTE GeForce RTX 4060 EAGLE ICE, graphics card (white, DLSS 3, 2x DisplayPort, 2x HDMI 2.1)
Name - GIGABYTE GeForce RTX 4060 EAGLE OC, graphics card (DLSS 3, 2x DisplayPort, 2x HDMI 2.1)
name - Graphics Card GeForce RTX 4060 EAGLE OC 8G GDDR6 128bit 2DP/2HDMI
Other features -
Other information - Maximum digital resolution 7680x4320 Many views 4 ATX PCB form 450W power supply recommended Power connectors 8 pins * 1
Packaging content - Cables included - Power
Packaging content - Quick installation guide - Yes
Packaging content - User guide - Yes
Packaging data - Package depth - 354 mm
Packaging data - Package height - 75 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.1 kg
Packaging data - Package width - 182.5 mm
Performance - AMD FreeSync - No
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Performance - Warranty period - 3 year(s)

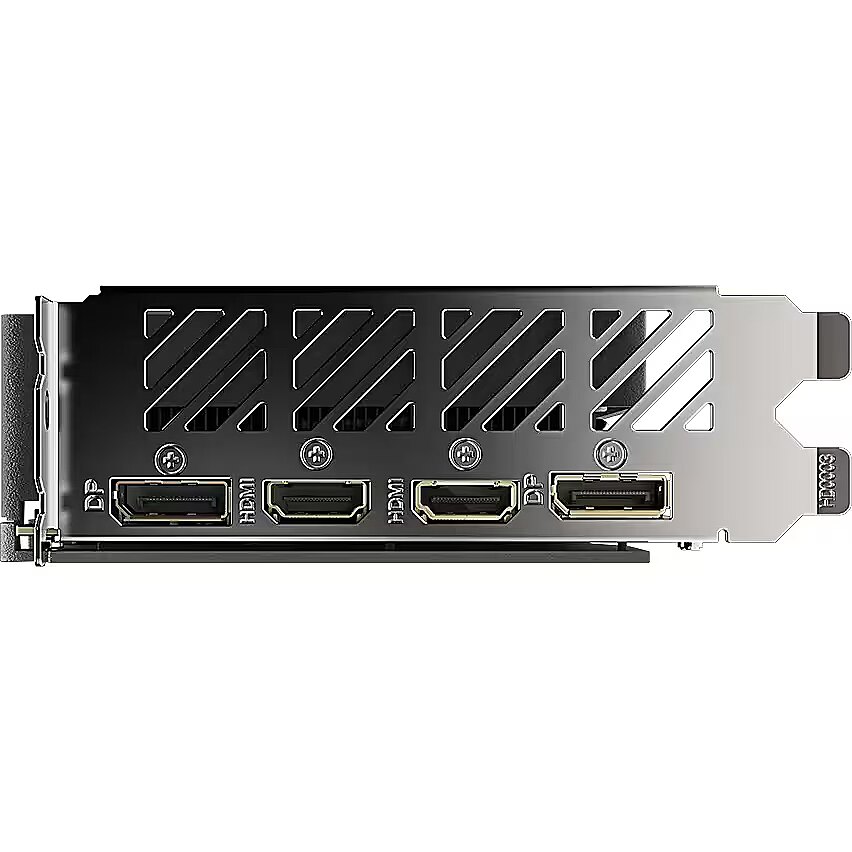

Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Ports & interfaces - Interface type - PCI Express x8 4.0
Power - Minimum system power supply - 450 W
Power - Supplementary power connectors - 1x 8-pin
Power - Thermal Design Power (TDP) - 75 W
Processor - CUDA - Yes
Processor - CUDA cores - 3072
Processor - Graphics processor - GeForce RTX 4060
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor frequency - 2505 MHz
producer - Gigabyte
ProductName - GeForce RTX 4060 EAGLE OC 8G
ProductName - GeForce RTX 4060 EAGLE OC ICE 8G Graphics Card - 8GB GDDR6, 128bit, PCI-E 4.0, 2505MHz Core Clock, 2 x DisplayPort 1.4a, 2 x HDMI 2.1a, NVIDIA DLSS 3, GV-N4060EAGLEOC ICE-8GD
ShortSummaryDescription - GIGABYTE EAGLE GeForce RTX 4060 OC 8G, GeForce RTX 4060, 8 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express 4.0
ShortSummaryDescription - GIGABYTE GeForce RTX 4060 EAGLE OC ICE 8G Graphics Card - 8GB GDDR6, 128bit, PCI-E 4.0, 2505MHz Core Clock, 2 x DisplayPort 1.4a, 2 x HDMI 2.1a, NVIDIA DLSS 3, GV-N4060EAGLEOC ICE-8GD, GeForce RTX 4060, 8 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express x8 4.0
Supported standards - DirectX 12 Ultimate
Supported standards - OpenGL 4.6
System requirements - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Technical_details - The GIGABYTE GeForce RTX 4060 EAGLE OC is a high-end graphics card with the GeForce RTX 4060 GPU from NVIDIA. The powerful GeForce RTX 40 graphics card series is based on the NVIDIA Ada architecture and offers new levels of gaming realism, speed and performance efficiency, RTX IO and realistic VR experiences. Other features include Real-Time Ray Tracing, NVIDIA Ansel, with extensive tools for creating screenshots in games as well as NVIDIA G-SYNC, G-SYNC HDR, DirectX 12 Ultimate, NVIDIA DLSS 3.0, PCI Express Gen 4, NVIDIA FreeStyle, NVIDIA ShadowPlay , NVIDIA Highlights, NVENC Gen 8, AV1 Encoder, Vulkan RT API and OpenGL 4.6. The GPU installed on the GIGABYTE GeForce RTX 4060 EAGLE OC has 3072 CUDA cores. The 8 GB GDDR6 memory has a 128-bit memory controller. Item no.: 100001349 Graphics card type EAN 4719331313708 Manufacturer no. GV-N4060EAGLE OC-8GD Slot PCIe x16 version 4.0 occupied slots 2 GPU name NVIDIA GeForce RTX 4060 Required power supply power at least 450 W Memory capacity 8 GB (GDDR6) Connections 2x HDMI version 2.1, 2x Displayport version 1.4a Power supply Average consumption 115 W Cooling Cooling with fan Special features VR Ready Yes Operating systems Supports Windows 11, Windows 10 Feature RTX IO, NVIDIA DLSS 3.0, PCI Express Gen 4, NVIDIA GeForce Experience, NVIDIA Ansel, NVIDIA FreeStyle, NVIDIA ShadowPlay, NVIDIA Highlights, NVIDIA G-SYNC, Game Ready Driver, NVIDIA Studio Driver, NVIDIA GPU Boost, NVENC Gen 8, AV1 Encoder, Vulkan RT API More information Maximum digital resolution: 7680 x 4320 Dimensions Width: 115mm x Height: 40mm x Depth/Length: 272mm Weight 640 grams
Title - GIGABYTE EAGLE GeForce RTX 4060 OC 8G NVIDIA 8 GB GDDR6
Title - GIGABYTE GeForce RTX 4060 EAGLE OC ICE 8G Graphics Card - 8GB GDDR6, 128bit, PCI-E 4.0, 2505MHz Core Clock, 2 x DisplayPort 1.4a, 2 x HDMI 2.1a, NVIDIA DLSS 3, GV-N4060EAGLEOC ICE-8GD
URL - https://www.gigabyte.com/Graphics-Card/GV-N4060EAGLE-OC-8GD#kf
URL - https://www.gigabyte.com/Graphics-Card/GV-N4060EAGLEOC-ICE-8GD
vendpn - GV-N4060EAGLE OC-8GD
Version - Box
Video ports - 2 x DisplayPort
Video ports - 2 x HDMI
VRAM memory size - 8 GB
WarrantyInfo -
WarrantyInfo - 3 Years
Weight - 0,99
Weight - 1,00
Weight & dimensions - Depth - 40 mm
Weight & dimensions - Height - 115 mm
Weight & dimensions - Length - 272 mm
Weight & dimensions - Weight - 640 g
GeForce -tunnus osoittaa, että tämä näytönohjain on riittävän tehokas, jotta se on yhteensopiva uusimpien VR-laitteiden (Virtual Reality), kuten Oculus Riftin, HTC Viven (SteamVR) jne. kanssa.
