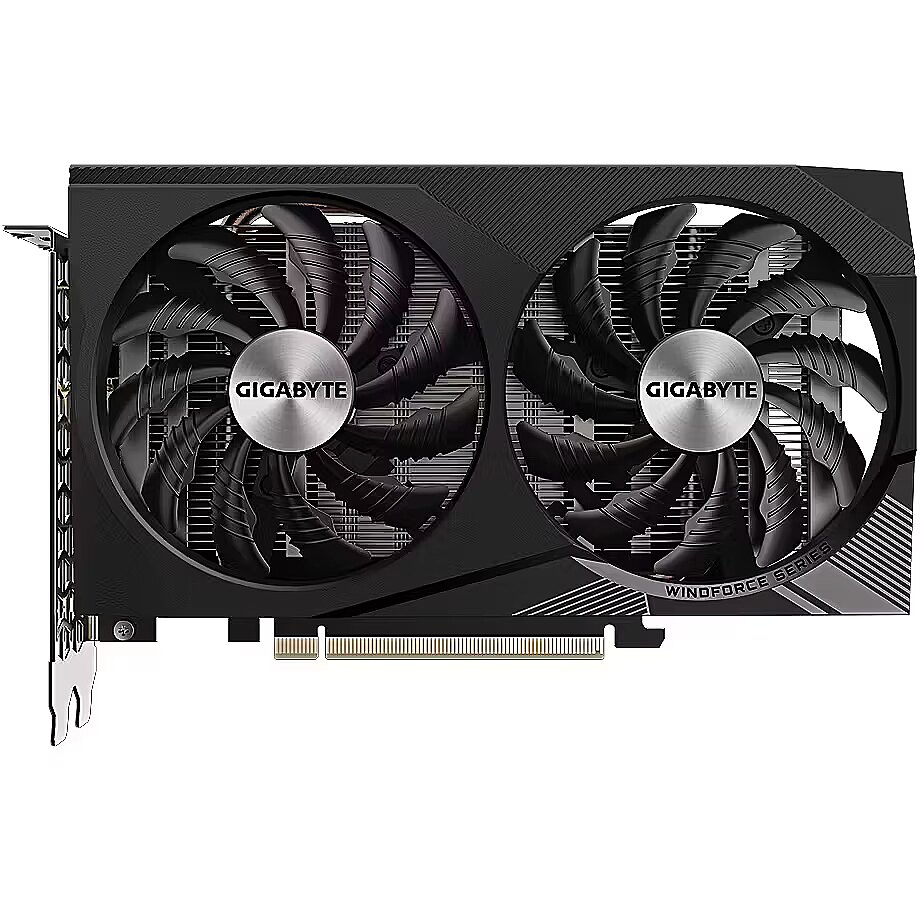

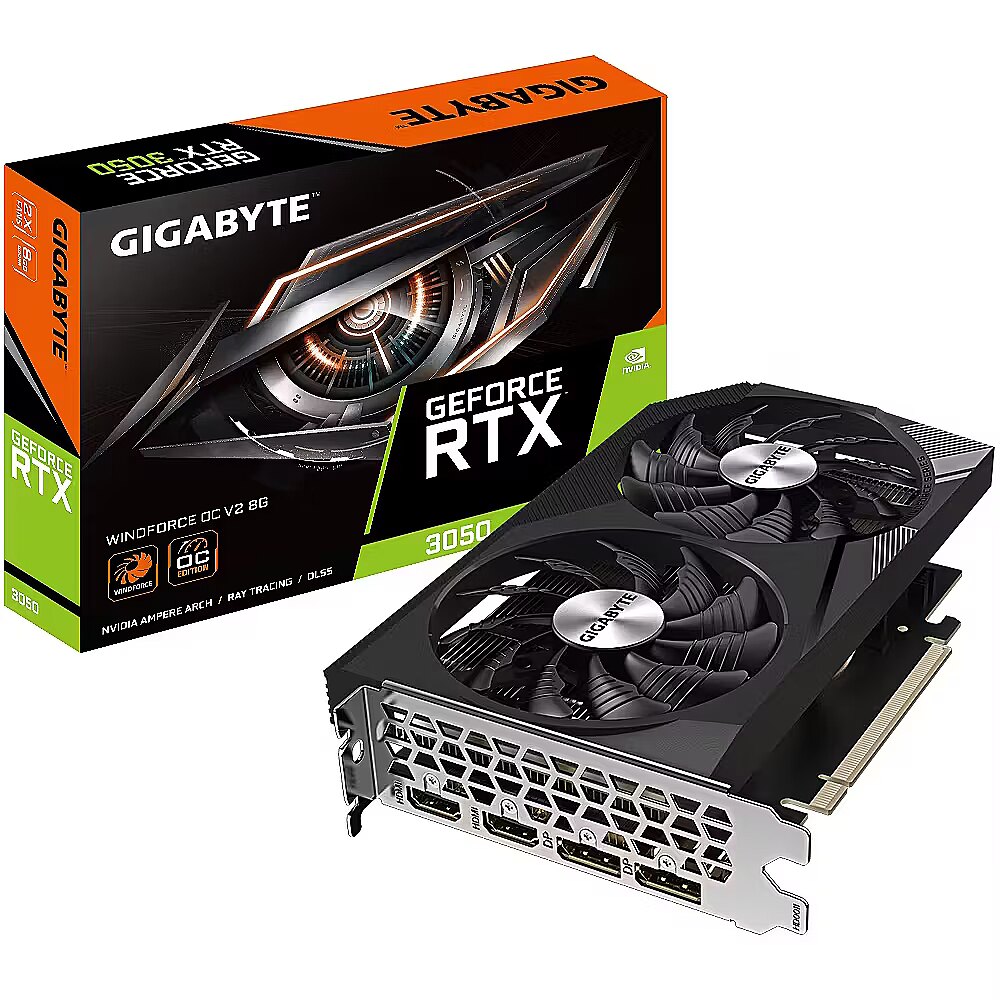

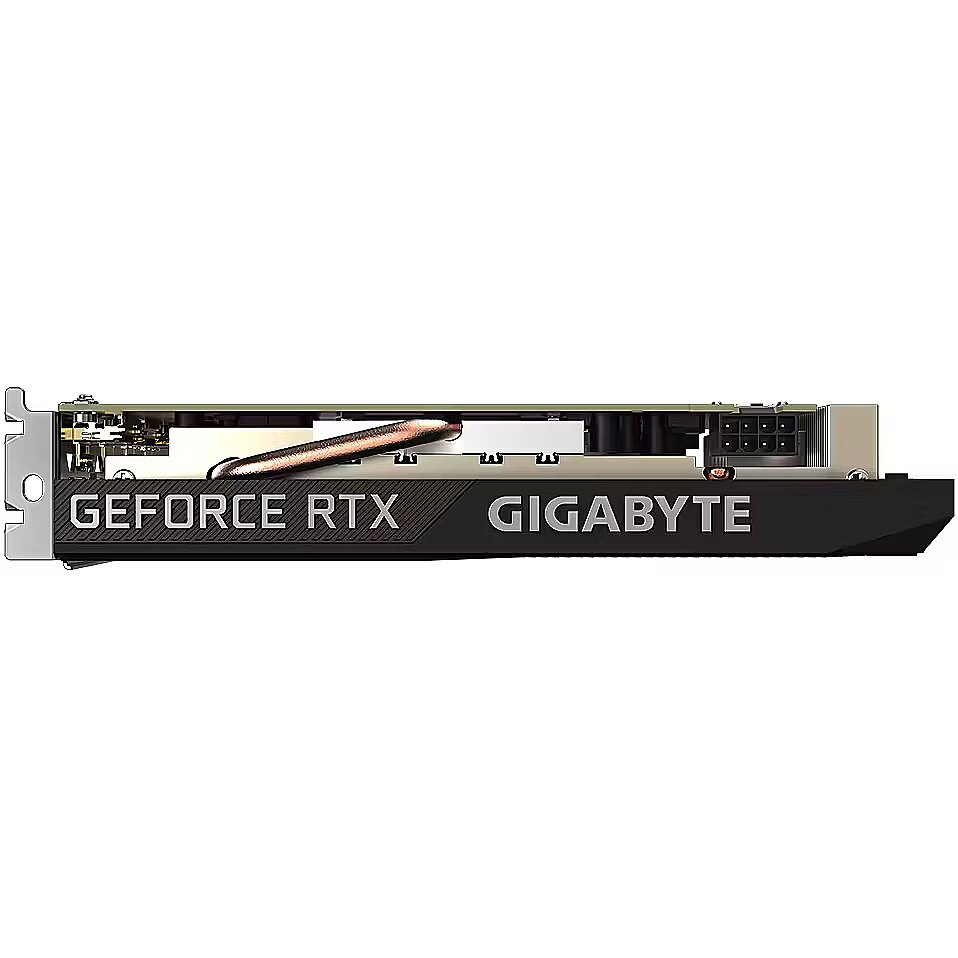

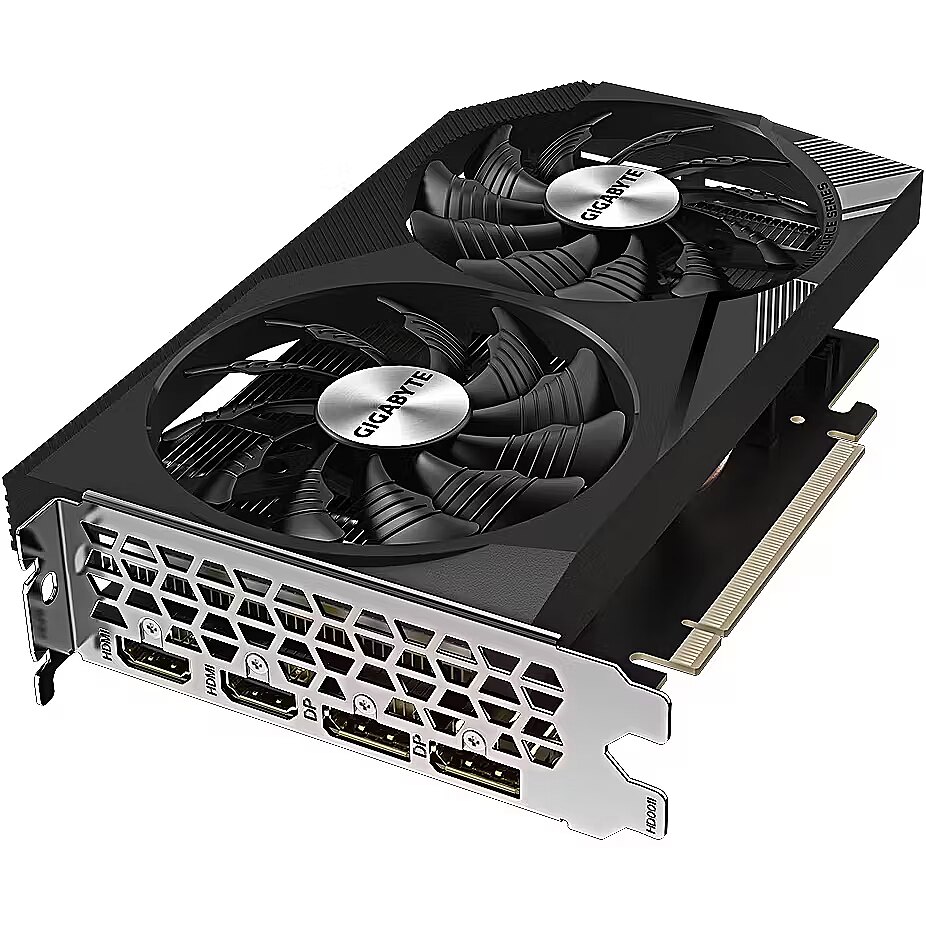

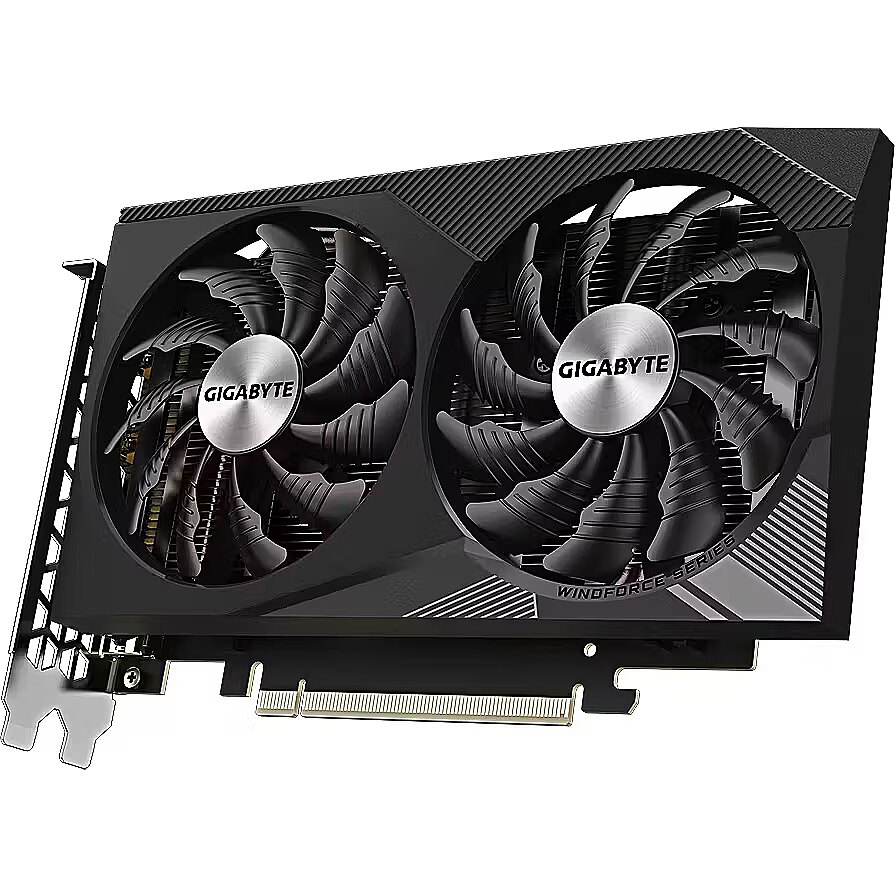

Gigabyte GeForce RTX 3050, 8GB GDDR6, WINDFORCE OC V2

Brand - GIGABYTE
BrandPartCode - GV-N3050WF2OCV2-8GD
Category - Graphics Cards
Category Code - VGP
Cooling technology Design - GIGABYTE WINDFORCE 2X
Cooling type Design - Active
CUDA cores Processor - 2560
CUDA Processor - Yes
Depth Weight & dimensions - 39 mm
Description - KEY FEATURE
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3050
Integrated with 8GB GDDR6 128-bit memory interface
WINDFORCE Cooling System
90mm unique blade fan WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two 90mm unique blade fans, the heatpipe directly touches the GPU, alternate spinning and 3D active fan, which together provide high efficiency heat dissipation. ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase air pressure. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure. UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow. 3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle. GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter. ULTRA DURABLE
ULTRA COOLING Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature. LOW POWER LOSS Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference. LONGER LIFE Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan. FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build. GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Design - Cooling technology - GIGABYTE WINDFORCE 2X
Design - Cooling type - Active
Design - Number of fans - 2 fan(s)
Design - Product colour - Black, Silver
DirectX version Performance - 12 Ultimate
Discrete graphics card memory Memory - 8 GB

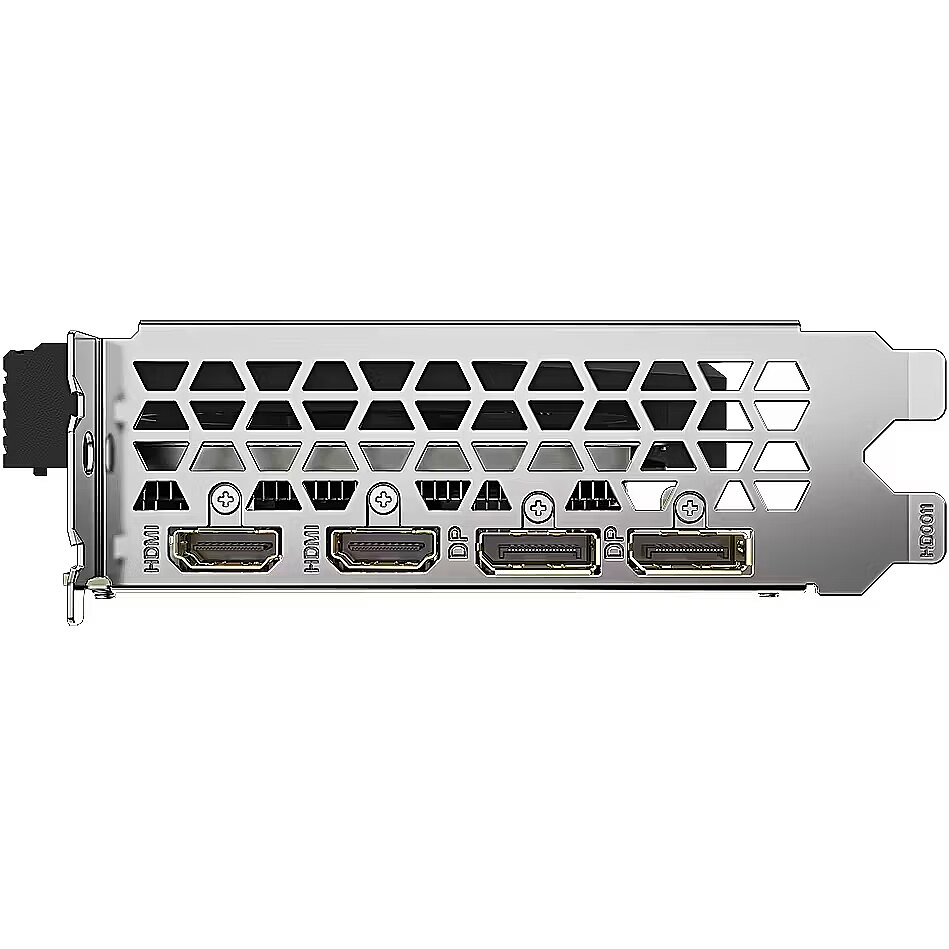

DisplayPorts quantity Ports & interfaces - 2
DisplayPort version Ports & interfaces - 1.4a
Dual Link DVI Performance - Yes
Graphics card memory type Memory - GDDR6
Graphics processor family Processor - NVIDIA
Graphics processor Processor - GeForce RTX 3050
GTIN - 4719331314798
HDMI ports quantity Ports & interfaces - 2
HDMI version Ports & interfaces - 2.1
Height Weight & dimensions - 120.6 mm
Interface type Ports & interfaces - PCI Express 4.0
Length Weight & dimensions - 198.1 mm
LongDesc - KEY FEATURENVIDIA Ampere Streaming Multiprocessors2nd Generation RT Cores3rd Generation Tensor CoresPowered by GeForce RTX™ 3050Integrated with 8GB GDDR6 128-bit memory interfaceWINDFORCE Cooling System90mm unique blade fanWINDFORCE COOLING SYSTEMThe WINDFORCE cooling system features two 90mm unique blade fans, the heatpipe directly touches the GPU, alternate spinning and 3D active fan, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGReduce the turbulence of adjacent fans and increase air pressure. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.ULTRA DURABLEULTRA COOLINGLower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.LOW POWER LOSSMetal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.LONGER LIFELower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.GIGABYTE CONTROL CENTERGIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
LongProductName - NVIDIA GeForce RTX 3050, 1792MHz, 8GB GDDR6, 128 bit, 14000MHz, PCI Express 4.0, 2 x HDMI (2.1), 2 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6
LongSummaryDescription - GIGABYTE GeForce RTX 3050 WINDFORCE OC V2 8G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3050, Processor frequency: 1792 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit, Memory clock speed: 14000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6, Dual Link DVI. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)
Maximum displays per videocard Processor - 4
Maximum resolution Processor - 7680 x 4320 pixels
Memory - Discrete graphics card memory - 8 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 128 bit
Memory - Memory clock speed - 14000 MHz
Memory bus Memory - 128 bit
Memory clock speed Memory - 14000 MHz
Minimum system power supply Power - 450 W
Model - GV-N3050WF2OCV2-8GD
Number of fans Design - 2 fan(s)
NVIDIA G-SYNC Performance - Yes
OpenGL version Performance - 4.6
Package type Packaging data - Box
Packaging content - User guide - Yes
Packaging data - Package type - Box
Parallel processing technology support Processor - Not supported
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - Yes
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 450 W
Power - Supplementary power connectors - 1x 8-pin
Processor - CUDA - Yes
Processor - CUDA cores - 2560
Processor - Graphics processor - GeForce RTX 3050
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor frequency - 1792 MHz
Processor frequency Processor - 1792 MHz
Product colour Design - Black/Silver
ProductName - GeForce RTX 3050 WINDFORCE OC V2 8G
Product Net Weight - 0.7 kg
ShortSummaryDescription - GIGABYTE GeForce RTX 3050 WINDFORCE OC V2 8G, GeForce RTX 3050, 8 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express 4.0
Summary - GIGABYTE GeForce RTX 3050 WINDFORCE OC V2 8G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3050, Processor frequency: 1792 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit, Memory clock speed: 14000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6, Dual Link DVI. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)
Supplementary power connectors Power - 1x 8-pin
System requirements - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Title - GIGABYTE GeForce RTX 3050 WINDFORCE OC V2 8G NVIDIA 8 GB GDDR6
TV tuner integrated Performance - No
Unit Box Height - 0.215
Unit Box Length - 0.295
Unit Box Width - 0.055
Unit Calculated Volume - 0.004017 cubm
Unit Calculated Weight - 0.775 kg
Units per Shipping Box - 20
URL - https://www.gigabyte.com/Graphics-Card/GV-N3050WF2OCV2-8GD#kf
User guide Packaging content - Yes
Vendor Homepage - https://www.gigabyte.com/Graphics-Card/GV-N3050WF2OCV2-8GD#kf
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 39 mm
Weight & dimensions - Height - 120.6 mm
Weight & dimensions - Length - 198.1 mm
Windows operating systems supported System requirements - Windows 10 x64/Windows 11 x64
