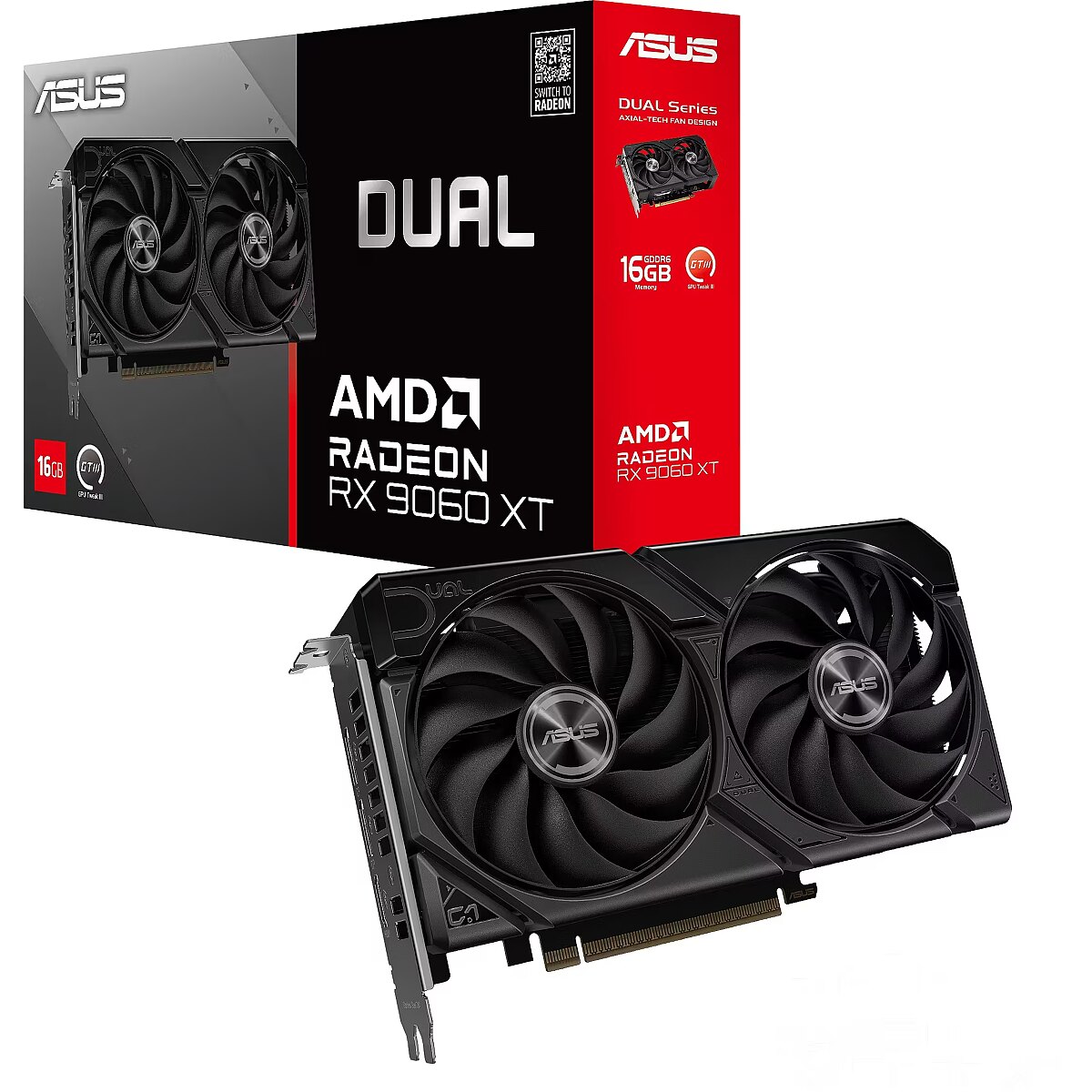

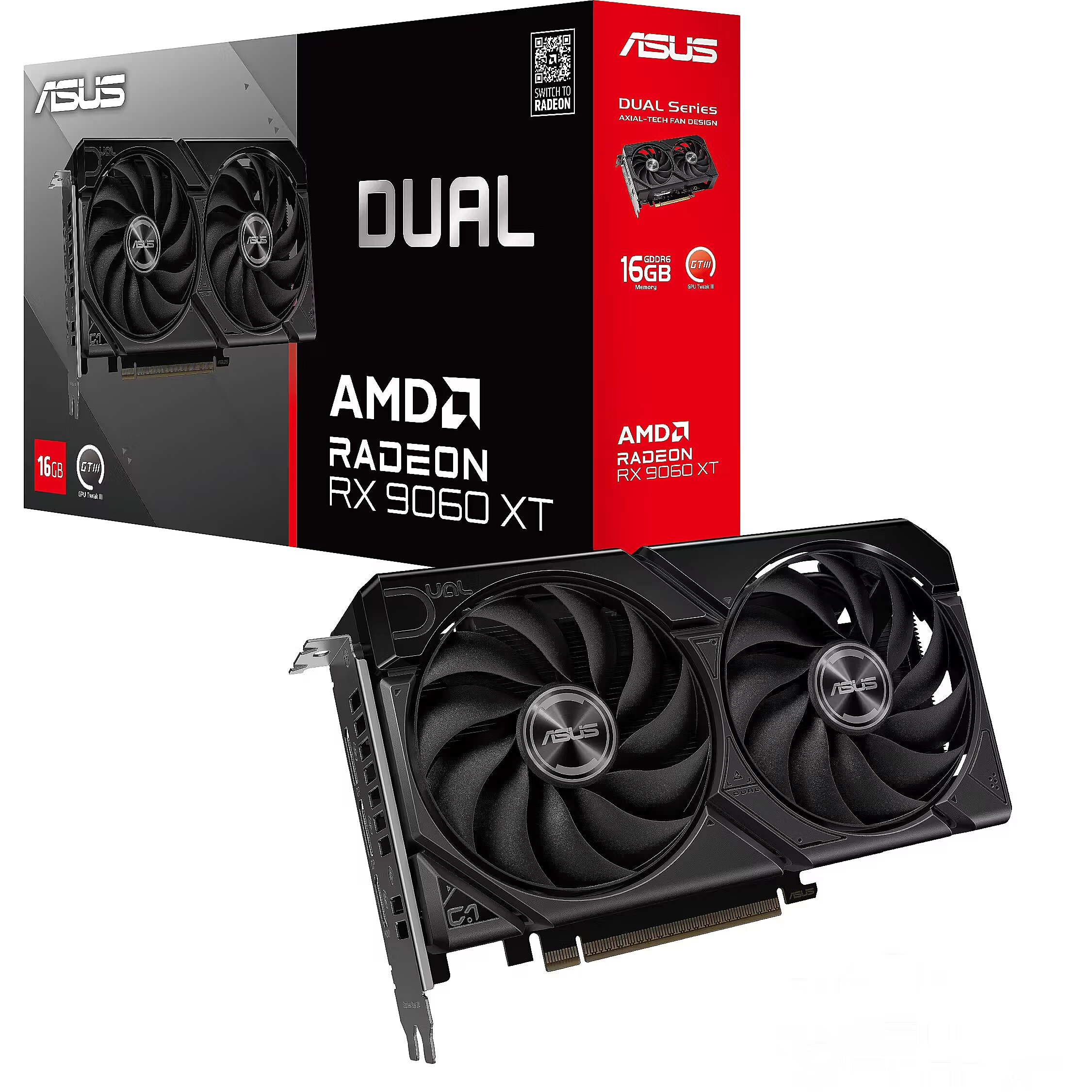

Asus Radeon RX 9060 XT, 16GB GDDR6, Dual

Accessories included - Kartka z podziękowaniem Instrukcja szybkiego uruchomienia
Brand - ASUS
BrandPartCode - 90YV0LG2-M0NA00
Category - Graphics Cards
Category - Root/Electronics/PC parts/Graphic cards
Category Code - VGP
Chipset - Radeon RX 9060 XT
Chipset manufacturer - AMD
CnCode - 84718000
Cooling - Active
Cooling technology Design - ASUS Axial-tech
Cooling type Design - Active
Core Boost frequency - 3250 MHz
Core frequency - 2640 MHz
CUDA Processor - No
Dane techniczne: Długość - 20.2 cm
Dane techniczne: Grupa produktowa - Karty graficzne Asus
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Kolor obudowy - czarny
Dane techniczne: Liczba wentylatorów - 2 szt.
Dane techniczne: Liczba zajmowanych slotów - 2.5
Dane techniczne: Maks. taktowanie rdzenia - 3250 MHz
Dane techniczne: Model chipsetu - Radeon RX 9060 XT
Dane techniczne: Obsługiwane standardy - DirectX 12
Dane techniczne: Obsługiwane standardy - OpenGL 4.6
Dane techniczne: Obsługiwane standardy - Vulkan
Dane techniczne: Producent - Asus
Dane techniczne: Producent chipsetu - AMD
Dane techniczne: Przepustowość pamięci - 320 GB/s
Dane techniczne: Rodzaje wyjść/wejść - 1 x wyjście HDMI
Dane techniczne: Rodzaje wyjść/wejść - 2 x Display Port
Dane techniczne: Seria karty graficznej - RX z serii 9
Dane techniczne: Szerokość - 12 cm
Dane techniczne: Szyna danych pamięci - 128 bit
Dane techniczne: Taktowanie pamięci - 20000 MHz
Dane techniczne: Typ chłodzenia - wentylator
Dane techniczne: Typ zastosowanej pamięci - GDDR6
Dane techniczne: Typ złącza - PCI-Express x16
Dane techniczne: Wielkość pamięci - 16 GB
Dane techniczne: Wsparcie dla HDCP - tak
Dane techniczne: Wysokość - 4.9 cm
Dane techniczne: Zaawansowane technologie - AMD Eyefinity
Dane techniczne: Zaawansowane technologie - AMD FidelityFX Super Resolution
Dane techniczne: Zaawansowane technologie - Ray Tracing
Dane techniczne: Zalecana moc - 550 W
Dane techniczne: Złącze zasilania - 8 PIN
Data transfer rate Memory - 20 Gbit/s
Depth Weight & dimensions - 49 mm
Description - ASUS Dual Radeon RX 9060 XT łączy w sobie potężną wydajność termalną z szeroką kompatybilnością. Zaawansowane rozwiązania chłodzące z flagowych kart graficznych - w tym dwa wentylatory Axial-tech, które optymalizują przepływ powietrza do radiatora. Zaprojektowana w kompaktowej obudowie o formacie 2,5-slotowym, oferująca większą moc w mniejszej przestrzeni. Te usprawnienia sprawiają, że ASUS Dual jest idealnym wyborem dla graczy, którzy pragną ciężkiej wydajności graficznej w kompaktowej budowie. Projekt z 2,5 slotami Starannie zaprojektowany osłona, radiator i układ rurek cieplnych umożliwiają dwóm wentylatorom Axial-tech wykorzystanie wentylacji bocznej obudowy, oferując wydajność termiczną wykraczającą poza kompaktowy rozmiar. Ulepszenia Axial-tech Dwa sprawdzone wentylatory Axial-tech mają mniejsze koło centralne, co pozwala na dłuższe łopatki i pierścień barierowy zwiększający ciśnienie powietrza w dół. 0dB Technology To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 55°C and power consumption is low. Dual Ball Fan Bearings Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs. Vented Backplate A vented backplate significantly enhances heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling. DUAL BIOS Czy priorytetem są dla Ciebie niższe temperatury rdzenia czy cichsza praca? Tryb wydajności zwiększa prędkość wentylatora, aby utrzymać kartę w chłodzie przez cały czas. Tryb cichy utrzymuje ten sam cel zasilania i ustawienia wydajności, ale stosuje mniej agresywną krzywą wentylatora w celu cichszej pracy w średnich temperaturach. Chcesz mieć większą kontrolę? Dostosuj swoje doświadczenia za pomocą oprogramowania GPU Tweak III, aby starannie dostosować profile wentylatora i ustawienia wydajności. Technologia Auto-Extreme Technologia Auto-Extreme to zautomatyzowany proces produkcji, który ustanawia nowe standardy w branży, umożliwiając wykonanie całego lutowania w jednym przejściu. To zmniejsza obciążenie cieplne komponentów i unika użycia silnych środków chemicznych do czyszczenia, co wpływa na mniejszy wpływ na środowisko. Efektem końcowym jest niższe zużycie energii podczas produkcji oraz bardziej niezawodny, wysokiej jakości produkt. NAJLEPSZE ZASILACZE DLA SERII RADEON RX 9000 Użyj kalkulatora mocy, aby oszacować, ile energii potrzebujesz do zasilenia swojego zestawu, a następnie wybierz kompatybilne zasilacze ROG, TUF Gaming lub Prime dla najwyższej wydajności.
Description - Dual Radeon™ RX 9060 XT

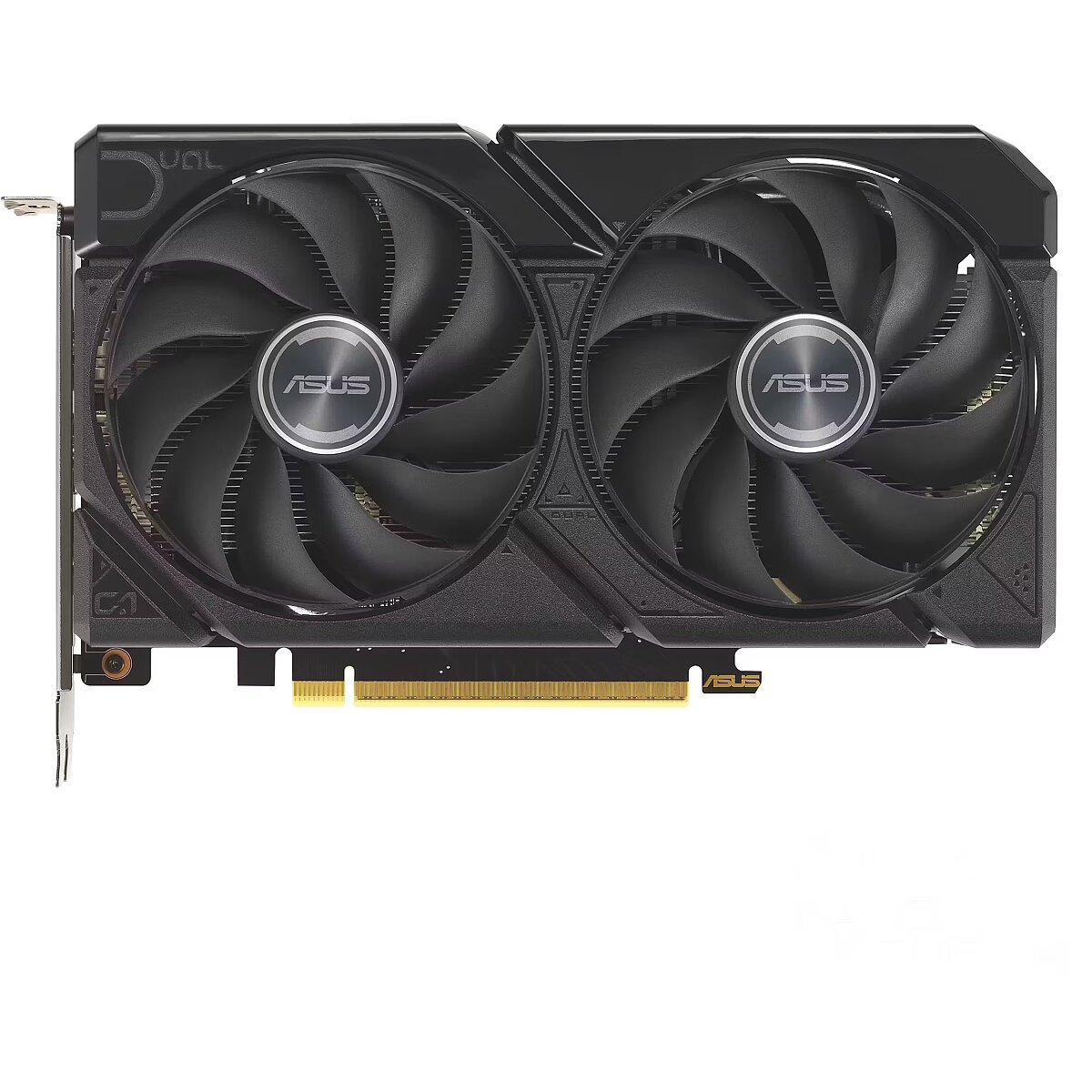

Dual Fans, Perfect Fit
ASUS Dual Radeon™ RX 9060 XT combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build. Cooling
2.5-slot Design

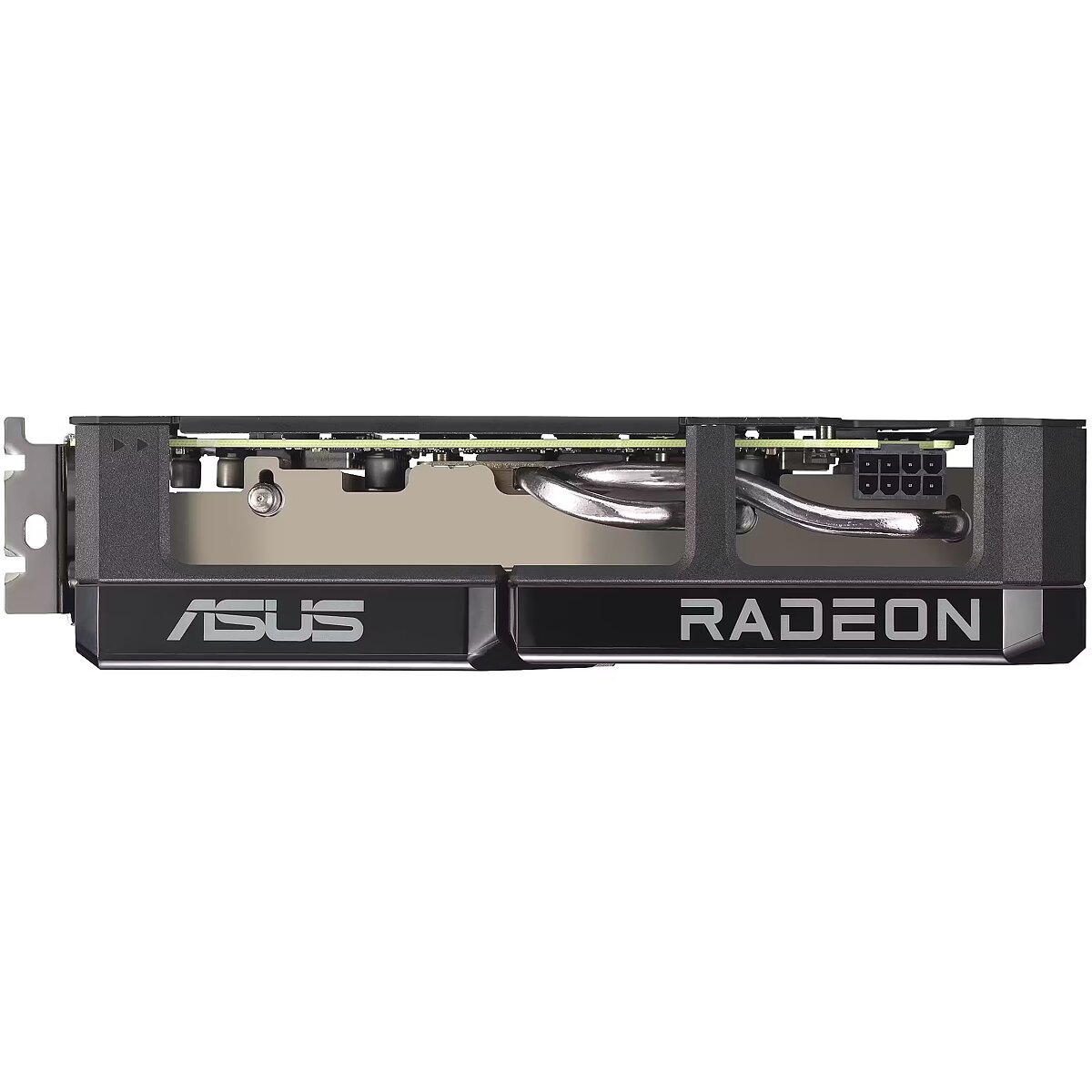

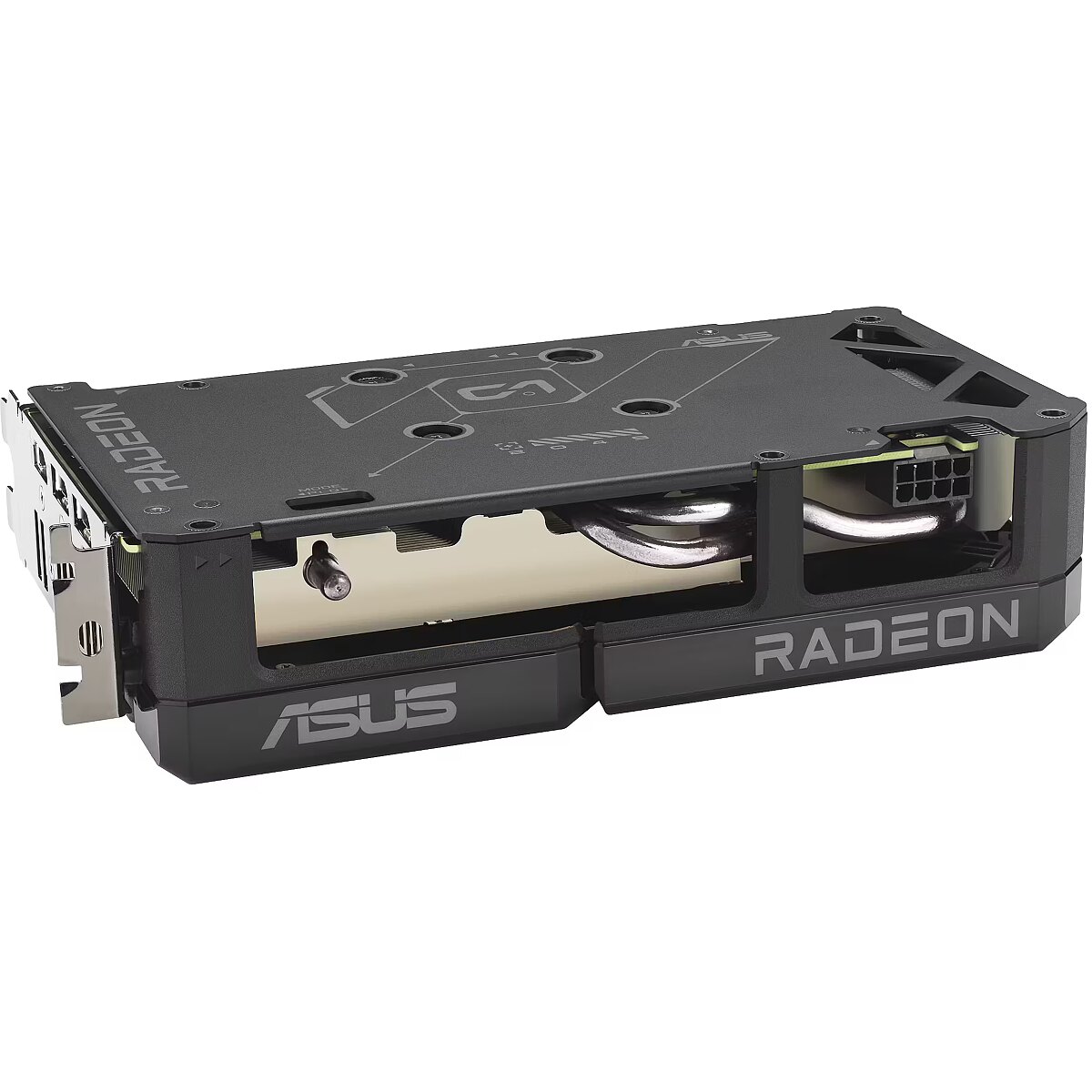

A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size. Axial-tech Upgrades

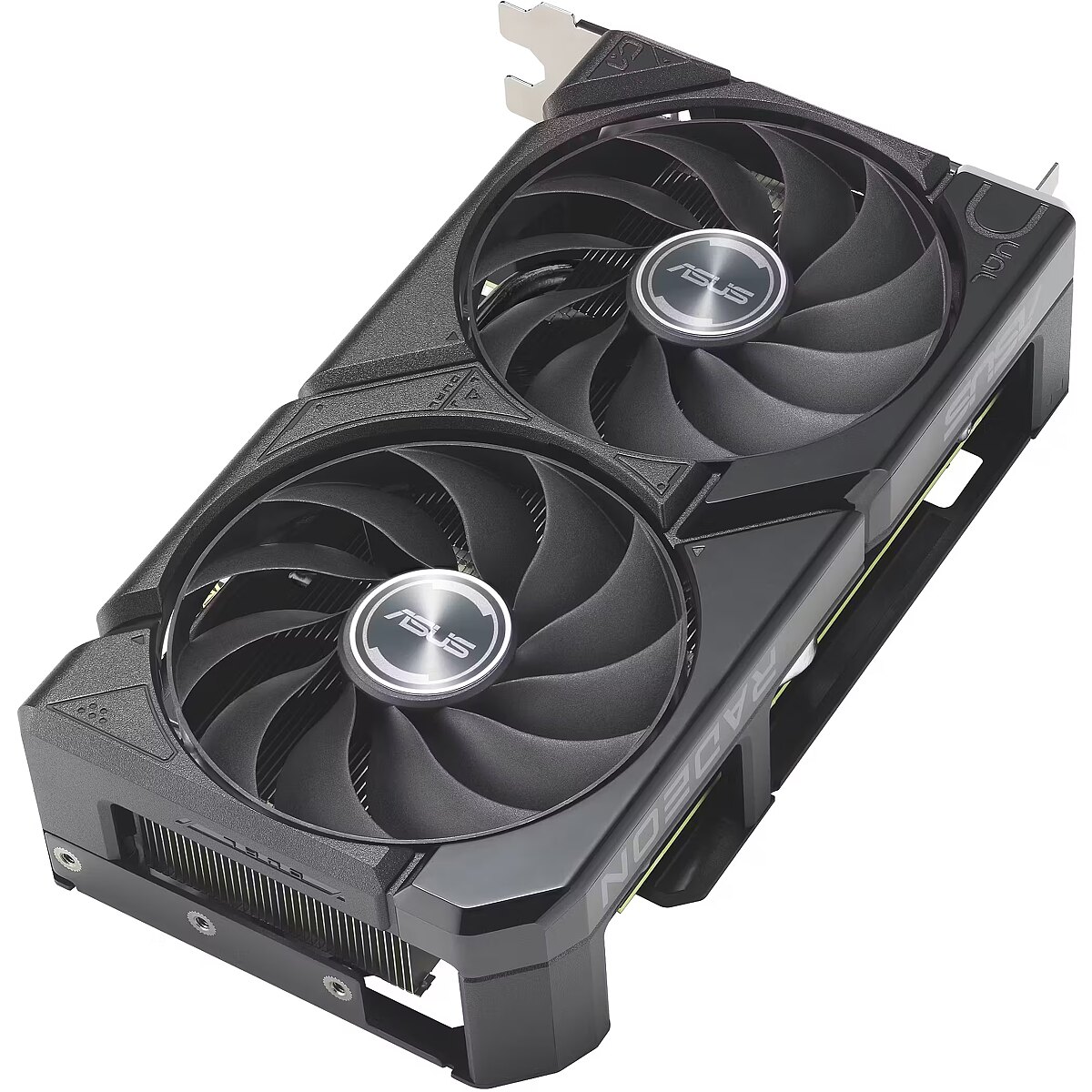

Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure. 0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 55°C and power consumption is low. Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs. Vented Backplate
A vented backplate significantly enhances heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling. Unmatched Reliability
ASUS GPU Guard
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks. Protective Backplate

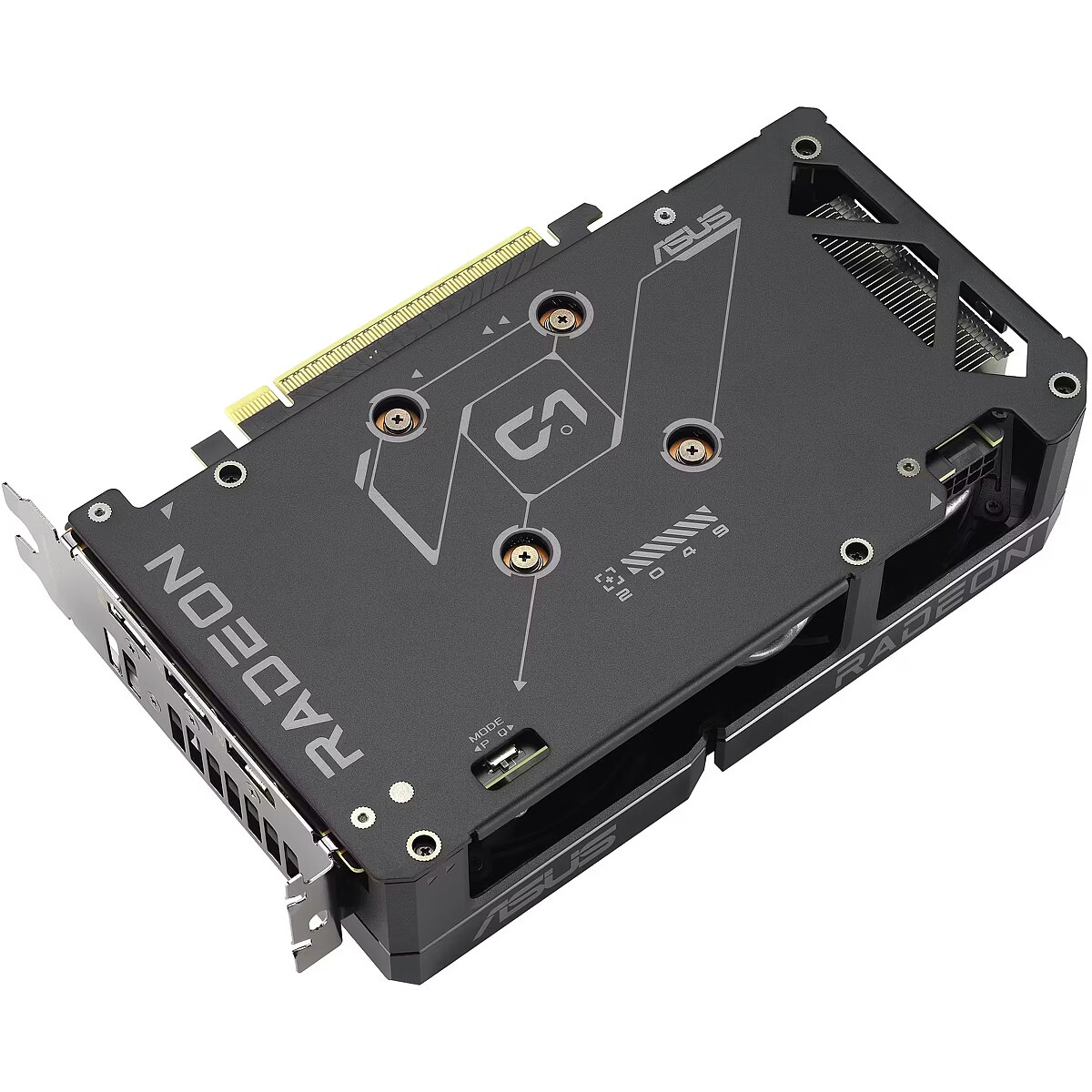

The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage. Stainless Steel Bracket
The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion. Engineering
Dual BIOS
Do you prioritize lower core temperatures or quieter operation? Performance mode increases fan speed to keep the card running cool all the time. Quiet mode maintains the same power target and performance settings, but applies a less aggressive fan curve for quieter operation at medium temperatures. Want more control? Customize your experience with GPU Tweak III software for fine-tuned fan profiles and performance adjustments. Auto−Extreme Technology
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing completing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting and minimizes in less environmental impact. The result is lower power consumption during manufacturing and a more reliable, high-quality product.lower manufacturing power consumption, and a more reliable product overall.
Design - Cooling technology - ASUS Axial-tech
Design - Cooling type - Active
Design - Number of fans - 2 fan(s)
Design - Number of slots - 2.5
Design - Product colour - Black
Design - SFF ready - Yes
Designation - CE+WEEE
dimension depth - 70 mm
dimension height - 370 mm
Dimensions - 202 x 120 x 49 mm
dimension weight - 1070 g
dimension width - 220 mm
DirectX version Performance - 12 Ultimate
Discrete graphics card memory Memory - 16 GB
DisplayPorts quantity Ports & interfaces - 2
DisplayPort version Ports & interfaces - 2.1a
Dual Link DVI Performance - No
ean - 4711636196765
Eans - 4711636196765
Graphics card memory type Memory - GDDR6
Graphics processor family Processor - AMD
Graphics processor Processor - Radeon RX 9060 XT
GTIN - 4711636196765
guarantee - 36
guarantee_type - normal
HDCP Performance - Yes
HDCP version Performance - 2.3
HDMI ports quantity Ports & interfaces - 1
HDMI version Ports & interfaces - 2.1b
Height Weight & dimensions - 120 mm
Interface type Ports & interfaces - PCI Express 5.0
Length Weight & dimensions - 202 mm
LongDesc - Dual Radeon™ RX 9060 XTDual Fans, Perfect FitASUS Dual Radeon™ RX 9060 XT combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.Cooling2.5-slot DesignA carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.Axial-tech UpgradesTwo tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.0dB TechnologyTo eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 55°C and power consumption is low.Dual Ball Fan BearingsFan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.Vented BackplateA vented backplate significantly enhances heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.Unmatched ReliabilityASUS GPU GuardASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks.Protective BackplateThe PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.Stainless Steel BracketThe mounting bracket of the Dual has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.EngineeringDual BIOSDo you prioritize lower core temperatures or quieter operation? Performance mode increases fan speed to keep the card running cool all the time. Quiet mode maintains the same power target and performance settings, but applies a less aggressive fan curve for quieter operation at medium temperatures. Want more control? Customize your experience with GPU Tweak III software for fine-tuned fan profiles and performance adjustments.Auto−Extreme TechnologyAuto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing completing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting and minimizes in less environmental impact. The result is lower power consumption during manufacturing and a more reliable, high-quality product.lower manufacturing power consumption, and a more reliable product overall.
LongProductName - 16 GB, GDDR6, 128-bit, 3250 MHz boost clock, PCI Express 5.0, 2x DisplayPort, 1x HDMI, 1x 8-pin, 2.5 slot
LongSummaryDescription - ASUS Dual -RX9060XT-16G. Graphics processor family: AMD, Graphics processor: Radeon RX 9060 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s)
Manual Packaging content - Yes
Maximum displays per videocard Processor - 3
Maximum resolution Processor - 7680 x 4320 pixels
Memory - Data transfer rate - 20 Gbit/s
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 128 bit
Memory bus Memory - 128 bit
Memory frequency - 20 Gbps
Memory type - DDR6
Minimum system power supply Power - 550 W
Model - DUAL-RX9060XT-16G
Model - Dual Radeon RX 9060 XT
Name - ASUS Radeon RX 9060 XT DUAL 16GB
name - Graphic Card Dual Radeon RX 9060 XT 16GB GDDR6 DUAL-RX9060XT-16G
Number of fans - 2
Number of fans Design - 2 fan(s)
Number of slots Design - 2.5
OpenGL version Performance - 4.6
Package type Packaging data - Box
Packaging content - Manual - Yes
Packaging data - Package type - Box
Parallel processing technology support Processor - Not supported
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 2.1a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1b
Ports & interfaces - Interface type - PCI Express 5.0
Power - Minimum system power supply - 550 W
Power - Supplementary power connectors - 1x 8-pin
Processor - CUDA - No
Processor - Graphics processor - Radeon RX 9060 XT
Processor - Graphics processor family - AMD
Processor - Maximum displays per videocard - 3
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 3230 MHz
Processor - Processor boost clock speed (Gaming mode) - 2640 MHz
Processor - Processor boost clock speed (OC mode) - 3250 MHz
Processor - Stream processors - 2048
Processor boost clock speed (Gaming mode) Processor - 2640 MHz
Processor boost clock speed (OC mode) Processor - 3250 MHz
Processor boost clock speed Processor - 3230 MHz
Producent: Nazwa producenta / importera - AsusASUS COMPUTER GmBHHARKORT STR. 21-2340880 RATINGENNiemcyEmail: https://www.asus.com/support/Product/ContactUs/Services/questionform/?lang=en&utm_source=asus-qr&utm
producer - Asus
Producer - Asus
ProducerCode - DUAL-RX9060XT-16G
Product colour Design - Black
ProductName - DUAL-RX9060XT-16G
Product Net Weight - 0.5 kg
SFF ready Design - Yes
ShortDescription - Chipset AMD 9060 XT | 16GB
ShortSummaryDescription - ASUS Dual -RX9060XT-16G, Radeon RX 9060 XT, 16 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express 5.0
Stream processors Processor - 2048
Summary - ASUS Dual -RX9060XT-16G. Graphics processor family: AMD, Graphics processor: Radeon RX 9060 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s)
Supplementary power connectors Power - 1x 8-pin
System requirements - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Title - ASUS Dual -RX9060XT-16G AMD Radeon RX 9060 XT 16 GB GDDR6
TV tuner integrated Performance - No
Unit Box Height - 0.07
Unit Box Length - 0.37
Unit Box Width - 0.22
Unit Calculated Volume - 0.006868 cubm
Unit Calculated Weight - 1.2 kg
Units per Pallet - 0
Units per Shipping Box - 8
URL - https://www.asus.com/motherboards-components/graphics-cards/dual/dual-rx9060xt-16g/
Vendor Homepage - https://www.asus.com/motherboards-components/graphics-cards/dual/dual-rx9060xt-16g/
vendpn - DUAL-RX9060XT-16G
Version - Box
VRAM memory size - 16 GB
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 49 mm
Weight & dimensions - Height - 120 mm
Weight & dimensions - Length - 202 mm
Windows operating systems supported System requirements - Windows 10 x64/Windows 11 x64
