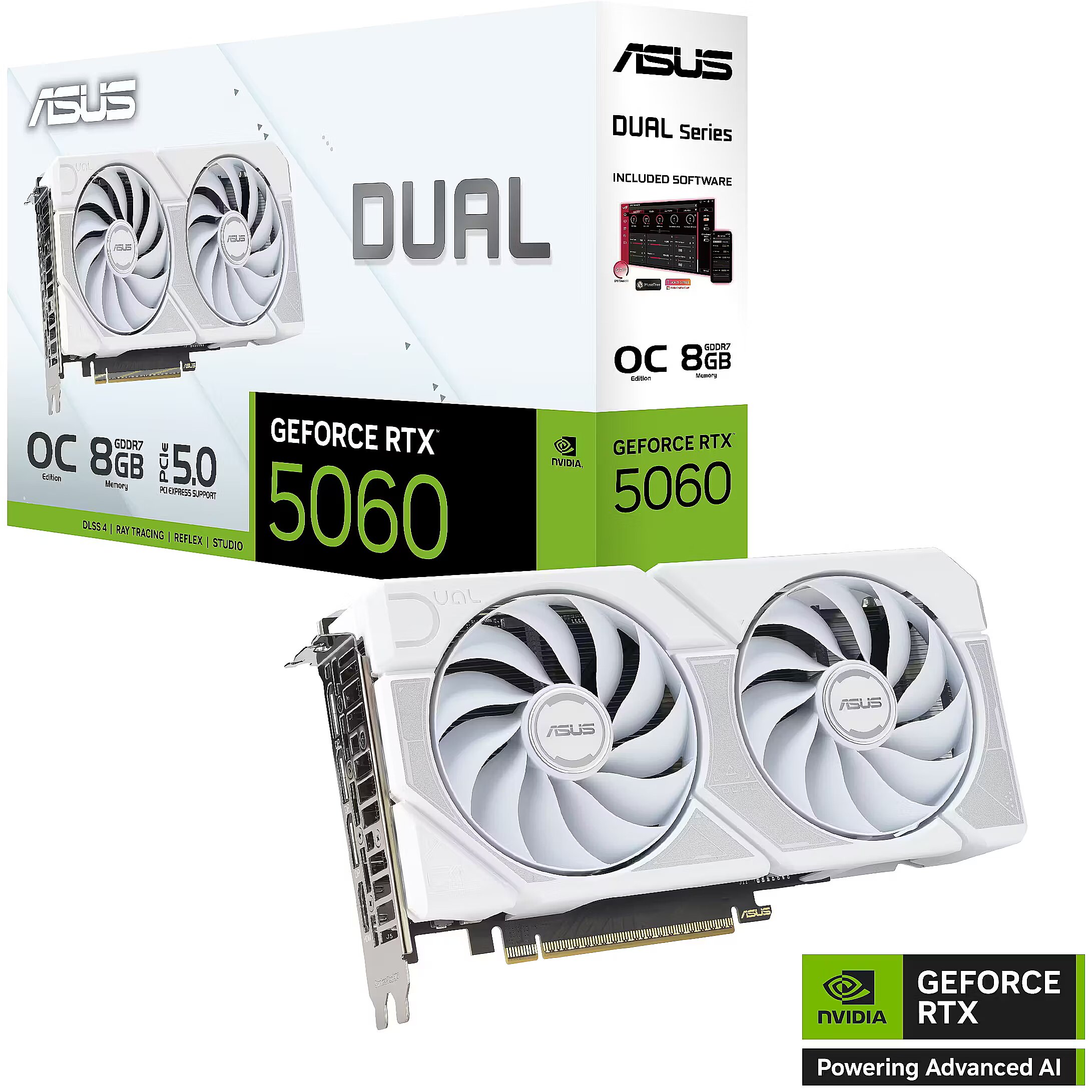

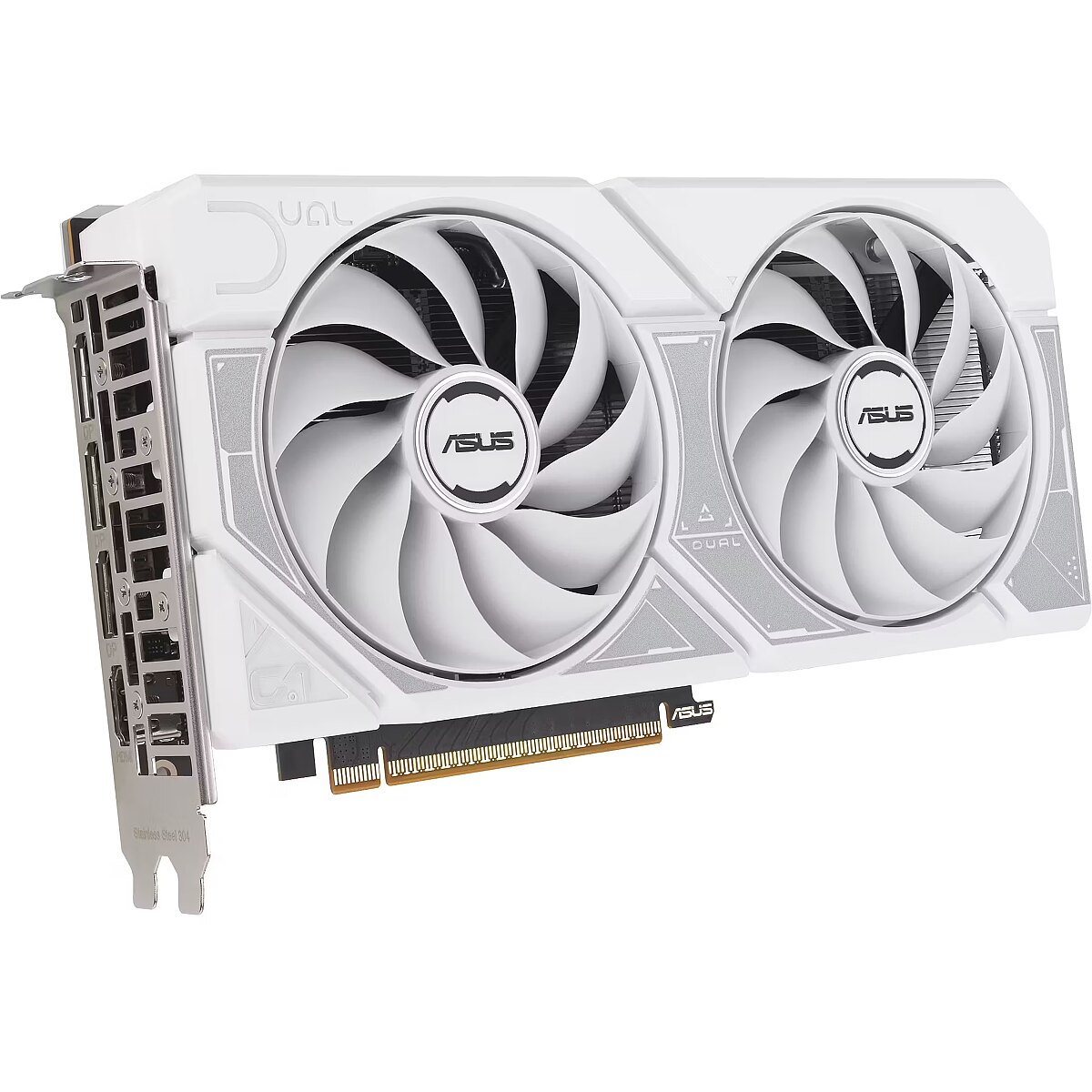

Asus GeForce RTX 5060, 8GB GDDR7, Dual OC White (DLSS 4)

Brand - ASUS
BrandPartCode - 90YV0N15-M0NA00
Card's length - 200 to 240 mm
Category - Graphics Cards
Category Code - VGP
Chipset - NVIDIA GeForce RTX 5060
Cooling system - Dual Slot Fansink
CUDA Cores - 3840

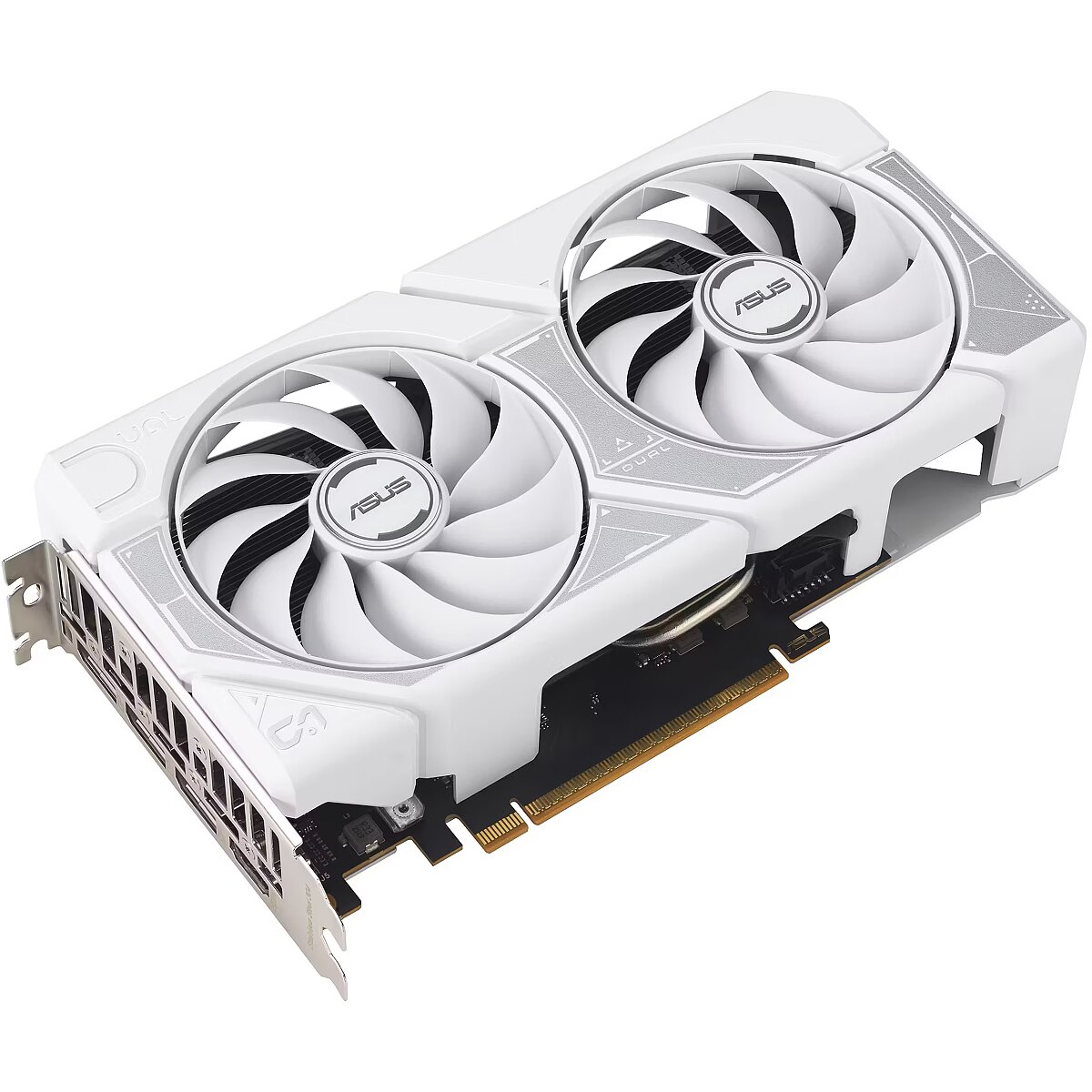

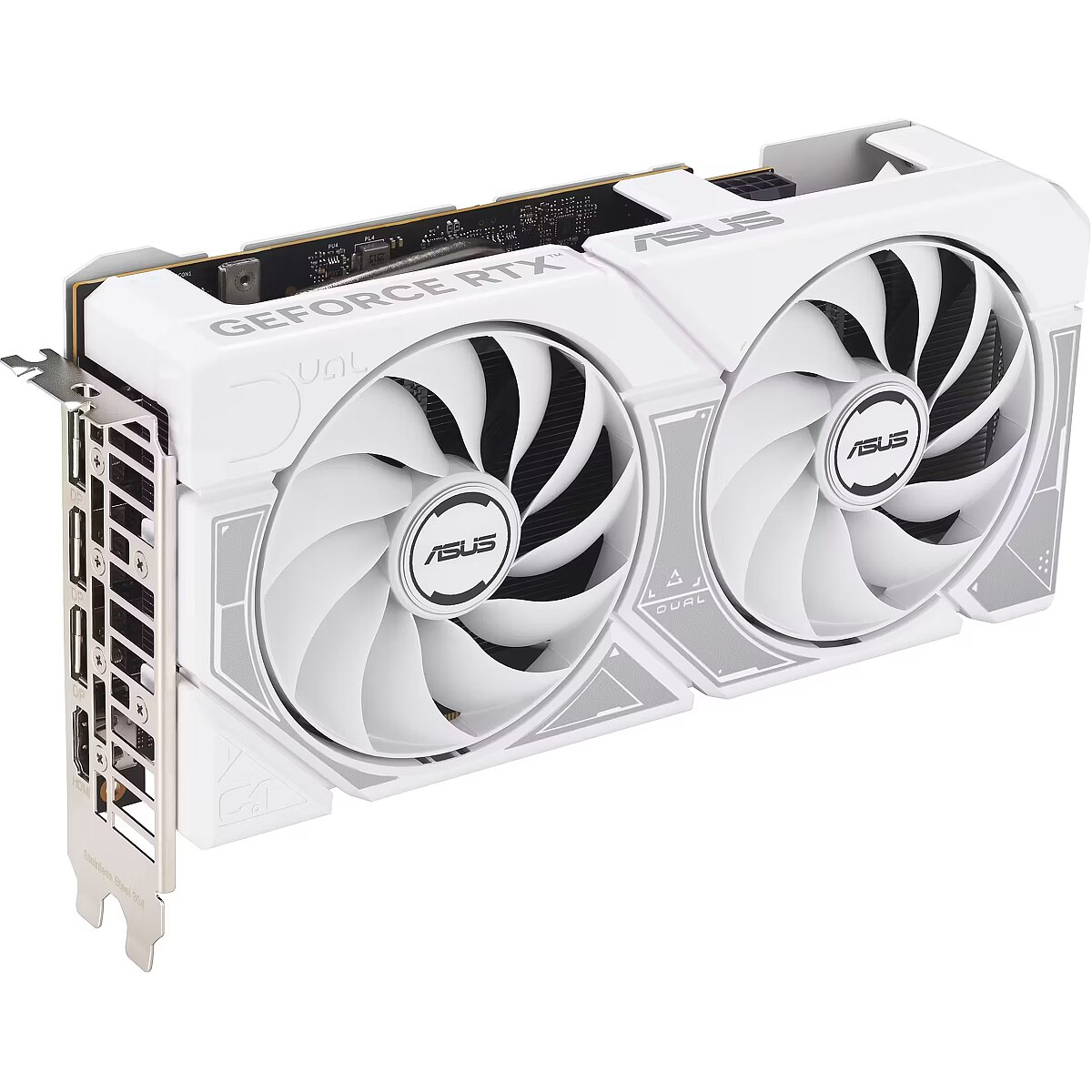

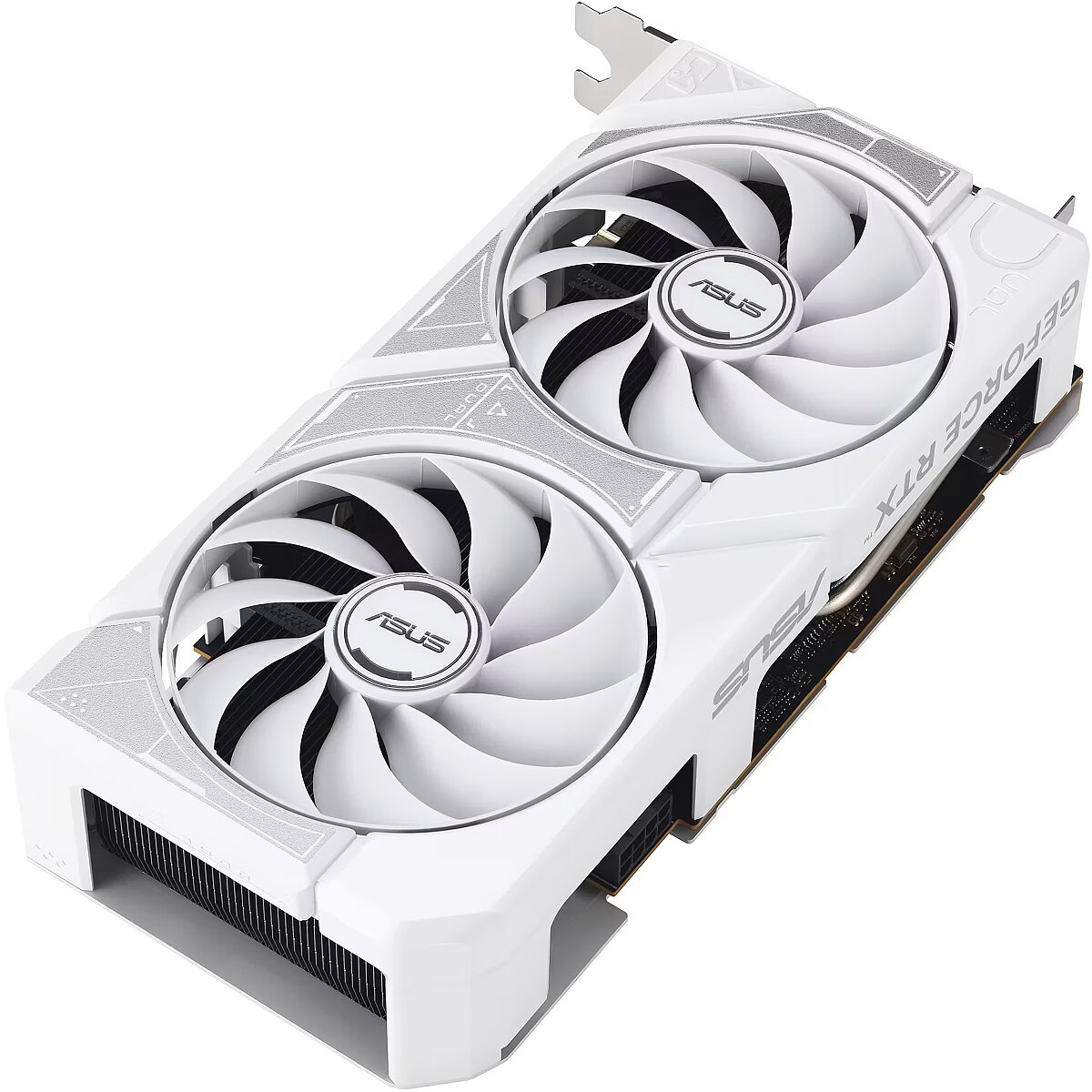

Description - ASUS Dual GeForce RTX™ 5060 White OC Edition 8GB GDDR7 DUAL GEFORCE RTX™ 5060 White Edition Dual Fans, Perfect Fit ASUS Dual GeForce RTX™ 5060 White Edition combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Design - Cooling technology - ASUS Axial-tech
Design - Cooling type - Active
Design - Number of fans - 2 fan(s)
Design - Number of slots - 2.5
Design - Product colour - White
Design - SFF ready - Yes
Dimensions - 228 x 123 x 50 mm
DisplayPort Input/Output connectors - 3
Graphic card features - Gaming/HDCP
Graphics connector - PCIE 5.0 16x
Graphics memory size - 8 GB
Graphics memory type - GDDR7
GTIN - 4711636196963
HDMI Input/Output connectors - 1
Included Accessories -
1 x Speedsetup Manual
1 x Thank You Card
LongDesc - DUAL GEFORCE RTX™ 5060 White EditionDual Fans, Perfect FitASUS Dual GeForce RTX™ 5060 White Edition combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.Cooling2.5-slot DesignA carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.Axial-tech UpgradesTwo tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.0dB TechnologyTo eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low.Dual Ball Fan BearingsFan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.Vented BackplateA vented backplate significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.Unmatched ReliabilityASUS GPU GuardASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks.Protective BackplateThe PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.Stainless Steel BracketThe mounting bracket of the Dual has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.EngineeringDual BIOSDo you prioritize lower core temperatures or quieter operation? Performance mode increases fan speed to keep the card running cool all the time. Quiet mode maintains the same power target and performance settings, but applies a less aggressive fan curve for quieter operation at medium temperatures. Want more control? Customize your experience with GPU Tweak III software for fine-tuned fan profiles and performance adjustments.Auto−Extreme TechnologyAuto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing completing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting and minimizes in less environmental impact. The result is lower power consumption during manufacturing and a more reliable, high-quality product.lower manufacturing power consumption, and a more reliable product overall.RTX. It’s On.The Ultimate in Ray Tracing and AIRTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.CreatorsYour Creative AI-dvantageNVIDIA Studio is your creative advantage. GeForce RTX 50 Series GPUs unlock transformative performance in video editing, 3D rendering, and graphic design. Experience RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.
LongProductName - 8 GB, GDDR7, 128-bit, 2535 MHz boost clock, PCI Express 5.0, 3x DisplayPort, 1x HDMI, 1x 8-pin, 2.5 slot
LongSummaryDescription - ASUS Dual -RTX5060-O8G-WHITE. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s)
Max resolution - 7680x4320
Memory - Data transfer rate - 28 Gbit/s
Memory - Discrete graphics card memory - 8 GB
Memory - Graphics card memory type - GDDR7
Memory - Memory bus - 128 bit
Memory bus - 128 bit
Memory CLK - 28 Gbps
Model - DUAL-RTX5060-O8G-WHITE
Packaging content - Manual - Yes
Packaging data - Package depth - 220 mm
Packaging data - Package height - 68 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.11 kg
Packaging data - Package width - 368 mm
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - NPU performance up to - 623 TOPs
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - Overclocked (OC) edition - Yes
Performance - TV tuner integrated - No
Performance - Virtual Reality (VR) ready - Yes

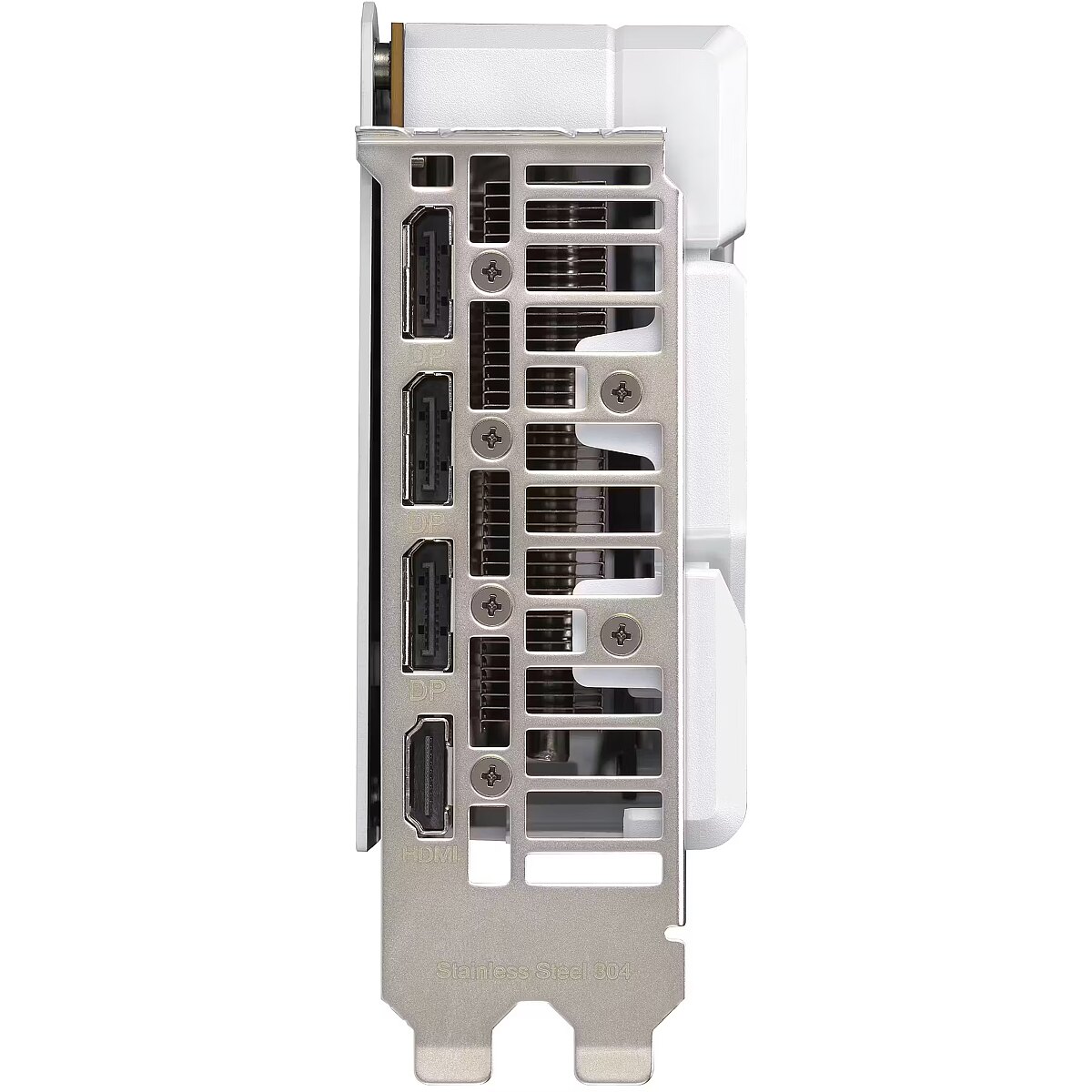

Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 2.1b
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1b
Ports & interfaces - Interface type - PCI Express 5.0
Power - Minimum system power supply - 550 W

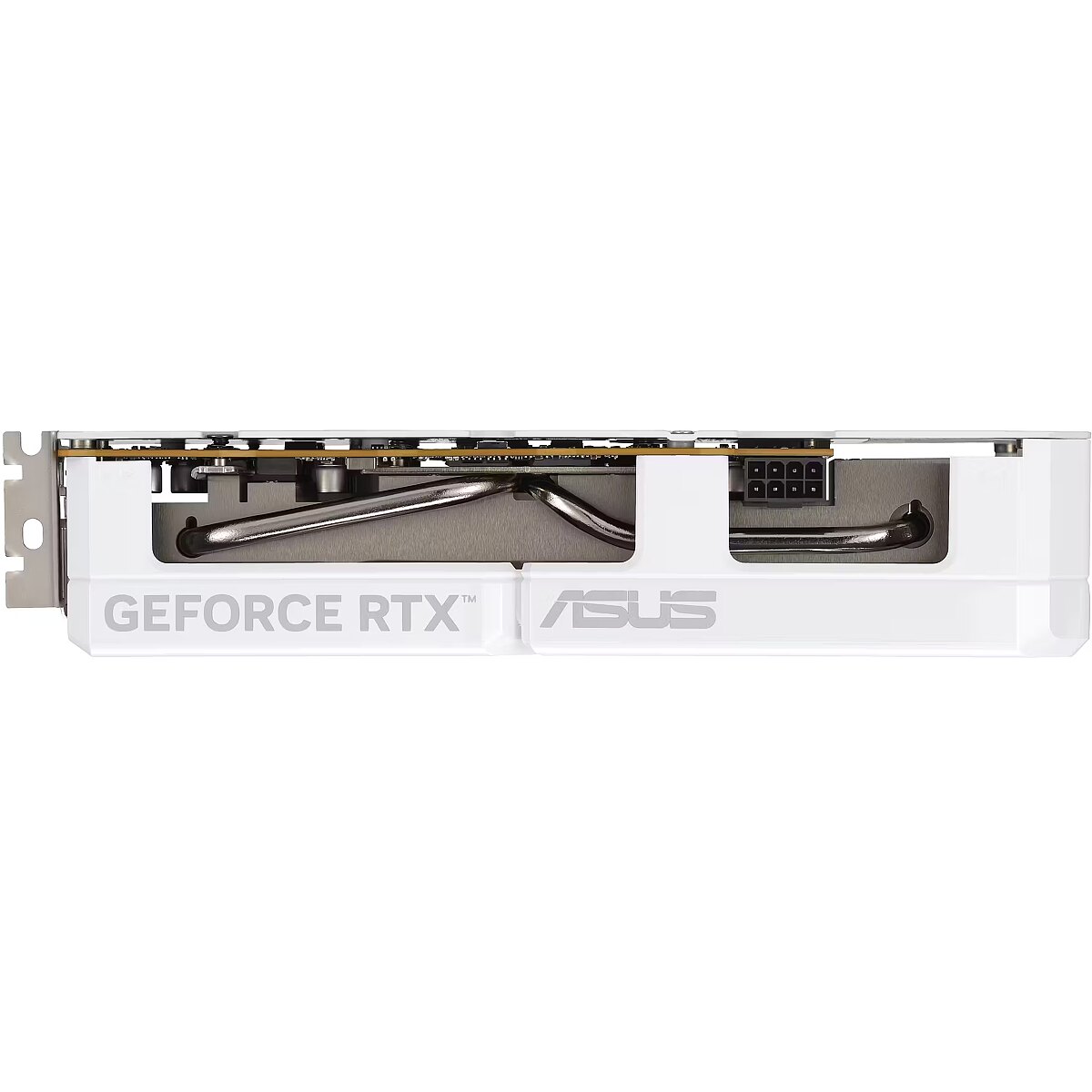

Power - Supplementary power connectors - 1x 8-pin
Power connectors - 8 pin
Processor - CUDA - Yes
Processor - CUDA cores - 3840
Processor - Graphics processor - GeForce RTX 5060
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2535 MHz
Processor - Processor frequency (OC mode) - 2565 MHz
ProductName - DUAL-RTX5060-O8G-WHITE
Product Net Weight - 0.5 kg
ShortSummaryDescription - ASUS Dual -RTX5060-O8G-WHITE, GeForce RTX 5060, 8 GB, GDDR7, 128 bit, 7680 x 4320 pixels, PCI Express 5.0
System requirements - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Title - ASUS Dual -RTX5060-O8G-WHITE NVIDIA GeForce RTX 5060 8 GB GDDR7
Unit Box Height - 0.07
Unit Box Length - 0.37
Unit Box Width - 0.225
Unit Calculated Volume - 0.007148 cubm
Unit Calculated Weight - 1.24 kg
Units per Pallet - 0
Units per Shipping Box - 8
URL - https://www.asus.com/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g-white/
Vendor Homepage - www.asus.com/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g-white/
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 50 mm
Weight & dimensions - Height - 123 mm
Weight & dimensions - Length - 228 mm
Weight & dimensions - Weight - 647 g
