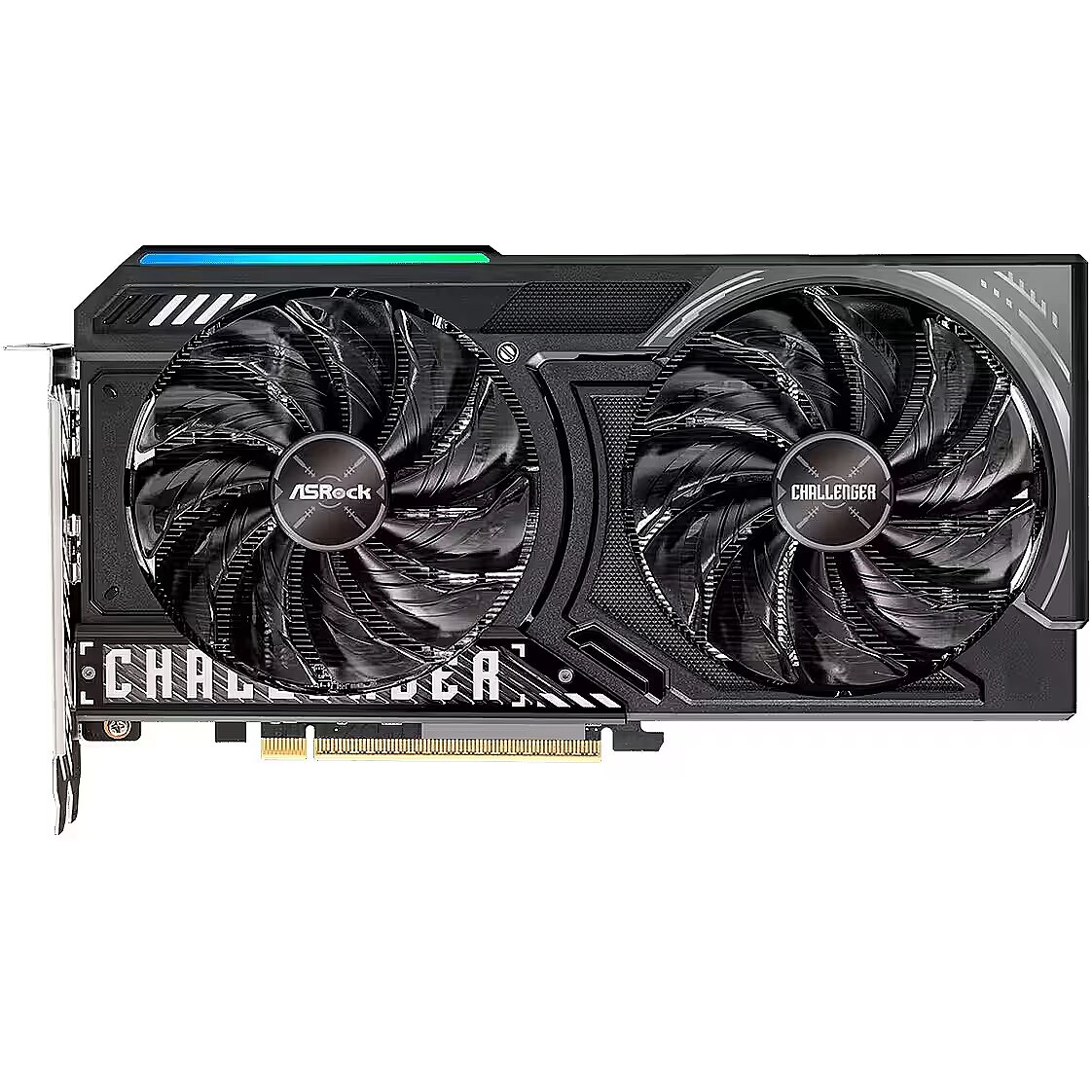

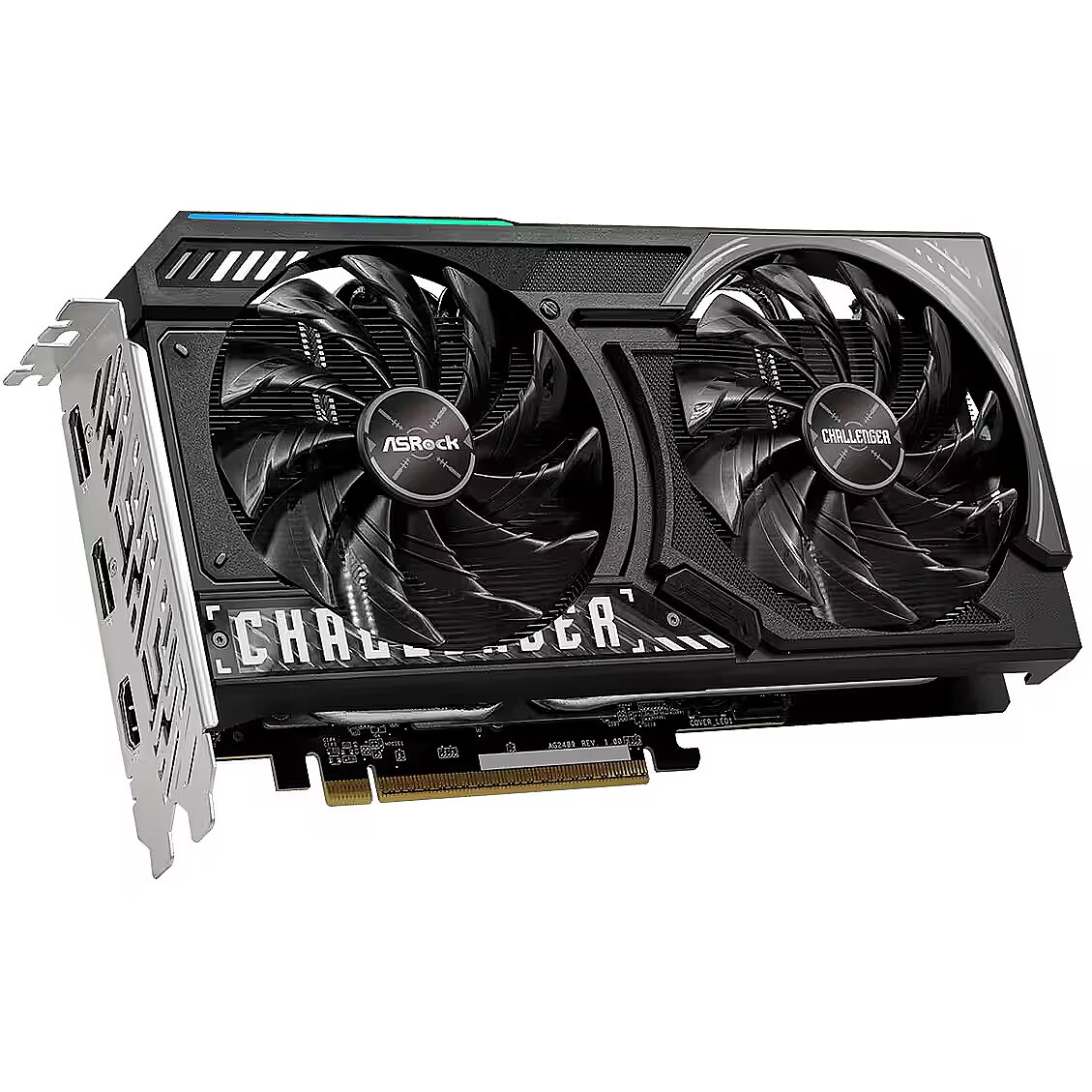

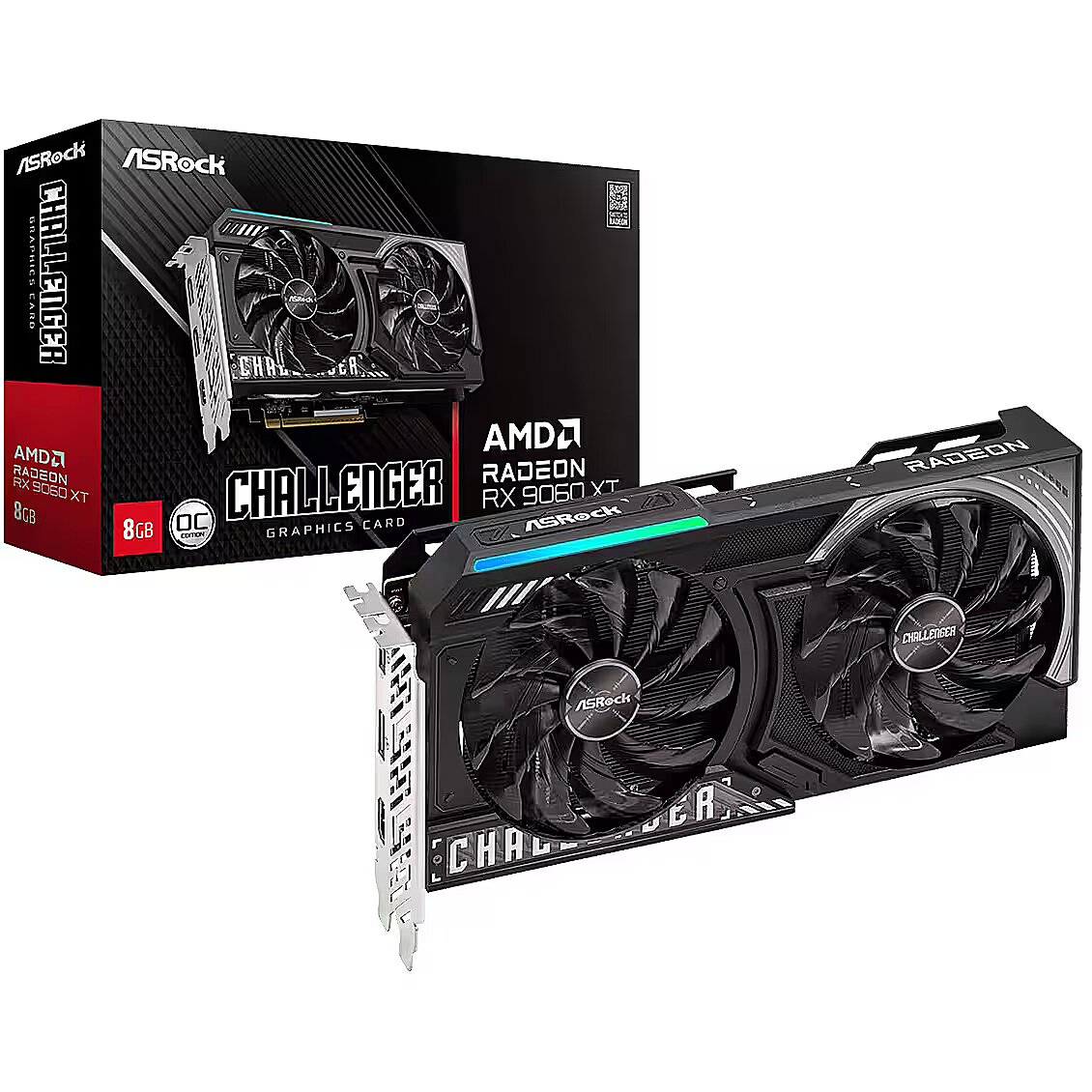

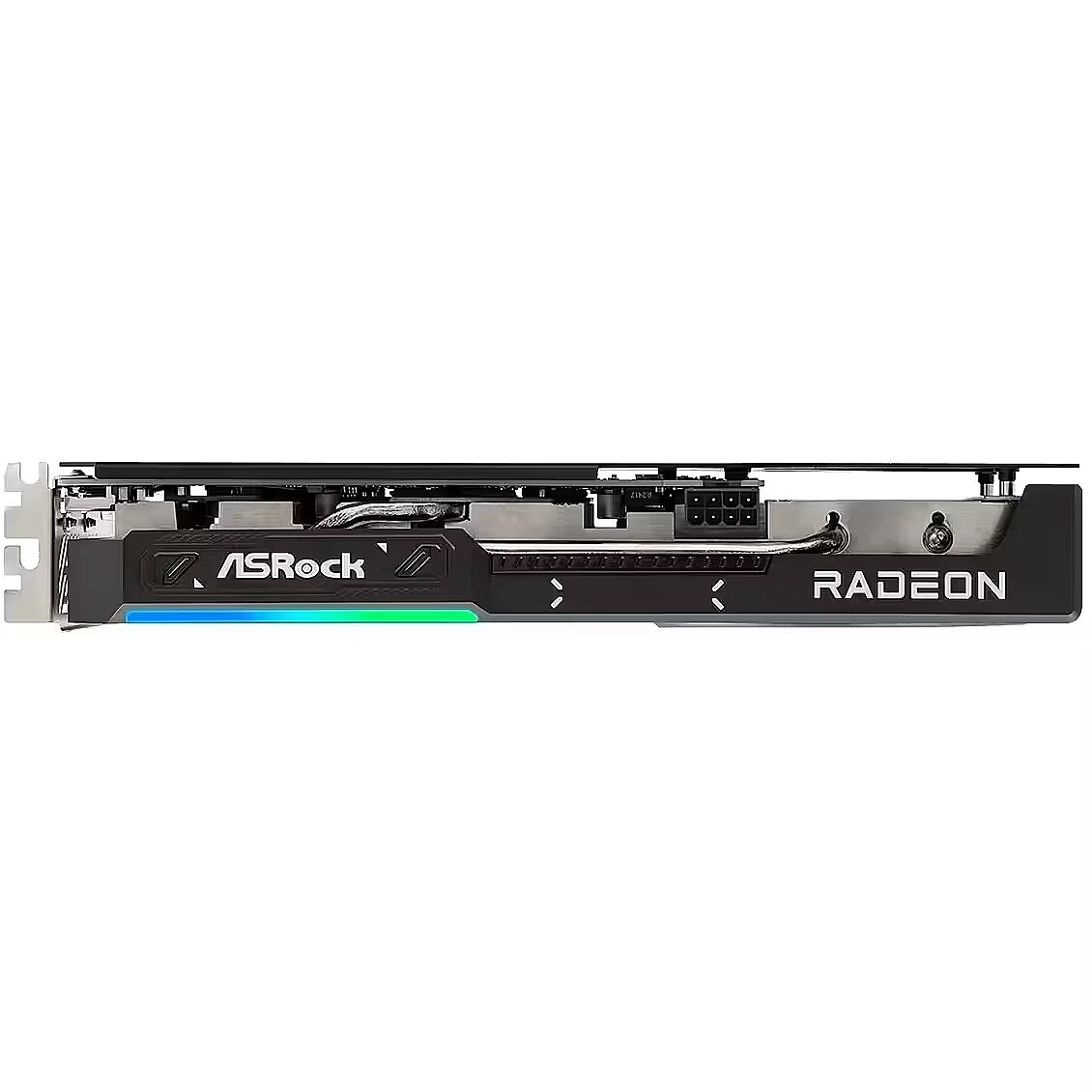

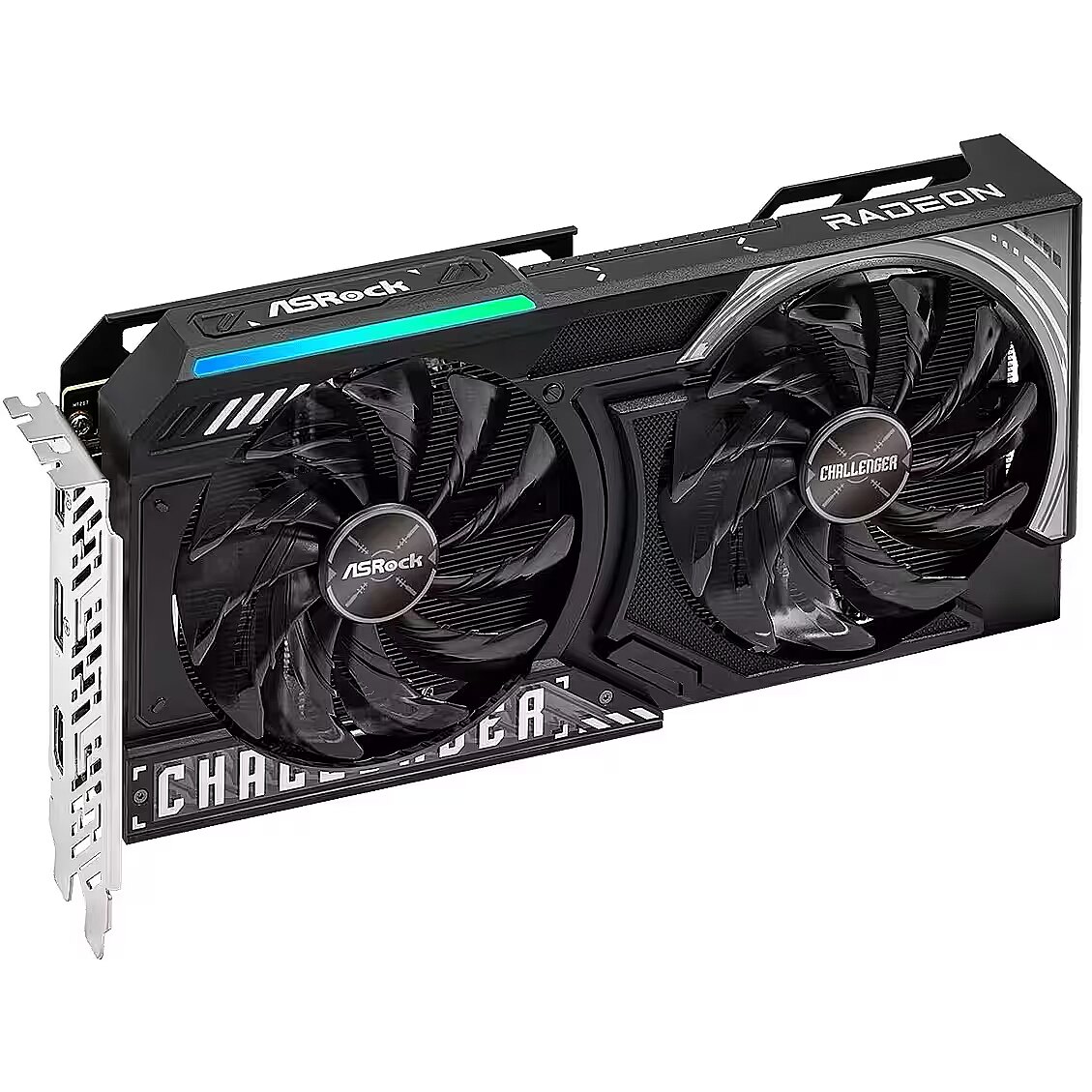

ASRock Radeon RX 9060 XT, 8GB GDDR6, Challenger OC

Category - Root/Electronics/PC parts/Graphic cards
Category Code - VGP
Compliance certificates Technical details - CE, Federal Communications Commission (FCC), UKCA
Compute units Processor - 32
Cooling technology Design - Asrock Striped Axial Fan
Cooling type Design - Active
CUDA Processor - No
Dane techniczne: Długość - 24.9 cm
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Kolor obudowy - czarny
Dane techniczne: Liczba wentylatorów - 2 szt.
Dane techniczne: Maks. taktowanie rdzenia - 3290 MHz
Dane techniczne: Model chipsetu - Radeon RX 9060 XT
Dane techniczne: Obsługiwane standardy - DirectX 12
Dane techniczne: Obsługiwane standardy - OpenGL 4.6
Dane techniczne: Obsługiwane standardy - Vulkan
Dane techniczne: Podświetlenie - tak
Dane techniczne: Producent - ASRock
Dane techniczne: Producent chipsetu - AMD
Dane techniczne: Przepustowość pamięci - 320 GB/s
Dane techniczne: Rodzaje wyjść/wejść - 1 x wyjście HDMI
Dane techniczne: Rodzaje wyjść/wejść - 2 x Display Port
Dane techniczne: Seria karty graficznej - RX z serii 9
Dane techniczne: Szerokość - 13.2 cm
Dane techniczne: Szyna danych pamięci - 128 bit
Dane techniczne: Taktowanie pamięci - 20000 MHz
Dane techniczne: Typ chłodzenia - wentylator
Dane techniczne: Typ zastosowanej pamięci - GDDR6
Dane techniczne: Typ złącza - PCI-Express x16
Dane techniczne: Wielkość pamięci - 8 GB
Dane techniczne: Wsparcie dla HDCP - tak
Dane techniczne: Wysokość - 4.1 cm
Dane techniczne: Zaawansowane technologie - AMD Eyefinity
Dane techniczne: Zaawansowane technologie - AMD FidelityFX Super Resolution
Dane techniczne: Zaawansowane technologie - Ray Tracing
Dane techniczne: Zalecana moc - 550 W
Dane techniczne: Złącze zasilania - 8 PIN
Data transfer rate Memory - 20 Gbit/s
Depth Weight & dimensions - 41 mm
Description - Dual Fan Design
Optimized Cooling Efficiency.

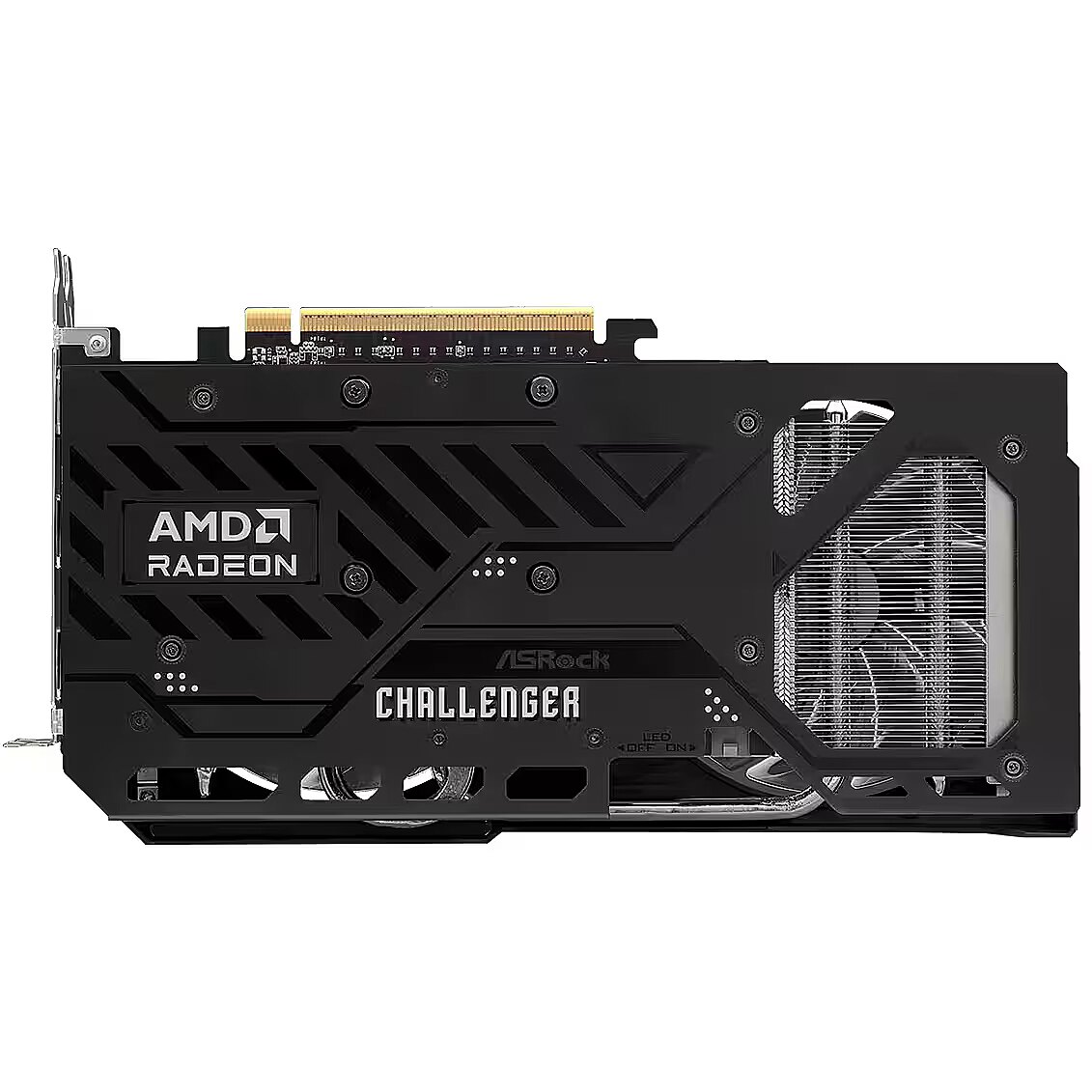

Provides not only the fancy outlook but also the optimized cooling efficiency for the best balance between performance and silence. Stylish Metal Backplate
Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside. LED Indicators
More Decoration. More Beauty.
LED indicator embellished the graphics card to make it more beautiful. LED Switch
Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need. Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side. 0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence. Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation. High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively. Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency. Premium Thermal Pad
Better Heat Transfer.
The premium thermal pad helps to transfer the heat of the components to the heatsink, improving heat dissipation. Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die. Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance. Premium 90A Power Choke
Compared to traditional chokes, ASRock’s premium 90A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card. Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card. High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity. Designed For Lightning-fast Gaming, Powered By AMD RDNA™ 4
Experience the next level of 1440p gaming performance with AMD Radeon™ RX 9060 XT graphics cards. Powered by groundbreaking RDNA™ 4 architecture with unified compute units featuring advanced raytracing and AI accelerators, support for AMD FidelityFX™ Super Resolution 4 technology1 and AMD Powerful AI Enhanced Visuals
Enjoy gaming like never before with immersive, lifelike visuals driven by next-gen raytracing, supercharged with AMD FidelityFX™ Super Resolution 41 ML-powered upscaling, and elevated streaming clarity by Enhanced Media Engine. Performance Made Easy
The AMD Radeon™ RX 9000 Series puts powerful performance at your fingertips with intuitive AMD Software: Adrenaline Edition. Experience dependable feature rich drivers, real-time AI-powered assistance, and one-click optimization with AMD HYPR-RX2. Elevate your gaming with increased frame rates, reduced lag, and sharper visuals. Future-Ready Tech
Built for longevity, AMD Radeon™ RX 9060 XT graphics cards feature up to 16GB VRAM, PCI Express® Gen 5 support, AMD Smart Access Memory™ technology3, AI-enabled technologies, and seamless pairing with AMD Ryzen™ 9000 Series processors to unlock the full potential of your AM5 platform. An updated Radiance Display™ Engine featuring DisplayPort™ 2.1a and HDMI 2.1b is ready for the latest ultra-high refresh displays.AMD RDNA™ 4 Architecture32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)Dual Fan DesignStylish Metal BackplateLED IndicatorLED On/Off SwitchStriped Axial Fan0db Silent CoolingSuper Alloy Graphic Card
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
dimensionalWeight - 1043
DirectX version Performance - 12 Ultimate
Discrete graphics card memory Memory - 8 GB
DisplayPorts quantity Ports & interfaces - 2
DisplayPort version Ports & interfaces - 2.1a
Dual Link DVI Performance - No
Eans - 4711581490864
Graphics card memory type Memory - GDDR6
Graphics processor family Processor - AMD
Graphics processor Processor - Radeon RX 9060 XT
HDCP Performance - Yes
HDMI ports quantity Ports & interfaces - 1
HDMI version Ports & interfaces - 2.1b
Height Weight & dimensions - 132 mm
Interface type Ports & interfaces - PCI Express x16 5.0
Length Weight & dimensions - 249 mm
Maximum resolution Processor - 7680 x 4320 pixels
Memory - Data transfer rate - 20 Gbit/s
Memory - Discrete graphics card memory - 8 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 128 bit
Memory bus Memory - 128 bit
Minimum system power supply Power - 550 W
Model - RX9060XT CL 16GO
Multi View Other features - 3
Name - ASRock Radeon RX 9060 XT Challenger 8GB OC
Number of fans Design - 2 fan(s)
OpenGL version Performance - 4.6
Package type Packaging data - Box
Packaging data - Package type - Box
Parallel processing technology support Processor - Not supported
Performance - DirectX version - 12 Ultimate
Performance - HDCP - Yes
Performance - OpenGL version - 4.6
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 2.1a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1b
Ports & interfaces - Interface type - PCI Express x16 5.0
Power - Minimum system power supply - 550 W
Power - Supplementary power connectors - 1x 8-pin
Processor - Graphics processor - Radeon RX 9060 XT
Processor - Graphics processor family - AMD
Processor - Maximum displays per videocard - 3
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Stream processors - 2048
Processor boost clock speed Processor - 3290 MHz
Processor frequency Processor - 2700 MHz
Producent: Nazwa producenta / importera - ASRockASRock Europe B.V.Bijsterhuizen 11-116546 AR NijmegenHolandiaEmail: sales@asrock.nl
Producer - ASRock
producerCode - RX9060XT CL 8GO
ProducerCode - RX9060XT CL 8GO
Product colour Design - Black
productName - Graphics card. Asrock RX9060XT Challenger 8GB OC
Product Net Weight - 0.645 kg
productSize - Normal
Quick installation guide Packaging content - Yes
Safety warning - Warnings - Avoid direct contact with liquids inside the unit.
Safety warning - Warnings - Do not mount or dismantle without adequate protection.
Safety warning - Warnings - Return the product to an electro-waste disposal facility after use.
ShortDescription - Chipset AMD 9060 XT | 8GB
sizeX - 365
sizeY - 220
sizeZ - 65
Stream processors Processor - 2048
Summary - Asrock RX 9060 XT Challenger 8GB OC. Graphics processor family: AMD, Graphics processor: Radeon RX 9060 XT, Processor frequency: 2700 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active, Number of fans: 2 fan(s)
Supplementary power connectors Power - 1x 8-pin
TV tuner integrated Performance - No
Unit Box Height - 0.065
Unit Box Length - 0.365
Unit Box Width - 0.22
Unit Calculated Volume - 0.006552 cubm
Unit Calculated Weight - 1.11 kg
Units per Pallet - 0
Units per Shipping Box - 10
Vendor Homepage - https://www.asrock.com/
Warranty - 24 months
warrantyLength - 36
warrantyType - G
weight - 950
Weight & dimensions - Depth - 132 mm
Weight & dimensions - Height - 41 mm
Weight & dimensions - Weight - 645 g
Weight & dimensions - Width - 249 mm
Weight Weight & dimensions - 645 g
