Brand - GIGABYTE
BrandPartCode - GV-N407TSGAMING OC-16GD
Category - Graphics Cards
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - Nvidia
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
EAN_code - 4719331354107
GTIN - 4719331354107

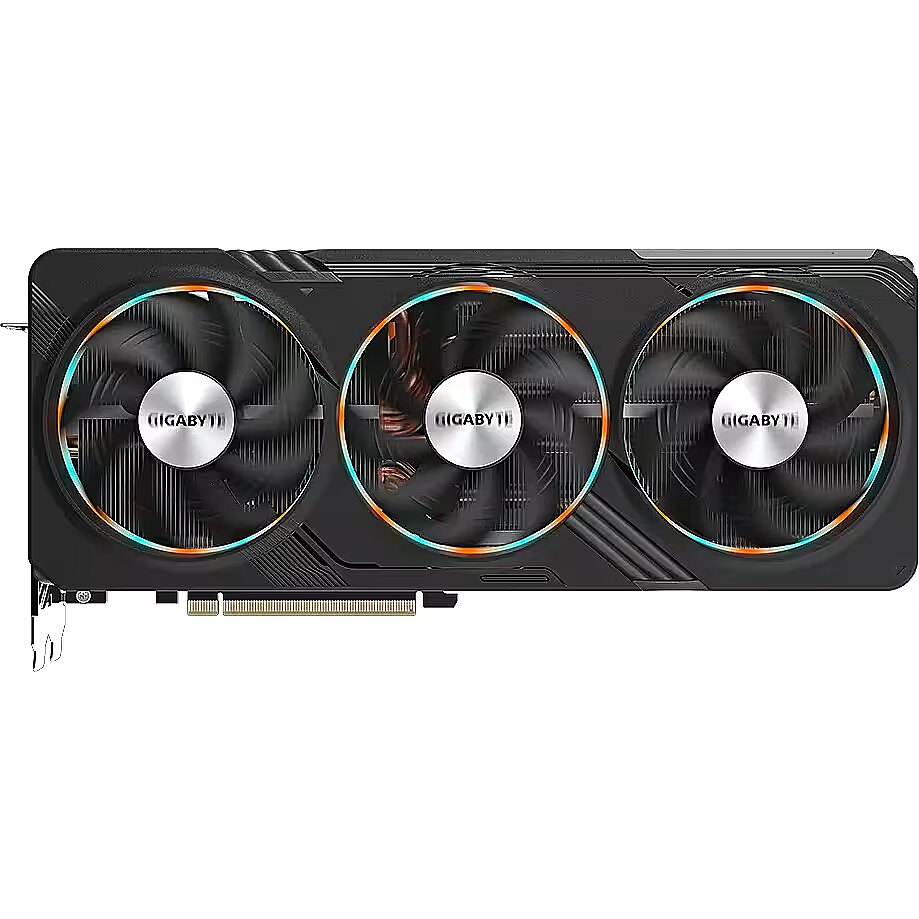

LongDesc - WINDFORCECOOLING SYSTEMThe WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipationWINDFORCECOOLING SYSTEMThe WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipationWINDFORCECOOLING SYSTEMThe WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipationALTERNATE SPINNINGReduce the turbulence of adjacent fans and increase airflow pressure.WINDFORCECOOLING SYSTEMThe WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.LARGE COPPER PLATE & HEAT-PIPEThe large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.LARGE COPPER PLATE & HEAT-PIPEThe large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.SCREEN COOLINGExtended heatsink allows air to pass through, providing better heat dissipation.RGB FUSIONThe legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER .ULTRA DURABLEUltra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.4-YEAR WARRANTYWe want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.Power Through The GameGIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.GIGABYTE CONTROL CENTERGIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
LongProductName - NVIDIA GeForce RTX 4070 Ti SUPER, 16GB GDDR6X, 256 bit, 21000MHz, PCI Express 4.0, 1 x HDMI (2.1a), 3 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6
LongSummaryDescription - GIGABYTE GAMING GeForce RTX 4070 Ti SUPER OC 16G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4070 Ti SUPER, Processor frequency: 2610 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6X, Memory bus: 256 bit, Memory clock speed: 21000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s)
Manufacturer - GigaByte
Manufacturer_code - GV-N407TSGAMING OC-16GD
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6X
Memory - Memory bandwidth (max) - 21 GB/s
Memory - Memory bus - 256 bit
Memory - Memory clock speed - 21000 MHz
Name - GigaByte GeForce RTX 4070 Ti SUPER GAMING OC 16G (DLSS 3, 3x DisplayPort, 1x HDMI 2.1a)
Packaging data - Package depth - 398 mm
Packaging data - Package height - 85 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.02 kg
Packaging data - Package width - 230 mm
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No

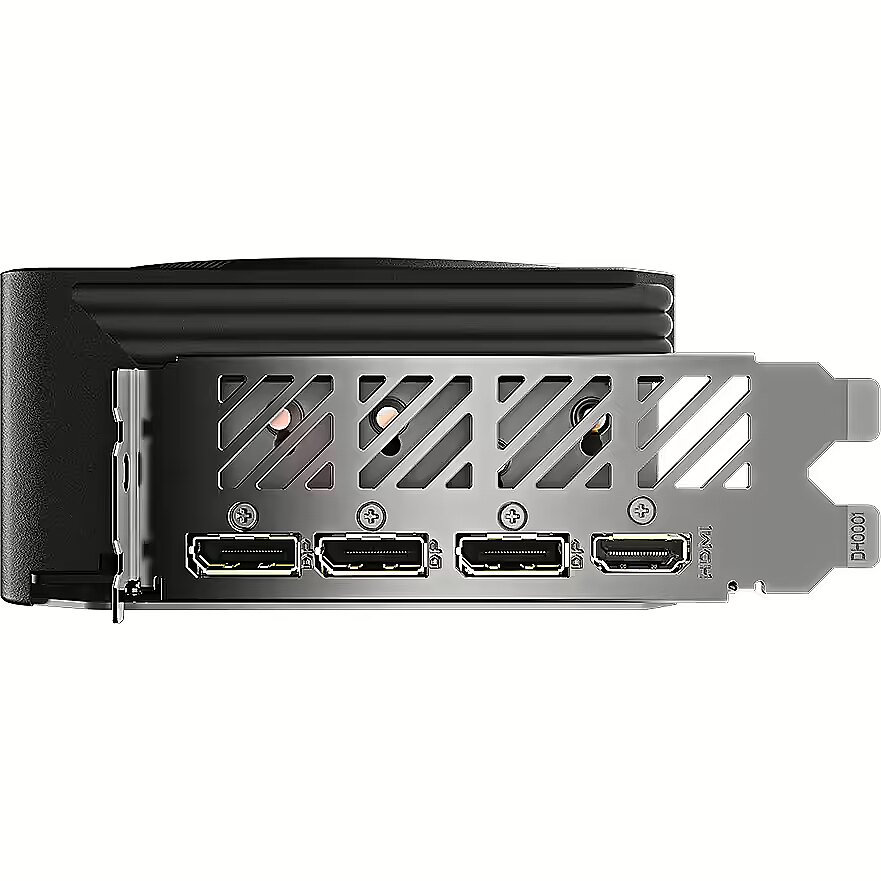

Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 750 W
Power - Supplementary power connectors - 1x 16-pin
Processor - CUDA - Yes
Processor - Graphics processor - GeForce RTX 4070 Ti SUPER
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor frequency - 2610 MHz
ProductName - GeForce RTX 4070 Ti SUPER GAMING OC 16G
ShortSummaryDescription - GIGABYTE GAMING GeForce RTX 4070 Ti SUPER OC 16G, GeForce RTX 4070 Ti SUPER, 16 GB, GDDR6X, 256 bit, 7680 x 4320 pixels, PCI Express 4.0
Technical_details - The GIGABYTE GeForce RTX 4070 Ti SUPER GAMING OC 16G is a high-end graphics card with the GeForce RTX 4070 Ti SUPER GPU from NVIDIA. The powerful GeForce RTX 40 graphics card series is based on the NVIDIA Ada architecture and offers new levels of gaming realism, speed and performance efficiency, RTX IO and realistic VR experiences. Other features include Real-Time Ray Tracing, NVIDIA Ansel, with extensive tools for creating screenshots in games as well as NVIDIA G-SYNC, G-SYNC HDR, DirectX 12 Ultimate, NVIDIA DLSS 3.5, PCI Express Gen 4, NVIDIA FreeStyle, NVIDIA ShadowPlay , NVIDIA Highlights, NVENC Gen 8, AV1 Encoder, Vulkan RT API and OpenGL 4.6. The GPU installed on the GIGABYTE GeForce RTX 4070 Ti SUPER GAMING OC 16G has 8448 CUDA cores. The 16 GB GDDR6X memory has a 256-bit memory controller. Item no.: 100034382 Graphics card type EAN 4719331354107 Manufacturer no. GV-N407TSGAMING OC-16GD Slot PCIe x16 version 4.0 occupied slots 3 GPU name NVIDIA GeForce RTX 4070 Ti SUPER with heat pipe Yes Memory capacity 16 GB (GDDR6X) Connections 1x HDMI version 2.1a, 3x Displayport version 1.4a Power supply Average consumption 285 W Cooling Cooling with fan RGB Standard RGB Fusion Special features VR Ready Yes Feature RTX IO, NVIDIA DLSS 3.5, PCI Express Gen 4, NVIDIA GeForce Experience, NVIDIA Ansel, NVIDIA FreeStyle, NVIDIA ShadowPlay, NVIDIA Highlights, NVIDIA G-SYNC, Game Ready Driver, NVIDIA Studio Driver, NVIDIA GPU Boost, NVENC Gen 8, AV1 Encoder, Vulkan RT API More information Maximum digital resolution: 7680 x 4320 Note For the power supply, a power supply with a native 16-pin connector or a power supply with 2x 8-pin PCIe for the included adapter is required Accessories available: power adapter, graphics card holder Dimensions Width: 130mm x Height: 57.6mm x Depth/Length: 300mm
Title - GIGABYTE GAMING GeForce RTX 4070 Ti SUPER OC 16G NVIDIA 16 GB GDDR6X
URL - https://www.gigabyte.com/Graphics-Card/GV-N407TSGAMING-OC-16GD#kf
WarrantyInfo - 3+1 Year (Registration required within 30 days)
Weight - 1,87
Weight & dimensions - Depth - 57.6 mm
Weight & dimensions - Height - 130 mm
Weight & dimensions - Length - 300 mm
