ARTIKEL1 - 16GB DDR4-3200MHZ NON-ECC CL22
ARTIKEL2 - DIMM 1RX8
Brand - Kingston Technology
BrandPartCode - KVR32N22S8/16
Buffered memory type Features - Unregistered (unbuffered)
CAS Latency - CL22
CAS latency Features - 22
Category - Memory Modules
Category 1 - Arbeitsspeicher
Category1 - Memory
Category Code - MEM
Category_1 - Computer Memory
Category_2 - DDR4-3000+
CnCode - 84733020
Code - KVR32N22S8/16
Component for Features - PC/Server
Country of origin Features - Taiwan
Description - Pamięć ValueRAM KVR32N22S8/16 to 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM, 1Rx8, moduł pamięci, oparty na ośmiu komponentach 2G x 8-bit FBGA.

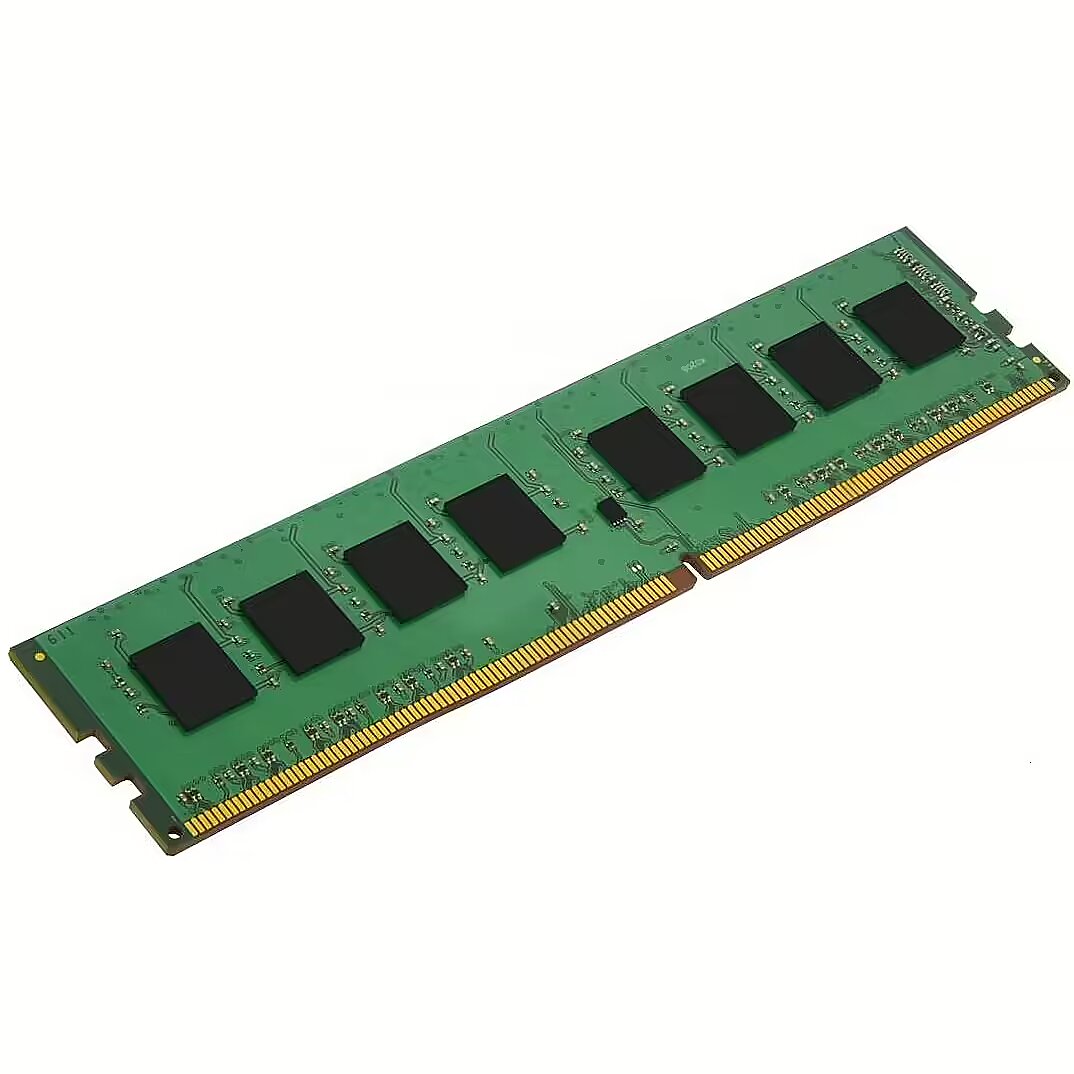

Description - ValueRAM's KVR32N22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.Power Supply: VDD = 1.2V TypicalVDDQ = 1.2V TypicalVPP = 2.5V TypicalVDDSPD = 2.2V to 3.6VNominal and dynamic on-die termination (ODT) fordata, strobe, and mask signalsLow-power auto self refresh (LPASR)Data bus inversion (DBI) for data busOn-die VREFDQ generation and calibrationSingle-rankOn-board I2 serial presence-detect (SPD) EEPROM16 internal banks; 4 groups of 4 banks eachFixed burst chop (BC) of 4 and burst length (BL) of 8via the mode register set (MRS)Selectable BC4 or BL8 on-the-fly (OTF)Fly-by topologyTerminated control command and address busPCB: Height 1.23” (31.25mm)RoHS Compliant and Halogen-Free
Description1 - Kingston ValueRAM - DDR4 - 16 GB - DIMM 288-pin - unbuffered
Description2 - ValueRAM is Kingston's value-priced line of industry-standard, generic memory intended for customers who have white box or generic computer systems, or who plan to purchase memory by specification. ValueRAM is designed to industry specifications tested, is 100% tested and is available at competitively low prices.
Designation - CE+WEEE
dimensionalWeight - 15
dimension depth - 10 mm
dimension height - 180 mm
dimension weight - 30 g
dimension width - 45 mm
EAN - 740617310863
ean - 740617310863
EAN - 0740617310863
EANCode - 0740617310863
EAN_code - 0740617310863
ECC Features - No
ECC support - No
Features - Buffered memory type - Unregistered (unbuffered)
Features - CAS latency - 22
Features - Component for - PC/Server
Features - ECC - No
Features - Internal memory - 16 GB
Features - Internal memory type - DDR4
Features - Memory clock speed - 3200 MHz
Features - Memory data transfer rate - 3200 MT/s
Features - Memory form factor - 288-pin DIMM
Features - Memory layout (modules x size) - 1 x 16 GB
GRUPPE1 - Memory & Processors
GRUPPE2 - Generic Memory
GTIN - 0740617310863
GTIN - 740617310863
guarantee - 0
guarantee_type - perpetual
Harmonized System (HS) code Logistics data - 84733020
Height Weight & dimensions - 31.2 mm
HERSTELLER - KINGSTON
HSTNUMMER - KVR32N22S8/16
Internal memory Features - 16 GB
Internal memory type Features - DDR4
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - ValueRAM's KVR32N22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
LongProductName - 16GB, DDR4, 3200MT/s, Non-ECC, CL22, 1.2V, Unbuffered, DIMM
LongSummaryDescription - Kingston Technology ValueRAM . Component for: PC/Server, Internal memory: 16 GB, Memory layout (modules x size): 1 x 16 GB, Internal memory type: DDR4, Memory form factor: 288-pin DIMM, CAS latency: 22
Manufacturer - Kingston
ManufacturerID - KVR32N22S8/16
Manufacturer_code - KVR32N22S8/16
Memory > CAS latency - CL22
Memory > Component for - PC/server
Memory > ECC - No
Memory > Internal memory type - DDR4
Memory > Memory clock speed - 3200 MHz
Memory > Memory form factor - 288-pin DIMM
Memory > Memory layout (modules x size) - 1 x 16 GB
Memory > Registered - No
Memory bus frequency - 3200 MHz
Memory data transfer rate Features - 3200 MT/s
Memory form factor Features - 288-pin DIMM
Memory layout (modules x size) Features - 1 x 16 GB
Memory type - DDR4
MPN - KVR32N22S8/16
Name - 3200 16GB Kingston
name - DDR4 16GB/3200 (1x16GB) CL22 DIMM 1Rx8
Name - Kingston DDR4 - 16 GB - 3200 - CL - 22 - Single RAM (KVR32N22S8 / 16, ValueRAM)
Name - Kingston | 16 GB | DDR4 | 3200 MHz | PC/server | Registered No | ECC No
Name - MEMORY DIMM 16GB PC25600 DDR4/KVR32N22S8/16 KINGSTON
Number of memory cards in set - 1
Other features -
Other features - Country of origin - Taiwan
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 45 mm
Package features > Gross height (mm) - 160 mm
Package features > Gross width (mm) - 10 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 24000 pc(s)
Package features > Paper/Pasteboard - 20.00 g
Package features > Plastic (No PET) - 13.00 g
Package features > Tare weight (kg) - 0.02 kg
Package features > Volume (m3) - 0.000072 m³
Package features > WEEE tax - No
PackageHeight - 10
PackageLength - 160
PackageWeight - 32
PackageWidth - 45
PDF - http://www.blobs.lt/products/6/8/2/4/3/3/8053bb53b2dced08ea44aff5726073e0/original.pdf
Performance > Capacity - 16 GB
producer - Kingston
producerCode - KVR32N22S8/16
productName - Kingston Technology KVR32N22S8/16 memory module 16 GB 1 x 16 GB DDR4 3200 MHz
ProductName - ValueRAM
Product Net Weight ELKO Logistics Data - 0.025 kg
productSize - Normal
Radiator - No
Safety warning - Warnings - Dispose of in accordance with local regulations for electronic waste.
Safety warning - Warnings - Do not open the memory module housing.
Safety warning - Warnings - Protect from extreme temperatures.
Shipping Box Depth ELKO Internal Logistics Data - 15 cm
Shipping Box Height ELKO Internal Logistics Data - 0.7 cm
Shipping Box Weight ELKO Internal Logistics Data - 0.03 kg
Shipping Box Width ELKO Internal Logistics Data - 4.5 cm
ShortSummaryDescription - Kingston Technology ValueRAM , 16 GB, 1 x 16 GB, DDR4, 288-pin DIMM
sizeX - 160
sizeY - 47
sizeZ - 10
Stck_Kart - 0
Stck_Pal - 0
Storno - N
Summary - Kingston Technology ValueRAM . Component for: PC/Server, Internal memory: 16 GB, Memory layout (modules x size): 1 x 16 GB, Internal memory type: DDR4, Memory form factor: 288-pin DIMM, CAS latency: 22
Technical details > Gross weight - 0.028 kg
Technical details > Net weight - 0.008 kg
Technical details > Producer - Kingston
Title - Kingston Technology ValueRAM memory module 16 GB 1 x 16 GB DDR4 3200 MT/s 288-pin DIMM
Total memory capacity - 16 GB
Unit Box Height - 0.007
Unit Box Length - 0.15
Unit Box Width - 0.045
Unit Calculated Volume ELKO Internal Logistics Data - 4.725E-05 cubm
Unit Calculated Weight ELKO Logistics Data - 0.03 kg
Unit Depth ELKO Logistics Data - 15 cm
Unit Height ELKO Logistics Data - 0.7 cm
Units per Shipping Box ELKO Logistics Data - 1
Unit Width ELKO Logistics Data - 4.5 cm
UPC - 740617310863
URL - https://www.kingston.com/en
Vendor Homepage - https://www.kingston.com/en
vendpn - KVR32N22S8/16
Warranty - 60
Warranty - 60 month(s)
Warranty - X months
WarrantyInfo -
warrantyType - W
WEEE - DE83654239
Weight - 0,03
Weight - 0.027
weight - 30
Weight & dimensions - Height - 31.2 mm
Weight & dimensions - Width - 133.3 mm
Width Weight & dimensions - 133.3 mm
