Backlight Features - No
Box Weight Brutto (kg) - 0.8 kg
Brand - Kingston Technology
BrandPartCode - KVR26N19S6/4
Buffered memory type Features - Unregistered (unbuffered)
CAS Latency - CL19
CAS latency Features - 19
Category - Memory Modules
Category - Root/Electronics/PC parts/RAM
Category 1 - Arbeitsspeicher
Category1 - Memory
Category Code - MEM
CnCode - 84733020
Code - KVR26N19S6/4
Compatible products Features - 370 ROG STRIX H370-F GAMING
D840MA Desktop Series
D840MB Desktop Series
D840SA Desktop Series
PRIME B350 - PLUS
PRIME B350-PLUS
PRIME B350M - A
PRIME B350M-A
PRIME B350M-A/CSM
PRIME B360-PLUS/CSM
PRIME B360M-A
PRIME B360M-C/CSM
PRIME B360M-K
PRIME B450
Compliance certificates Sustainability - RoHS
Compliant Devices - PC Other
Component for Features - PC/Server
Cooling type Features - Heatsink
Country of origin Features - Taiwan

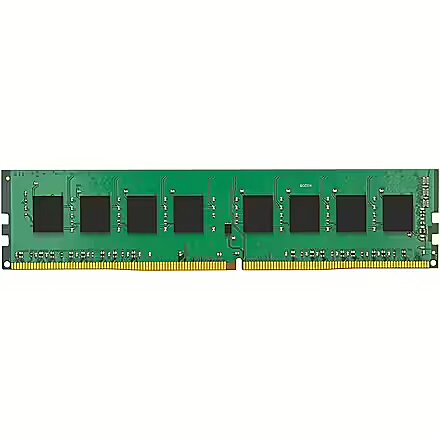

Description - ValueRAM's KVR26N19S6/4 is a 512M x 64-bit (4GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 512M x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.Power Supply: VDD = 1.2V TypicalVDDQ = 1.2V TypicalVPP = 2.5V TypicalVDDSPD = 2.2V to 3.6VNominal and dynamic on-die termination (ODT) for data, strobe, and mask signalsLow-power auto self refresh (LPASR)Data bus inversion (DBI) for data busOn-die VREFDQ generation and calibrationSingle-rankOn-board I2 serial presence-detect (SPD) EEPROM8 internal banks; 2 groups of 4 banks eachFixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)Selectable BC4 or BL8 on-the-fly (OTF)Fly-by topologyTerminated control command and address busPCB: Height 1.23” (31.25mm)RoHS Compliant and Halogen-Free
Description1 - Kingston RAM ValueRAM - 4 GB - DDR4 2666 DIMM CL19
Description2 - ValueRAM is Kingston's value-priced line of industry-standard, generic memory intended for customers who have white box or generic computer systems, or who plan to purchase memory by specification. ValueRAM is designed to industry specifications tested, is 100% tested and is available at competitively low prices.
Doesn't contain Sustainability - Halogen
EAN - 740617282733
EAN - 0740617282733
EAN Code - 740617282733
Eans - 740617282733
ECC Features - No
Features - Backlight - No
Features - Buffered memory type - Unregistered (unbuffered)
Features - CAS latency - 19
Features - Compatible products - 370 ROG STRIX H370-F GAMING
D840MA Desktop Series
D840MB Desktop Series
D840SA Desktop Series
PRIME B350 - PLUS
PRIME B350-PLUS
PRIME B350M - A
PRIME B350M-A
PRIME B350M-A/CSM
PRIME B360-PLUS/CSM
PRIME B360M-A
PRIME B360M-C/CSM
PRIME B360M-K
PRIME B450-PLUS
PRIME B450M-A
PRIME B450M-A/CSM
PRIME H310-PLUS
PRIME H310I-PLUS/CSM
PRIME H310M-A
PRIME H310M-A/CSM
PRIME H310M-C/CSM
PRIME H310M-D
PRIME H310M-E
PRIME H310M-K
PRIME H370-A/CSM
PRIME H370-PLUS
PRIME H370-PLUS/CSM
PRIME H370M-PLUS
PRIME H370M-PLUS/CSM
PRIME X370-A
PRIME X470-PRO
ROG CROSSHAIR VI EXTREME
ROG CROSSHAIR VI HERO
ROG CROSSHAIR VII HERO
ROG CROSSHAIR VII HERO (WI-FI AC)
ROG CROSSHAIR VII HERO (WI-FI)
ROG MAXIMUS X CODE
ROG MAXIMUS X FORMULA
ROG MAXIMUS X HERO (WI-FI AC)
ROG MAXIMUS X HERO
ROG STRIX B360-F GAMING
ROG STRIX B360-G GAMING
ROG STRIX B360-H GAMING
ROG STRIX B360-H GAMING/OPTANE
ROG STRIX B360-I GAMING
ROG STRIX B450-F GAMING
ROG STRIX GL12CM
ROG STRIX GL12CP
ROG STRIX H370-I GAMING
ROG STRIX X470-F GAMING
ROG STRIX X470-I GAMING
TUF B350M-PLUS GAMING
TUF B360-PLUS GAMING
TUF B360-PRO GAMING (WI-FI)
TUF B360M-PLUS GAMING
TUF B450M-PLUS GAMING
TUF H310-PLUS GAMING
TUF H310M-PLUS GAMING
TUF H370-PRO GAMING (WI-FI)
TUF X470-PLUS GAMING
X370 PRIME X370-A
X370 PRIME X370-PRO
X370 STRIX X370-F GAMING
Z370 PRIME Z370-A
Z370 PRIME Z370-P
Z370 ROG MAXIMUS X APEX
Z370 ROG STRIX Z370-E GAMING
Z370 ROG STRIX Z370-F GAMING
Z370 ROG STRIX Z370-G GAMING
Z370 ROG STRIX Z370-G GAMING (WI-FI AC)
Z370 ROG STRIX Z370-H GAMING
Z370 ROG STRIX Z370-I GAMING
Z370 TUF Z370-PLUS GAMING
Z370 TUF Z370-PRO GAMING
B360 AORUS GAMING 3
B360 AORUS GAMING 3 WIFI
B360 HD3
B360 HD3P
B360M AORUS GAMING 3
B360M D3H
B360M D3P
B360M DS3H
B360M HD3
H370 AORUS GAMING 3
H370 AORUS GAMING 3 WIFI
H370 HD3
H370M D3H GSM
H370M D3H
H370M DS3H
H370N WIFI
Z370 AORUS Gaming 3
Z370 AORUS Gaming 5
Z370 AORUS Gaming 7
Z370 AORUS Gaming 7-OP
Z370 AORUS Gaming K3
Z370 AORUS GAMING WIFI
Z370 AORUS Ultra Gaming 2.0
Z370 AORUS Ultra Gaming 2.0-OP
Z370 AORUS Ultra Gaming
Z370 AORUS Ultra Gaming WIFI
Z370 AORUS Ultra Gaming WIFI-OP
Z370M D3H
Z370M DS3H
Z370P D3
Z370XP SLI
XPC SH370R6
Features - Component for - PC/Server
Features - Cooling type - Heatsink
Features - ECC - No
Features - Internal memory - 4 GB
Features - Internal memory type - DDR4
Features - JEDEC standard - Yes
Features - Lead plating - Gold
Features - Memory channels - Single-channel
Features - Memory data transfer rate - 2666 MT/s
Features - Memory form factor - 288-pin DIMM
Features - Memory layout (modules x size) - 1 x 4 GB
Features - Memory ranking - 1
Features - Memory voltage - 1.2 V
Features - Module configuration - 512M x 64
Features - Product colour - Berry, Green
Features - Programming power voltage (VPP) - 1.2 V
Features - Refresh row cycle time - 350 ns
Features - Row active time - 32 ns
Features - Row cycle time - 45.75 ns
GTIN - 740617282733
GTIN - 0740617282733
Harmonized System (HS) code Logistics data - 84733020
Height (mm) - 31.25 mm
Height Weight & dimensions - 31.2 mm
Internal memory Features - 4 GB
Internal memory type Features - DDR4
JEDEC standard Features - Yes
Lead plating Features - Gold
Linux operating systems supported Features - Yes
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - ValueRAM's KVR26N19S6/4 is a 512M x 64-bit (4GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 512M x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
LongProductName - 4GB DDR4, 2666MT/s, Non-ECC, CL19, 1.2V, Unbuffered, DIMM
LongSummaryDescription - Kingston Technology ValueRAM . Component for: PC/Server, Internal memory: 4 GB, Memory layout (modules x size): 1 x 4 GB, Internal memory type: DDR4, Memory form factor: 288-pin DIMM, CAS latency: 19, Product colour: Berry, Green
Mac operating systems supported Features - Yes
Manufacturer - Kingston
ManufacturerID - KVR26N19S6/4
Maximum Non-Operating Ambient Temperature - 100 °C
Maximum Operating Ambient Temperature - 85 °C
Memory > Component for - PC/server
Memory > ECC - No
Memory > Internal memory type - DDR4
Memory > Memory clock speed - 2666 MHz
Memory > Memory form factor - 288-Pin DIMM
Memory > Memory voltage - 1.2 V
Memory > Registered - No
Memory channels Features - Single-channel
Memory data transfer rate Features - 2666 MT/s
Memory Features - Unbuffered Single Rank ODT SPD EEPROM
Memory Form Factor - DIMM 288-pin
Memory form factor Features - 288-pin DIMM
Memory layout (modules x size) Features - 1 x 4 GB
Memory Module Configuration - 512 x 64
Memory Modules Quantity - 1
Memory ranking Features - 1
Memory Speed - 2666MHz(PC4-21300)
Memory Technology - DDR4 SDRAM
Memory voltage Features - 1.2 V
Minimum Non-Operating Ambient Temperature - -55 °C
Minimum Operating Ambient Temperature - 0 °C
Module configuration Features - 512M x 64
MPN - KVR26N19S6/4
Name - 2666 4GB Kingston ValueRAM
Name - Kingston 4GB [1x4GB 2666MHz DDR4 Non-ECC CL19 DIMM 1Rx16]
Name - Kingston | 4 GB | DDR4 | 2666 MHz | PC/server | Registered No | ECC No
Name - MEMORY DIMM 4GB PC21300 DDR4/KVR26N19S6/4 KINGSTON
Nominal Supply Voltage - 1.2 V
Operating temperature (T-T) Operational conditions - 0 - 85 °C
Operational conditions - Operating temperature (T-T) - 0 - 85 °C
Operational conditions - Storage temperature (T-T) - -55 - 100 °C
Other features - Country of origin - Taiwan
Other features - Doesn't contain - Halogen
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 45 mm
Package features > Gross height (mm) - 160 mm
Package features > Gross weight - 0.028 kg
Package features > Gross width (mm) - 10 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 24000 pc(s)
Package features > PET - 10.00 g
Package features > Tare weight (kg) - 0.01 kg
Package features > Volume (m3) - 0.000072 m³
Package features > WEEE tax - No
PackageHeight - 8
PackageLength - 158
Package Type - Retail
PackageWeight - 31.6
PackageWidth - 47
Packs in Box - 25
Pack Weight Brutto (kg) - 0.03 kg
Pack Weight Netto (kg) - 0.05 kg
Performance > Capacity - 4 GB
Pieces in pack - 1
Producer - Kingston
ProducerCode - KVR26N19S6/4
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=180628110231899389&THEME=asbis&LANG=lv
ProductCategory - Atmiņa
ProductCode - KVR26N19S6/4
Product colour Features - Berry, Green
ProductDescription - Kingston DRAM 4GB 2666MT/s DDR4 Non-ECC CL19 DIMM 1Rx16
ProductName - ValueRAM
Product Net Weight ELKO Logistics Data - 0.02 kg
ProductType - Memory Desktop
Programming power voltage (VPP) Features - 1.2 V
Provides Error Checking Method - Non-ECC
Refresh row cycle time Features - 350 ns
Retail Packaging Net Weight Carton - 0.03 kg
Retail Packaging Net Weight Plastic - 0.03 kg
Row active time Features - 32 ns
Row cycle time Features - 45.75 ns
Shipping Box Depth ELKO Internal Logistics Data - 16 cm
Shipping Box Height ELKO Internal Logistics Data - 0.8 cm
Shipping Box Weight ELKO Internal Logistics Data - 0.03 kg
Shipping Box Width ELKO Internal Logistics Data - 4.5 cm
ShortDescription - 4GB | 1x4GB | 2666MHz | DDR4 | CL19 | DIMM | 1.2V
ShortSummaryDescription - Kingston Technology ValueRAM , 4 GB, 1 x 4 GB, DDR4, 288-pin DIMM, Berry, Green
Software - Linux operating systems supported - Yes
Software - Mac operating systems supported - Yes
Software - Windows operating systems supported - Yes
Storage Capacity - 4 GB
Storage temperature (T-T) Operational conditions - -55 - 100 °C
Summary - Kingston Technology ValueRAM . Component for: PC/Server, Internal memory: 4 GB, Memory layout (modules x size): 1 x 4 GB, Internal memory type: DDR4, Memory form factor: 288-pin DIMM, CAS latency: 19, Product colour: Berry, Green
Sustainability - Compliance certificates - RoHS
Technical details > Net weight - 0.018 kg
Technical details > Producer - Kingston
Technical details > Warranty - 60 month(s)
Title - Kingston Technology ValueRAM memory module 4 GB 1 x 4 GB DDR4 2666 MT/s 288-pin DIMM
Total Storage Capacity - 4 GB
TRAS - 32
TRCD - 19
TRP - 19
Unit Box Height - 0.008
Unit Box Length - 0.16
Unit Box Width - 0.045
Unit Calculated Volume ELKO Internal Logistics Data - 5.76E-05 cubm
Unit Calculated Weight ELKO Logistics Data - 0.03 kg
Units per Shipping Box ELKO Logistics Data - 1
UPC - 740617282733
URL - https://www.kingston.com/en
Vendor - KINGSTON
Vendor Homepage - https://www.kingston.com/en
Warranty - 60
Warranty - X months
WarrantyInfo - Lifetime
Warranty Products Returnable - Yes
Warranty Term (month) - 99999 mēneši
Warranty validation Criteria - Serial Number
WEEE - DE83654239
Weight - 0.025
Weight & dimensions - Height - 31.2 mm
Weight & dimensions - Width - 133.3 mm
Width Weight & dimensions - 133.3 mm
Windows operating systems supported Features - Yes
