Brand - Cudy
BrandPartCode - GS1005PTS1
Category - Network Switches
Category1 - Network
Data transmission - Forwarding rate - 8.929 Mpps
Data transmission - Jumbo frames - 9216
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 2048 entries
Data transmission - Packet buffer memory - 0.125 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 12.5 Gbit/s
Description1 - Adapter Cudy GS1005PTS1 Switch 5-Port
Design - Housing material - Metal
Design - LED indicators - Activity, Link, Power
Design - Product colour - Black
Design - Rack mounting - Yes
Design - Wall mountable - Yes
EAN - 6971690791704
GTIN - 6971690791704
Logistics data - Country of origin - China
Logistics data - Master (outer) case height - 402 mm
Logistics data - Master (outer) case length - 320 mm
Logistics data - Master (outer) case net weight - 19 kg
Logistics data - Master (outer) case width - 505 mm
Logistics data - Products per master (outer) case - 20 pc(s)

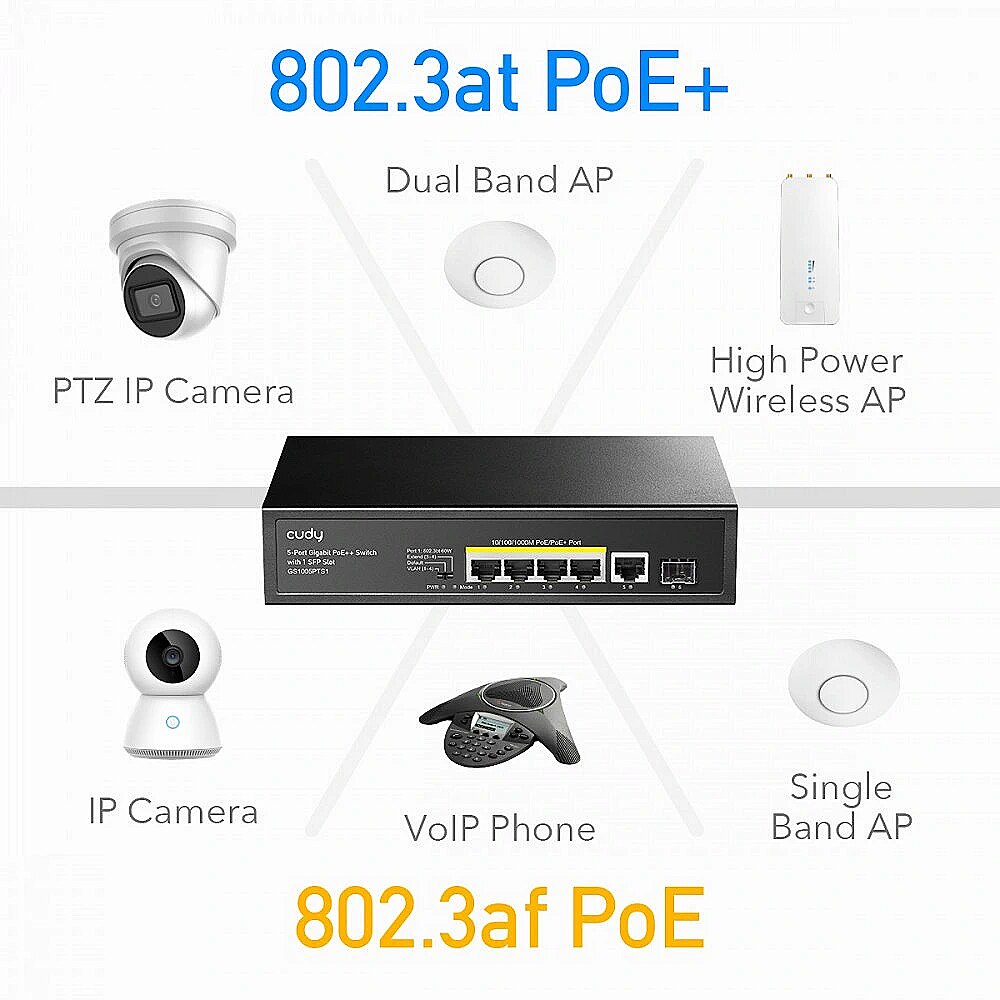

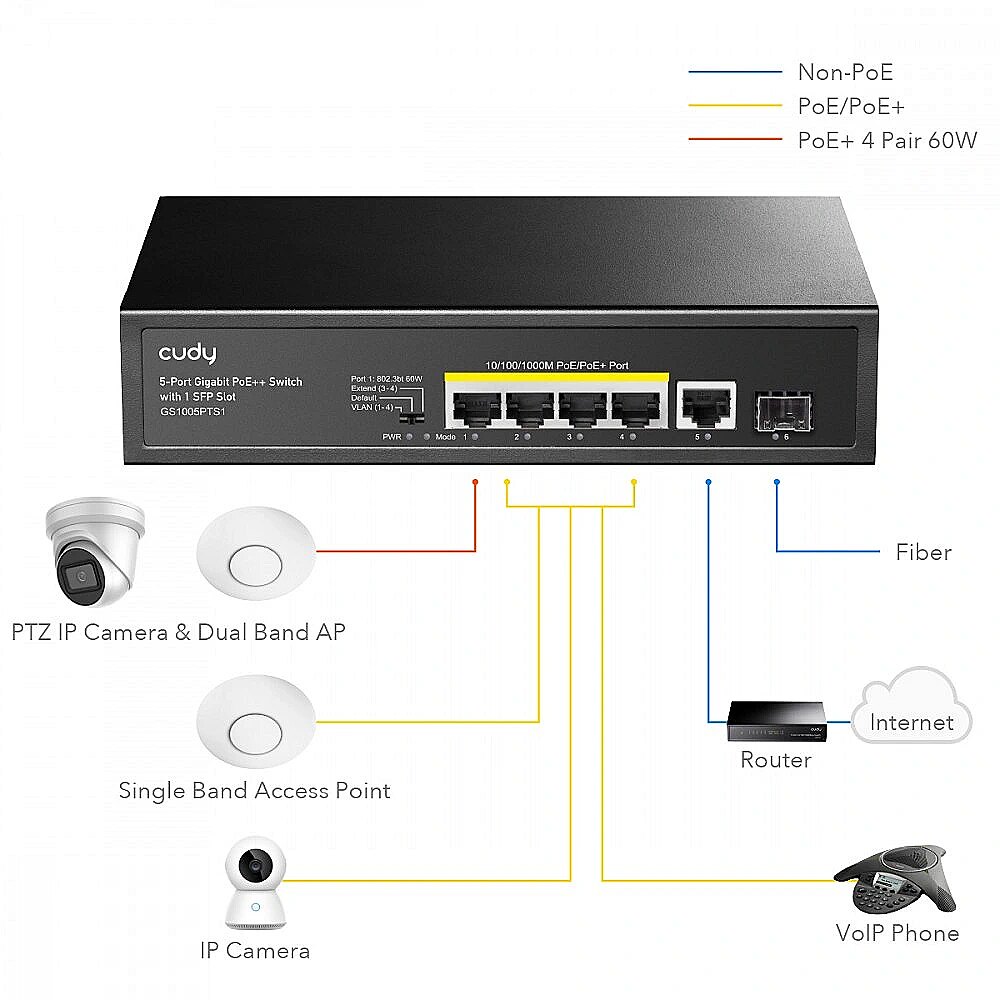

LongDesc - Reliable PoE for 24/7 Consistent OperationIEEE 802.3at/af with 60W Port Enhancement.Port 1 delivers up to 60W and the other PoE ports delivers up to 30W of power, making it suitable for camera with heater, access points, IP cameras, digital signage, and most other PoE devices.PoE Auto RecoveryTurn on the Watchdog function to monitor port activity. If a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.Streamlined PoE Management Loved by InstallersBuilt-In Modes for Practical Use CasesVLAN Isolates Downlink Ports for Improved SafetyTurn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.Extend for 250 m TransmissionFor long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.Exceptional Built-Quality for Stable OperationBuild Robust Systems with Outstanding EMCImproves service reliability and reduces downtime caused by power surges and ESD.ESD: Contact 6kV; Air 8kVSurge: Power DM 2kV, CM 4kV; RJ45 CM 4kVShielded Ports. Solid Metal Casing.Ensures stable operation with Ethernet ports shielded with nickel-plated cooper alloy and robust SPCC metal casing.Versatile ScenariosSurveillanceOffice NetworkingCampuses Wi-FiAccesses and Signages

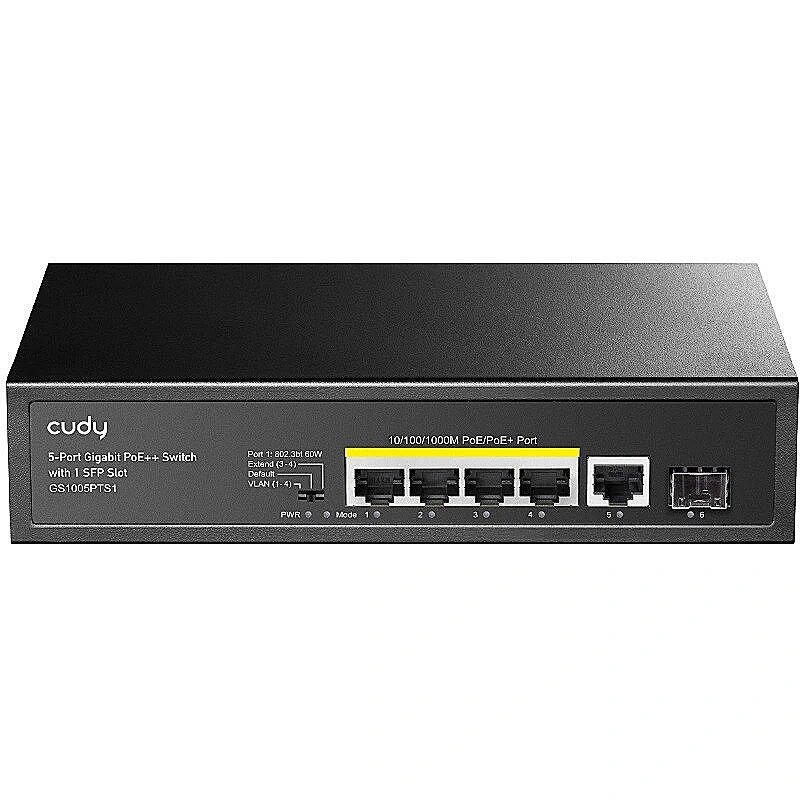

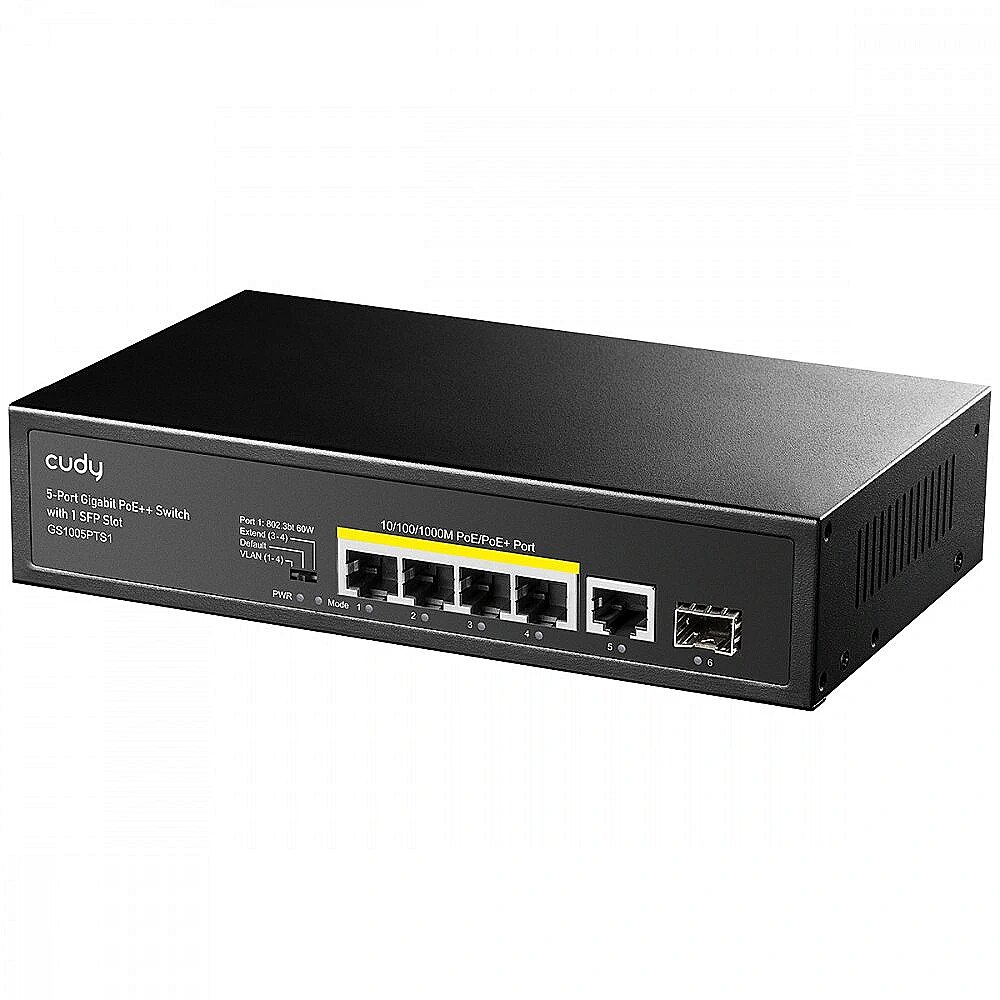

LongProductName - 5-Port Gigabit Easy-Managed PoE+ Switch with 1 SFP
LongSummaryDescription - Cudy GS1005PTS1. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Switching optical modules type: Gigabit Ethernet. Full duplex. MAC address table: 2048 entries, Switching capacity: 12.5 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power connector: AC-in jack. Power over Ethernet (PoE). Wall mountable, Rack mounting
Management features - Cloud-managed - No
Management features - Quality of Service (QoS) support - Yes
Manufacturer - Cudy
ManufacturerID - GS1005PTS1
Network - Cable types supported - Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX, 1000BASE-TX
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Network - VLAN support - Yes
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Optical fiber - Switching optical modules type - Gigabit Ethernet
Other features - Warranty period - 1 year(s)

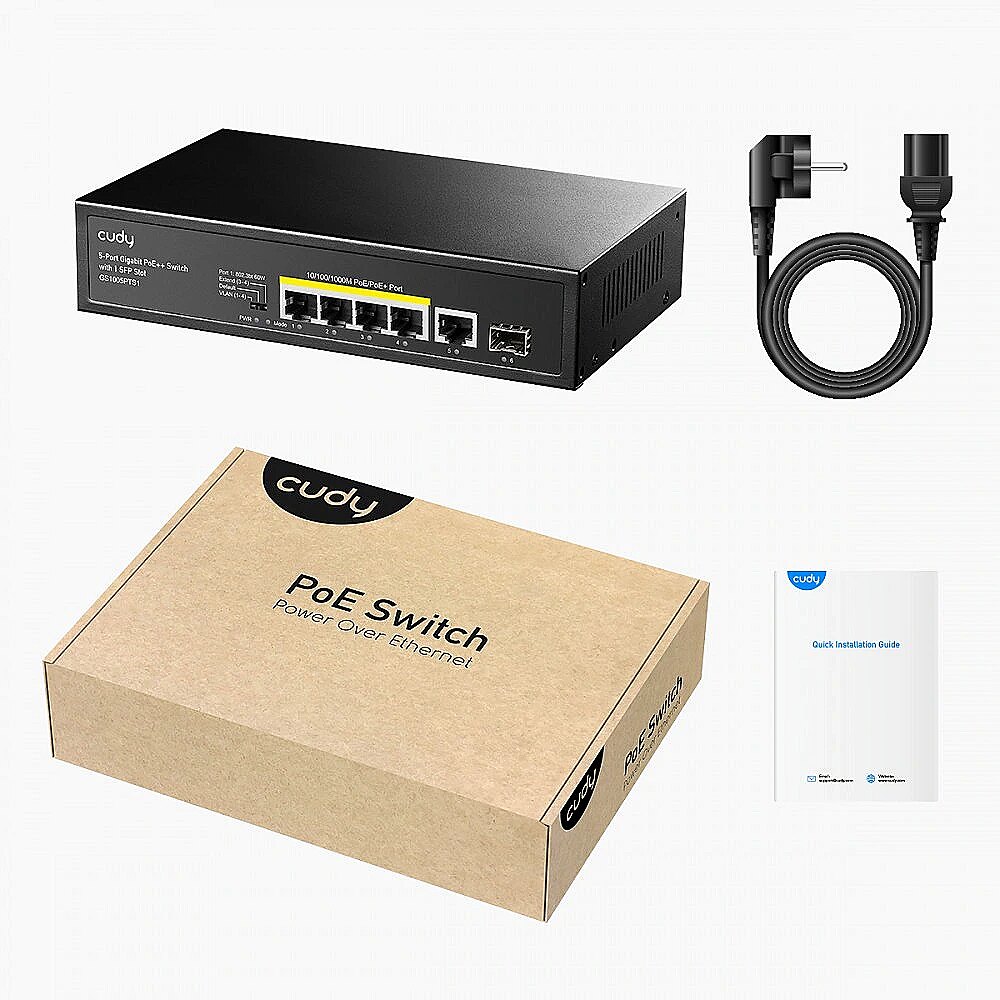

Packaging content - Cables included - AC
Packaging content - Manual - Yes
Packaging data - Package depth - 190 mm
Packaging data - Package height - 60 mm
Packaging data - Package type - Box
Packaging data - Package weight - 952 g
Packaging data - Package width - 245 mm
Performance - Fanless - Yes
Performance - Flash memory - 8 MB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Plug and Play - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 5
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Power connector - AC-in jack
Ports & interfaces - SFP module slots quantity - 1
Ports & interfaces - Uplink ports quantity - 1
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Input current - 1.25 A
Power - Output current - 1.25 A
Power - Output voltage - 52 V
Power - Power consumption (max) - 120 W
Power - Power source - AC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 3
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 1
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 120 W
ProductName - GS1005PTS1
Security - Password protection - Yes
ShortSummaryDescription - Cudy GS1005PTS1, Gigabit Ethernet (10/100/1000), Gigabit Ethernet, Full duplex, Power over Ethernet (PoE), Rack mounting, Wall mountable
Title - Cudy GS1005PTS1 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
URL - https://www.cudy.com/en-eu/products/gs1005pts1-2-0?_pos=1&_psq=GS1005PTS1&_ss=e&_v=1.0#features
WarrantyInfo -
WEEE - DE46285170
Weight & dimensions - Depth - 145 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 645 g
Weight & dimensions - Width - 200 mm
