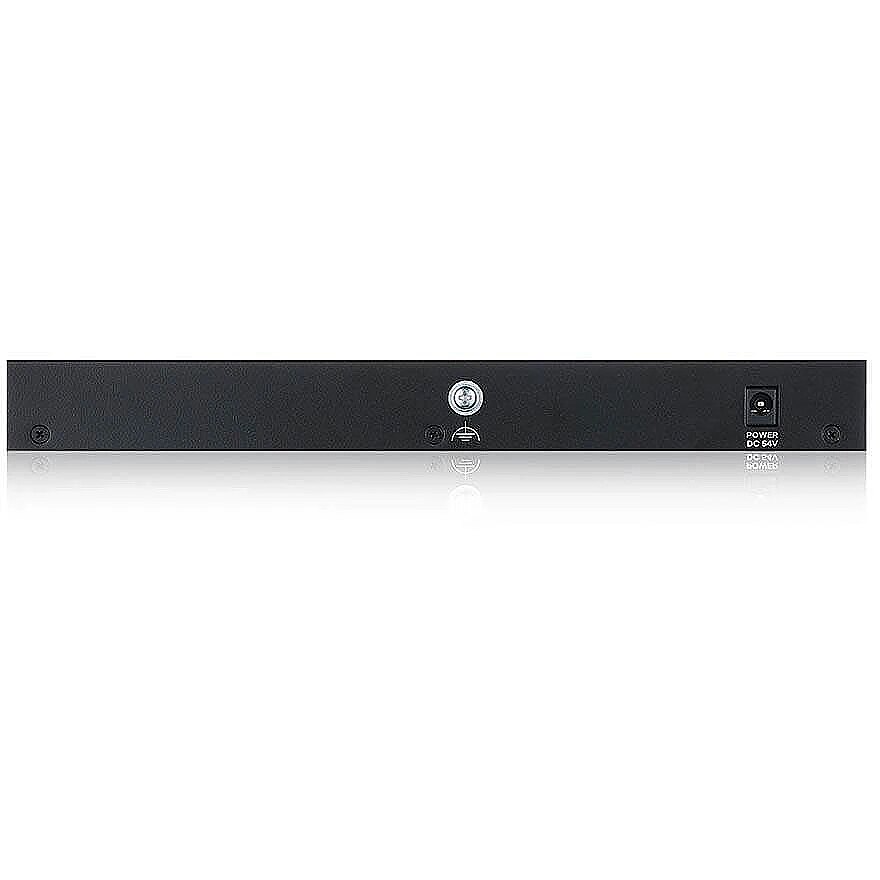

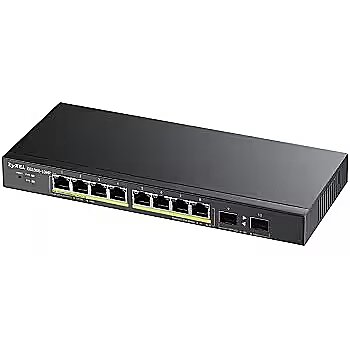

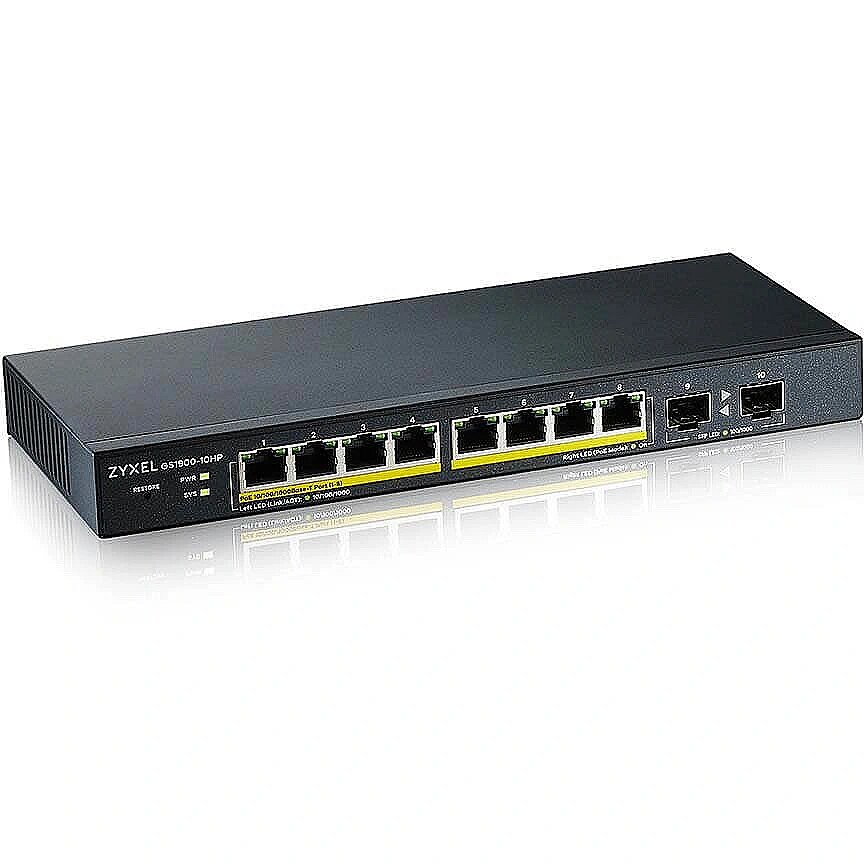

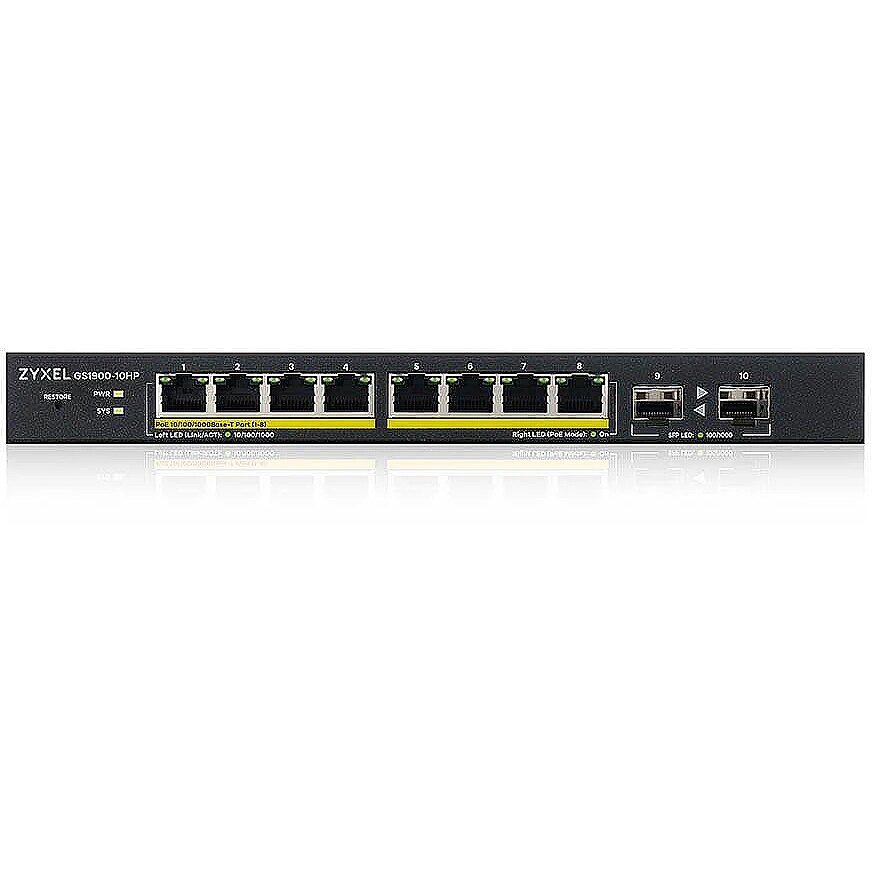

Zyxel GS1900-10HP, 8-PORT POE + 2 SFP

Accessories included - Kabel zasilający Zasilacz Zestaw do montażu na ścianie
Application - Home and small office
Auto MDI/MDI-X - Yes
Brand - Zyxel
BrandPartCode - GS1900-10HP-EU0102F
Broadcast storm control - Yes
Cabling technology - 10/100/1000 Base-T(X)
Category - Network Switches
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates - Certification - CE, FCC, RCM, Class A, BSMI CNS 13438, LVD EN 62368-1, BSMI CNS 14336-1
Certification - CE, FCC, C-Tick, Class B, BSMI CNS13438
Chassis type - Rack
Colour of product - Black
Data transmission - Jumbo frames - 9000
Data transmission - MAC address table - 8000 entries
Data transmission - Switching capacity - 20 Gbit/s
Data transmission - Throughput - 14.88 Mpps
Description - Przełącznik GS1900-10HP v2 8port L2 PoE 2xSFP 70W 802.3at
Description - ZYXEL GS1900-10HP V2, 8-PORT GBE L2 POE SMART SWITCH + 2 SFP SLOTS, 802.3AT, DESKTOP, FANLESS, 70 WATT (5Y WARRANTY)
Design - Certification - CE, FCC, RCM, Class A, BSMI CNS 13438, LVD EN 62368-1, BSMI CNS 14336-1
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - No
Design - Wall mountable - Yes
Designation - CE+WEEE
dimensionalWeight - 966
dimension depth - 65 mm
dimension height - 225 mm
Dimensions - 250 x 104 x 27 mm
Dimensions W x D x H, mm - 250 x 104 x 27
dimension weight - 1460 g
dimension width - 300 mm
ean - 4718937621200
EAN - 4718937621200
EAN_code - 4718937621200
Ethernet LAN (RJ-45) PoE ports quantity - 8
Fan - No
Forwarding rate - 14.88 Mpps
GTIN - 4718937621200
guarantee - -1
guarantee_type - external
Height - 225.000000
IGMP snooping - Yes
Jumbo frame size - 9 KB
Jumbo Frames support - Yes
L2 features -
L3 features -
Length - 65.000000
LongDesc - Near silent operationThe GS1900 Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.Intelligent PoE+ powers more devicesPoE models (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption mode which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.Speedy Gigabit performance—built for SMBsThe GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade from an unmanaged switch, it’s a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.
LongProductName - 8-port, GbE, Managed, PoE, GbE Uplink, Switching capacity (Gbps) 20, SFP 100/1000 Mbps x 2
LongSummaryDescription - Zyxel GS1900-10HP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE.... Power over Ethernet (PoE). Wall mountable
MAC address filtering - Yes
MAC address table, entries - 8000
MAC address table size - 8000
Management, monitoring, configuration -
Management features - MIB support - RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9), RFC 1215 generic traps, RFC 1493 bridge
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Managed
Management features - System event log - Yes
Management features - Web-based management - Yes
Management protocols - SNMP v1, v2, v3, RMON (1, 2, 3, 9)
Manufacturer - Zyxel
ManufacturerPartNumber - GS1900-10HP-EU0102F
Manufacturer_code - GS1900-10HP-EU0102F
Maximum data transfer rate, Gbit/s - 1
Mean time between failures (MTBF) - 800259 h
MIB support - RFC 1213, RFC 2819, RFC 1215, RFC 1493
MPN - GS1900-10HP-EU0102F
Name - 8+2P Zyxel GS1900-10HP V2 POE M
name - Switch GS1900-10HP v2 8port L2 PoE 2xSFP 70W 802.3at
Name - Zyxel GS1900-10HP V2, Switch (black, fanless)
Network - 10G support - No
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-T, 1000BASE-T
Network - Copper ethernet cabling technology - 100BASE-T
Network - Copper ethernet cabling technology - 1000BASE-T
Network - Networking standards - IEEE 802.1D
Network - Networking standards - IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Network - Networking standards - IEEE 802.1p
Network - Networking standards - IEEE 802.1s
Network - Networking standards - IEEE 802.1w
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3az
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - Virtual LAN features - Voice VLAN
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Networking standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Number of 10/100/1000 Mbps ports - 8
Number of PoE ports (PoE & PoE+) - 8
Number of SFP ports - 2
Operational conditions - Operating relative humidity (H-H) - 10 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other functions -
Packaging content - Cables included - AC
Packaging data - Cables included - AC
Packet buffer - 525 KB
Packet transfer speed - 11.9 Mpps
Performance - Mean time between failures (MTBF) - 800259 h
PeriodofWarranty - 5 Y
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Console port - RJ-45
Ports & interfaces - SFP module slots quantity - 2
Ports quantity - 10
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 95.3 W
Power - Power source - AC
Power - Power supply included - Yes
Power consumption - 95.3 W
Power consumption, W - 90
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 8
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 77 W
Power over Ethernet (PoE) Support - Yes
Power supply - 100 - 240 V AC, 50/60 Hz Całkowity budżet PoE 77W
producer - Zyxel
producerCode - GS1900-10HP-EU0102F
ProductName - GS1900-10HP
productName - Zyxel GS1900-10HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
productSize - Normal
Protocols - Management protocols - SNMP, RMON, ICMP, Syslog
QoS -
Quality of Service (QoS) support - Yes
Safety - LVD EN60950-1, BSMI CNS14336-1
Security -
Security - DHCP features - DHCP client
Security - IGMP snooping - Yes
Security - MAC address filtering - Yes
Security - Security algorithms - 802.1x RADIUS
Security - Security algorithms - 802.1x RADIUS, SSL/TLS
Security - Security algorithms - SSL/TLS
Security algorithms supported - RADIUS, TACACS+
SFP slots quantity - 2
Short summary - The ZyXEL GS1900 Series is equipped with advanced management features to make the network stable and secure: loop protection that prevents network flooding, dual images to provide a backup FW if one crashes and storm control to ensure network efficiency, friendly on/off DoS with simple click to enable/disable instead of several setup pages, while SSL ensures the management frames are well encrypted when the device is accessed. The GS1900 Series provides network error prevention features and integrated network security for reduced risk and improved data streaming.
ShortSummaryDescription - Zyxel GS1900-10HP, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable
sizeX - 300
sizeY - 230
sizeZ - 70
SSH/SSL support - Yes
Supported protocols and standards -
Support for Jumbo frames - Yes
Switch class - SMART
Switching capacity, Gbit/s - 16
Switch layer - L2
Switch type - Managed
Throughput - 20 Gb/s
Title - Zyxel GS1900-10HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
URL - https://www.zyxel.com/
vendpn - GS1900-10HP-EU0102F
VLAN -
WarrantyInfo -
warrantyType - W
Weight - 0.72 kg
Weight - 1,49
Weight - 1.503
Weight - 1.480000
weight - 1470
Weight & dimensions - Depth - 104 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Weight - 720 g
Weight & dimensions - Width - 250 mm
Weight, g - 720
Width - 306.000000
