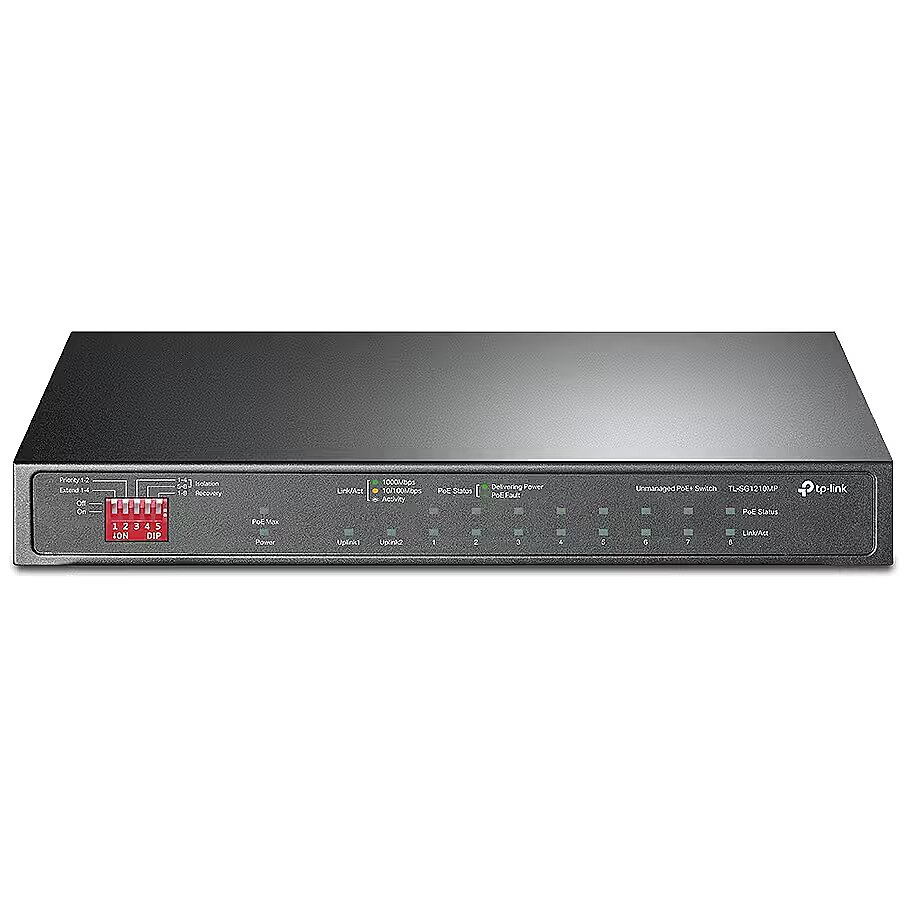

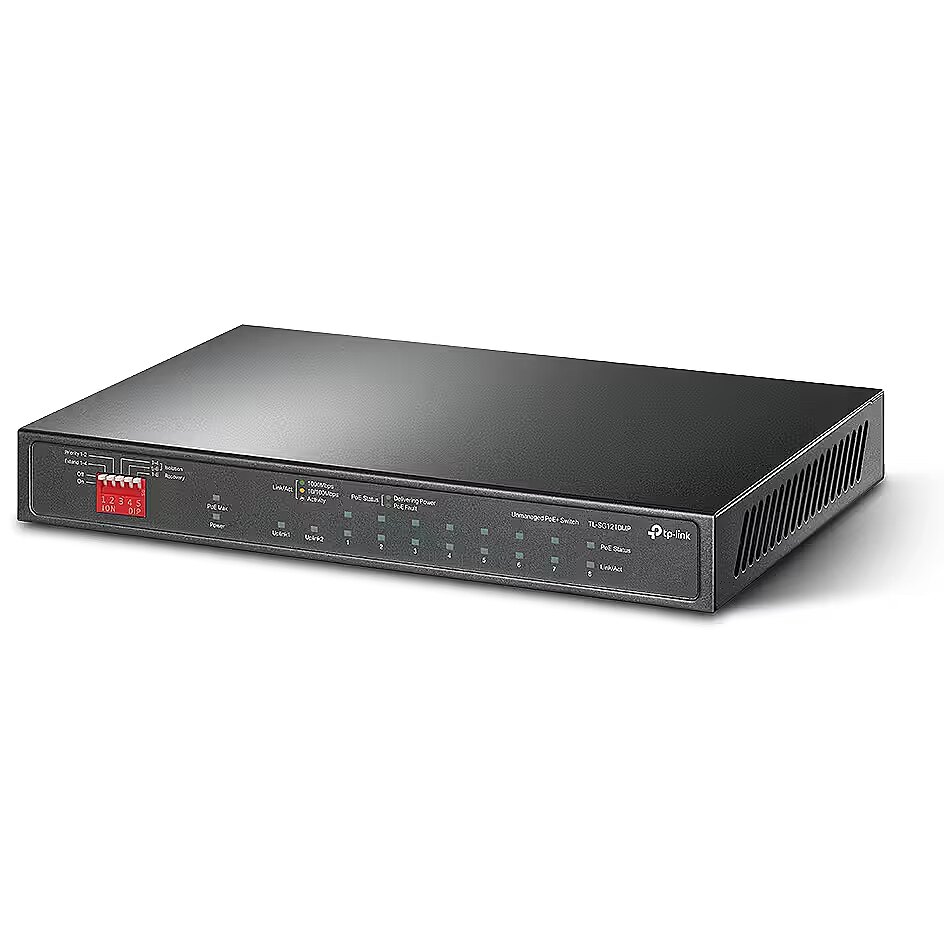

TP-LINK TL-SG1210MPE, 10-Port 8-Port PoE+

10G support Network - No
ARTIKEL1 - 10-PORT POE GIGABIT SWITCH
ARTIKEL2 - DESKTOP WITH 8-PORT POE+
Auto-negotiation Network - Yes
Auto MDI/MDI-X Network - Yes
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 9
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Gigabit Ethernet (10/100/1000)
Brand - TP-Link
BrandPartCode - TL-SG1210MP
Breite - 0.25
Cable types supported Network - Cat3, Cat4, Cat5, Cat5e
Category - Network Switches
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates - Certification - CE, FCC
Certification Certificates - CE, FCC
Code - TL-SG1210MP
Combo SFP ports quantity Ports & interfaces - 1
Copper ethernet cabling technology Network - 10BASE-T, 100BASE-TX
Data transmission - MAC address table - 4000 entries
Data transmission - Packet buffer memory - 14.88 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 20 Gbit/s
Depth Weight & dimensions - 126 mm
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - No
Design > Colour of product - Black
Design > Form factor - Desktop
EAN - 6935364052683
EANCode - 1210002617024
EAN_code - 6935364052683
Fanless Performance - Yes
Flow control support Network - Yes
Gewicht - 1.59
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 0845973099534
GTIN - 845973099534
GTIN - 1210002617024
GTIN - 1210002617031
GTIN - 6935364052683
GTIN - 6935364052690
Harmonized System (HS) code Logistics data - 85176990
Heat dissipation Operational conditions - 482.17 BTU/h
Height Weight & dimensions - 26 mm
HERSTELLER - TP-LINK
Hoehe - 0.08
HSTNUMMER - TL-SG1210MP
Input current Power - 2.43 A
Input voltage Power - 53.5 V
Laenge - 0.32
LED indicators Design - Yes
Link - https://www.tp-link.com/uk/business-networking/unmanaged-switch/tl-sg1210mp/
Logistics data - Harmonized System (HS) code - 85176990
LongSummaryDescription - TP-Link TL-SG1210MP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE)
MAC address auto-aging supported Network - Yes
MAC address auto-learning supported Network - Yes
MAC address table Data transmission - 4000 entries
Management features - Switch type - Unmanaged
Management features > Switch type - Unmanaged
Manufacturer - TP-Link
Manufacturer - TP-Link Technologies CO. LTD.
Manufacturer_code - TL-SG1210MP
Model - TL-SG1210MP
Model name - TL-SG1210MP
MPN - TL-SG1210MP
Name - TP-Link Switch TL-SG1210MP 10-Port Gigabit PoE
Name - TP-Link TL-SG1210MP, Switch
Name - TP-LINK | 10-Port Gigabit Easy Smart Switch with 8-Port PoE+ | TL-SG1210MP | Unmanaged | Desktop | Power supply type External | 60 month(s)
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Cable types supported - Cat3, Cat4, Cat5, Cat5e
Network - Copper ethernet cabling technology - 10BASE-T, 100BASE-TX
Network - Flow control support - Yes
Network - MAC address auto-aging supported - Yes
Network - MAC address auto-learning supported - Yes
Network - Networking standards - IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Networking standards Network - IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Heat dissipation - 482.17 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features > Power supply type - External
Package depth Packaging data - 315 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 315 mm
Package features > Gross depth master carton - 505 mm
Package features > Gross height (mm) - 240 mm
Package features > Gross height master carton - 370 mm
Package features > Gross width (mm) - 70 mm
Package features > Gross width master carton - 330 mm
Package features > Net weight master carton - 15.92 kg
Package features > Packing quantity - 10 pc(s)
Package features > Palette Qty - 280 pc(s)
Package features > Paper/Pasteboard - 435 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare other - 2.00 g
Package features > Tare weight (kg) - 0.455 kg
Package features > Tare weight master carton - 1.048 kg
Package features > Volume (m3) - 0.005292 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 70 mm
Package weight Packaging data - 1.41 kg
Package width Packaging data - 240 mm
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 315 mm
Packaging data - Package height - 70 mm
Packaging data - Package weight - 1.41 kg
Packaging data - Package width - 240 mm
Packet buffer memory Data transmission - 14.88 MB
Performance - Fanless - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 9
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Combo SFP ports quantity - 1
Ports & interfaces > Ethernet LAN (RJ-45) ports - 9
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)
Power - Input current - 2.43 A
Power - Input voltage - 53.5 V
Power - Power consumption (max) - 141.4 W
Power - Power source - DC
Power consumption (max) Power - 141.4 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 8
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 123 W
Power over Ethernet (PoE) Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) power per port Power over Ethernet (PoE) - 30 W
Power over Ethernet plus (PoE+) ports quantity Power over Ethernet (PoE) - 8
Power source Power - DC
Producer product family - 10-Port Gigabit Easy Smart Switch with 8-Port PoE+
Producer product name - TL-SG1210MP
Product colour Design - Black
ProductName - TL-SG1210MP
Quick start guide Packaging content - Yes
Rack mounting Design - No
ShortSummaryDescription - TP-Link TL-SG1210MP, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
Stck_Kart - 10
Stck_Pal - 0
Storage relative humidity (H-H) Operational conditions - 5 - 90%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Store-and-forward Data transmission - Yes
Storno - Y
Summary - TP-Link TL-SG1210MP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE)
Switching capacity Data transmission - 20 Gbit/s
Switch type Management features - Unmanaged
Technical details > Gross weight - 1.592 kg
Technical details > Net weight - 1.137 kg
Technical details > Producer - TP-LINK
Technical details > Warranty - 60 month(s)
Title - TP-Link TL-SG1210MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Total Power over Ethernet (PoE) budget Power over Ethernet (PoE) - 123 W
Unit Box Height - 0.075
Unit Box Length - 0.32
Unit Box Width - 0.245
Unit Calculated Volume - 0.00588 cubm
Unit Calculated Weight - 1.59 kg
Units per Shipping Box - 1
Vendor Homepage - https://www.tp-link.com/uk-ua/business-networking/soho-switch-unmanaged/tl-sg1210mp/
Warranty - 60
Warranty - 60 months
Weight - 1,41
Weight - 1.6
Weight & dimensions - Depth - 126 mm
Weight & dimensions - Height - 26 mm
Weight & dimensions - Width - 209 mm
Width Weight & dimensions - 209 mm
