Bandwidth > Data transfer rate (max) - 10 Gbps Mbit/s
Category - Root/Electronics/Networks and communication/Switchers
Code - TSW110000000
Data transmission > Jumbo frames - 9216 bytes
Design > Housing material - Aluminium
Design > LED indicators - Yes
EAN - 4779027312958
Eans - 4779027312958
Link - https://teltonika-networks.com/lt/product/tsw110/
Link - https://wiki.teltonika-networks.com/view/TSW110
Management features > Switch type - Unmanaged

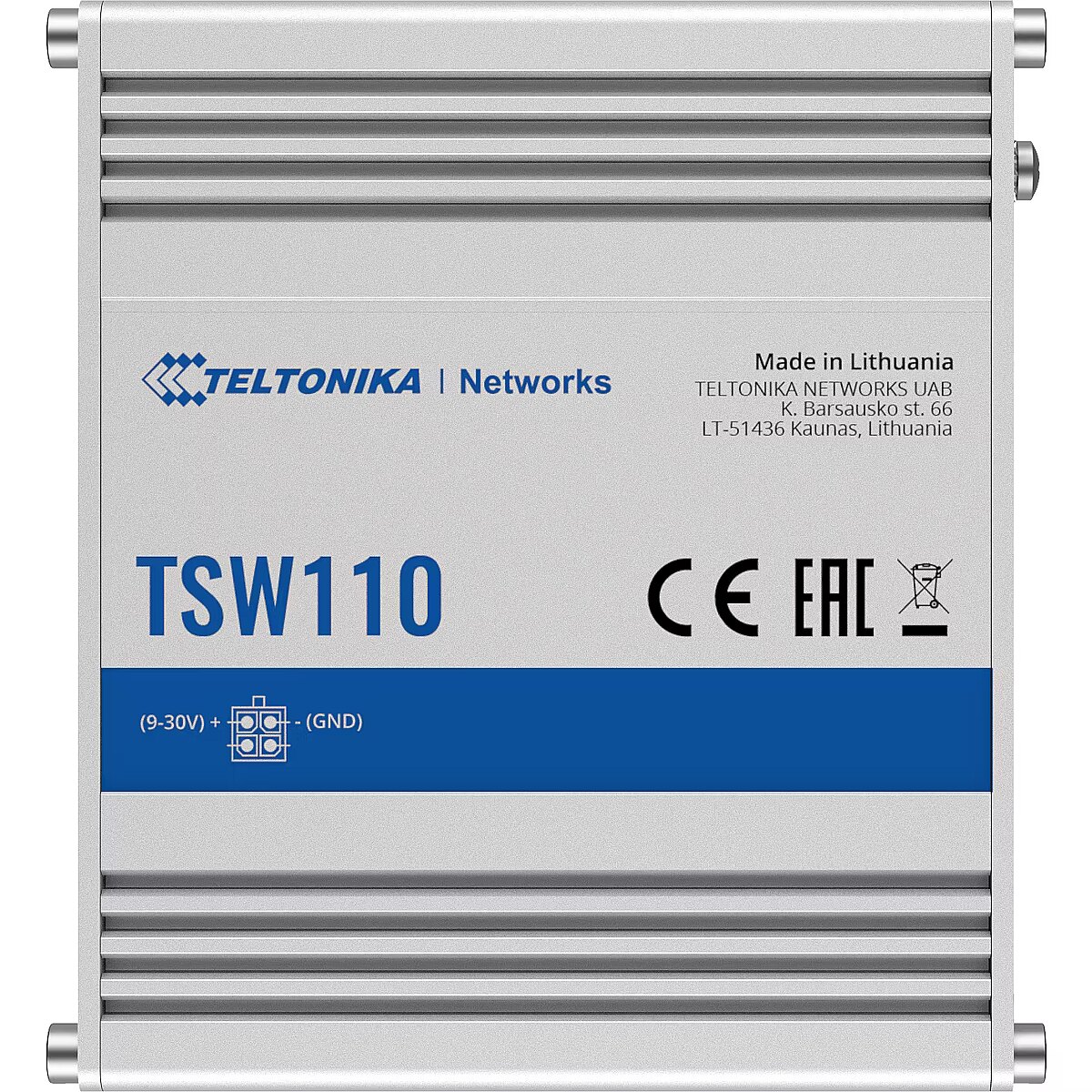

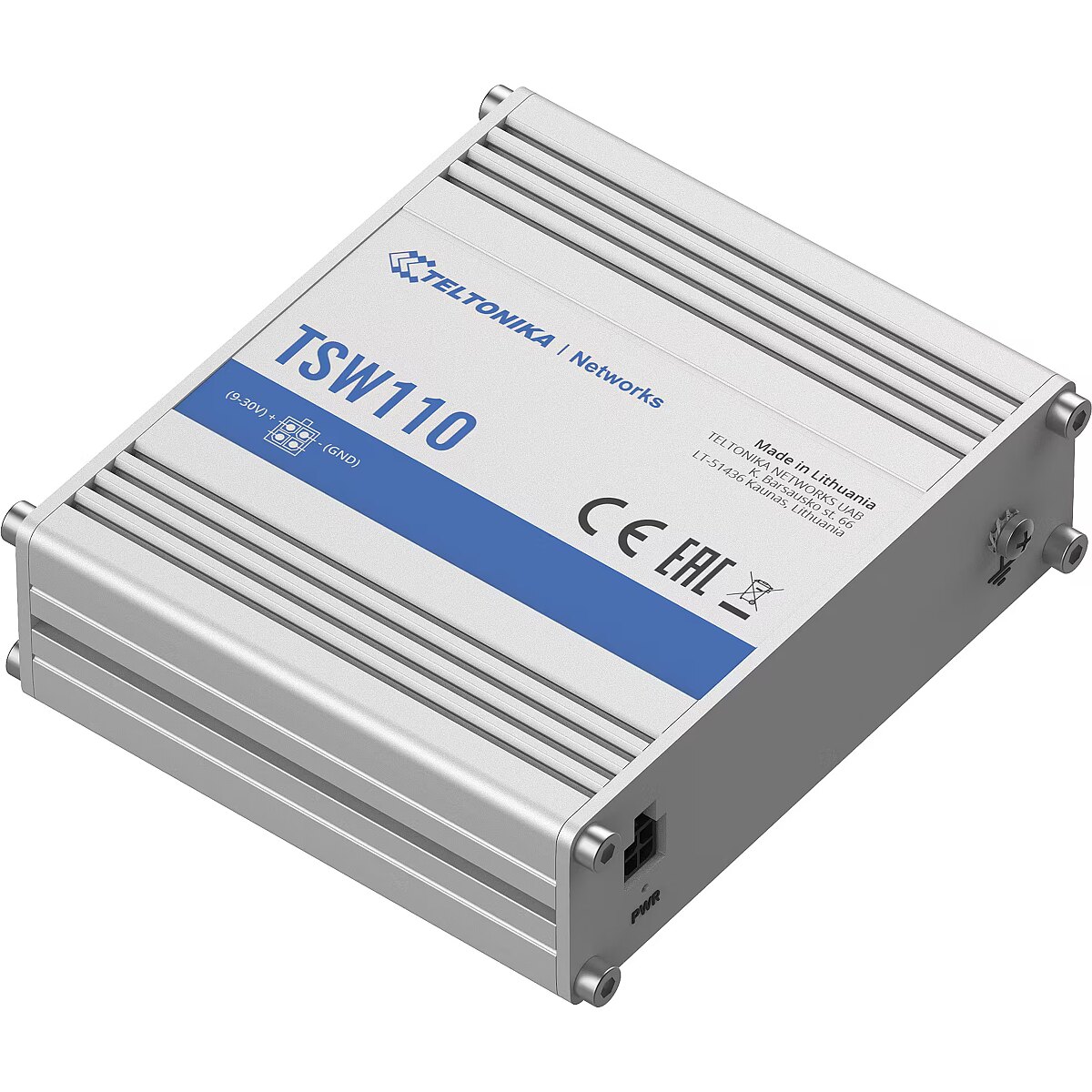

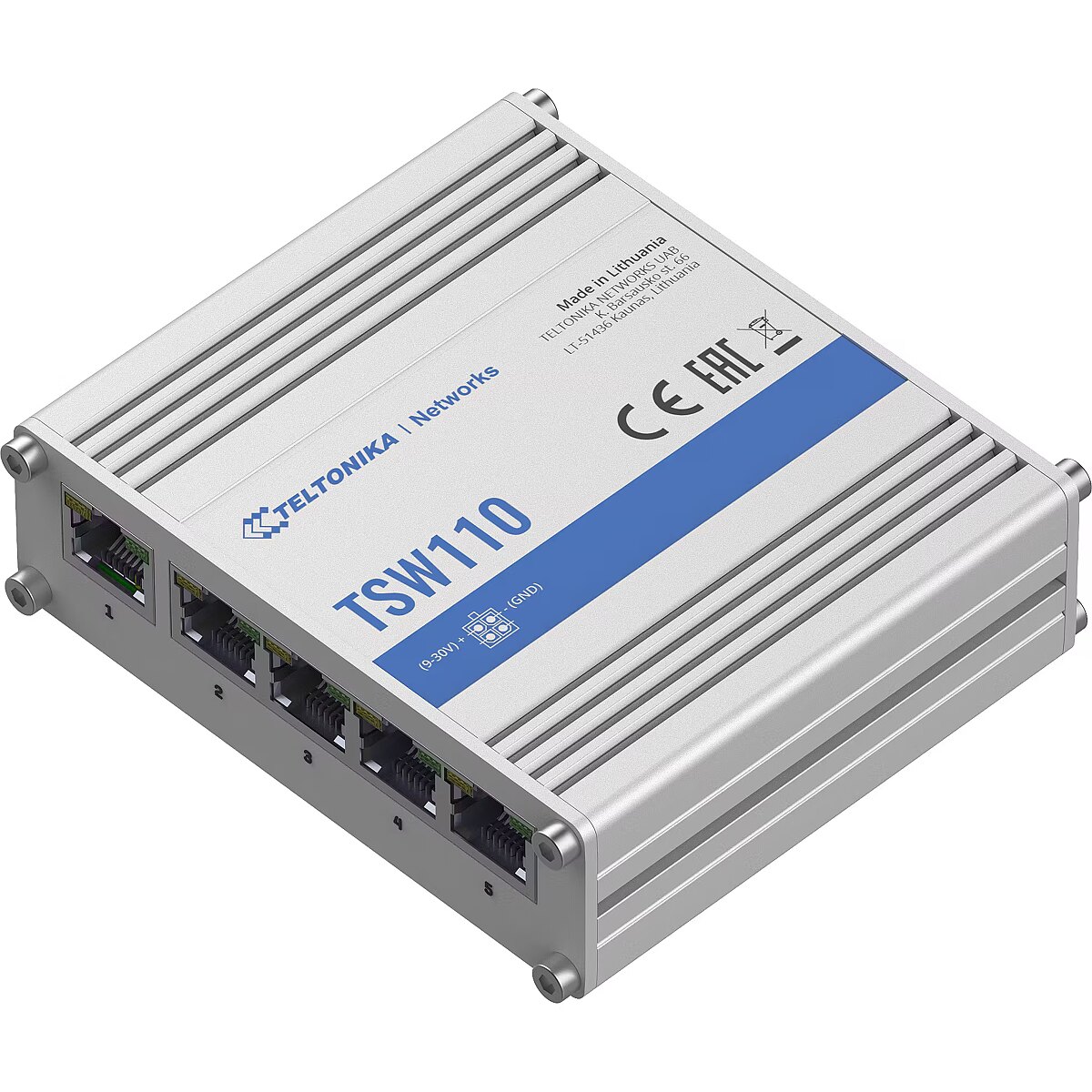

Name - Teltonika TSW110
Name - Teltonika | Switch | TSW110 | Unmanaged | Gigabit Ethernet (copper) ports quantity 5 | 10 Gbps (RJ-45) ports quantity 0 | SFP ports quantity 0 | SFP+ ports quantity 0 | Combo ports quantity 0 | PoE+ ports quantity 0 | Passive PoE ports quantity Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards | 24 month(s)
Operational conditions > Operating relative humidity (H-H) - 10 % to 90 % non-condensing %
Operational conditions > Operating temperature (T-T) - -40 C to 75 C °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 175 mm
Package features > Gross height (mm) - 150.00 mm
Package features > Gross width (mm) - 70 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 470 pc(s)
Package features > Paper/Pasteboard - 82 g
Package features > Tare weight (kg) - 0.082 kg
Package features > Volume (m3) - 0.0018375 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Performance > Buffer size - 128 KB
Ports & interfaces > 10 Gbps (RJ-45) ports quantity - 0
Ports & interfaces > Combo ports quantity - 0
Ports & interfaces > Combo SFP ports quantity - 0
Ports & interfaces > Gigabit Ethernet (copper) ports quantity - 5
Ports & interfaces > Passive PoE ports quantity - Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
Ports & interfaces > POE - PoE passive
Ports & interfaces > PoE+ ports quantity - 0
Ports & interfaces > Predominant port type - 1 Gbps (RJ-45)
Ports & interfaces > SFP+ ports quantity - 0
Ports & interfaces > SFP ports quantity - 0

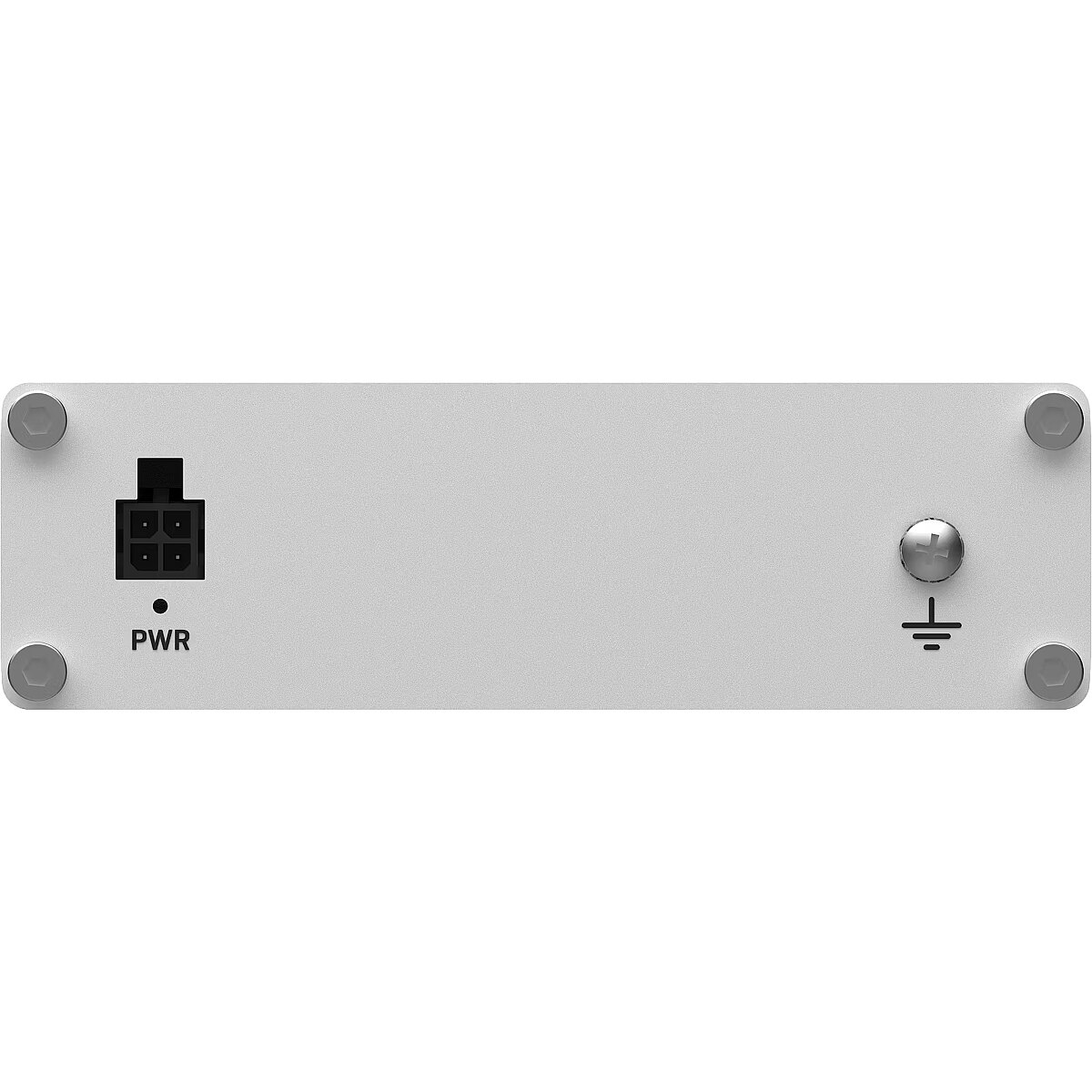

Power > Input voltage - 9-30 VDC (reverse polarity protection, voltage surge/transient protection) V
Producer - Teltonika
ProducerCode - TSW110
Producer product family - Switch
Producer product name - TSW110
ShortDescription - Teltonika TSW110 Switch 5p Gigabit, aluminiowa obudowa
Technical details > Gross weight - 0.287 kg
Technical details > Net weight - 0.205 kg
Technical details > Producer - Teltonika
Technical details > Warranty - 12 month(s)
Warranty - 12
