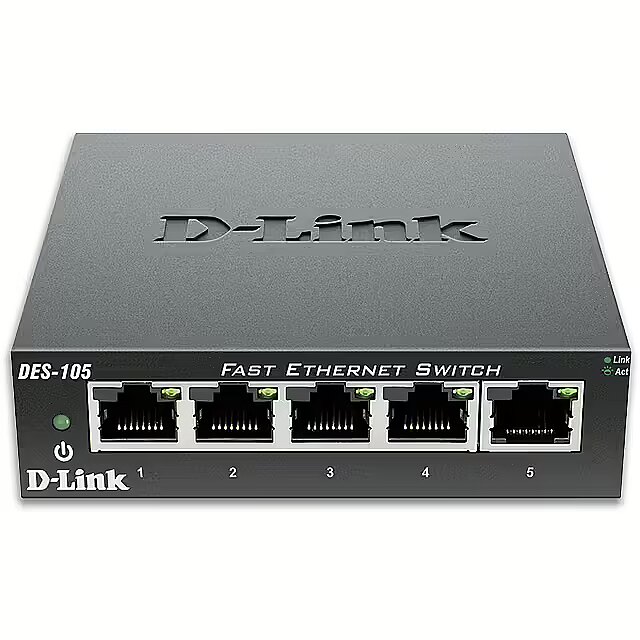

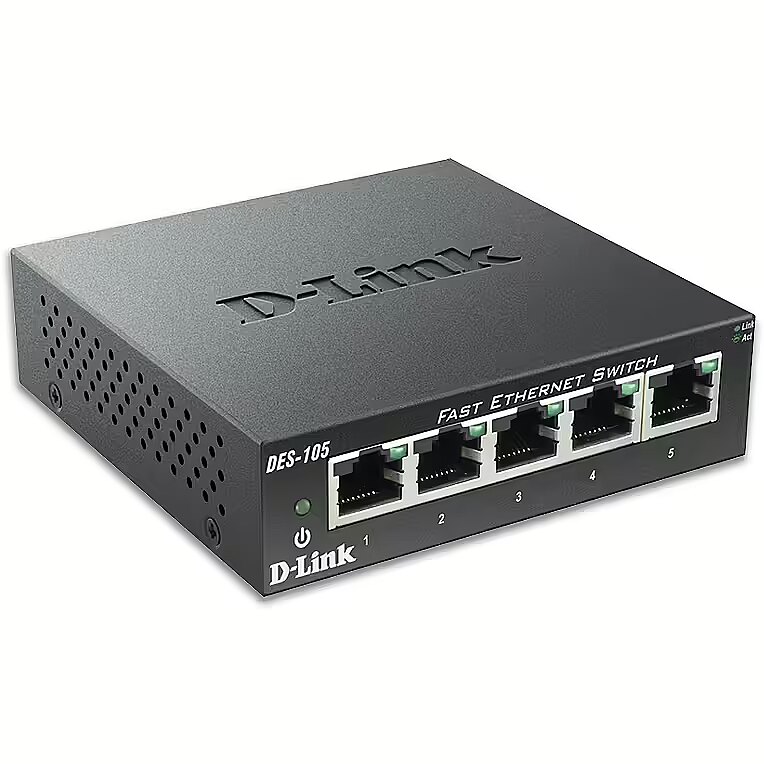

D-Link DES‑105 5-Port Fast Ethernet Switch

Application - Home and small office
ARTIKEL1 - DES-105/E FAST ETHERNET SWITCH
ARTIKEL2 - IN
Brand - D-Link
BrandPartCode - DES-105/E
Breite - 0.17
Category - Network Switches
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates - FCC Class B ICES-003 Class B CE Class B C-Tick Class B VCCI Class B cUL CB
Certificates - Certification - RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
Chassis type - Desktop
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 2000 entries
Data transmission - Maximum data transfer rate - 0.1 Gbit/s
Data transmission - Packet buffer memory - 0.384 MB
Data transmission - Store-and-forward - Yes
Data transmission - Supported data transfer rates - 10/100 Mbps
Data transmission - Switching capacity - 1 Gbit/s
Description - Przełącznik o prędkości magistrali wynoszącej 1 Gbps, wyposażony w 5 gniazd sieciowych 10BASE-T/100BASE-TX. Urządzenie posiada tablicę adresów MAC o pojemności 2000 pozycji.
Design - Housing material - Metal
Design - LED indicators - Link, Power
Design - Product colour - Black
Design - Rack mounting - No
Designation - CE+WEEE
dimension depth - 70 mm
dimension height - 250 mm
Dimensions - 100 x 98 x 28 mm
dimension weight - 557 g
dimension width - 210 mm
ean - 790069368189
EAN - 0790069368189
EANCode - 0790069368189
EAN_code - 0790069368189
Gewicht - 0.48
GRUPPE1 - Network
GRUPPE2 - Lan Switch Unmanaged
GTIN - 790069368189
GTIN - 0790069368189
GTIN - 4055895266532
guarantee - 24
guarantee_type - external
HERSTELLER - D-LINK
Hoehe - 0.07
HSTNUMMER - DES-105/E
Laenge - 0.22
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - - Plug and Play operation- 5 Fast Ethernet ports- Non-blocking architecture: simultaneous full speed on all ports- Fanless, silent operation to fit in any environment- Quality of Service (QoS) queues for traffic prioritisation- Solidly built with metal housing- D-Link Green™ technology, saves energy and increases the product’s lifespanD-Link’s DES-105 Fast Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 5 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes this switch completely silent, ideal for offices, libraries or meeting rooms.Robust designThe DES-105 are designed with durability and performance in mind. The sturdy metal housing will protect the switch against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status, helping to troubleshoot connectivity problems. For a convenient placement, this switch comes with a wall mounting kit and a slot for a Kensington security lock to protect it from theft.QoS (Quality of Service)Despite being an unmanaged, Plug and Play switch, the DES-105 is able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.Power-saving technologyThe DES-105 is part of D-Link Green™, D-Link’s eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implement the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. This helps businesses to save money by reducing their electricity bills with no compromise on performance.
LongProductName - 5x 10/100 Mbps LAN, 1 Gbps, 2K MAC
LongSummaryDescription - D-Link DES-105. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack
MAC address table size - 2000
Management features - Quality of Service (QoS) support - Yes
Management features - Switch layer - L2
Management features - Switch type - Unmanaged
Manufacturer - D-Link
Manufacturer_code - DES-105/E
Mean time between failures (MTBF) - 495709 h
Memory buffer - 384 KB
MPN - DES-105/E
name - 5-port switch 10/100 Metal Housing
Name - D-Link DES-105 100/UNM/ 5
Name - FAST ETHERNET SWITCH
Network - 10G support - No
Network - Auto MDI/MDI-X - Yes
Network - Copper ethernet cabling technology - 100BASE-TX, 10BASE-T
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Networking standards - IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Network architecture - FastEthernet
Number of 10/100 Mbps ports - 5
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -10 - 70 °C
Other features - Connectivity technology - Wired
Other features - Data transfer rate - 200 Mbit/s
Other features - Dimensions (WxDxH) - 100 x 98 x 28 mm
Packaging data - Package depth - 220 mm
Packaging data - Package height - 62 mm
Packaging data - Package weight - 450 g
Packaging data - Package width - 170 mm
Performance - Mean time between failures (MTBF) - 495709 h
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 5

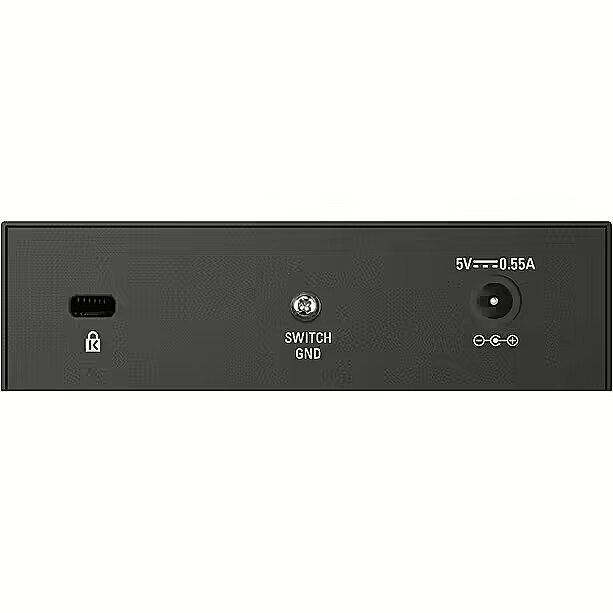

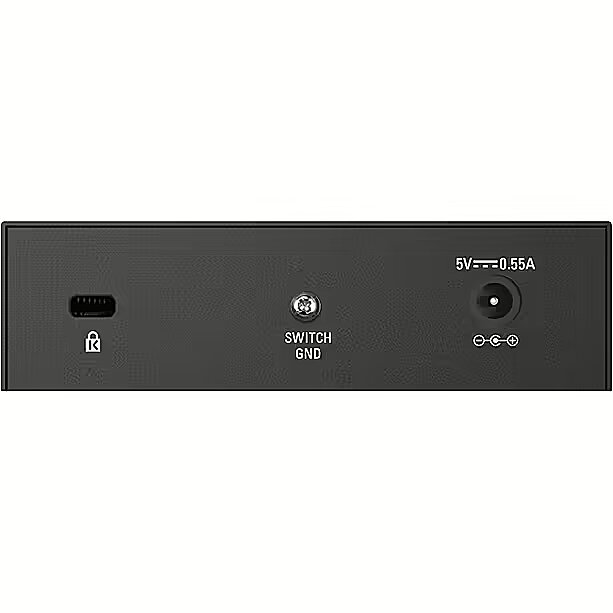

Ports & interfaces - Power connector - DC-in jack
Power - Input current - 1 A
Power - Input voltage - 5 V
Power - Power consumption (typical) - 1.9 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
producer - D-Link
ProductName - DES-105
Security - MAC address filtering - Yes
ShortSummaryDescription - D-Link DES-105, Unmanaged, L2, Full duplex
Stck_Kart - 10
Stck_Pal - 50
Store-and-forward - Yes
Storno - Y
Supported protocols and standards - IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x Flow Control IEEE 802.1p QoS IEEE 802.3az Energy-Efficient Ethernet (EEE) CSMA/CD
Support for Jumbo frames - Yes
Switch class - Unmanaged
Technical details - Master (outer) cases per pallet (air) - 75 pc(s)
Technical details - Master (outer) cases per pallet (sea) - 75 pc(s)
Technical details - Pallet gross length - 120 cm
Technical details - Pallet gross weight (air) - 434 kg
Technical details - Pallet gross weight (sea) - 434 kg
Technical details - Pallet gross width - 110 cm
Technical details - Pallet height (air) - 2.04 m
Technical details - Pallet height (sea) - 2.04 m
Technical details - Products per pallet (air) - 750 pc(s)
Technical details - Products per pallet (sea) - 750 pc(s)
Technical details - Products per shipping (inner) case - 10 pc(s)
Technical details - Shipping (inner) case gross weight - 5.5 kg
Technical details - Shipping (inner) case height - 36.6 cm
Technical details - Shipping (inner) case length - 33.5 cm
Technical details - Shipping (inner) case net weight - 4.5 kg
Technical details - Shipping (inner) case width - 23 cm
Title - D-Link DES-105 Unmanaged L2 Black
URL - https://www.dlink.co.uk/cs/Satellite?c=Product_C&childpagename=DLinkEurope-GB%2FDLProductCarouselMultiple&cid=1197392546824&p=1197356142823&packedargs=ParentPageID%3D1197335068935%26ProductParentID%3D1195808623774%26TopLevelPageProduct%3DBusiness%26categor
vendpn - DES-105/E
WarrantyInfo -
Weight - 0,27
Weight - 0.48
Weight - 265 g
Weight & dimensions - Weight - 265 g
